Schiller DS20 Diagnostic Station

Schiller DS20 Diagnostic Station

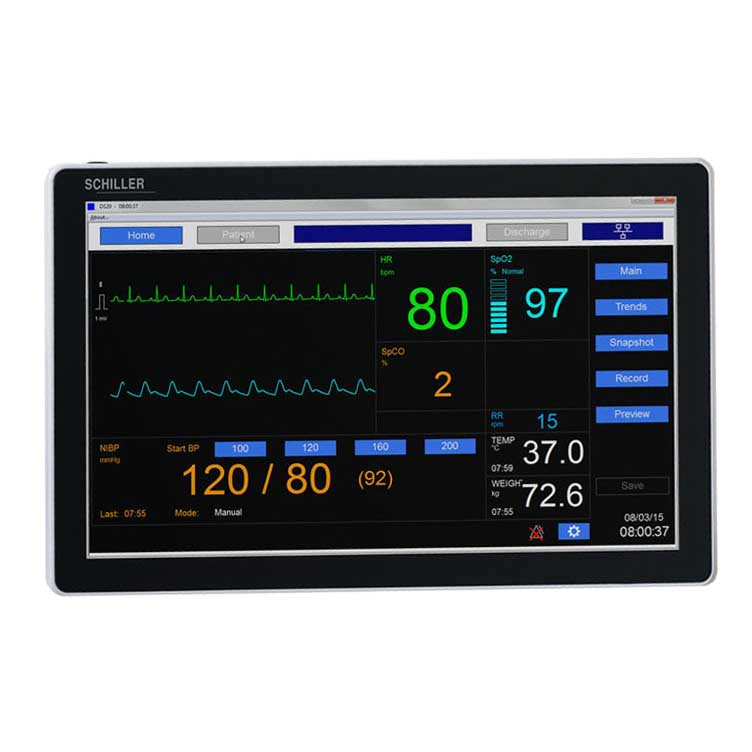

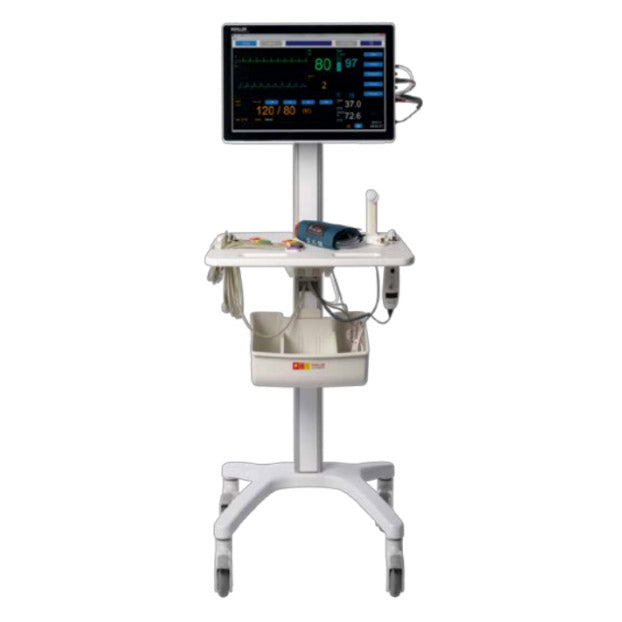

Schiller DS20 Diagnostic Station with Stand
Schiller DS20 Diagnostic Station
Schiller DS20 Diagnostic Station with Stand
Key Features
  • SKU: SCH-0A-800000
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 2 Years
  • Weight: 10.0 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Schiller
    Ships from Manufacturer
  • MPN: 0A.800000
  • Phone: (786) 845-0620
$7,755.00 $6,138.76

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Schiller DS20 Diagnostic Station includes:

  • (1) Masimo M-LNCS RC-4 SpO2 Connecting Cable (#2.310319).
  • (1) Masimo SpO2 Adult Reusable Sensor (#2.100598).
  • (1) 3.5 m NIBP Connecting Hose (#2.100746).
  • (1) 25 - 35 cm Adult Latex Free NIBP Cuff (#2.120018).
  • (1) 3-Lead Snap ECG Cable (#2.400211).
  • (25) ECG Electrodes (#2.155025).
  • (1) Temperature Probe.
  • (1) Mains Cable.
  • User Manual.

Warranty: 2 Years.

The DS20 is a networked device that provides vital signs and ECG all in one device with an integrated final report. Seamless connectivity to EMR, PACS, HIS, or the SEMA3 Cardiology Information System is possible and bidirectional communication allows for easy data access, while Wi-Fi with strong security enables direct and fast transmission.

The DS20 immediately detects connected sensors and automatically displays the corresponding value. This fast operation allows for easy addition or removal of parameters.

Schiller DS20 Diagnostic Station Features:

  • 18.5" high resolution multi-touch screen.
  • Networkable with EMR, HIS, HL7, DICOM, or Schiller's SEMA3 via wifi or physical LAN connection.
  • Automatically detects connected sensors.
  • Can be mounted to a mobile cart or desk stand.
  • Vital signs and ECG all in one device, with integrated final report.
  • Self-explanatory user interface: very little training is needed.
  • Ideal for arrhythmia and atrial fibrillation screening: one ECG channel for display, storage, and printing, with only three electrodes and without undressing the patient.
  • Large interactive touch screen and self-explanatory user interface for maximum user-friendliness.

Schiller DS20 Diagnostic Station Specifications:

  • Dimensions: 18.1" x 10.8" x 3" (460 mm x 275 mm x 77 mm).
  • Weight: 10 lb (4.5 kg).
  • Operating Temperature: 10° - 40°C.
  • Storage Temperature: -10° - 50°C.
  • Operating Humidity: 15 - 95% non-condensing.
  • Storage Humidity: 10 - 95% non-condensing.
  • Operating Pressure: 700 - 1060 hPa.
  • Storage Pressure: 5000 - 1060 hPa.
  • Power Supply: 100 - 240 VAC, 50 or 60 Hz.
  • Power Consumption: Approx. 100 VA (max).
  • Battery Capacity: Approx. 2 hours operating time.
  • Battery Charging Time: Approx. 2.5 hours.
  • Screen: Color matrix touch screen LCD, 18.5".
  • Resolution: 1366 x 768 dots.
  • Trend Measurements: Up to 864 data records can be saved.
  • Display Measurements: Numerical representation of the vital data. Graphical representation of ECG, respiration, peripheral pulse.
  • Measured Values:
    • ECG:
      • Patient Cable: 3-Lead.
      • Displayable Leads: I, II, III, (AVL, AVR, AVF).
    • Resting ECG:
      • 12-Lead Resting ECG: With 10-wire cable, full 12-lead resting ECG with interval and axis measurements, and pacer detection.
      • ETM: (Computer-Aided ECG Interpretation): ETM for adults and children.
    • Rhythm ECG: Rhythm recording of user defined lead.
    • Respiration:
      • Method: Impedance Pneumography using ECG cable.
      • Sensing Lead: II.
    • NIBP Method of Measurement: Oscillometric with linear deflation rate.
    • SpO2 Module/Sensor: Masimo Rainbow SET.

Schiller DS20 Diagnostic Station Configurations:

  • Included Parameters:
    • #0A.800000: ECG (3 Leads), Respiration, Masimo Pulse Oximetry SpO2, NIBP, Wifi, Temperature (probe not included), Spirometer (accessory not included).
    • #0A.800005: ECG (3 leads), Respiration, Masimo Pulse Oximetry SpO2, NIBP, Wifi, Temperature, Spirometer (accessory not included).
    • #0A.800010: ECG (12 leads) including Resting ECG interpretation, Respiration, Masimo Pulse Oximetry SpO2, NIBP, Wifi, Temperature (probe not included), Spirometer (accessory not included).
    • #0A.800015: ECG (12 leads) including Resting ECG Interpretation, Respiration, Masimo Pulse Oximetry SpO2, NIBP, Wifi, Temperature, Spirometer (accessory not included).
  • Additional Included Accessories:
    • #0A.800005: Temperature Probe.
    • #0A.800010:
      • 10-wire banana plug style patient cable (#2.400071).
      • Snap-Clip Adapter for Banana-Plug Cables (#2.155032).
      • Biotabs Disposable Electrodes for Resting ECG (#2.155031).
    • #0A.800015:
      • Temperature Probe.
      • 10-wire banana plug style patient cable (#2.400071).
      • Snap-Clip Adapter for Banana-Plug Cables (#2.155032).
      • Biotabs Disposable Electrodes for Resting ECG (#2.155031).

Schiller DS20 Diagnostic Station Media:

Schiller DS20 Diagnostic Station Brochure

Frequently asked questions

How does the DS20 streamline clinical workflow?
<p>The Schiller DS20 Diagnostic Station is specifically engineered to maximize efficiency and streamline clinical workflow through integration and advanced automation features:</p>

<ul>
<li><strong>Consolidated Data Acquisition:</strong> It combines comprehensive vital signs monitoring (NIBP, SpO2, Respiration, and optional Temperature) with full ECG capabilities in a single unit, eliminating the need for multiple devices and generating an integrated final report.</li>
<li><strong>Intuitive Operation:</strong> The system features an <strong>18.5” high-resolution multi-touch screen</strong> with a self-explanatory interface, minimizing staff training requirements.</li>
<li><strong>Seamless System Integration:</strong> It supports fast, <strong>bidirectional connectivity</strong> via Wi-Fi or physical LAN to major information systems, including EMR, HIS, PACS, HL7, DICOM, and Schiller’s SEMA3 system, ensuring data is instantly available across the network.</li>
<li><strong>Automated Setup:</strong> Workflow is accelerated by <strong>Automatic Sensor Detection</strong>, which immediately recognizes connected patient sensors and displays the corresponding parameters, simplifying setup and monitoring adjustments.</li>
<li><strong>Efficient Screening:</strong> The device supports rapid <strong>arrhythmia and atrial fibrillation screening</strong> using only three electrodes for ECG display, storage, and printing, often allowing procedures without requiring patient undressing.</li>
</ul>
Does the DS20 have advanced EMR connectivity?
<p>Yes, the Schiller DS20 is designed for <strong>advanced, seamless network integration</strong> and supports bidirectional data exchange, making it a key selling point. The system connects easily and integrates with major clinical IT infrastructure:</p>

<ul>
<li><strong>Connection Methods:</strong> Built-in <strong>Wi-Fi</strong> or a physical <strong>LAN connection</strong>.</li>
<li><strong>Integration Protocols:</strong> Supports EMR, HIS, <strong>HL7</strong>, <strong>DICOM</strong>, and Schiller’s dedicated <strong>SEMA3</strong> system.</li>
</ul>

<p>This connectivity ensures efficient data transfer and streamlined final reporting capabilities across the facility.</p>
Is the 18.5" screen high-resolution?
<p>Yes, the Schiller DS20 features a large, <strong>18.5-inch high-resolution multi-touch screen</strong> (1366 x 768 dots).</p>

<p>This screen is designed to enhance the user experience and clinical workflow:</p>

<ul>
<li><strong>Clarity and Detail:</strong> It provides clear numerical representations of vital data and graphical waveform displays for ECG, respiration, and peripheral pulse.</li>
<li><strong>Ease of Use:</strong> The multi-touch screen utilizes a self-explanatory interface, which helps minimize necessary user training time for fast operation.</li>
</ul>
What is the battery life and charging time for the Schiller DS20?
<p>The battery provides approximately 2 hours of operating time. The charging time for the battery is approximately 2.5 hours.</p>
Does the DS20 provide integrated vital signs monitoring?
<p>Yes, the Schiller DS20 Diagnostic Station is a <strong>comprehensive, integrated monitoring system</strong> that efficiently consolidates key vital signs and diagnostic cardiac measurements into one unit. This system is designed for fast operation and detailed final report generation.</p>

<p>The DS20 is equipped to monitor the following parameters:</p>

<ul>
<li><strong>ECG:</strong> Supports standard 3-Lead monitoring and is ideal for arrhythmia/atrial fibrillation screening using minimal electrodes. Optional configurations support full <strong>12-Lead Resting ECG</strong> with pacer detection and <strong>ETM (Computer-Aided ECG Interpretation)</strong>.</li>
<li><strong>SpO2 (Pulse Oximetry):</strong> Utilizes the highly advanced <strong>Masimo Rainbow SET</strong> technology/sensor.</li>
<li><strong>NIBP (Non-Invasive Blood Pressure):</strong> Measured using the reliable oscillometric method.</li>
<li><strong>Respiration:</strong> Measured via <strong>Impedance Pneumography</strong> using the ECG cable.</li>
<li><strong>Temperature:</strong> Temperature monitoring is supported; note that the temperature probe is included only with specific configuration variants.</li>
</ul>
Does the Schiller DS20 support 12-Lead ECG?
<p>Yes, the Schiller DS20 Diagnostic Station supports advanced <strong>12-Lead Resting ECG</strong>, although it is available as an optional configuration.</p>

<p>The system is designed to handle both basic and comprehensive ECG monitoring:</p>

<ul>
<li><strong>3-Lead ECG:</strong> Included as a standard feature, ideal for quick arrhythmia and atrial fibrillation screening (using only three electrodes).</li>
<li><strong>12-Lead Resting ECG (Optional):</strong> This configuration provides detailed analysis and includes crucial diagnostic capabilities:
<ul>
<li><strong>Computer-Aided ECG Interpretation (ETM)</strong> for both adults and children.</li>
<li><strong>Pacer detection</strong>.</li>
</ul>
</li>
</ul>
What are the dimensions and weight of the Schiller DS20?
<p>The Schiller DS20 has dimensions of 18.1” x 10.8” x 3” (460 mm x 275 mm x 77 mm) and weighs 10 lb (4.5 kg).</p>
What configuration options are available?
<p>The Schiller DS20 Diagnostic Station offers four standard configurations, built around two primary factors, allowing you to select the exact diagnostic capability and included accessories:</p>

<ol>
<li><strong>ECG Lead Capability</strong>:
<ul>
<li><strong>3-Lead ECG:</strong> This standard setup is optimized for core vital signs and efficient arrhythmia/atrial fibrillation screening.</li>
<li><strong>12-Lead Resting ECG:</strong> This option provides full 12-Lead Resting ECG capabilities, including advanced Computer-Aided ECG Interpretation (ETM) for both adults and children.</li>
</ul>
</li>
<li><strong>Temperature Measurement</strong>:
<ul>
<li><strong>Includes Temperature Probe:</strong> The necessary temperature probe accessory is bundled with the unit.</li>
<li><strong>Temperature Probe Not Included:</strong> The unit is supplied without the temperature probe.</li>
</ul>
</li>
</ol>
