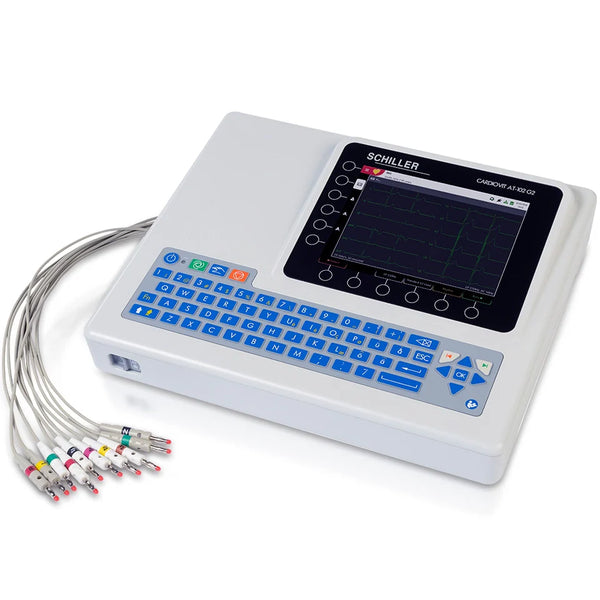

Schiller CARDIOVIT AT-102 G2 EKG

Schiller CARDIOVIT AT-102 G2 EKG
Key Features
  • SKU: SCH-0A-108000
  • Condition: Factory New
  • Country of Origin: Switzerland
  • Warranty: 3 Years
  • Weight: 9.92 lb
  • Ideal for GPs, clinics, and hospitals due to its reliability, efficiency, and high signal quality
  • Caregivers can perform an EKG in just three minutes, from preparation to PDF, thanks to the unique 1-2-3 step process and 3D model features
  • 12-lead Resting and Rhythm ECG with Interpretation
  • Standard and fast bidirectional Wi-Fi communication with HIS/EMR via Schiller Link and Schiller Server

  • Learn more:

Contact The Manufacturer
  • MFR: Schiller Ships from Manufacturer
  • MPN: 0A.108000
  • Phone: (786) 845-0620
$4,900.00 $3,878.78

+Free Shipping*

Select a Configuration
Est. Delivery:

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Schiller CARDIOVIT AT-102 G2 EKG includes Interpretation software, (10x) snap clip electrode adapters, (100x) disposable electrodes, a 10-lead patient cable, pack of paper, power cable, operating manual, and an Interpretation guide.

Warranty: 3 Years - Free from Defects in Material and Workmanship.

The CARDIOVIT AT-102 G2 EKG is a versatile system that offers state-of-the-art technology and connectivity as well as high efficiency in any workflow. ECG/EKG acquisition has never been easier and faster - simply enter or download patient data with PDQ or worklist, acquire ECG, save, print, and transmit data in twenty seconds using only one navigation key.

Thanks to very high sampling frequency and a large frequency band up to 250 Hz, the AT-102 offers optimal signal quality for pediatric ECG. Resting rhythm can be recorded for up to 10 minutes. Full disclosure, HR trend and events can be reviewed, stored, and printed, as well as transmitted to HIS/EMR in PDF, DICOM, or HL7 format.

Features

Schiller CARDIOVIT AT-102 G2 EKG Features

  • Ideal for GPs, clinics, and hospitals due to its reliability, efficiency, and high signal quality.
  • Application Areas: Emergency Department, EMS, Urgent Care, Field Hospitals, Clinics, Primary Care, Internal Medicine, Family Practice, Cardiologist, Pediatric Cardiologist, Research Lab, Home Care, Occupational Health, Telemedicine, and Travel Nurse or Doctor.
  • Caregivers can perform an EKG in just three minutes, from preparation to PDF, thanks to the unique 1-2-3 step process and 3D model features.
  • 12-lead Resting and Rhythm ECG with Interpretation.
  • Standard and fast bidirectional Wi-Fi communication with HIS/EMR via Schiller Link and Schiller Server.
  • Best signal quality and diagnostic algorithms for adult and pediatric patients.
  • High resolution 8" color display.
  • Touch function keys.
  • Easy-to-clean sealed alphanumeric keyboard.
  • More than eight hours battery capacity with ECG printout.
  • Resting rhythm up to 10 minutes (longest on the market).
  • Hook-up adviser with color-coded waveforms and anatomical model.
  • Lead reversal detection.
  • CPT Codes:
    • 93000 - EKG Routine 12-Lead interpretation and report.
    • 93005 - EKG Tracing only.
    • 93010 - EKG Interpretation and Report only.

Specifications

Schiller CARDIOVIT AT-102 G2 EKG Specifications

  • Dimensions: 384 mm x 319 mm x 90 mm.
  • Weight: Approximately 4.5 kg including thermal paper.
  • Sampling Rate: 32,000 Hz - For accurate atrial fibrillation detection.
  • Environmental Conditions:
    • Operating Temperature: 10 to 40 °C.
    • Relative Humidity During Operation: 15 to 95% (non-condensing).
    • Pressure During Operation: 700 to 1060 hPa.
    • Storage Temperature:
      • Transport Temperature: 5 to 50 °C.
      • Humidity During Storage/Transport: -10 to 50 °C.
      • Pressure During Storage/Transport: 500 to 1060 hPa.
  • Mains Power Supply: 100 to 240 VAC, 1.3 to 0.7 A, 50/60 Hz.
  • Battery:
    • Type: Lithium-ion 11.25 V, 6.4 Ah.
    • Description: Mains-independent operation with built-in rechargeable battery.
    • Capacity: 8 hours (normal use with printing every 15 minutes, 2 pages), without Wi-Fi or network operation.
    • Battery Life: 4 Years (under normal operating conditions).
    • Recharging Time (to 100%): Approximately 3.5 hours when the device is switched off.
  • Power Consumption: Maximum 64 VA.
  • Display: Backlit LCD screen for graphic and alphanumeric representation.
  • Display Resolution: 1024 x 768 dots, 8".
  • Printer:
    • Type: High-resolution thermal head printer; 8 dots/mm (amplitude axis); 40 dots/mm (time axis 25 mm/s) for full-size printouts (8.5" x 11").
    • Chart Paper: Thermo-reactive, Z-folded, 210 mm wide (A4).
    • Speed: 12.5 / 25 / 50 mm/s.
    • Sensitivity: 5 / 10 / 20 mm/mV.
  • Resting ECG Review:
    • Display: Grid of 88 mm x 152 mm with different layouts.
    • Speed: 12.5 / 25 / 50 mm/s.
    • Sensitivity: 5 / 10 / 20 mm/mV.
  • Rhythm ECG Review:
    • Display: Grid of 95 mm x 140 mm with different layouts.
    • Speed: 6.25 or 12.5 mm/s.
    • Sensitivity: 2.5 or 5 mm/mV.
  • Interfaces:
    • ECG cable interface.
    • Potential equalization.
    • Network connection (1 Gbit).
    • (2x) USB.
    • (2x) RS-232.
  • Memory: At least 350 ECG recordings, 100 resting rhythm recordings, and 10 exercise ECGs.

Configurations

Schiller CARDIOVIT AT-102 G2 EKG Configurations

  • #0A.108000: Standard (No Connectivity Kit).
  • #0A.108000CTKIT1: With Connectivity Kit #1 (DICOM / HL7 / PDQ).
  • #0A.108000CTKIT2: With Connectivity Kit #2 (DICOM / HL7 / PDQ / XML / Worklist / Orders).

Literature

Schiller CARDIOVIT AT-102 G2 EKG Literature

Schiller CARDIOVIT AT-102 G2 EKG Brochure
