Schiller Cardiovit AT-10 Plus Stress System with Treadmill

The Schiller Cardiovit AT-10 Plus is an integrated system that combines multiple essential diagnostic tools into one high-performance unit, designed to streamline cardiology workflows.

The core integrated functions include:

• Resting ECG
• Exercise ECG (Stress Testing)
• Pacemaker Measurement
• HRV Analysis (Heart Rate Variability)
• Signal Averaged ECG Analysis
• Thrombolysis Software

Additionally, the system offers Full Disclosure Capability, which continuously records and saves the signals of all 12 ECG channels over the past five minutes. This capability is crucial for capturing transient rhythm data. Note that Spirometry is available as an optional add-on feature.

Yes, the Schiller Cardiovit AT-10 Plus is designed with robust connectivity and advanced features to ensure streamlined data integration into your clinical environment.

Key data management capabilities include:

• System Integration: It supports connection to the Schiller Data Management Information System SEMA-200 or your existing Hospital Information System (HIS). Optional WLAN connectivity is also available for efficient bi-directional communication.
• Physical Ports: The unit is equipped with built-in LAN, RS-232, and VGA Output ports for versatile connections.
• Internal Storage: The system features internal memory capable of storing up to 40 ECG recordings. Storage can be expanded with optional features.
• Full Disclosure: To capture complete clinical events, the system offers Full Disclosure Recording, saving the signals of all 12 ECG channels over the preceding five minutes. This reduces the risk of overlooking critical rhythm data.

Yes, the Schiller Cardiovit AT-10 Plus is designed to streamline the clinical workflow through integration and simplified operation.

Key features that enhance efficiency include:

• Intuitive Control: Features direct function keys and on-screen menus, allowing clinicians to instantly activate pre-programmed settings.

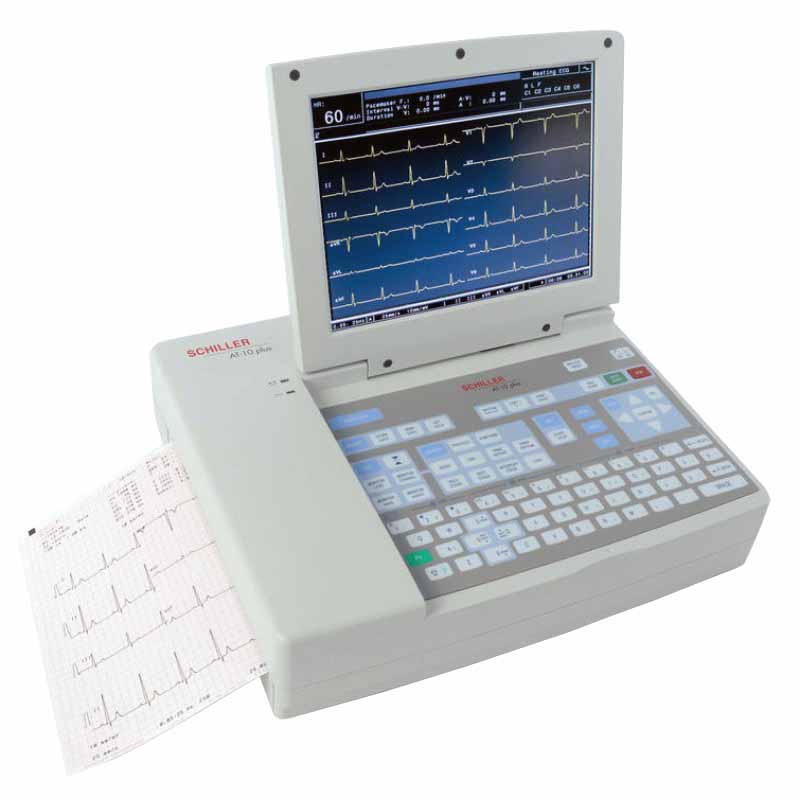

• Clear Visibility: The high-resolution 10.4-inch TFT color screen displays all 12 ECG traces simultaneously, facilitating rapid assessment.
• Seamless Integration: Built-in LAN and RS-232 ports (with optional WLAN) enable bi-directional communication for connectivity with the SEMA-200 data management system or Hospital Information Systems (HIS).
• Comprehensive Data Capture: The Full Disclosure Capability records signals of all 12 ECG channels over the past five minutes, ensuring no critical rhythm data is missed during the stress test procedure.

The Schiller Cardiovit AT-10 Plus Stress System is delivered as a comprehensive, integrated package ready for immediate clinical use, including the diagnostic unit, a treadmill, and essential starting accessories. The full package includes the following components:

• Cardiovit AT-10 Plus Diagnostic Unit: The core high-performance 12-lead ECG and stress testing machine.

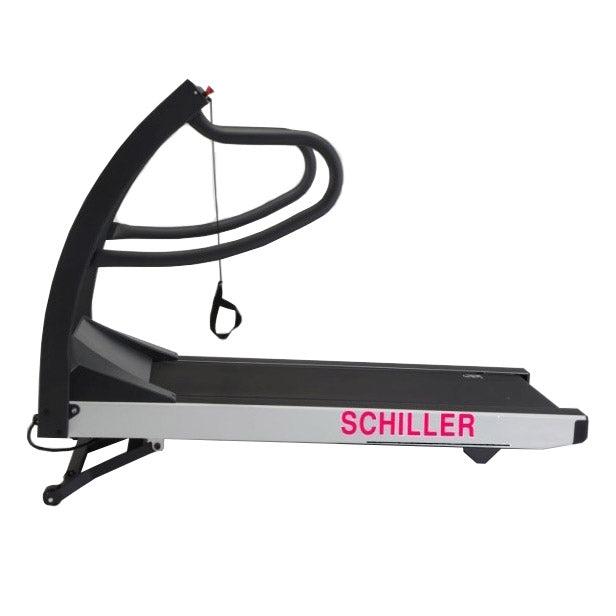

• Compatible Treadmill: Configured based on your specific selection (110 V or 220 V).
• 10-Lead Patient Cable
• 10 Snap Clip Electrode Adapters
• 500 Disposable Electrodes
• 1 Pack of Paper (for the built-in thermal printer)
• Power Cable
• Operating Manual
• Interpretation Guide

Yes, the Schiller Cardiovit AT-10 Plus is designed for streamlined data integration and robust connectivity with clinical networks.

The system supports seamless, bi-directional communication with the Schiller Data Management Information System (SEMA-200) or your Hospital Information System (HIS).

Standard built-in connectivity includes:

• LAN (Ethernet): For reliable wired network integration.
• RS-232 Port
• VGA Output Port: For connecting to an external display.

For wireless flexibility, an optional WLAN function is available via the Schiller Communication Module, enabling wireless bi-directional communication.

Yes, the Schiller Cardiovit AT-10 Plus Stress System includes a built-in 8.5” x 11” printer for immediate documentation. It uses high-resolution thermal printing to ensure clear and reliable results.

The Schiller Cardiovit AT-10 Plus is equipped with robust internal memory for immediate data storage and retrieval during clinical workflows:

• Base Internal Memory: The system has a base capacity to store up to 40 ECG recordings internally.
• Full Disclosure Recording: A key safety feature is the Full Disclosure function, which continuously records the signals of all 12 ECG channels over the past five minutes, preventing the loss of critical rhythm data.
• Data Management & Connectivity: For long-term archiving and streamlined documentation, the unit is built with LAN and RS-232 ports to integrate seamlessly with the Schiller Data Management Information System (SEMA-200) or your Hospital Information System (HIS).

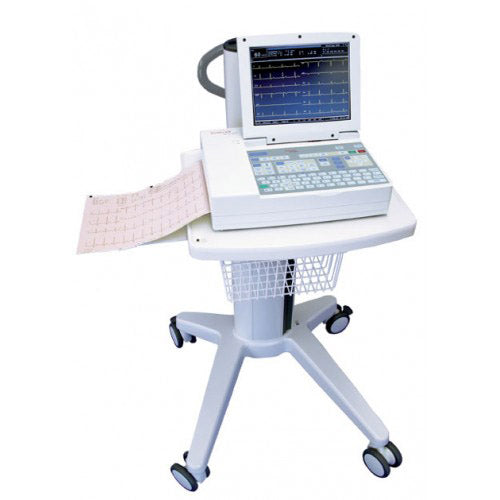

Yes, the Schiller Cardiovit AT-10 Plus ECG console unit is designed to be highly portable and compact for use across various clinical environments.

Here are the physical specifications for the main ECG unit:

• Dimensions (L x W x H): 13.7” x 11.3” x 3.4” (348 mm x 288 mm x 87 mm)
• Weight: Only 9.3 lb (4.2 kg)

This light weight ensures easy handling and mobility when the unit is used with the accompanying treadmill or on a mobile testing cart.

The Schiller Cardiovit AT-10 Plus system utilizes a built-in rechargeable Nickel Cadmium (9.6 V) battery, which provides operational mobility and continuity without constant reliance on mains power.nnHere are the key battery specifications:

• Expected Life: The battery is designed to last approximately 4 years under normal operating conditions.
• Operating Runtime: It provides up to 2 hours of use during normal operation or 3 hours in Standby mode.
• Recharging Time: It takes about 7 hours to reach 90% capacity and approximately 15 hours for a full 100% recharge.

Yes, the Schiller Cardiovit AT-10 Plus Stress System includes a high-resolution 10.4” TFT color screen. This display provides excellent clarity for viewing all 12 ECG traces and other diagnostic information.
