Description
OEMs & Models > EXAM TABLES AND CHAIRS > MIDMARK - RITTER > 411 > MIC294
EXAM TABLES AND CHAIRS
MIDMARK - RITTER
411
RPI Part #MIC294
OEM Part #015-1000-00/015-1293-00/015-1396-00/015-1342-00

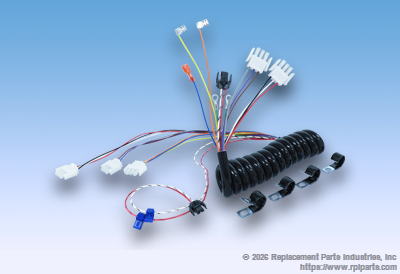

MAIN COILED HARNESS
- Connects main PC board to back and tilt actuators
- Material: 13 conductor cable; black jacket; all connectors and terminals pre-installed
- Includes (4 pcs) loop clamps
- Generic cable - some applications may not use all of the connectors available.
- Also available: Sensor Coiled Harness (RPI Part #MIC297)
- See Notes below for Serial Numbers this part fits
Fits: Base Section
Frequently asked questions
Does this harness meet OEM specifications?
Yes, the RPI MIC294 is precision engineered to meet or exceed OEM specifications. It is specifically designed as a high-quality replacement for Midmark-Ritter part numbers 015-1000-00, 015-1293-00, 015-1396-00, and 015-1342-00, ensuring seamless integration.
Is the cable easy to install?
Absolutely. The harness arrives ready-to-install with all necessary connectors and terminals pre-installed. This design significantly reduces your maintenance time and eliminates the need for complex field wiring.
How durable is the cable jacket?
The cable features a robust, durable black protective jacket. This is specifically chosen to provide the necessary flexibility and resilience required for the internal moving parts within the base section of your exam table or chair.
Are mounting supplies included?
Yes, the kit includes four professional-grade loop clamps. These clamps feature a rubber-cushioned grip to ensure secure routing and professional cable management within the equipment’s base.
Which specific components does this connect?
The harness acts as the vital link between your equipment’s main PC board and the back and tilt actuators, ensuring reliable power and signal transmission for essential adjustments.
How many conductors are in the cable?
The MIC294 is a 13-conductor cable assembly. This allows it to handle the complex electrical requirements of the Midmark-Ritter 411 series equipment effectively.
Will I use all the provided connectors?
Because the RPI MIC294 is a versatile, standardized replacement part, it is designed to work across several configurations. Please note that not all provided connectors may be required, depending on your specific equipment setup.
What is the primary function of the coiled design?
The distinct coiled section is engineered to provide elasticity, which is crucial for internal components that undergo constant movement during the operation of exam tables and chairs, preventing binding or tension-related damage.
Is there support if I have trouble installing it?
Yes. If you have questions regarding installation or specific compatibility with your equipment configuration, you can reach out for technical support at (800) 221-9723.
Are other related harnesses available?
Yes, for comprehensive maintenance, we also offer the related Sensor Coiled Harness (RPI Part #MIC297), which is often used in conjunction with this main harness for full system repairs.
RPI MIC294 Main Coiled Harness
