Rhythmlink Disposable Deep EEG Cup Electrode (100/Box)

Rhythmlink Disposable Deep EEG Cup Electrode

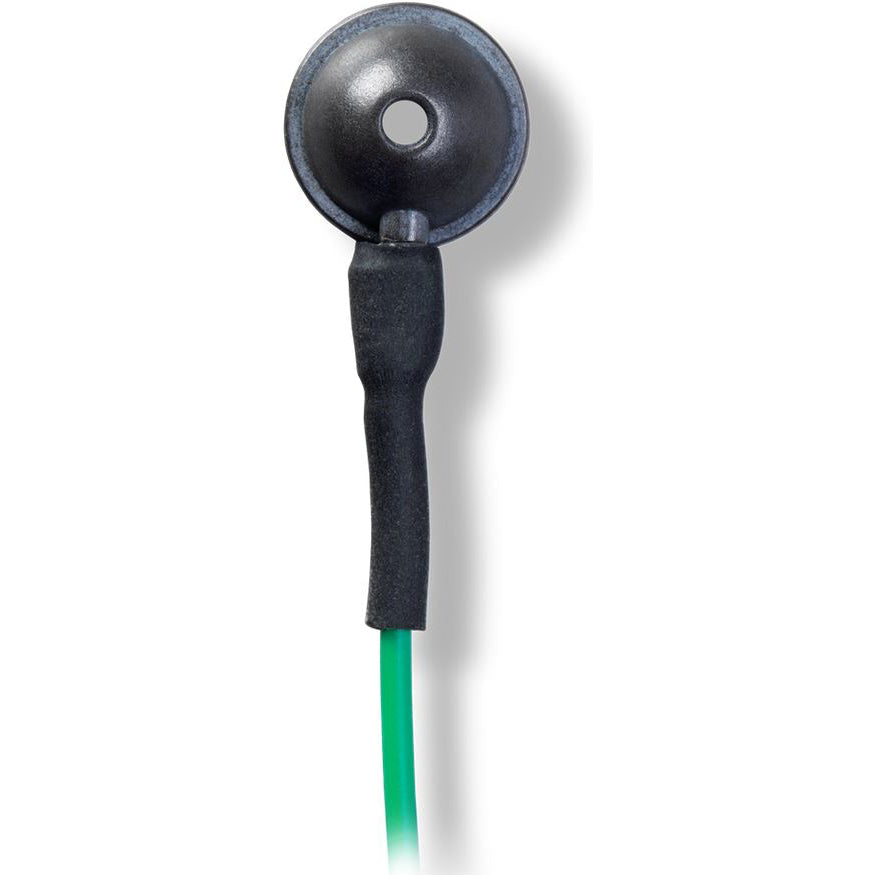

Rhythmlink Disposable Deep EEG Cup Electrode - Side
Rhythmlink Disposable Deep EEG Cup Electrode

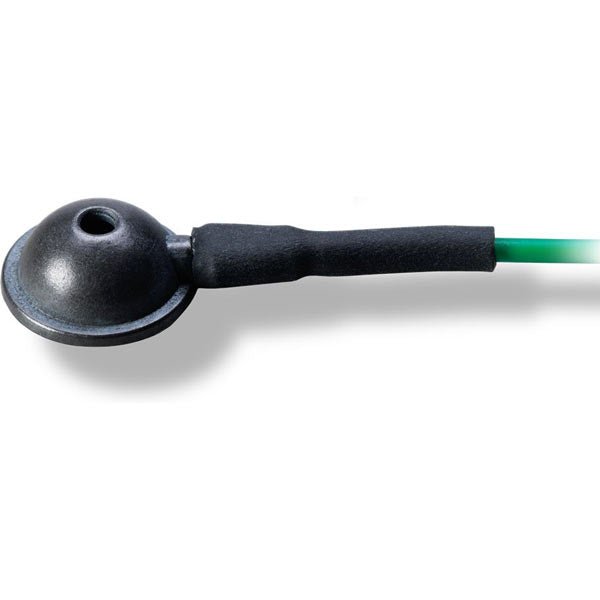

Rhythmlink Disposable Deep EEG Cup Electrode - Side
Rhythmlink Disposable EEG Cup Electrode
Key Features
  • SKU: RHL-DC110
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: Until Use/Expiration
  • Weight: 0.25 lb
  • Holds 2.5 times more conductive material than standard EEG cups
  • Disposable to eliminate cross-contamination risks

  • Learn more:

Contact The Manufacturer
  • MFR: Rhythmlink
    Ships from Manufacturer
  • MPN: DC110
  • Phone: (866) 633-3754
$82.57

+Free Shipping*

Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Rhythmlink Disposable Deep EEG Cup Electrode (100 / Box) was specifically designed to hold a higher volume of conductive material, 2.5 times more to be exact, than the standard EEG cups. Like the standard cups, the deep cups are made with patient safety in mind and, compared to their reusable counterparts, are more cost effective.

Warranty: Until Use or Expiration.

Features

Rhythmlink Disposable Deep EEG Cup Electrode Features

  • A molded safety connector with ample built-in strain relief.
  • High quality recordings.
  • Pre-attached leadwire.
  • Can be used with any gel, paste, collodion, or other similar adhesive.
  • Eliminates cross contamination.
  • Lead Wire Colors: Black, White, Red, Blue, Yellow, Green, Orange, Gray, Brown, and Pink.

Specifications

Rhythmlink Disposable Deep EEG Cup Electrode Specifications

  • Cup Size: 10 mm.
  • Materials:
    • Cup: ABS plastic coated with Ag/AgCl.
    • Leadwire: Tinned copper with PVC jacket.
    • Connector: DIN 42 802.
    • Sterilized: No.
  • Environment:
    • Latex-free electrode.
    • PVC-free packaging.
  • Packaging:
    • Pouch: Polyethylene.
    • Pouch Size: 120 mm x 182 mm.

Lengths

Rhythmlink Disposable Deep EEG Cup Electrode Lengths

  • #DC110: 1.0 m.
  • #DC115: 1.5 m.
  • #DC120: 2.0 m.
  • #DC125: 2.5 m.

Frequently asked questions

Does the deep cup design improve EEG performance?

Yes, the deep cup design is specifically engineered to hold 2.5 times more conductive material than standard EEG cups. This increased capacity ensures optimal signal transmission and enhances the reliability of your EEG recordings.

Are these EEG electrodes safe for patients?

Yes, these Rhythmlink Disposable Deep EEG Cup Electrodes are designed with patient safety as a priority. They are disposable, which completely eliminates the risk of cross-contamination between patients. Additionally, they are latex-free, making them suitable for patients with latex sensitivities.

Does the electrode use high-quality materials?

Yes, these Rhythmlink Disposable Deep EEG Cup Electrodes are built with specific materials focused on optimizing signal quality and ensuring patient safety.

Key material specifications include:

  • Cup Construction: The 10 mm cup is made from ABS plastic and features a specialized coating of Silver/Silver Chloride (Ag/AgCl), which is crucial for high-quality, stable electrophysiological recordings.
  • Leadwire: The pre-attached leadwire is constructed from durable tinned copper conductors protected by a PVC jacket.
  • Connection & Safety: The electrode features a molded safety connector (DIN 42 802) with built-in strain relief for a secure and long-lasting connection. The entire electrode assembly is latex-free.
  • Packaging: The product is shipped in a polyethylene pouch that is PVC-free.
What versatile lead wire length options are offered?

These disposable deep EEG cup electrodes are available in four different lead wire lengths to accommodate various clinical setups and monitoring environments, providing versatility in placement and connectivity.

The available lengths are:

  • 1.0 m
  • 1.5 m
  • 2.0 m
  • 2.5 m
How many deep cup electrodes are in each box?

Each box of Rhythmlink Disposable Deep EEG Cup Electrodes contains 100 units.

This quantity provides a convenient and cost-effective supply, suitable for settings that require high volume and strict contamination control due to the disposable nature of the electrodes.

Does the connector feature robust strain relief?

Yes, this electrode is designed for secure and durable connection. It utilizes a DIN 42 802 standard connector and features a molded safety connector with ample built-in strain relief. This design significantly increases the leadwire’s durability and resistance against pulling forces during clinical use.

What conductive materials work with these electrodes?

These electrodes are compatible with a variety of conductive gels, pastes, collodion, and other similar adhesives, ensuring flexibility for different EEG procedures.

Is the industry-standard DIN 42 802 connector included?

Yes, these Rhythmlink Deep EEG Cup Electrodes are equipped with the DIN 42 802 connector, ensuring broad compatibility with standard EEG monitoring equipment.

Key features related to reliability and durability include:

  • The leadwire is pre-attached to the cup.
  • A molded safety connector is integrated.
  • Ample built-in strain relief is provided where the leadwire attaches, which helps prevent damage and ensures reliable signal acquisition.
Are these electrodes latex-free?

Yes, these electrodes are latex-free, making them suitable for patients with latex sensitivities.

Are leadwires pre-attached for easy setup?

Yes, the Rhythmlink Deep EEG Cup Electrodes feature pre-attached leadwires. This design streamlines the setup process and helps reduce overall preparation time for EEG procedures.

Key details about the leadwires:

  • They are constructed from tinned copper with a PVC jacket.
  • The electrodes utilize a molded safety connector with built-in strain relief, enhancing durability during use.
  • Multiple lead lengths are available, ranging from 1.0 m to 2.5 m.
