Quinton Q-Stress Cardiac Stress System

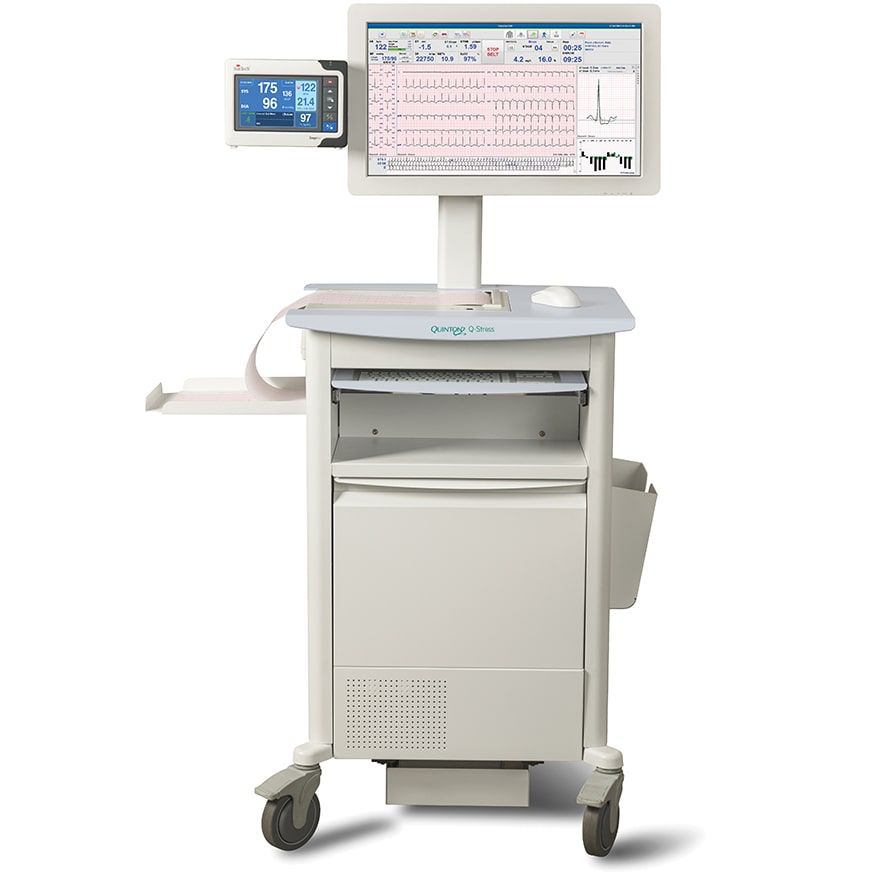

The Quinton Q-Stress Cardiac Stress System includes a PC workstation with keyboard and mouse configured with cardiac stress application software (REV 6), 24" wide-screen color monitor, Z200+ thermal printer, Q-Stress front end (AM12Q or WAM) for signal processing, isolation transformer, system cart with base, keyboard tray, storage shelf, large storage drawer, side storage pocket, 10-lead ECG patient cable with leadwires, stress belt to support the patient cable, and local area network (LAN) support.

Warranty: 13 Months - Parts and Labor.

The Q-Stress is designed to perform a variety of functions, from routine exams to complex cardiac evaluations. The Cardiac Stress System is a customizable, scalable platform offering highly flexible configurations that can be adapted for each application, user, and site.

Quinton Q-Stress Cardiac Stress System Features

• Source Consistency Filter designed to remove noise and maintain ECG integrity.
• Label, store, print, and review events on the fly and include them in final report.
• Examine historical ECG data throughout the exam with real-time full disclosure.
• Optional wireless data acquisition increases workspace flexibility.
• WAM Wireless Acquisition Module digitally transmits ECG data, providing comfort and freedom of movement for the patient.
• VERITAS algorithm provides 12-lead ECG interpretation for adults, adolescents, and children.

Quinton Q-Stress Cardiac Stress System Specifications

• Power Requirements: 100/120 VAC 50/60 Hz 2.5 A nominal; 200/240 VAC 50/60 Hz 1.3 A nominal.
• Operating System: Microsoft Windows 7 Professional 32-bit or 64-bit, or Microsoft Windows 10 Pro 64-bit.
• Protocols:
  • Standard: Bruce, Modified Bruce, Modified Balke, Naughton, USAF/SAM 2.0, USAF/SAM 3.3, Ramped-low, Ramped-medium, Ramped-high, Time-Ramp, and METs Ramp, Astrand (ergometer), pharmacological, and more.
  • Custom: Up to 100 custom protocols assorted.
• Front-End Module:
  • AM12Q with AHA 10-electrode pinch or snap connectors.
  • AM12Q with IEC 10-electrode-pinch or snap connectors.
  • WAM module for wireless ECG acquisition with AHA 10-electrode-pinch connectors.
  • WAM module for wireless ECG acquisition with IEC 10-electrode-pinch connectors.
• ECG:
  • Lead Groups: Standard (Mason-Likar), Cabrera 12-lead.
  • Display Format: 3, 6, 6x2, or 12x1 channels.
  • Performance Standard: AAMI-EC11: gain accuracy, frequency response, CMRR, system noise, dynamic range, and input impedance.
• Display and Analysis Filters: Source Consistency Filter (SCF), muscle artifact, baseline wander, 40 Hz low pass, line frequency.
• Reports:
  • In-Test: 12-Lead, average beat report, 1-page write screen, continuous rhythm, arrhythmia events.
  • Final: Summary, tabular, worst case, average beats by stage or by minute, in-test ECG reports, trend graphs and peak exercise. Reports can be viewed, printed, saved in PDF format, emailed or exported in PDF, XML, and DICOM.
  • Custom: Unlimited customizable reports.
• Outputs: TTL pulse and analog signals for QRS detection synchronization using any ECG lead.
• External Device Interfaces:

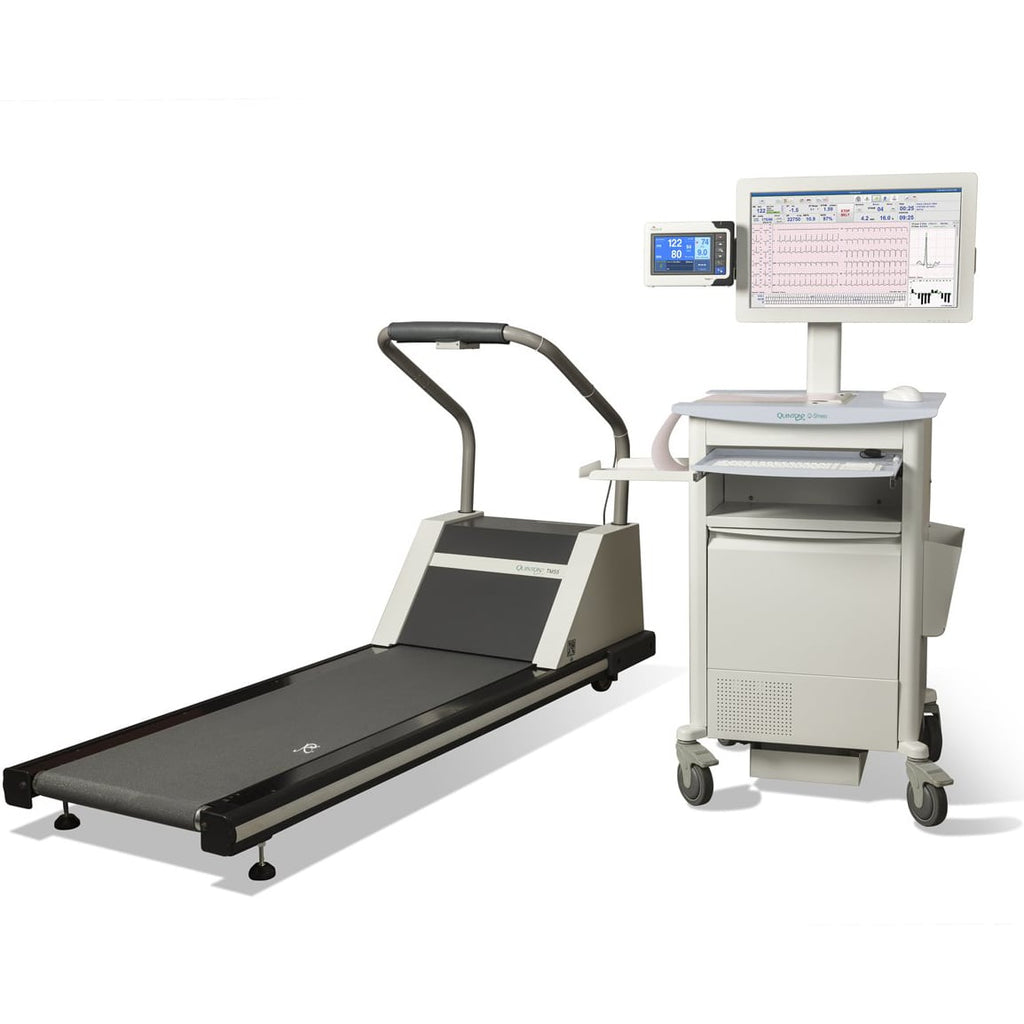

  • Treadmills: TM 55/65, Trackmaster TMX428 and TMX425.
  • Ergometers: Compatible with Ergoline and Lode communication protocols.
  • Blood Pressure Monitors: SunTech Tango+ and Tango M2.
• Printers:
  • Thermal: High-resolution Z200+ with automatic feed and continuous printing capability (requires additional network port).
  • Laser: Optional compact HP M501dn laser printer with high-quality print (recommended).
  • Paper: 8.5" x 11" (letter) or 210 mm x 300 mm (A4).
• Network Interface: Microsoft-compatible networking for storage, distribution, and email; 100 Mbps connection or better is required.
• Paper: Smart (210 x 280 mm), perforated Z-fold thermal cued paper with full grid; 250 sheets stored in paper tray.
• Export/Communication Protocol/Format: TCP/IP, PDF, XML, HL7, DICOM.
• Remote Technical Service Interface: Remote service increases system uptime availability and decreases the user's requirement to assist the troubleshooting process. Available via network or desktop connections (only in the US).
• Display: 24" (609 mm), perforated Z-fold thermal cued paper with full grid; 250 sheets stored in paper tray.
• System Dimensions: 22.5" x 24.6" x 62.5" (57 cm x 63 cm x 159 cm).
• Weight: Approximately 270 lb (122.5 kg).
• TM55 and TM65 Treadmill Specifications:
  • Overall Dimensions:
    • TM55: 46.5" x 80.2" x 29.9" (118 cm x 204 cm x 75.9 cm).
    • TM65: 46.5" x 90.2" x 29.9" (118 cm x 229 cm x 75.9 cm).
  • Running Surface Dimensions:
    • TM55: 6.3" x 55" x 20" (16 cm x 140 cm x 51 cm).
    • TM65: 6.3" x 65" x 20" (16 cm x 165 cm x 51 cm).
  • Optional Side Handrails Dimensions:
    • TM55: 24" x 40" (61 cm x 102 cm).
    • TM65: 44" x 40" (112 cm x 102 cm).
  • Treadmill Weight:
    • TM55: 352 lb (160 kg).
    • TM65: 375 lb (170 kg).
  • Shipping Weight:
    • TM55: 500 lb (227 kg).
    • TM65: 525 lb (238 kg).
  • User Weight Capacity: 500 lb (227 kg).
  • Speed Range: 0.8 mph to 9.6 mph (1.3 km/h to 15.4 km/h) in 0.1 mph increments.
  • Incline Range: 0% to 25%, in 0.5% increments.
  • Power:
    • Low Voltage: 100/120 VAC @ 20 A; 50/60 Hz; NEMA 5-20R non-locking receptacle; Single-phase dedicated circuit.
    • High Voltage: 200/230 VAC @ 10 A; 50/60 Hz; NEMA 6-15R non-locking receptacle; Single-phase dedicated circuit.

Quinton Q-Stress Cardiac Stress System Configurations
