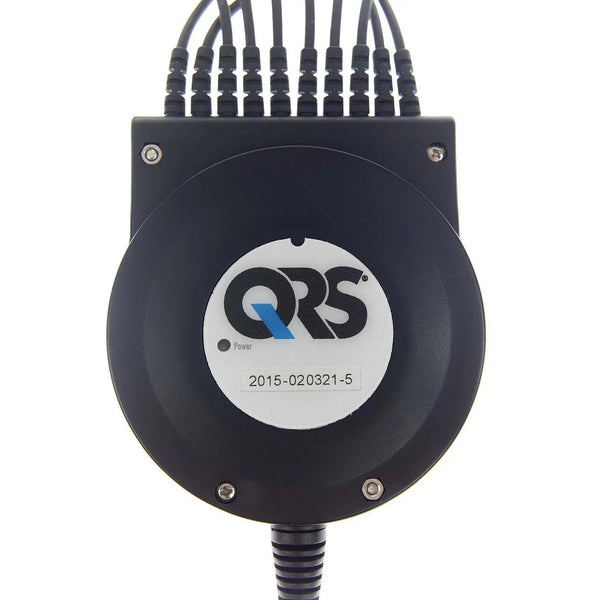

QRS Universal 12-Channel ECG

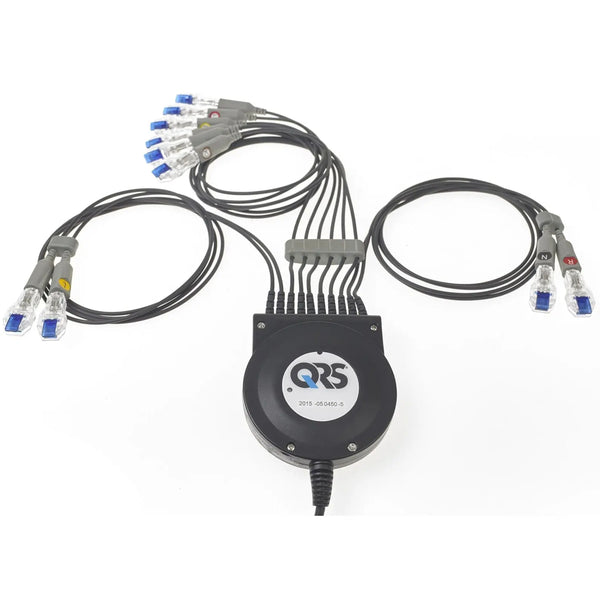

The QRS Universal 12-Channel ECG (#Z-7000-0301) includes everything needed for accurate and comprehensive diagnostic testing:

• (100x) Resting ECG Tab Electrodes.
• (10x) Sure-Lock Snap and Tab Electrode Adapters (#5000-1917).
• Lead Placement Guide.
• Office Medic Software.

Warranty: 3 Years (Device) / 1 Year (Lead Wires and PC Connection Cable) - Free from Defects in Material and Workmanship.

The Universal ECG Resting 12-Channel unit turns an off-the-shelf computer into a full-functioning ECG. Connect the Universal ECG to a PC, laptop, or tablet to acquire, store, and analyze up to 12-channels of high-resolution ECG data. Perform resting ECG anytime, anywhere, with unparalleled ease-of-use.

The Universal ECG saves you money by eliminating thermal paper and calibration and minimizing required maintenance.

ECG testing has increased the diagnosis of heart disease. ECGs provide physicians a baseline to compare the health of a heart on a recurring basis. They also help diagnose, monitor, and treat patients with symptoms of heart health issues.

QRS Universal 12-Channel ECG Features

• Efficient: Reports are saved as PDFs on the PC. Easy connection to EMRs.
• Accurate:
  • Proven filtering and interpretation algorithms.

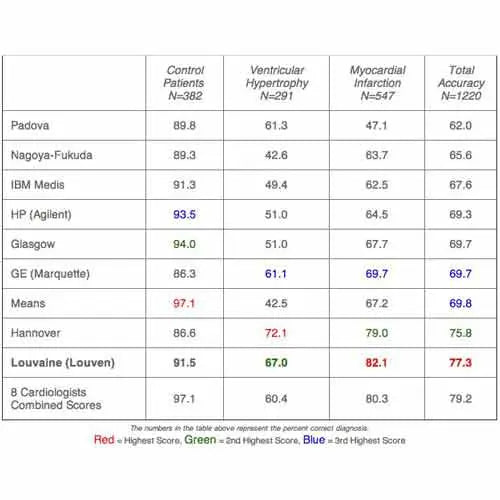

  • Uses the Louvaine algorithm that had the best total accuracy of the nine popular algorithms compared by cardiologists to a standardized database of ECG tracings.
• Customizable Reports: Review and zoom into data with electronic calipers, enter comments, and modify the interpretation before confirming the results.
• Office Medic Software: An easy-to-use software that ships with all QRS ECGs and spirometers. Office Medic allows you to acquire, store, and review diagnostic data using an off-the-shelf laptop, desktop, or tablet.
  • Instantly stores the test data in its central database allowing you to manage and review it from anywhere.
  • Create customizable reports in PDF, JPEG, and TIFF formats to integrate with your EMR.
  • ECG Reports Options:
    • a) 3x4 Simultaneous.
    • b) 3x4 Sequential.
    • c) 6x2 ECG.
    • d) 6x1 ECG.
    • e) Averaged Complexes.
    • f) Measurements Report.
    • g) Avg. Zoom Report.
    • h) Zoom Report.
  • Language Options: English, French, German, Italian, Portuguese, Spanish, and Japanese.
  • System Requirements: An available USB 2.0 or higher USB port and Office Medic version 5.4 or higher.
• Interpretation: Rhythm, Morphology.
• Narrative interpretation.
• Leads Off Indicators: Connection status for each lead is shown on Acquisition screen.
• Draws its power from the PC: No batteries are required - the power is drawn from the PC or tablet it is connected to by the USB port.
• Lightweight and Portable: The Universal ECG weighs less than 12 ounces and can easily be transported to new patient rooms, clinic locations, or any off-site location where an ECG needs to be performed.
• Ready to use out of the box.
• Manufactured under an ISO 13485 Registered Quality Management System. Also CE marked in accordance with MDD 93/42/EEC and has FDA 510K Clearance.

QRS Universal 12-Channel ECG Specifications

• Hub Weight: 250 - 335 grams (depending on cables).
• Hub Dimensions: 85 mm x 91 mm x 20 mm.
• Patient Leads: 12-Lead Cable (10 Patient Leads).
• Patient Leads Length:
  • Limb: 1 meter.
  • Chest: 0.6 meter.
• PC Connection Length: 1.8 meters (USB A type connector).
• Electrode Connections: 4 mm Banana plug with "tab" or "snap" connectors.
• Gain Sensitivity: 5, 10, 20 mm/mV.
• Speed: 12.5, 25, and 50 mm/s.
• Input Range: ± 6 mV.
• Acquisition Sample Rate: 1000 samples/second (Compressed to 500 Hz with peak picking and averaging algorithm).
• Heart Rate Range: 20 - 170 bpm.
• Display and Operating Console: Dependent on PC (supplied by user).
• Frequency Response: 0.05 - 175 Hz ± 3 dB.
• Case Material: ABS Plastic.
• Defibrillation Protection: Patient leads are isolated from system and operator, with 4 kV protection.
• Common Mode Rejection: -60 dB (minimum).
• Supply Voltage: 4 - 16 V DC.
• Supply Current: Less than 17 mA DC.
• Permanent Filters:
  • High Pass: 0.05 Hz 1st order.
  • Low Pass: 170 Hz 1st order.
  • Baseline Wander: Baseline reset by adaptive zeroing algorithm.
• Notch Filter (Mains Noise Rejection):
  • 50 Hz 4th order Butterworth, 49.1 to 50.9 Hz.
  • 60 Hz 4th order Butterworth, 59.1 to 60.9 Hz.
• Low Pass (Muscle Artifact Filter): 35 Hz 4th order.
• Safety Standards: Complies with AAMI EC11, EN60601-1, EN60601-2, EN60601-2-25.
• Environmental Conditions:
  • Operating Temperature: 0 to 40 °C.
  • Storage Temperature: -20 to 70 °C.
  • Humidity: 85% maximum (non-condensing).
