- Condition: Factory New
- Warranty: 1 Year
- Weight: 17.0 lb
-
Learn more:
- MFR: Burton Ships from Manufacturer
- MPN: WML35W45EC120
- Phone: (800) 444-9909
Frequently asked questions
What type of high-quality lens is used?
The Burton Wave LED Magnifier utilizes a high-quality optical system designed for clarity and precision, featuring:
- Lens Type: Rectangular white crown quality glass.
- Magnification: 3.5 diopters, providing 1.88X magnification power.
- Dimensions: The lens measures 6.75 inches by 4.5 inches.
- Focal Length: 11 inches.
This specific lens construction ensures shadow-free magnification and enhances 3D visual detail, making it ideal for detailed clinical or inspection environments. Note that higher magnification lenses (4, 6, and 10 diopters) are available as optional accessories.
What is included with the LED Magnifier?
The Burton Wave LED Magnifier ships factory new and includes all the necessary components for standard table mounting:

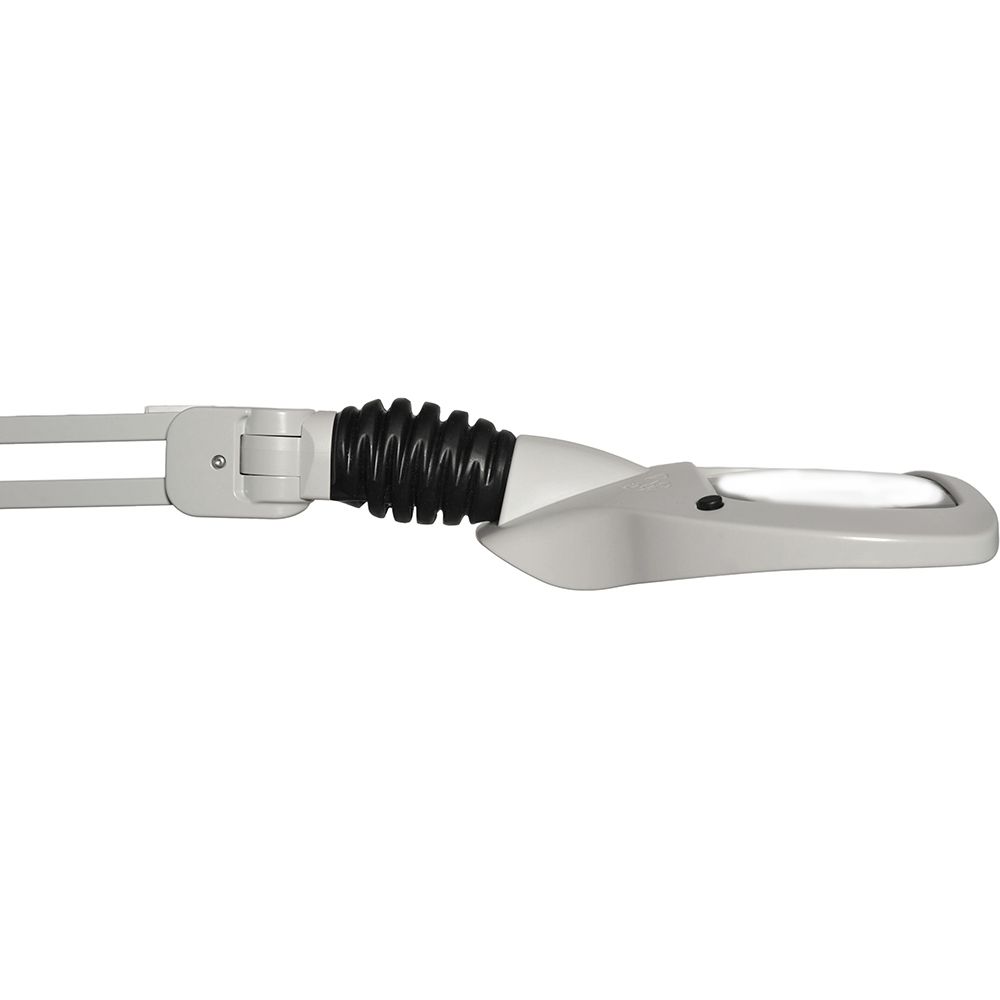

- Magnifier Head and K-Arm Assembly: This includes the powerful 3.5 diopter white crown quality glass lens and the energy-efficient, dimmable LED illumination system. The head is supported by the 45-inch, 3-pivot K-Arm that uses a heavy-duty spring to ensure stable, drift-free positioning.

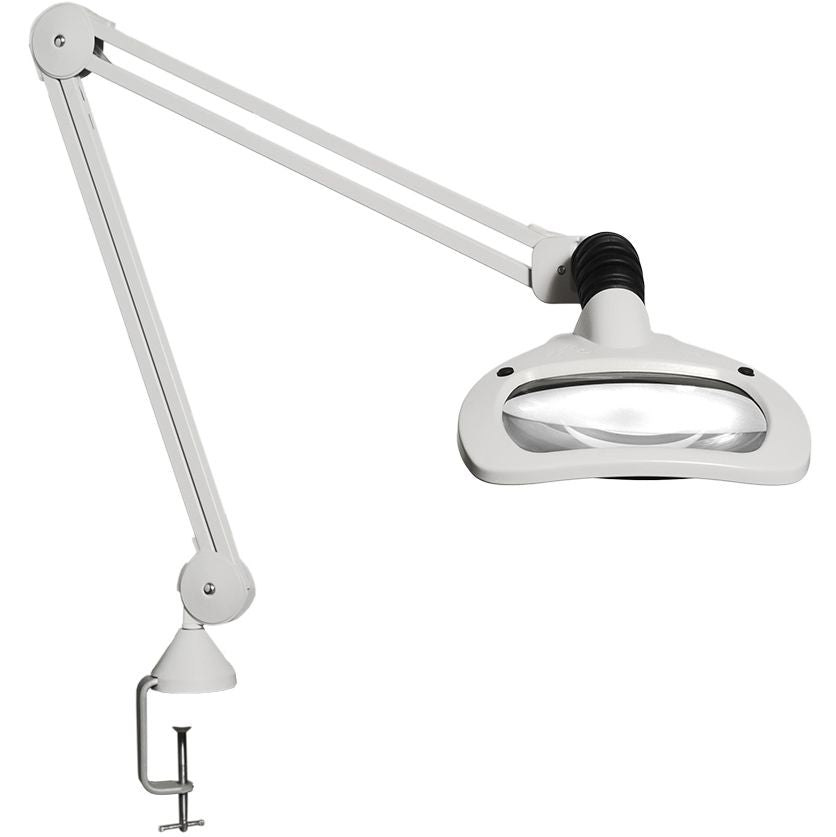

- Table Edge Clamp Mount: A durable clamp is included standard for securely attaching the magnifier unit to the edge of a table or countertop.
Is the 45-inch K-Arm drift-free?
Yes, the Burton Wave LED Magnifier is engineered for exceptional stability and precise placement. It utilizes a robust 45-inch, 3-pivot K-Arm structure that includes a heavy-duty spring mechanism. This construction ensures the arm is completely drift-free and remains exactly where you position it, making detailed inspection work easy and stable.
Does the LED lighting have a long lifespan?
Yes, the integrated LEDs in the Burton Wave LED Magnifier are designed for exceptional longevity and durability, minimizing the need for replacement.
- Average Lifespan: The LEDs are rated for an average lifespan of 50,000 hours.
- Illumination Quality: Lighting is provided by two 6-watt dimmable LED modules, delivering a high illuminance of 4,600 lux (typical use) at a neutral 4,000 Kelvin color temperature (CRI 80).
- Energy Efficiency: The unit also features significant energy-saving controls, including 50% to 100% step dimming and an automatic shut-off feature that activates after 9 or 4 hours of use.
Is the Wave LED Magnifier light dimmable?
Yes, the Burton Wave LED Magnifier features two dimmable 6-watt LED modules. You can precisely control the illumination using 50% to 100% step dimming for optimal viewing comfort and energy efficiency.
What accessories are available for the Burton Wave LED Magnifier?
While the Burton Wave LED Magnifier includes a table edge clamp standard, several additional accessories are available for separate purchase to increase its versatility:
- Alternative Mounting Options: Accessories for a floorstand or a surface mount are available if you require different installation types.
- Higher Magnification Lenses: You can upgrade the optics with optional replacement lenses in 4, 6, or 10 diopters. (The standard lens provides 3.5 diopters/1.88X magnification.)
Is the Burton Wave LED Magnifier energy efficient?
Yes, the Burton Wave LED Magnifier is engineered for significant energy efficiency, featuring high-performance components and smart energy-saving controls.
Key features ensuring energy efficiency and longevity include:
- Low Power Consumption: The unit has an average total power consumption of just 15 Watts.
- Dimmable Control: It uses two 6-watt LED modules that allow for 50% to 100% step dimming, enabling you to adjust brightness while conserving power.
- Automatic Shut-Off: An integrated timer provides a selectable 9-hour or 4-hour automatic shut-off to prevent unnecessary energy use.
- Exceptional Lifespan: The high-quality LEDs are rated for an impressive average lifespan of 50,000 hours, minimizing maintenance and replacement costs.
Does the Burton Wave LED Magnifier have any safety certifications?
The Burton Wave LED Magnifier is UL/cUL listed, ensuring it meets safety standards.
What are the specifications of the dual LED lighting?
The Burton Wave LED Magnifier features two dimmable 6-watt LED modules (12W total nominal output) engineered for high efficiency and shadow-free illumination.Key lighting specifications include:* Illuminance: Provides 4,600 lux (typical use), ensuring powerful brightness.* Color Temperature: Neutral white light at 4,000 Kelvin.* Color Rendering Index (CRI): 80, offering excellent color rendition for clinical settings.* Lifespan: The LEDs boast an average lifespan of 50,000 hours.For energy saving, the unit includes 50% to 100% step dimming control and an automatic shut-off feature (9 or 4 hours).
Is the magnifier suitable for clinical settings?
Yes, the Burton Wave LED Magnifier is ideally suited for demanding professional environments requiring bright, shadow-free, and precise magnification. It is recommended for use in:
- Clinical Settings: Perfect for detailed medical, dental, or veterinary examinations.
- Laboratory Environments: Excellent for precision work, analysis, and research.
- Detailed Inspection: Suitable for any technical workspace that requires high-quality, high-illumination (4,600 lux) inspection.
