Burton Outpatient II Examination Light - Single Fastrac Mount

Burton Outpatient II Examination Light - Single Fastrac Mount
Burton Outpatient II Examination Light - Single Fastrac Mount
Burton Outpatient II Examination Light - Single Fastrac Mount
Burton Outpatient II Examination Light - Single Fastrac Mount
Key Features
  • SKU: PHL-OP216ST

  • Learn more:

Contact The Manufacturer
  • MFR: Burton
    Ships from Manufacturer
  • MPN: OP216ST
  • Phone: (800) 444-9909
$7,289.00

+ Free Shipping

Select a Voltage

Item Discontinued

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

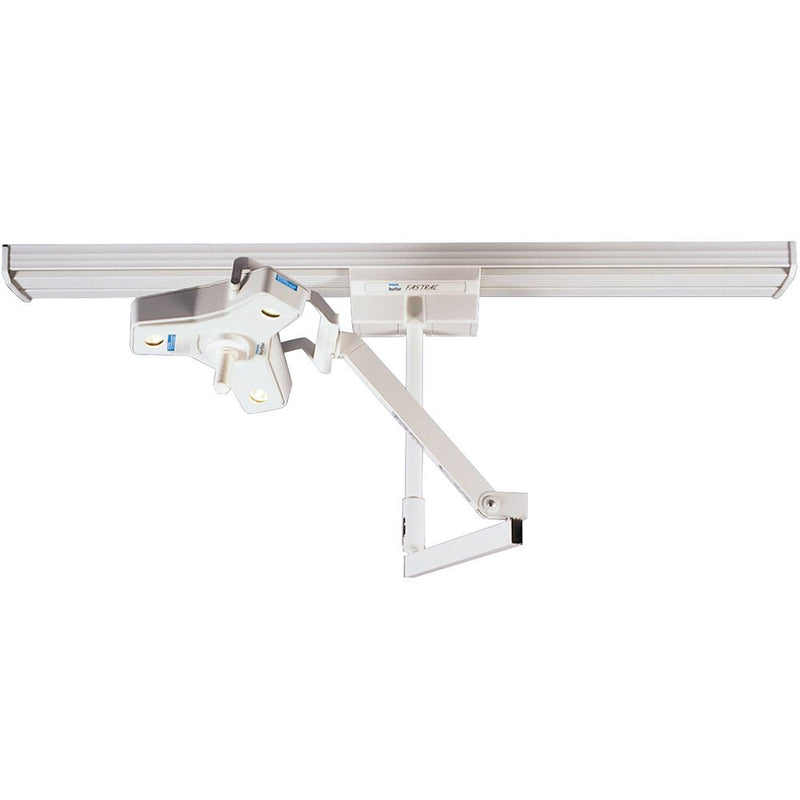

The Burton Outpatient II Examination Light - Single Fastrac Mount secures an industry-leading examination light to a rolling track for maximum versatility. Unlike a traditional single ceiling mount, the single track mount doesn't fix the base to one position. Instead, the lamp can travel back and forth across the track as needed, accompanied with two extension arms for reach.

Warranty: 5 Years - Parts and Labor.

The Burton Outpatient II Examination Light - Single Fastrac Mount spans 6 feet in length. The lamp is also secured to two extension arms, measuring 18 inches and 19.5 inches. With a drop tube of 30 inches, this combination of extensions enables the lamp to swivel and reach a wide range of positions. The lamp itself houses 3 (50 watt) Halogen bulbs, to produce around 86,000 lux of illumination. The whole unit stays cool to the touch, even after hours of operation, thanks to heat filters and dichroic coatings.

With its versatility and user-friendly design, the Philips Burton Outpatient II Examination Light - Single Fastrac Mount can provide bright, clean light for any clinical setting. Whether it's an examination room or a veterinary clinic, the color rendering index of 94 provides clear, focused light for any examination procedure.

The Burton Outpatient II Examination Light - Single Fastrac Mount ships in 3 packages:

  • Head: 17 lb / 37" x 18" x 10".
  • Track: 58 lb / 76" x 13" x 9".
  • Trolley: 34 lb / 33" x 29" x 10".

Features

Burton Outpatient II Examination Light - Single Fastrac Mount Features

  • Removable, autoclavable sterile handle.
  • Y-shape lamp leaves little to no shadow obstruction.
  • Optimal for ceilings from 8 feet to 10 feet high.
  • Halogen bulbs are wired parallel to each other.
  • 360° rotation (barring any obstacles).

Specifications

Burton Outpatient II Examination Light - Single Fastrac Mount Specifications

  • Weight: 109 lb (50 kg).
  • Fastrac Length: 72" (183 cm).
  • Ceiling Downtube Length: 21 in (53 cm).
  • Ceiling Height Limitations: 8 ft min. / 10 ft max.
  • Light Source: Halogen bulb - 50 W.
  • Illuminance: 86,000 lux (7,990 footcandles).
  • Light Color Temperature: 3,300 Kelvin.
  • Color Rendering Index: 94.
  • Number of Bulbs: 3.
  • Bulb Life: 2,000 hours.
  • Power: 176 W.
  • Certifications / Approvals: UL/IEC 60601-1, IEC 60601-1-2, EN/IEC 60601-2-41 and CAN/CSA C22.2 NO. 601.1 M90.
  • FDA Classification: FDA Class I, Minor Surgery Light.

Configurations

Burton Outpatient II Examination Light - Single Fastrac Mount Configurations

  • #OP216ST: 120 V - For use in the U.S.
  • #OP225ST: 230 / 240 V - For use in Europe.
  • #OP215ST: 100 V - For use in Japan.

Accessories

Burton Outpatient II Examination Light - Single Fastrac Mount Accessories

The Burton Outpatient II Examination Light - Single Fastrac Mount is commonly purchased with the following items. Please note that these are NOT included with the light. They are sold separately.

  • Box of 3 Outpatient II replacement bulbs.
  • Outpatient II replacement handle.
  • Sterile light Handle Covers (25 per box).

Frequently asked questions

Does this light provide superior color rendering?

Yes, the Burton Outpatient II is specifically engineered to provide superior illumination for accurate clinical assessments, making it suitable for general examinations and minor surgical procedures (FDA Class I).

The high-quality light ensures exceptional visualization through the following specifications:

  • Outstanding Color Accuracy: It features an excellent Color Rendering Index (CRI) of 94, which is crucial for distinguishing tissue colors accurately.
  • High Intensity: Delivers intense, focused illumination of 86,000 lux (7,990 footcandles).
  • Light Source: Utilizes three parallel-wired 50W Halogen bulbs (3,300 Kelvin) that offer an operational life of 2,000 hours.
  • Heat Management: Built-in heat filters and dichroic coatings ensure the lamp housing remains cool to the touch even during extended operation.
  • Shadow Reduction: The distinctive Y-shape lamp head design is intended to minimize shadow obstruction.
Is the light output high quality and color accurate?

Yes, the Burton Outpatient II is engineered to provide high-intensity, color-accurate illumination vital for detailed clinical assessments and minor procedures. The system utilizes three 50W Halogen bulbs.

Key lighting quality features include:

  • High Illumination: Delivers a powerful output of 86,000 lux (7,990 footcandles), ensuring bright, focused light for examinations.
  • Superior Color Fidelity: The light boasts an exceptional Color Rendering Index (CRI) of 94, coupled with a 3,300 Kelvin color temperature, which allows for highly accurate visualization and tissue differentiation.
  • Shadow Reduction: The distinctive Y-shape lamp head design is optimized to minimize shadow obstruction in the examination area.
  • Cool Operation: Integrated heat filters and dichroic coatings effectively manage thermal output, ensuring the lamp head remains cool to the touch even during extended use.
What is the expected bulb life for the Burton Outpatient II Examination Light?

The halogen bulbs in the Burton Outpatient II Examination Light have an average lifespan of 2,000 hours.

Does the Fastrac mount offer flexible positioning?

Yes, the Burton Outpatient II Examination Light features a 72-inch (183 cm) Fastrac mount that allows the light to move horizontally along the track. This provides extensive flexibility in positioning the light exactly where needed. Additionally, dual extension arms (18” and 19.5”) and a 30” drop tube further enhance its reach and swivel capabilities, ensuring optimal illumination for any examination procedure.

What are the ceiling height limitations for installing the Burton Outpatient II Examination Light?

The Burton Outpatient II Examination Light requires a minimum ceiling height of 8 feet and a maximum ceiling height of 10 feet.

Does the Burton Outpatient II Examination Light have a sterile handle?

Yes, the Burton Outpatient II Examination Light includes a removable, autoclavable sterile handle to ensure easy sterilization and maintain a sterile environment during medical procedures.

What is the degree of rotation for the Burton Outpatient II Examination Light?

The Burton Outpatient II Examination Light can rotate 360°, providing comprehensive coverage and flexibility during examinations, unless there are obstacles.

Does this examination light meet high safety and medical standards?

Yes, the Burton Outpatient II Examination Light meets rigorous safety and medical standards. It is certified with UL/IEC 60601-1, IEC 60601-1-2, EN/IEC 60601-2-41, and CAN/CSA C22.2 NO. 601.1 M90. Additionally, it holds an FDA Class I classification as a Minor Surgery Light, ensuring its suitability for clinical settings.

Is the light designed to stay cool during extended use?

Yes, the Burton Outpatient II features specialized thermal management to ensure it remains cool to the touch, even during extended operation. This design is crucial for patient and user comfort and safety during lengthy examinations or minor procedures. Key components that ensure cool operation include: * Heat Filters: Integrated to manage and dissipate heat effectively.* Dichroic Coatings: Applied to reflect infrared (heat) radiation away from the illuminated area and the lamp head itself.

Does the lamp head provide powerful illumination with multiple bulbs?

Yes, the Burton Outpatient II Examination Light is equipped with three 50-watt Halogen bulbs, which provide powerful illumination. These bulbs produce an impressive 86,000 lux (7,990 footcandles) of bright, focused light, ensuring clear visibility for detailed examination procedures. Each bulb offers a life of 2,000 hours, and the light features a high Color Rendering Index (CRI) of 94 for accurate color depiction.
