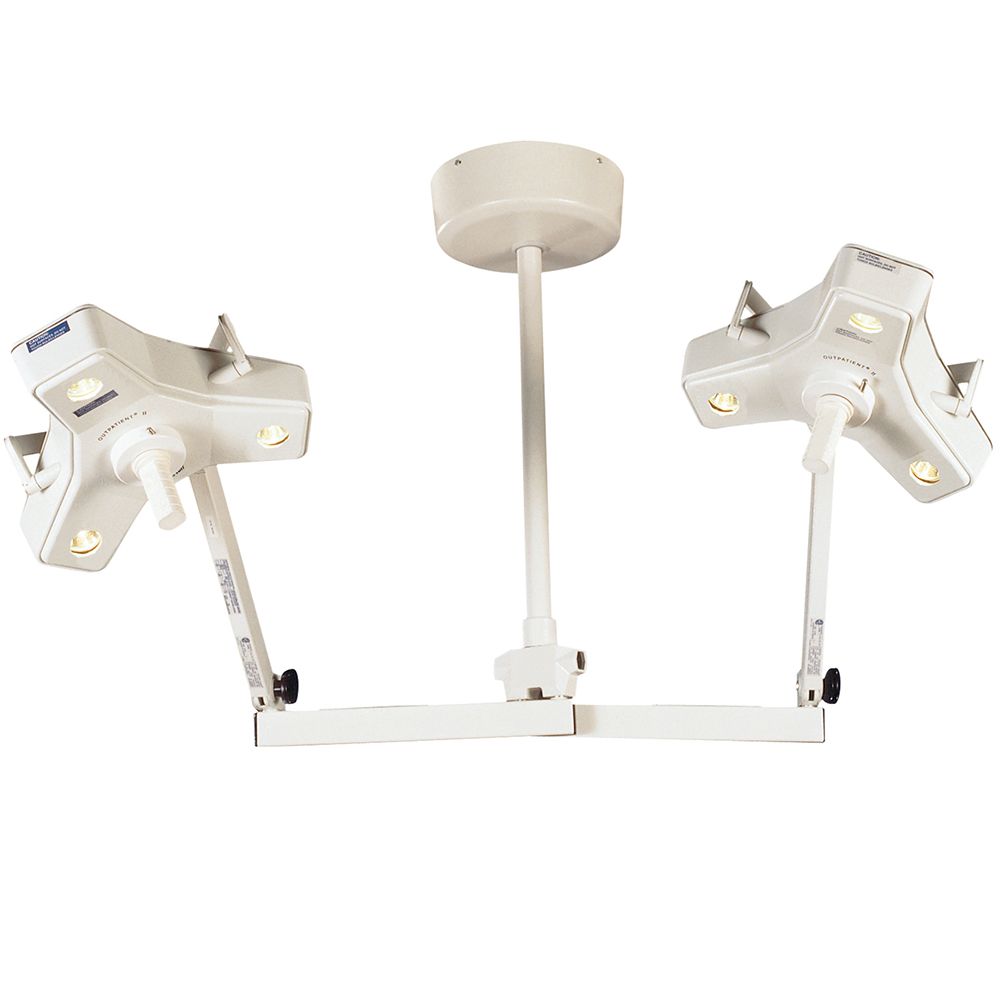

Burton Outpatient II Examination Light - Double Ceiling Mount

Yes, the Burton Outpatient II is designed to deliver powerful, high-intensity, shadow-free illumination, making it suitable for detailed clinical examinations and minor surgical procedures (FDA Class I).

This performance is achieved through its advanced specifications:

• Illuminance: The system provides powerful light output of 86,000 lux (7,990 footcandles).
• Light Quality: It features a high Color Rendering Index (CRI) of 94 at 3,300 Kelvin, ensuring accurate visualization and excellent rendering of tissue colors.
• Light Source: The dual-head configuration uses a total of six 50W Halogen bulbs (three per head) to ensure comprehensive and wide coverage.
• Cool Operation: Integrated heat filters and dichroic coatings effectively minimize heat transmission, keeping the lamp heads cool to the touch even during prolonged use.

Yes, the Burton Outpatient II is engineered to deliver powerful, shadow-free illumination across a wide area, which is essential for accurate clinical and veterinary examinations.

This superior lighting quality is achieved through several key specifications:

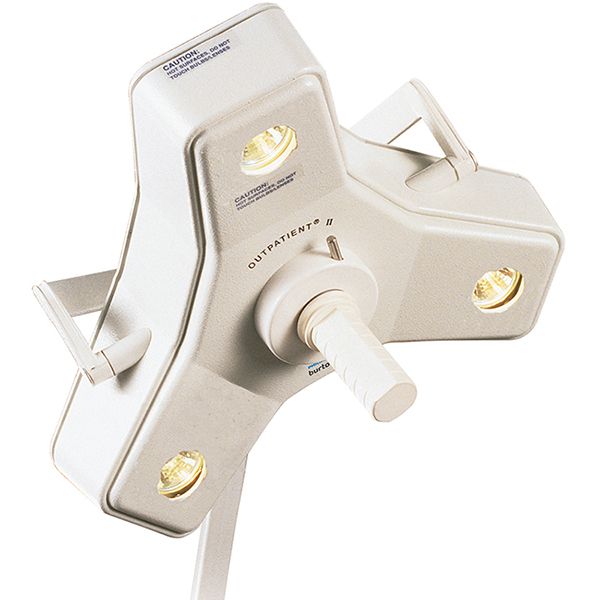

• Dual-Head System: Features two Y-shaped lamp heads, providing double the light coverage and maximizing shadow reduction across the examination area.
• High Output: Delivers exceptional brightness of 86,000 lux (7,990 footcandles).
• Accurate Visualization: The light has a high Color Rendering Index (CRI) of 94 and a 3,300 Kelvin color temperature, ensuring highly accurate visualization of tissue colors.
• Light Source: Each head uses three 50W Halogen bulbs, totaling six bulbs for comprehensive light output.

Yes, the Burton Outpatient II is engineered for superior ergonomic maneuverability and precise control, which is essential for high-demand clinical settings. The double ceiling mount configuration ensures flexible positioning across a large examination area.

Key features that provide this flexibility and promote hygiene include:

• Extensive Reach: The articulated swivel extension arms allow for a wide range of movement, measuring 90 inches (2.28 m) in length.
• Precise Adjustment: Each lamp head can be positioned quickly and precisely using the center handle for easy, one-hand adjustment.
• Optimal Hygiene: The center handle on each lamp head is removable and sterilizable to ensure high clinical standards.
• Headroom Clearance: The Y-shape lamp head design ensures optimal headroom for the practitioner without obstructing the light.

Yes, the Burton Outpatient II is engineered for cool operation, which significantly enhances comfort for both the patient and the clinician during procedures. This feature is achieved through the use of high-quality components:

• Heat Filters: Integrated to manage and reduce thermal output.
• Dichroic Coatings: Applied to minimize residual heat transmission.

These systems ensure the lamp heads remain cool to the touch even after extended periods of continuous use.

Yes, each of the dual lamp heads features a handle designed specifically for sterile clinical use.

• Easy Positioning: The center handle allows for quick, one-handed adjustment of the light position.
• Hygienic Design: Crucially, the handle is removable and fully sterilizable, ensuring the highest level of cleanliness and safety when used in examination rooms and minor surgical suites.

Yes, the Burton Outpatient II utilizes high-intensity 50W Halogen bulbs to ensure superior, high-quality illumination suitable for clinical and minor surgery environments. The double-ceiling mount system includes a total of six bulbs (three per lamp head).These bulbs are known for reliability and deliver exceptional performance characteristics:* High Intensity: Provides 86,000 lux illuminance.* Color Accuracy: Features an excellent Color Rendering Index (CRI) of 94, crucial for accurate tissue assessment.* Durability: Offers a long average continuous operational life of 2,000 hours.* Cool Operation: The fixture includes heat filters and dichroic coatings to minimize heat output, keeping the lamp cool to the touch.

The reliable Halogen bulbs used in the Burton Outpatient II system are designed for consistent, long-term use in demanding clinical environments. Each of the six 50 W Halogen bulbs (three per lamp head) has an average rated lifespan of 2,000 continuous operating hours.

Key specifications for the lighting source include:

• Bulb Type: Halogen (50 W each)
• Quantity: 6 bulbs total (3 per lamp head)
• Total Power Consumption (Unit): 176 W

Yes, the Burton Outpatient II is engineered to provide the visual clarity required for detailed clinical examinations and minor surgical procedures, featuring ideal specifications:

• High Color Rendering Index (CRI): The light boasts an excellent CRI of 94. This is critical for accurate diagnosis as it ensures exceptional fidelity when viewing colors like tissue and skin tones.
• Optimal Color Temperature: It operates at 3,300 Kelvin, delivering warm, balanced illumination suitable for detailed work in clinical environments.
• Powerful Output: The dual-head system provides high illuminance of 86,000 lux (7,990 footcandles) for clear, shadow-free viewing across the examination field.

The dual-head ceiling mount is designed for installation in rooms with specific height requirements to ensure proper function and maximum maneuverability. The limitations are:

• Minimum Ceiling Height: 8 ft
• Maximum Ceiling Height: 10 ft

This range is necessary to accommodate the unit’s extensive mounting structure, which includes a 36-inch downtube and long extension arms, allowing for precise light positioning across the examination area.

Yes, the Burton Outpatient II Examination Light is designed to meet strict US and international safety standards for use in demanding clinical and minor surgical settings.

Key Safety and Regulatory Details:

• FDA Classification: Classified as FDA Class I, Minor Surgery Light.
• Structural Compliance: Designed in accordance with California Seismic Codes for robust installation.
• International Approvals: It holds several major electrical and medical device safety certifications, ensuring its reliability and safety profile:
  • UL/IEC 60601-1
  • IEC 60601-1-2
  • EN/IEC 60601-2-41
  • CAN/CSA C22.2 NO. 601.1 M90
