Burton Outpatient II / CoolSpot II Combo Light - Ceiling Mount

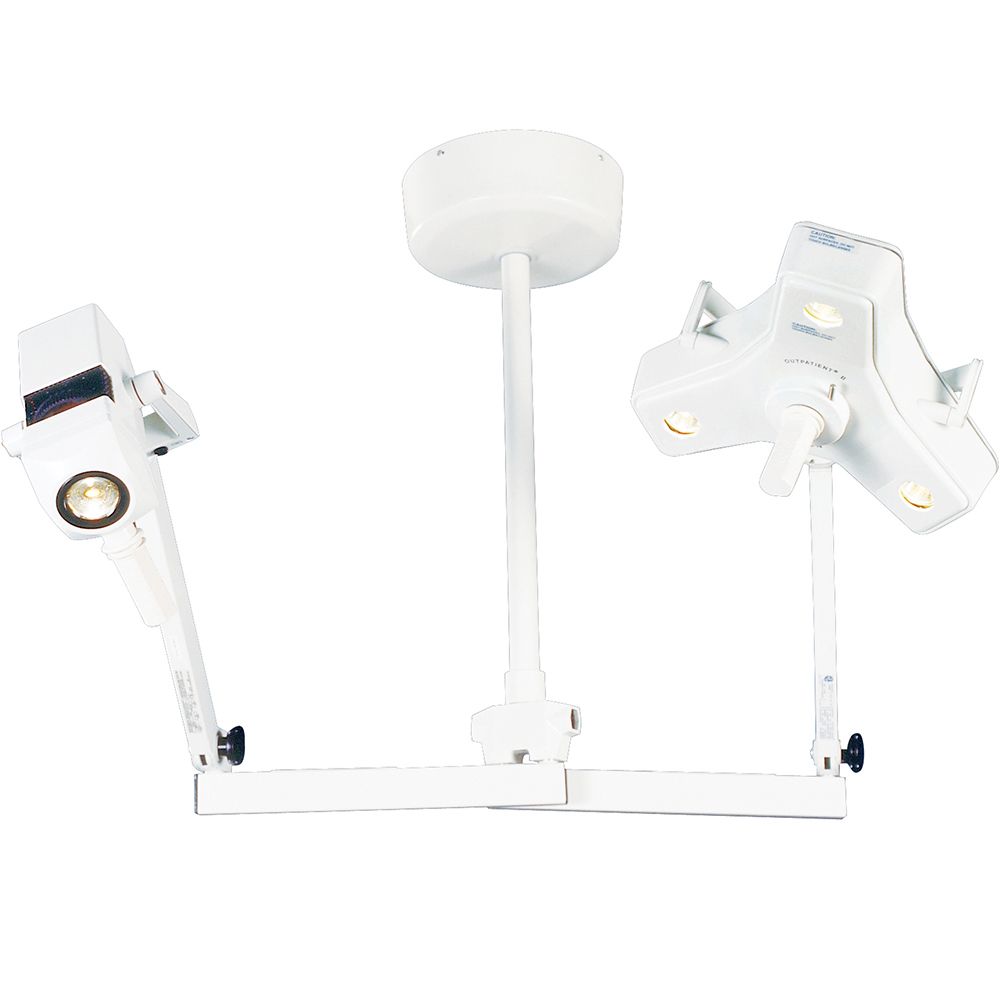

Burton Outpatient II / CoolSpot II Combo Light - Ceiling Mount

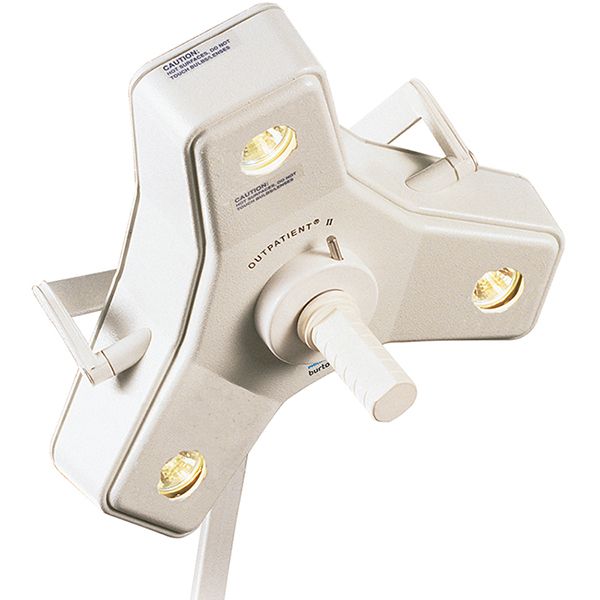

Burton Outpatient II Examination Light - Head

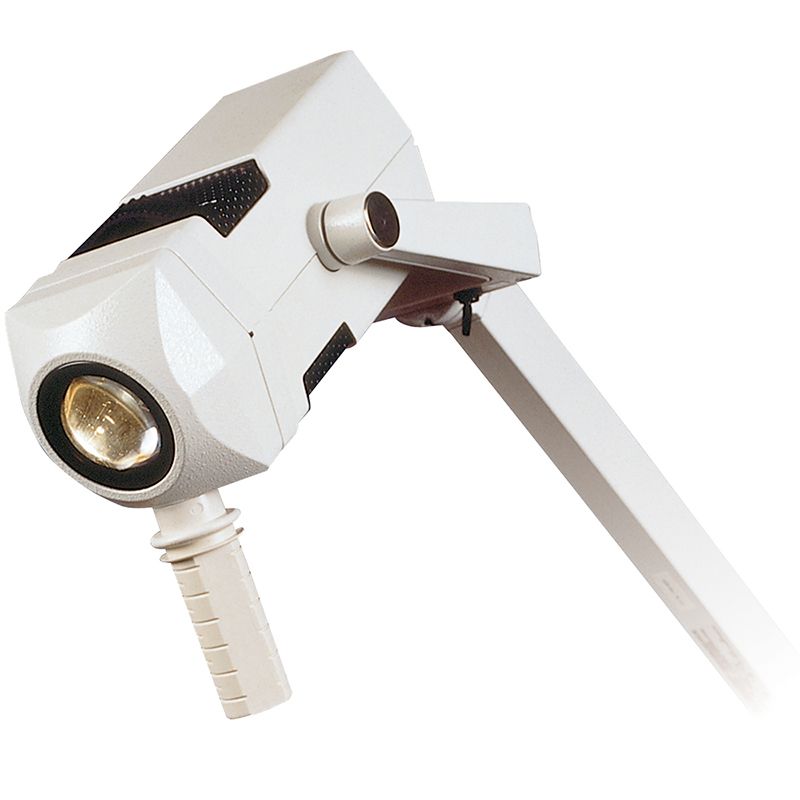

Burton CoolSpot II Light - Close-Up
Burton Outpatient II / CoolSpot II Combo Light - Ceiling Mount
Burton Outpatient II Examination Light - Head
Burton CoolSpot II Light - Close-Up
Key Features
  • SKU: PHL-OC516CC
  • Condition:
    Condition: Factory New
  • Country of Origin: USA
  • Warranty:
    Warranty: 5 Years
  • Weight: 80.5 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Burton
    Ships from Manufacturer
  • MPN: OC516CC
  • Phone: (800) 444-9909
$8,314.00 $6,211.79

+ Free Shipping

Est. Delivery:

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Burton Outpatient II / CoolSpot II Combo Light - Ceiling Mount doesn't just contain two lights, but combines the power of a focused spotlight with a Y-shape, shadow-free lamp head. This combination not only provides full coverage light for a work area, but also can shine a heat-free spotlight for tighter focus.

Warranty: 5 Years - Parts and Labor.

The Burton Outpatient II / CoolSpot II Combo Light - Ceiling Mount secures a CoolSpot II spotlight and an Outpatient II examination light to a stationary ceiling base. The CoolSpot II contains a bi-level dimmer for adjusting light intensity, and the Outpatient II Y-shape lamp reduces shadows and light obstructions. The ceiling mount descends 36 inches, allowing the ceiling light to be situated comfortably on ceilings as tall as 9 feet. Each lamp is mounted on two arms, measuring over 30 inches in length on either side.

Caregivers will have instant access to the light sources they need, and can perform a variety of tasks in one work area. Whether it's a general examination or a more focused minor procedure, the Outpatient II / CoolSpot II Combo Light can provide the best of both worlds. This light is ideal in any hospital or clinical settings, including veterinary or dental offices.

The Burton Outpatient II / CoolSpot II Combo Light - Ceiling Mount ships in 3 packages:

  • Outpatient II Head: 17 lb / 37" x 18" x 10".
  • CoolSpot II Head: 12.5 lb / 36" x 14" x 8".
  • Double Ceiling Mount: 51 lb / 34" x 14" x 8".

Features

Burton Outpatient II / CoolSpot II Combo Light - Ceiling Mount Features

  • Convenient and interchangeable SteriHandles.
  • Y-shape Outpatient II prevents shadows and other light obstructions.
  • Ceiling mount meets California Seismic Codes.
  • Both lights come 120 V standard, with 100 V and 230 / 240 V options available.
  • Heat-free light for patient comfort.

Specifications

Burton Outpatient II / CoolSpot II Combo Light - Ceiling Mount Specifications

  • Weight: 80.5 lb (37 kg).
  • Drop Tube Length: 36" (91.4 cm).
  • Illuminance:
    • Outpatient II: 86,000 lux (7,990 footcandles).
    • CoolSpot II: 60,000 lux (5,574 footcandles).
  • Light Source:
    • Outpatient II: (3) 50 watt Halogen bulbs.
    • CoolSpot II: (1) 150 watt Halogen bulb.
  • Light Color Temperature:
      • Outpatient II: 3,300 Kelvin.
      • CoolSpot II: 4,300 Kelvin.
    • Color Rendering Index:
        • Outpatient II: 94.
        • CoolSpot II: 94.
      • Power Consumption:
          • Outpatient II: 176 W.
          • CoolSpot II: 160 W.
        • Bulb Life:
            • Outpatient II: 2,000 hours (avg).
            • CoolSpot II: 600 hours (avg).

          Configurations

          Burton Outpatient II / CoolSpot II Combo Light - Ceiling Mount Configurations

          • #OC516CC: 120 V - For use in the U.S.
          • #OC525CC: 230 / 240 V - For use in Europe.
          • #OC515CC: 100 V - For use in Japan.
          • #O202CC25: 230 V - SP Model. Refers to Spanish Language Models.

          Accessories

          Burton Outpatient II / CoolSpot II Combo Light - Ceiling Mount Accessories

          The Burton Outpatient II / CoolSpot II Combo Light - Ceiling Mount is commonly purchased with:

          • Outpatient II Replacement Bulbs (3 / Box).
          • Outpatient II Handle Replacement
          • CoolSpot II Replacement Bulbs (4 / Box).
          • CoolSpot II Handle Replacement.
          • Sterile Light Handle Covers (25 / Box).
          • 42" Drop Tube.
          • Maximum 58" Drop Tube.

          Frequently asked questions

          What high-quality bulbs are used in the light heads?

          The Burton Combo Light utilizes Halogen bulbs in both heads, which are specifically chosen to deliver powerful, heat-free illumination and an excellent Color Rendering Index (CRI) of 94 for accurate diagnosis.

          Here is a breakdown of the light source specifications for each head:

          Outpatient II Head (Broad Examination Light)

          • Light Source: Three (3) 50-watt Halogen bulbs.
          • Illuminance: Provides high-intensity, shadow-reducing coverage up to 86,000 lux.
          • Color Temperature: 3,300 Kelvin.
          • Bulb Life: Average lifespan of 2,000 hours.

          CoolSpot II Head (Focused Spotlight)

          • Light Source: One (1) 150-watt Halogen bulb.
          • Illuminance: Delivers intense, focused task lighting up to 60,000 lux.
          • Color Temperature: 4,300 Kelvin.
          • Bulb Life: Average lifespan of 600 hours.
          Does the Outpatient II light minimize shadows?

          Yes, the Outpatient II examination light features a unique Y-shaped lamp head with three halogen bulbs. This design specifically helps to minimize shadows and light obstructions, ensuring optimal visibility during examinations and minor procedures.

          Is the CoolSpot II light precisely adjustable?

          Yes, the CoolSpot II spotlight features a bi-level dimmer for precise adjustment of light intensity. This allows you to tailor the illumination to specific examination and procedural needs.

          What is the maximum illuminance (lux) for both lights?

          The Burton Combo Light system provides high illuminance through its dual-head design, ensuring excellent visibility for various clinical procedures:

          • Outpatient II Head (Shadow-Reducing Examination Light): This head delivers powerful, broad-area illumination, reaching up to 86,000 lux (7,990 footcandles). Its unique Y-shape design helps eliminate shadows and obstructions.
          • CoolSpot II Head (Focused Spotlight): This component is designed for intense focus, providing a maximum illuminance of 60,000 lux (5,574 footcandles). It also features a bi-level dimmer for precise intensity adjustment.

          Both light sources offer exceptional quality with a high Color Rendering Index (CRI) of 94 and provide heat-free light for enhanced patient comfort.

          How long do the light bulbs last?

          The Burton Combo Light system features two distinct light heads, each utilizing Halogen bulbs with different average lifespans:

          • Outpatient II Head (Examination Light): This head uses three 50-watt Halogen bulbs with an average operational life of 2,000 hours.
          • CoolSpot II Head (Focused Spotlight): This head uses one 150-watt Halogen bulb with an average operational life of 600 hours.
          Does the system meet important seismic safety codes?

          Yes, the ceiling mount for this combo light is engineered to meet California Seismic Codes. This ensures the system is durable, stable, and compliant with critical safety standards required in seismically active areas.

          What is the standard drop tube length?

          The standard drop tube included with the ceiling mount is 36 inches (91.4 cm). This length is specifically engineered to accommodate rooms with ceiling heights up to 9 feet.

          What is the maximum ceiling height for the standard drop tube?

          The standard ceiling mount includes a 36-inch (91.4 cm) drop tube. This length is engineered to accommodate rooms with ceiling heights of up to 9 feet.

          Note that alternative drop tube lengths (42 inches and 58 inches) are also available as accessories if your ceiling height differs.

          What voltage configurations are available?

          The Burton Outpatient II / CoolSpot II Combo Light is available in several voltage configurations to ensure compatibility with various international power requirements:

          • 120 V: This is the standard operating voltage.
          • 100 V: This option is available for specific international needs.
          • 230 V / 240 V: Available for use in international markets.

          Additionally, a 230 V / 240 V configuration is offered which includes a Spanish language manual.

          What is the Color Rendering Index (CRI) for both lights?

          Both the Outpatient II and CoolSpot II lights have an excellent Color Rendering Index (CRI) of 94. This high CRI ensures accurate color representation, which is crucial for medical examinations.
