Burton CoolSpot II Examination Light - Double Fastrac Mount

The Burton CoolSpot II provides powerful and precise light suitable for demanding clinical settings, certified as an FDA Class I, Major Surgery Light. This designation confirms its high reliability and performance.

Key illumination specifications for this dual-lamp system include:

• Illuminance: Provides powerful output up to 60,000 lux (5,574 footcandles).
• Color Quality: Features a high Color Rendering Index (CRI) of 94 and a natural light color temperature of 4,300 Kelvin, essential for accurate visual diagnosis.
• Spot Size: The beam is highly adjustable, offering a variable spot size from 2 inches (5 cm) up to 10 inches (25 cm).
• Light Source: Each head utilizes a 150-watt Halogen bulb (rated for 600 hours).
• User Control: Intensity is managed via bi-level dimmers.

A significant benefit of the CoolSpot II design is the advanced thermal management, which ensures the lamp heads remain cool to the touch during use, enhancing patient and caregiver comfort.

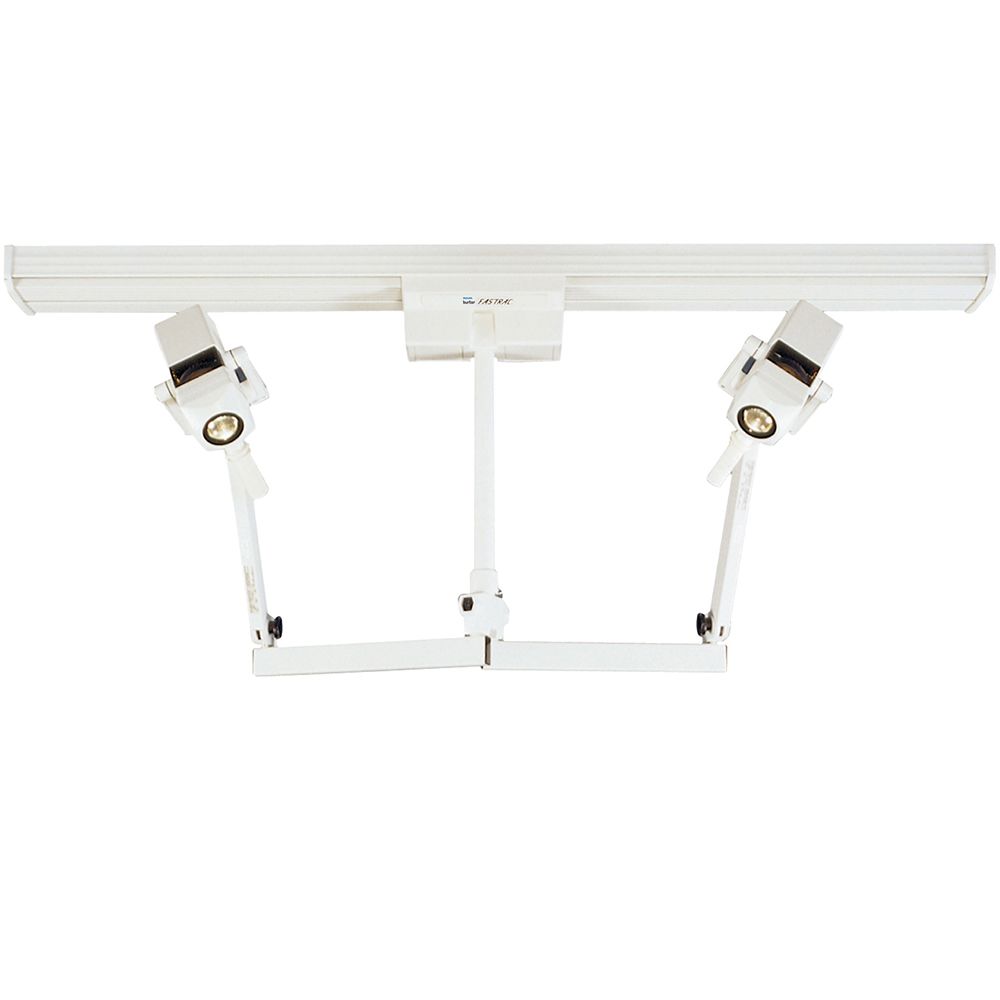

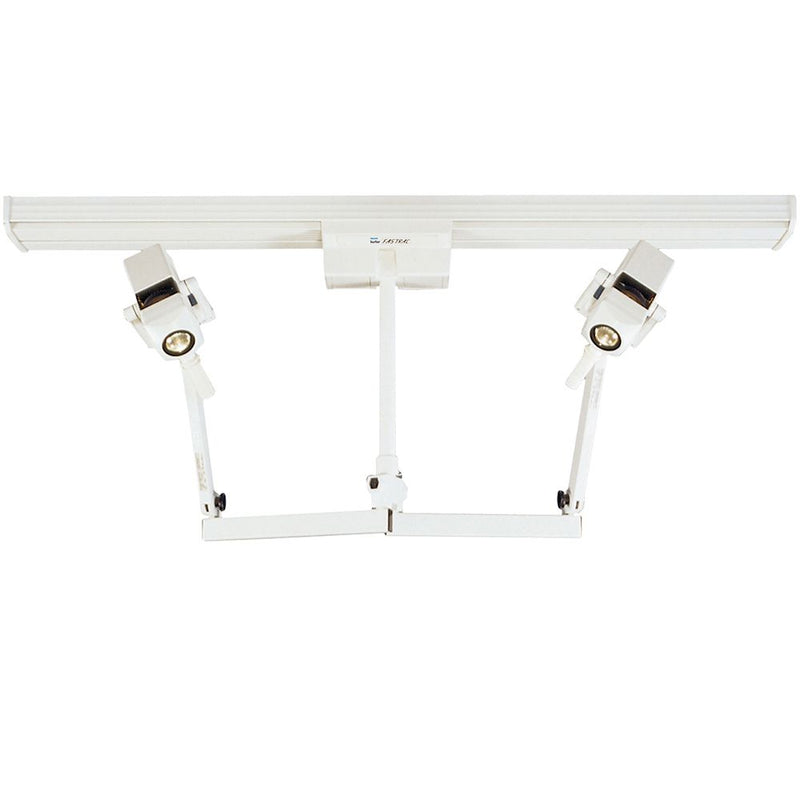

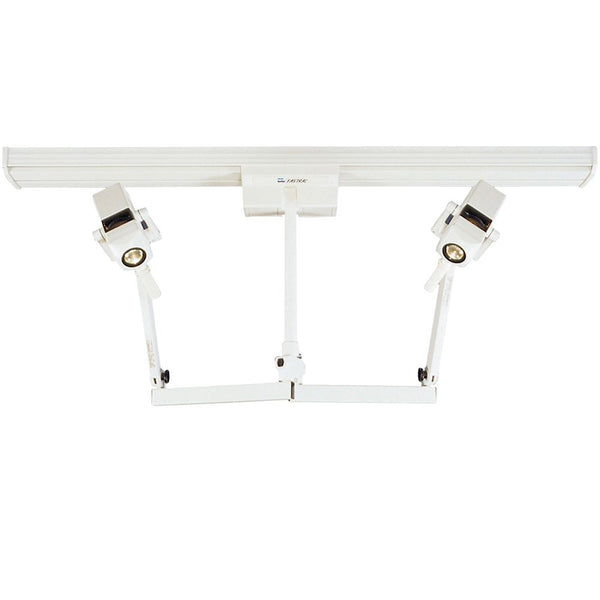

Yes, the Burton CoolSpot II with the Double Fastrac Mount is specifically engineered for superior mobility and positioning flexibility compared to fixed ceiling lights. This dual-light system offers enhanced positional advantages for examination spaces.

Flexibility is provided by:

• 6-Foot Rolling Track: The two spotlight heads can move seamlessly along the entire 6-foot rolling ceiling track.

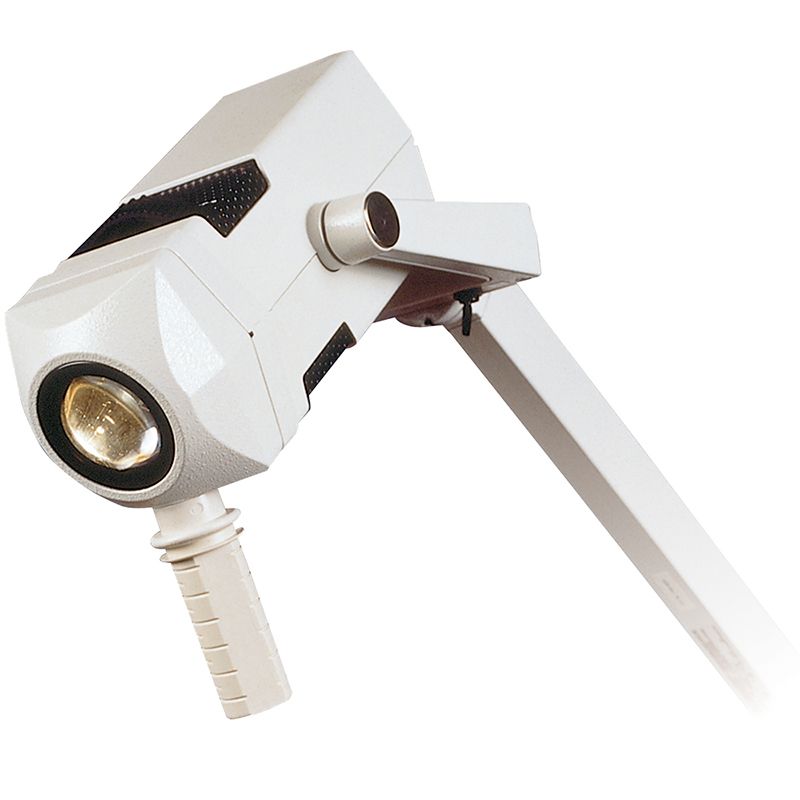

• Dual-Arm, Dual-Hinge Design: Each lamp head features a robust articulation mechanism, allowing for extensive and precise aiming adjustments.
• Friction Knobs: These are included on the arms to adjust tension and securely lock the lamps into the desired position, preventing unwanted movement during use.

Yes, the Burton CoolSpot II Examination Light is designed with SteriHandles to ensure optimal clinical hygiene and streamlined clinical workflows. They are a key feature for maintaining a sterile environment because they are:

• Autoclavable: They facilitate quick and thorough sterilization between uses.
• Removable: The handles are interchangeable, supporting easy, one-hand removal for efficient replacement.

Yes, the Burton CoolSpot II utilizes a 150-watt Halogen bulb in each of its two spotlight heads, specifically designed to provide high-intensity, focused illumination suitable for detailed clinical and diagnostic settings. The system offers premium performance and features:

• High Output: Delivers intense illumination up to 60,000 lux (5,574 footcandles).
• Color Accuracy: Features an excellent Color Rendering Index (CRI) of 94 and a 4,300 Kelvin color temperature, crucial for accurate color representation during diagnoses.
• Cool Operation: The design ensures the light source remains cool to the touch, enhancing safety for both patients and staff.
• Control: Light intensity is easily managed via integrated bi-level dimmers, and the variable spot size can be adjusted from 2 inches to 10 inches (5 cm to 25 cm).
• Bulb Life: Each bulb has an average operational life expectancy of 600 hours.

The Burton CoolSpot II Examination Light is designed to comply with various international electrical standards. The following voltage configurations are available:

• 120 V: This is the standard configuration.
• 230 V / 240 V: Available for regions utilizing higher voltage standards.
• 100 V: Please note that the 100 V configuration is currently discontinued.

The Burton CoolSpot II Double Fastrac Mount system requires a specific ceiling height range for optimal installation and functionality. The recommended operating heights are:

• Minimum Recommended Ceiling Height: 8 ft (2.44 m)
• Maximum Recommended Ceiling Height: 10 ft (3.05 m)

The unit is installed using a 30-inch (76.20 cm) drop tube. The mounting system also correlates with California Seismic Codes.

The Burton CoolSpot II Examination Light features a highly versatile illumination field, allowing practitioners to precisely adjust the beam size for various procedures. The variable spot size ranges from:

• Minimum: 2 inches (5 cm)
• Maximum: 10 inches (25 cm)

This large range ensures you can achieve highly focused, detailed illumination for intricate examinations or a broader coverage area as needed.

Yes, the Burton CoolSpot II Examination Light is backed by a comprehensive 5-year warranty.

This coverage is extensive, including both parts and labor for the duration of the warranty period.

Yes, the Burton CoolSpot II system is engineered for exceptional precision and stability, which is essential for detailed clinical examinations. This precision is achieved through several key features:

• Secure Positioning: Each spotlight head features a robust two-arm, two-hinge design. A dedicated friction knob allows users to adjust the arm tension, ensuring the light remains securely positioned without drifting.
• Variable Spot Size: The focused halogen beam is adjustable across a wide range, from a concentrated 2 inches up to 10 inches (5 cm – 25 cm), allowing you to perfectly illuminate the examination area.
• Intensity Control: Integrated bi-level dimmers provide control over the light intensity, capable of delivering a powerful maximum illuminance of 60,000 lux per head.
• Superior Mobility: The Double Fastrac Mount allows the entire system to roll along a 6-foot track, offering versatile positional advantages over fixed ceiling mounts.

The Burton CoolSpot II Examination Light is certified to meet extensive national and international standards for safety and clinical performance, ensuring reliability in hospital and surgical settings. The major compliances include:

• FDA Classification: It is classified as an FDA Class I, Major Surgery Light, making it suitable for demanding diagnostic and procedural use.
• Key Safety Certifications: The light adheres to stringent electrical and operational safety standards, specifically:
  • UL 60601-1
  • EN 60601-1-2
  • IEC 60601-2-41
  • CAN/CSA C22.2 NO. 601.1 M90
• Structural Compliance: The mounting system is designed to correlate with California Seismic Codes for enhanced structural security.
