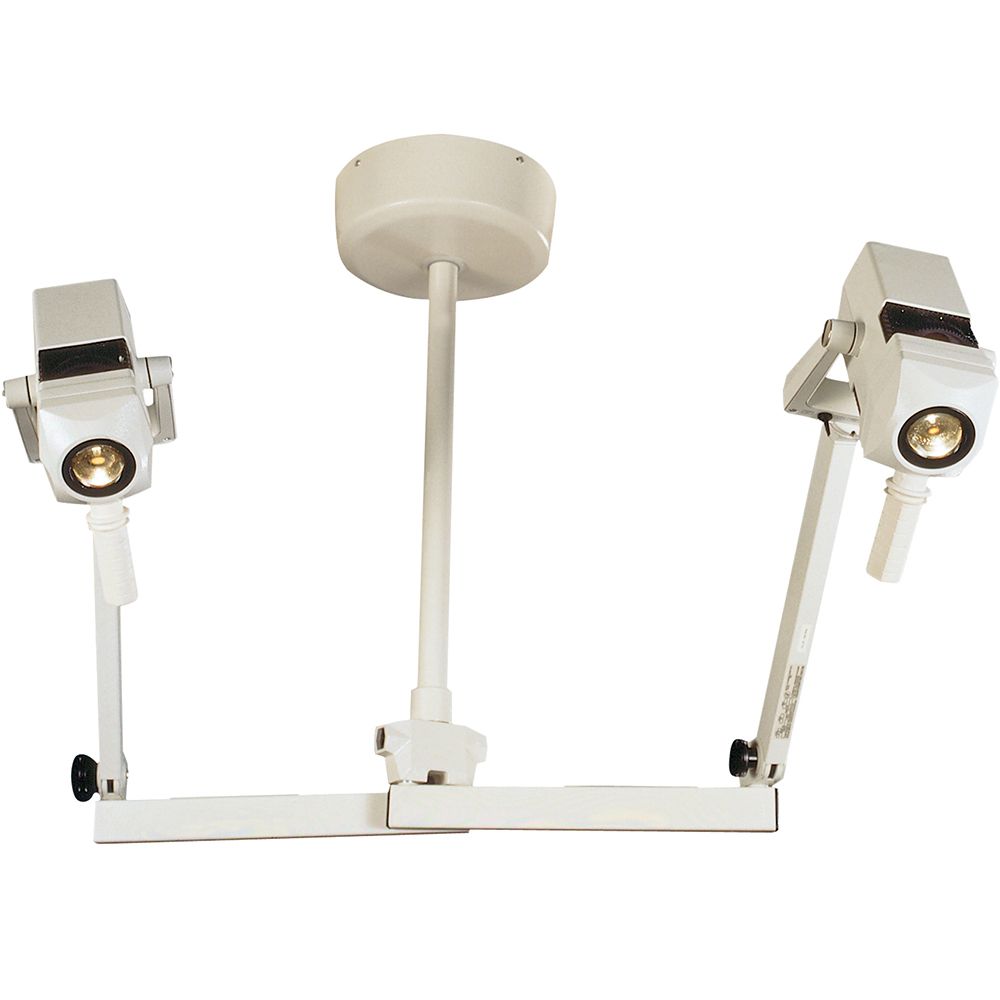

Burton CoolSpot II Examination Light - Double Ceiling Mount

Burton CoolSpot II Examination Light - Double Ceiling Mount

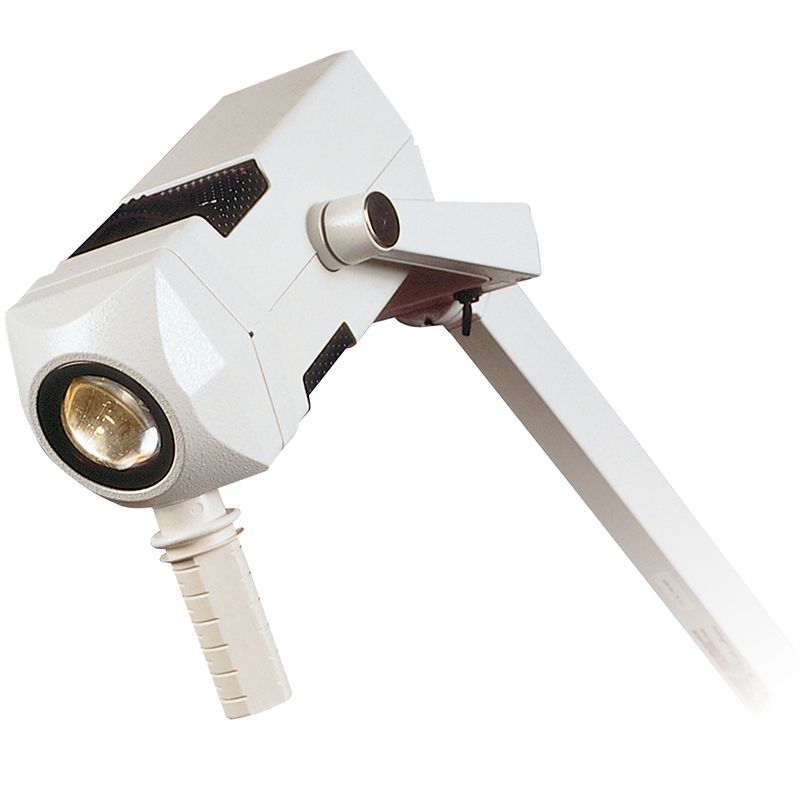

Burton CoolSpot II Light - Close-Up
Burton CoolSpot II Examination Light - Double Ceiling Mount
Burton CoolSpot II Light - Close-Up
Key Features
  • SKU: PHL-CS316DC
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 5 Years

  • Learn more:

Contact The Manufacturer
  • MFR: Burton
    Ships from Manufacturer
  • MPN: CS316DC
  • Phone: (800) 444-9909
$9,042.00 $6,692.67

+ Free Shipping

Est. Delivery:

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Burton CoolSpot II Examination Light - Double Ceiling Mount keeps two spotlights elevated away from vital equipment, while also maintaining and wide reach and bright light for examinations.

Warranty: 5 Years Parts and Labor.

The Burton CoolSpot II Examination Light - Double Ceiling Mount provides two bright focus lights for exams and work areas where space may be limited. They are compact while also providing a wide range of movement, up to 90 inches. The handle grips are removable and replaceable with one hand for sterile procedures.

The two focused spotlights offer cool light for patient comfort, while also being adjustable in intensity through the bi-level dimmer. This makes these lamps ideal for nearly any clinical setting, especially in dental offices, veterinary clinics, and OB/GYN offices.

The Burton CoolSpot II Examination Light - Double Ceiling Mount ships in 3 packages:

  • Head: 12.5 lb / 36" x 14" x 8".
  • Head: 12.5 lb / 36" x 14" x 8".
  • Double Ceiling Mount: 51 lb / 34" x 14" x 8".

Features

Burton CoolSpot II Examination Light - Double Ceiling Mount Features

  • Cool light for patient comfort.
  • Friction knob provides adjustable tension for no-drift arm positions.
  • 600 hours of light, right out of the box.
  • Compact design and housing meets California Seismic Codes.

Specifications

Burton CoolSpot II Examination Light - Double Ceiling Mount Specifications

  • Weight: 76 lb (34.47 kg).
  • Drop Tube Length: 30" (76.20 cm).
  • Light Source: Halogen bulb - 150 watts.
  • Variable Spot Size: 2" - 10" (5 cm - 25 cm).
  • Illuminance: 60,000 lux (5,574 footcandles).
  • Light Color Temperature: 4,300 Kelvin.
  • Color Rendering Index: 94.
  • Number of Bulbs: 2.
  • Bulb Life: 600 hours.
  • Power: 160 Watts.
  • Certifications / Approvals: UL 60601-1, EN 60601-1-2, IEC 60601-2-41 and CAN/CSA C22.2 NO. 601.1 M90.
  • FDA Classification: FDA Class I, Major Surgery Light.

Configurations

Burton CoolSpot II Examination Light - Double Ceiling Mount Configurations

  • #CS316DC: 120 V - For use in the U.S.
  • #CS32DC: 230 / 240 V - For use in Europe.
  • #CS315DC: 100 V - For use in Japan.
  • #C302DC25: 230 V / 240 V - SP Model. Refers to Spanish Language Manuals.

Accessories

Burton CoolSpot II Examination Light - Double Ceiling Mount Accessories

The Burton CoolSpot II Examination Light - Double Ceiling Mount is commonly purchased with:

  • CoolSpot II Replacement Bulbs (4 Per Box).
  • CoolSpot II Replacement Handle.
  • Light Handle Covers, Sterile (25 Per Box).
  • 42" Drop Tube.
  • Maximum 58" Drop Tube.

Frequently asked questions

What is the warranty for the Burton CoolSpot II Examination Light?

The Burton CoolSpot II Examination Light comes with a 5-year warranty covering both parts and labor.

Does the light offer high color accuracy?

Yes, the Burton CoolSpot II is designed for high color accuracy, featuring a Color Rendering Index (CRI) of 94. This high rating is essential for accurate diagnostics and perception of tissue color during examinations.

The dual spotlight system uses two high-performance 150-watt Halogen bulbs to ensure powerful and quality illumination:

  • Illuminance: Provides excellent intensity up to 60,000 lux.
  • Color Temperature: Produces a cool light output at 4,300 Kelvin for enhanced patient comfort.
  • Bulb Life: Each bulb is rated for approximately 600 hours of operational life.
What is the expected bulb lifespan?

The Burton CoolSpot II system uses two 150-watt Halogen bulbs to provide its illumination. The initial expected lifespan for each bulb is:

  • 600 hours of use.

These bulbs contribute to the system’s high-quality performance, providing 60,000 lux of intense light with a Color Rendering Index (CRI) of 94 for accurate visual assessment.

What is the light's maximum intensity?

The Burton CoolSpot II Examination Light provides powerful, focused illumination, reaching a maximum intensity of 60,000 lux (5,574 footcandles).

This high output, delivered by two 150-watt Halogen bulbs, ensures clear visibility and accurate tissue differentiation, supported by an excellent Color Rendering Index (CRI) of 94.

Does the Burton CoolSpot II light feature an adjustable spot size?

Yes, the Burton CoolSpot II Examination Light offers a variable spot size that can be adjusted from 2” to 10” (5 cm to 25 cm), allowing for precise illumination during examinations.

Does this light meet medical safety standards?

The Burton CoolSpot II Examination Light is rigorously compliant with major international safety standards and is classified for high-level clinical use.

Key approvals and compliance standards include:

  • FDA Classification: FDA Class I, designated as a Major Surgery Light.
  • International Medical Safety Standards: UL 60601-1, EN 60601-1-2, IEC 60601-2-41, and CAN/CSA C22.2 NO. 601.1 M90.
  • Design Compliance: The compact housing design also meets the California Seismic Codes.
How long is the drop tube?

The drop tube component for the double ceiling mount measures 30 inches (76.20 cm). This specific length helps position the light heads optimally, maximizing the extensive 90-inch reach of the articulation arms over the examination area.

Is this light suitable for surgical procedures?

Yes, the Burton CoolSpot II is classified by the FDA as a Class I, Major Surgery Light, making it suitable for various medical procedures, including minor surgical applications.

Are multiple voltage configurations offered?

Yes, the Burton CoolSpot II Examination Light is offered in several voltage configurations to suit various global power requirements:

  • 120 V: Standard for use in the U.S.
  • 230 V / 240 V: Standard configuration for Europe and other international markets.
  • 230 V / 240 V (SP Model): This variant includes Spanish language manuals.
Which clinical environments is this light best for?

The Burton CoolSpot II is specifically designed for detailed clinical examinations and minor procedures, leveraging its dual-light system to provide comprehensive, high-intensity, and cool illumination (60,000 lux with CRI 94).

This system is ideal for professional environments requiring high visual accuracy and sterile functionality, including:

  • Dental Offices
  • Veterinary Clinics
  • OB/GYN Offices
  • General Examination and Treatment Centers

Its classification as an FDA Class I, Major Surgery Light confirms its suitability for applications requiring the precise visual acuity necessary for complex diagnostics and minor surgical procedures. Additionally, the removable, replaceable handle grips support essential sterile protocols.
