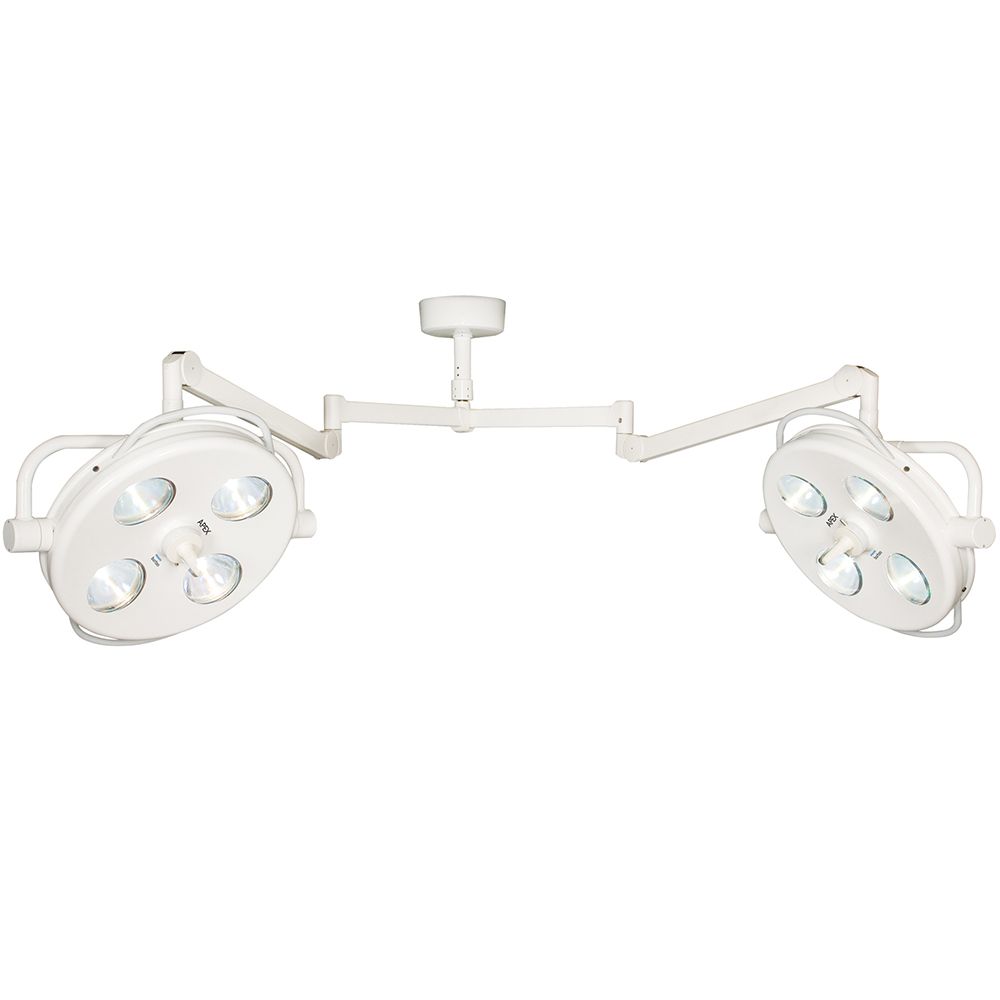

Burton APEX Surgical Light - Double Ceiling Mount

Burton APEX Surgical Light - Double Ceiling Mount

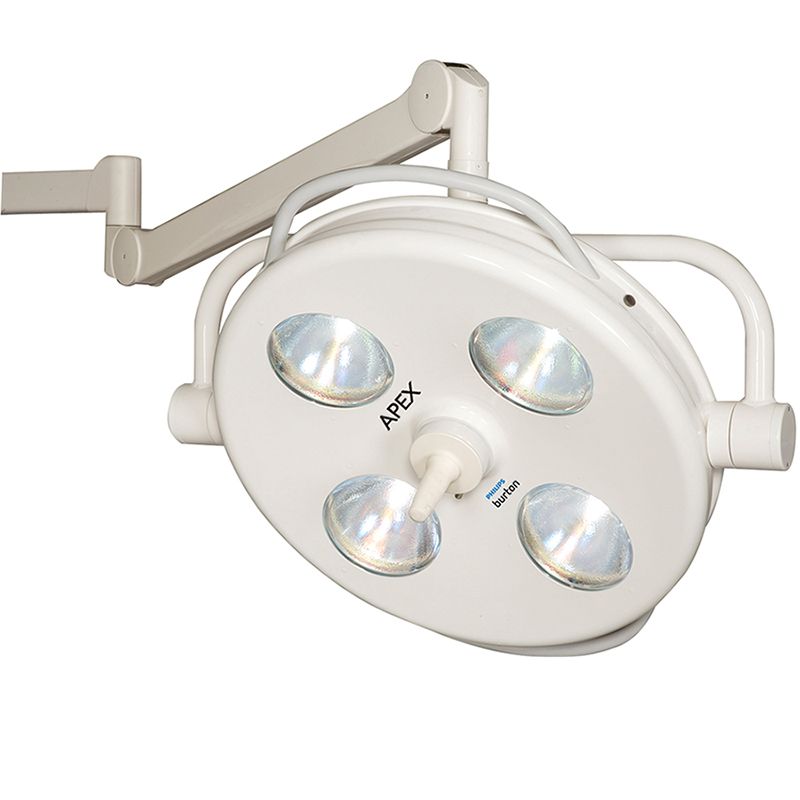

Burton APEX Surgical Light - Head
Burton APEX Surgical Light - Double Ceiling Mount
Burton APEX Surgical Light - Head
Key Features
  • SKU: PHL-APXDC8
  • Weight: 208.0 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Burton
    Ships from Manufacturer
  • MPN: APXDC8
  • Phone: (800) 444-9909
$23,492.00

+Shipping

Item Discontinued

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Oversized Shipping

+
Return Policy +

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Burton APEX Surgical Light - Double Ceiling Mount provides twice the illumination range of a single APEX light, allowing for wide coverage in surgical units. The efficient design allows for easy maneuvering of the light and tight focus for nearly any manner of surgery.

Warranty: 5 Years - Parts and Labor.

The Burton APEX Surgical Light - Double Ceiling Mount contains two lamp heads, each housing 4 halogen bulbs. The center handle of the lamp head allows for easy one-handed positioning, and also functions as a focus gauge for the lights. With a head diameter of 24 inches each, the APEX lamps provide a whopping 120,000 lux of illumination. They are both secured to durable, drift-free arms with a combined reach of just over 5 feet. The lamp heads descend from a 360°-rotational joint with, and the head itself can be tilted 70° forward or backward.

This light source was specially designed for surgical facilities, including emergency care, trauma centers, outpatient surgery, plastic surgery, and more.

NOTE: Control box with intensity adjustment available for 120 V and 100 V models. Box is not included for 230 / 240 V models.

The Burton APEX Surgical Light - Double Ceiling Mount ships in 3 packages:

  • Head: 39 lb / 33" x 33" x 17".
  • Head: 39 lb / 33" x 33" x 17".
  • Mount: 79 lb / 41" x 13.5" x 14".
  • Extension Arms 1 & 2: 51 lb / 44.5" x 16.5" x 11.5".

Features

Burton APEX Surgical Light - Double Ceiling Mount Features

  • Customers can choose between models designed for 8 ft and 10 ft ceilings.
  • Rated bulb lifespan is 1,400 hours.
  • Center handle provides maneuverability and focus adjustment.
  • Drift-free, trouble-free arm support.
  • Combined illumination of (8) 50 watt halogen bulbs.

Specifications

Burton APEX Surgical Light - Double Ceiling Mount Specifications

  • Weight: 208 lb (95 kg).
  • Illuminance: 120,000 lux (11,148 footcandles).
  • Light Source: Halogen bulbs - 50 watt, 24 V; parallel wired for continuous light.
  • Light Color Temperature: 4,200 Kelvin.
  • Color Rendering Index: 95.
  • Number of Bulbs: 8.
  • Bulb Life: 1,400 hours.
  • Light Field: 8" - 10" (20 cm - 25 cm).
  • Depth of Illumination: 17" (43 cm) without refocusing.
  • Power: 237 watts.
  • Lamp Head Diameter: 24" (61 cm) each.
  • Head Tilt: 70°, forward or backward.
  • Lamp Housing Swivel Radius: 54" (137 cm).
  • Maximum Recommended Ceiling Height: 10 ft (305 cm).
  • Certifications / Approvals: UL60601-1 / IEC 60601-1 / IEC 60601-1-2 / IEC 60601-2-41; CAN/CSA C22.2 601-1 M90; CE marked.
  • Battery Option / Emergency Electrical Power: Yes.
  • Irradiance Emission: Below IEC recommended limit of < 1000W/m2 at highest intensity.

Configurations

Burton APEX Surgical Light - Double Ceiling Mount Configurations

8' Model

  • APXDC8: 120 V - For use in the U.S.
  • APXDC8SP: 120 V - SP Model. Refers to Spanish Language Manuals.
  • APXDC825: 230 / 240 V - For use in Europe.
  • APXDC825SP: 230 / 240 V - SP Model. Refers to Spanish Language Manuals.
  • APXDC801: 100 V - For use in Japan.

10' Model

  • APXDC10: 120 V - For use in the U.S.
  • APXDC10SP: 120 V - SP Model. Refers to Spanish Language Manuals.
  • APXDC1025: 230 / 240 V - For use in Europe.
  • APXDC1025SP: 230 / 240 V - SP Model. Refers to Spanish Language Manuals.
  • APXDC1001: 100 V - For use in Japan.

Accessories

Burton APEX Surgical Light - Double Ceiling Mount Accessories

The Burton APEX Surgical Light - Double Ceiling Mount is commonly purchased with:

  • APEX replacement bulbs (6 per box).
  • Sterile light handle covers (25 per box).

Frequently asked questions

How many high-performance bulbs are included?

This double ceiling mount system utilizes a total of eight high-intensity halogen bulbs, with four bulbs installed in each of the two 24-inch lamp heads, ensuring powerful, consistent illumination for surgical procedures.

Key specifications that highlight the quality and reliability of the light source include:

  • Bulb Type & Power: Each is a 50-watt, 24-volt halogen bulb.
  • Longevity: The bulbs have a rated life expectancy of 1,400 hours.
  • Operational Reliability: They are parallel-wired, meaning if one bulb fails, the remaining bulbs in that lamp head continue to operate uninterrupted.
  • Performance: The system delivers a substantial illuminance of 120,000 lux per head.
  • Color Accuracy: The light provides exceptional tissue differentiation, boasting a high Color Rendering Index (CRI) of 95 and a consistent color temperature of 4,200 Kelvin.
How many halogen bulbs does each lamp head use?

Each lamp head on the Burton APEX Double Ceiling Mount uses four high-output halogen bulbs, resulting in a total of eight bulbs for the entire dual-light system. This configuration is designed for reliability and powerful output.

Key specifications of the bulbs and system include:

  • Specifications: Each bulb is rated at 50 watts, 24 V.
  • Reliability: The bulbs are parallel wired. This critical feature ensures that if one bulb fails, the others will remain illuminated, preventing a loss of light during critical procedures.
  • Life Expectancy: The rated lifespan for these halogen bulbs is 1,400 hours.
  • Illumination: The combined output of all eight bulbs delivers a high intensity of 120,000 lux.
What is the maximum illumination intensity per lamp head?

While the Burton APEX system is designed to provide a combined maximum illumination of 120,000 lux (11,148 footcandles), the maximum light intensity delivered by each individual lamp head is 60,000 lux.

This robust output is generated by the light source, which features:

  • Four 50-watt, 24-volt halogen bulbs within each 24-inch diameter head.
  • Bulbs are wired in parallel for reliability.
  • The light offers superior color quality, boasting a high Color Rendering Index (CRI) of 95 and a color temperature of 4,200 Kelvin for optimal tissue rendition.
What is the light's color temperature?

The Burton APEX Surgical Light provides a color temperature of 4,200 Kelvin. This temperature, combined with an excellent Color Rendering Index (CRI) of 95, is specifically engineered to ensure accurate tissue differentiation for critical surgical procedures.

Do the halogen bulbs have a long life?

Yes, the halogen light source is engineered for reliable, continuous operation in demanding surgical settings. The system uses eight 50-watt halogen bulbs (four per lamp head) to provide powerful illumination.

Key features regarding the bulb life and reliability include:

  • Extended Lifespan: Each bulb has an expected operational life of 1,400 hours.
  • Built-in Redundancy: The bulbs are parallel-wired. If an individual bulb fails, the remaining bulbs continue to function without interruption, ensuring consistent illumination throughout the procedure.

This combination of long life and redundancy helps minimize maintenance while maximizing operational safety.

What ceiling heights can this surgical light accommodate?

The Burton APEX Surgical Light is available in models designed for both 8 ft and 10 ft ceilings.

Is there a battery backup or emergency power option for the Burton APEX Surgical Light?

Yes, a battery option / emergency electrical power is available for this surgical light.

What important safety certifications does the light hold?

The Burton APEX Surgical Light meets stringent requirements for global medical safety and performance.

It holds the following key certifications and approvals:

  • UL60601-1
  • IEC 60601-1, IEC 60601-1-2, IEC 60601-2-41 (International standards for medical electrical equipment)
  • CAN/CSA C22.2 601-1 M90 (Canadian Standards Association)
  • CE marked (Approves the light for sale in Europe)

Furthermore, the light features safety controls to prevent excessive heat exposure, with irradiance emissions kept below the IEC recommended limit of 1,000 W/m² at maximum intensity.

Does the light stay in position?

The Burton APEX Surgical Light features drift-free arms that are designed to hold the light precisely in the desired position throughout surgical procedures, ensuring stability and reliability.

Is the illumination easily adjusted?

Yes, the Burton APEX system is engineered for easy, precise, and one-handed operation, utilizing drift-free articulated arms for stable positioning.

Key adjustment features include:

  • One-Handed Positioning: Each lamp head features a center handle that allows for quick, one-handed aiming and simultaneously functions as a focus gauge.
  • Light Field: The light field diameter is adjustable between 8 inches and 10 inches (20 cm – 25 cm), and the system provides an excellent 17 inches (43 cm) depth of illumination without requiring refocusing.
  • Maneuverability: The lamp heads offer significant movement, including a 70° tilt (forward or backward) and a wide 54-inch (137 cm) swivel radius.
  • Intensity Control: Light intensity adjustment is available via an external control box; however, this control box is only included with the 120V and 100V configurations.
