Burton AIM LED Examination Light - Single Ceiling Mount

Burton AIM LED Examination Light - Single Ceiling Mount
Burton AIM LED Examination Light - Head
Burton AIM LED Examination Light - Single Ceiling Mount
Burton AIM LED Examination Light - Head
Key Features
  • SKU: PHL-ALEDSC
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 5 Years
  • Weight: 60.0 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Burton
    Ships from Manufacturer
  • MPN: ALEDSC
  • Phone: (800) 444-9909
$4,222.00 $3,167.98

+ Free Shipping

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

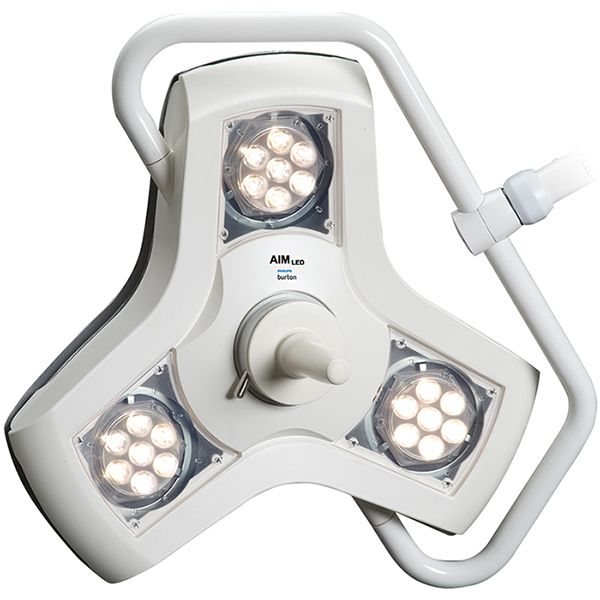

The Burton AIM LED Examination Light - Single Ceiling Mount joins a Y-shape lamp with 3 powerful LED lights, and secures it from a ceiling base that extends to 63 inches of reach.

Warranty: 5 Years Parts and Labor.

The Burton AIM LED Examination Light - Single Ceiling Mount is incredibly energy-efficient, with at least 10 times more longevity than traditional Halogen lights. What's especially unique about the single ceiling mount is that the entire apparatus can swivel 360°. The LED lamphead can also rotate 360°, giving providers an incredible range of motion, without the obstruction of bulky lamps. The center handle can guide the lamp with one-hand, and is also removable and sterilizable for a healthier environment.

With a light intensity of 45,000 lux and 70% more energy-efficiency, the AIM LED lamp is ideal for intensive care units, trauma centers, diagnostics, and other specialty clinics where bright, clear light is needed. Light reflectors within the lamp can adjust the light in different sizes and patterns, depending on the provider's needs.

The Burton AIM LED Examination Light - Single Ceiling Mount ships in 3 packages:

  • Head: 17 lbs / 25" x 25" x 8".
  • Ceiling Mount: 26 lbs / 34" x 14" x 8".
  • Extension Arm: 14 lbs / 37" x 21" x 6".

Features

Burton AIM LED Examination Light - Single Ceiling Mount Features

  • Unlimited 360° rotation for both arm axes.
  • Lamphead rotates 360°.
  • Center adjustable handle is also sterilizable.
  • Adjustable light reflectors for any examination area.
  • A lifespan that's 10 times longer than Halogen lights.

Specifications

Burton AIM LED Examination Light - Single Ceiling Mount Specifications

  • Weight: 44 lbs (19.94 kg).
  • Height of Lamp Housing - Ceiling Mounted: 41" (104 cm).
  • Reach: 63" (160 cm).
  • Light Source: Light Emitting Diodes (LED).
  • Light Intensity: 45,000 Lux at 1 meter.
  • Light Color Temperature: 4,300 Kelvin.
  • Number of LED Modules: 3.
  • LED Lifespan: 20,000 hours.
  • Power: 84 watts.
  • Color Rendering Index: 92.
  • Lamphead Diameter: 20".
  • Light Field Diameter: 13" - 15" (33 cm - 38 cm).
  • Depth of Illumination: 54" (137 cm).
  • Minimum Ceiling Height: 8 ft. (244 cm).
  • Maximum Ceiling Height: 12 ft. (366 cm).
  • Certifications / Approvals: UL60601-1 / IEC 60601-1 / IEC 60601-1-2 / IEC 60601-2-41; CAN/CSA C22.2 601-1 M90; CE marked.

Configurations

Burton AIM LED Examination Light - Single Ceiling Mount Configurations

  • #ALEDSC: 120 V - For use in the U.S.
  • #ALEDSC03: 230 / 240 V - For use in Europe.
  • #ALEDSC01: 100 V - For use in Japan.
  • #ALEDSC25: 230 V / 240 V - SP Model. Refers to Spanish Language Manuals.

Accessories

Burton AIM LED Examination Light - Single Ceiling Mount Accessories

The Burton AIM LED Examination Light - Single Ceiling Mount is commonly purchased with:

  • Sterilizable / Autoclavable Handle (#1017040).
  • Sterile Handle Covers (25 per box) (#0008100PK).

Frequently asked questions

Is the handle of this examination light sterilizable?

The center adjustable handle of the Burton AIM LED Examination Light is removable and sterilizable, which helps to maintain a sterile environment.

Is this light compliant with medical safety standards?

Yes, the Burton AIM LED Examination Light is fully compliant with essential national and international medical safety standards, confirming its suitability and safety for clinical environments.

It holds the following key certifications and approvals:

  • International Safety Standards: Includes IEC 60601-1, IEC 60601-1-2, and IEC 60601-2-41, along with the CE Mark.
  • North American Safety Standards: Certified by UL60601-1 (US) and CAN/CSA C22.2 601-1 M90 (Canada).
Does this LED light offer great energy efficiency?

Yes, the Burton AIM LED Examination Light offers superior energy efficiency and longevity compared to traditional lighting sources, significantly lowering your long-term operating costs. This system is designed to provide high-intensity light while minimizing power consumption.

  • Efficiency: It is 70% more energy-efficient than traditional Halogen lights.
  • Power Consumption: The light consumes only 84 watts of power while delivering 45,000 Lux of light intensity.
  • Longevity: The durable LED modules are rated for an impressive 20,000-hour lifespan, offering at least 10 times greater durability than Halogen bulbs.
Does this light offer superior maneuverability?

Yes, the Burton AIM LED Examination Light is engineered for exceptional maneuverability, providing providers with maximum, obstruction-free control.

Key features that enable superior positioning include:

  • Unlimited 360° Rotation: Both the articulated arm axes and the lamphead offer unrestricted 360° swivel capabilities.
  • Extended Reach: The arm system provides an impressive maximum reach of 63 inches (160 cm) from the ceiling mount.
  • Sterilizable Handle: The center adjustable handle allows for easy, single-hand guidance and is removable for effective sterilization, supporting a healthy clinical environment.
What is the maximum light intensity (Lux)?

The Burton AIM LED examination light provides high-intensity, accurate illumination vital for diagnostics and procedures. Key illumination specifications include:<ul><li>Light Intensity: It delivers a powerful 45,000 Lux of light intensity, measured at 1 meter.</li><li>Color Accuracy: The high Color Rendering Index (CRI 92) ensures exceptional tissue color rendition for accurate clinical assessment.</li><li>Depth of Illumination: The light maintains clear visibility with an impressive depth of illumination reaching 54 inches (137 cm).</li></ul>

What is the adjustable light field diameter range?

The light field diameter of the Burton AIM LED Examination Light is fully adjustable, allowing providers to customize the illumination pattern for specific examination areas by utilizing internal light reflectors.

This adjustable range is:

  • 13 inches to 15 inches (33 cm to 38 cm)
What are the required ceiling heights for installation?

The Burton AIM LED Examination Light (Single Ceiling Mount) is designed for installation within a specific range of ceiling heights:

  • Minimum Ceiling Height Requirement: 8 ft. (244 cm)
  • Maximum Ceiling Height Requirement: 12 ft. (366 cm)
Is the light field diameter adjustable?

Yes, the light field diameter is fully adjustable, allowing you to optimize the illumination for different examination areas. This feature is enabled by adjustable light reflectors built into the lamphead.

  • Adjustment Mechanism: The light pattern is modulated using adjustable light reflectors.
  • Field Diameter: The size can be customized, ranging from 13 inches to 15 inches (33 cm to 38 cm) in diameter.
Does this light provide ample depth of illumination?

Yes, the Burton AIM LED Examination Light is designed to provide deep and consistent illumination across the examination field.

  • Depth of Illumination: 54 inches (137 cm)

This specification ensures that the light maintains intensity and focus over a significant distance, supporting various demanding medical procedures.

Does the light utilize multiple LED modules?

Yes, the Burton AIM LED Examination Light is equipped with three powerful LED modules mounted in a unique Y-shape lamphead. This configuration is designed to provide high-intensity, accurate illumination critical for diagnostics and procedures.

Key performance metrics provided by these modules include:

  • High Illumination: Delivers 45,000 Lux of light intensity at 1 meter.
  • Accurate Color Fidelity: Features a high Color Rendering Index (CRI 92) and a color temperature of 4,300 Kelvin, which is essential for accurate tissue color perception.
  • Exceptional Longevity: The LED modules are highly durable, offering an operational lifespan of 20,000 hours, significantly longer than traditional light sources.
