Burton AIM-200 OR Surgical Light - Wall Mount

Burton AIM-200 OR Surgical Light - Wall Mount
Key Features
  • SKU: PHL-A200W
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 5 Years

  • Learn more:

Contact The Manufacturer
  • MFR: Burton
    Ships from Manufacturer
  • MPN: A200W
  • Phone: (800) 444-9909
$7,972.00 $6,395.22
Est. Delivery:

Earn [points_amount] when you buy this item.

Shop with Confidence

Free Shipping

Free Returns

Payment Options

Price Match Guarantee

Sales Tax Exemption

Dedicated Account Managers

Description

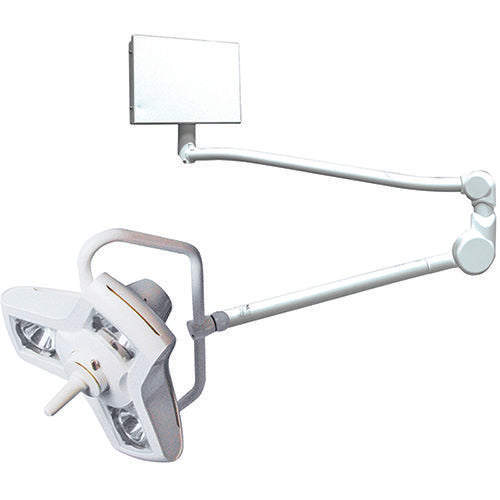

The Burton AIM-200 OR Surgical Light - Wall Mount is a compact, yet versatile configuration of this optimum surgical lamp. The wall mount maintains a wide reach, while still being compact enough for stowing away when not in use.

Warranty: 5 Years Parts and Labor.

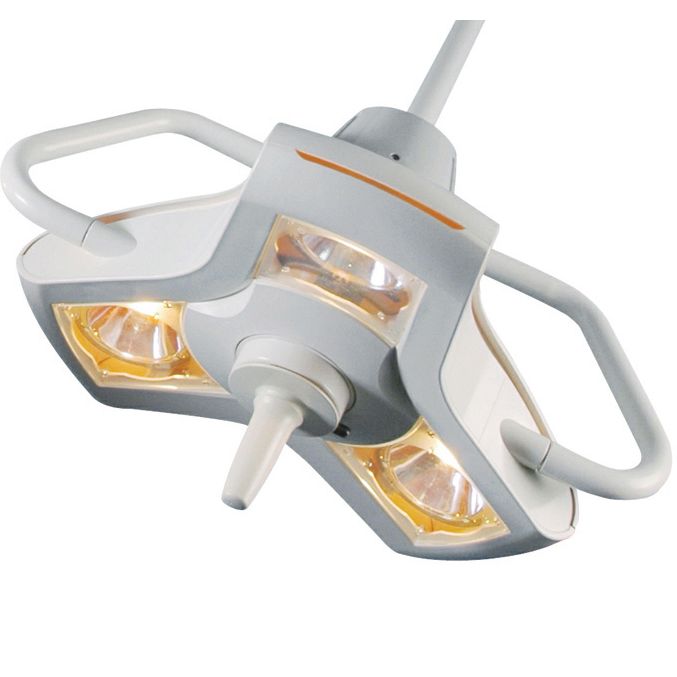

The Burton AIM-200 OR Surgical Light - Wall Mount contains a Y-shaped, 3-bulb halogen lamp on a drift-free arm. The wall mount is a sturdy base, offering a reach of over 5 feet. The lamp head is Y-shaped to allow for plenty of headroom without obstructing the light, and also can rotate 360°. The 3 halogen bulbs measure 50 watts each, providing powerful brightness that rivals direct sunlight. Reflectors within the lamp head can also direct the light into various shapes and patterns, depending on the practitioner's preferences. The lamp also provides a CRI of 96, ensuring accurate clear light for surgical procedures.

With a brightness measuring 90,000 lux, this lamp is designed for ideal use in ambulatory surgical settings, hospitals, and even veterinary clinics.

The Burton AIM-200 OR Surgical Light - Wall Mount ships in 3 packages:

  • Head: 17 lb / 25" x 25" x 8".
  • Mount: 20 lb / 16" x 16" x 8".
  • Extension Arm: 14 lb / 37" x 21" x 6".

Accessories

Burton AIM-200 OR Surgical Light - Wall Mount Accessories

The Burton AIM-200 OR Surgical Light - Wall Mount is commonly purchased with:

  • Sterile handle covers (25 per box).
  • AIM-200 OR replacement bulbs, (3 per box).
  • Sterilizable / Autoclavable Handle.

Features

Burton AIM-200 OR Surgical Light - Wall Mount Features

  • Impressive depth of field at 47" (119 cm).
  • Center handle is removable for sterilization.
  • Y-shaped lamp head allows room for multiple caregivers.
  • 1,400 hours of light, straight out of the box.
  • Lamp head can rotate 360°.

Specifications

Burton AIM-200 OR Surgical Light - Wall Mount Specifications:

  • Weight: 51 lb (23 kg).
  • Light Source: Halogen bulb - 50 W IRC, 12 V, bi-pin.
  • Illuminance: 90,000 lux (8,361 footcandles) at 39".
  • Light Color Temperature: 3,700 Kelvin.
  • Number of Bulbs: 3.
  • Bulb Life: 1,400 hours.
  • Power: 105 watts.
  • Color Rendering Index: 96.
  • Lamp Head Diameter: 20"{ (51 cm).
  • Lamp Head Swivel Radius: 63" (160 cm).
  • Beam Diameter: 10" - 12" (25 - 30 cm).
  • Depth of Illumination: 47" (119 cm).
  • Certifications / Approvals: UL60601-1 / IEC 60601-1 / IEC 60601-1-2 / IEC 60601-2-41; CAN/CSA C22.2 601-1 M90; CE marked.

Configurations

Burton AIM-200 OR Surgical Light - Wall Mount Configurations

  • A200W: 120 V - For use in the U.S.
  • A203W: 230 / 240 V - For use in Europe.
  • A201W: 100 V - For use in Japan.
  • A202W25: 230 V - SP Model. Refers to Spanish Language Manuals.
