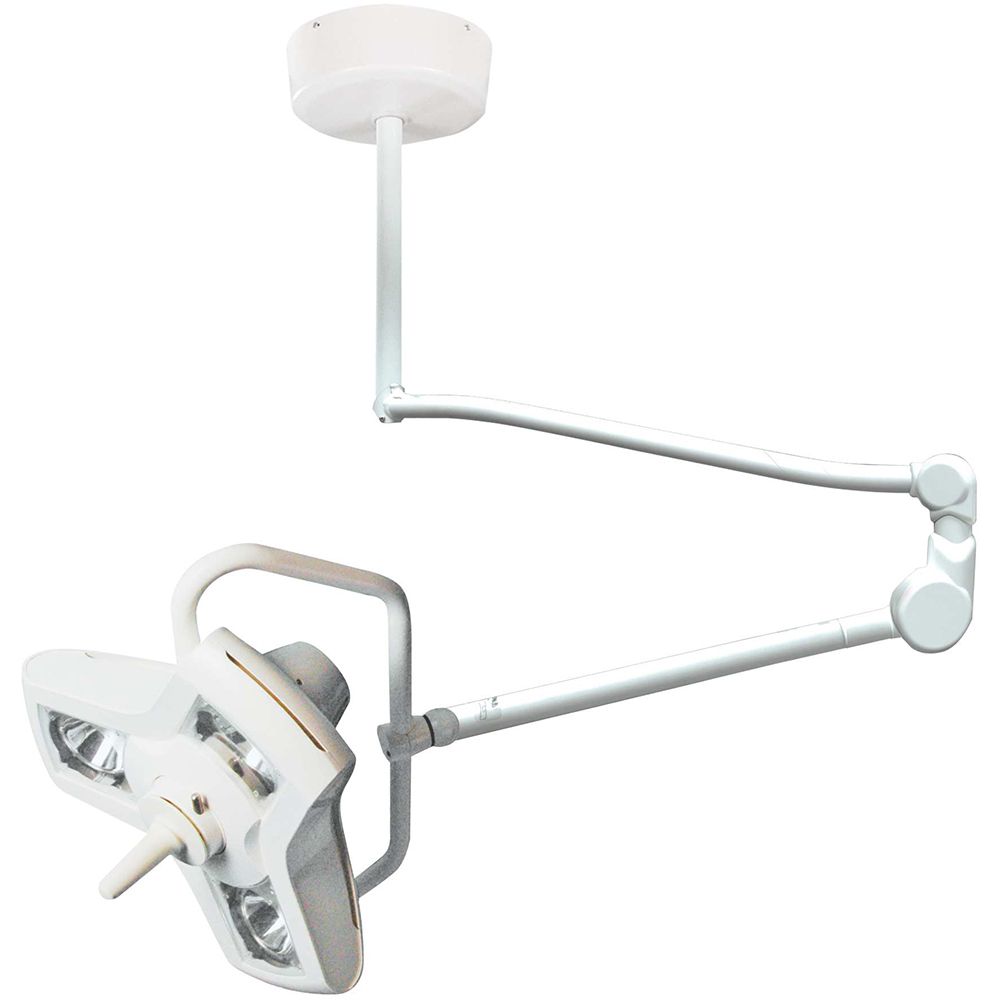

Burton AIM-200 OR Surgical Light - Single Ceiling Mount

Burton AIM-200 OR Surgical Light - Single Ceiling Mount

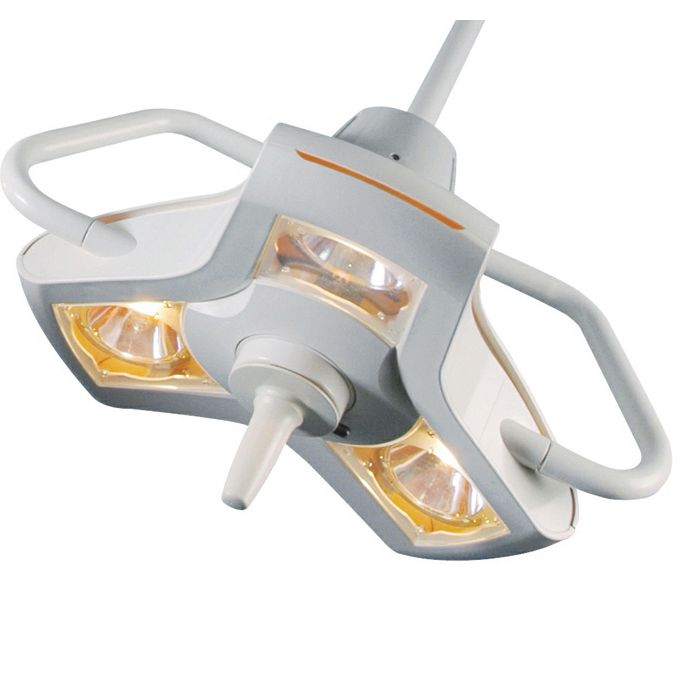

Burton AIM-200 OR Surgical Light -Head
Burton AIM-200 OR Surgical Light - Single Ceiling Mount
Burton AIM-200 OR Surgical Light -Head
Key Features
  • SKU: PHL-A200SC
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 5 Years

  • Learn more:

Contact The Manufacturer
  • MFR: Burton
    Ships from Manufacturer
  • MPN: A200SC
  • Phone: (800) 444-9909
$8,770.00 $6,441.77

+ Free Shipping

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Burton AIM-200 OR Surgical Light - Single Ceiling Mount keeps the powerful halogen lamp elevated away from surgical spaces, while maintaining an impressive reach with head-to-toe lighting. With multiple reflectors, Y-shape design, and flexibility, this light is a must-have for surgical centers.

Warranty: 5 Years - Parts and Labor.

The Burton AIM-200 OR Surgical Light - Single Ceiling Mount has unlimited rotation on the mount, as well as 360° rotation for the lamp head. The arm extends around 55 inches, and the lamp head boasts a diameter of 20 inches. The Y-shape design allows for freedom of movement without obstructing the light, and can be easily positioned with the center handle. This handle can also be removed and sterilized with the quick release.

This lamp is incredibly versatile, with 10 feet of diameter range. The light patterns can also be adjusted in size and shape, to fit the practitioner's preferences.

The Burton AIM-200 OR Surgical Light - Single Ceiling Mount ships in 2 packages:

  • Head: 17 lb / 25" x 25" x 8".
  • Mount: 30 lb / 34" x 14" x 8".

Features

Burton AIM-200 OR Surgical Light - Single Ceiling Mount Features

  • Unlimited 360° rotation.
  • Large, adjustable light patterns to fit the workspace.
  • Removable and sterilizable handle.
  • Y-shaped lamp head provides plenty of headroom for caregivers.
  • Drift-free arm design.

Specifications

Burton AIM-200 OR Surgical Light - Single Ceiling Mount Specifications

  • Weight: 47 lb (28 kg).
  • Light Source: Halogen bulb - 50 W IRC, 12 V, bi-pin.
  • Illuminance: 90,000 lux (8,361 footcandles) at 39".
  • Light Color Temperature: 3,700 Kelvin.
  • Number of Bulbs: 3.
  • Bulb Life: 1,400 hours.
  • Power: 105 watts.
  • Color Rendering Index: 96.
  • Lamp Head Diameter: 20" (51 cm).
  • Lamp Head Swivel Radius: 60" (152 cm).
  • Vertical Height Movement: 41" (104 cm).
  • Beam Diameter: 10" - 12" (25 - 30 cm).
  • Depth of Illumination: 47" (119 cm).
  • Minimum Recommended Ceiling Height: 8 ft (244 cm).
  • Maximum Recommended Ceiling Height: 12 ft (366 cm).
  • Certifications / Approvals: UL60601-1 / IEC 60601-1 / IEC 60601-1-2 / IEC 60601-2-41; CAN/CSA C22.2 601-1 M90; CE marked.

Configurations

Burton AIM-200 OR Surgical Light - Single Ceiling Mount Configurations

  • #A200SC: 120 V - For use in the U.S.
  • #A203SC: 230 / 240 V - For use in Europe.
  • #A201SC: 100 V - For use in Japan.
  • #A202SC25: 230 V - SP Model. Refers to Spanish Language Manuals.

Accessories

Burton AIM-200 OR Surgical Light - Single Ceiling Mount Accessories

The Burton AIM-200 OR Surgical Light - Single Ceiling Mount is commonly purchased with:

  • AIM-200 OR replacement bulbs, (3 per box).
  • Sterilizable / Autoclavable Handle.
  • Sterile Handle Covers (25 per box).
  • 42" Drop Tube.

Frequently asked questions

Does the surgical light have a sterilizable handle?

Yes, the Burton AIM-200 OR Surgical Light features a removable center handle designed specifically for sterilization. It can be easily detached, allowing medical staff to maintain the highest hygiene standards required in the operating room.

Does the surgical light meet safety standards?

Yes, the Burton AIM-200 OR Surgical Light is rigorously tested and certified, ensuring it meets high international and North American standards for medical electrical equipment safety and performance. Its compliance makes it suitable for sterile surgical environments.

The unit adheres to the following key certifications:

  • UL60601-1 and CAN/CSA C22.2 601-1 M90 (North American safety standards)
  • CE marked (European compliance)
  • IEC 60601-1 (General safety requirements)
  • IEC 60601-1-2 and IEC 60601-2-41 (Specific standards related to surgical lighting)
Does this surgical light use long-life halogen bulbs?

Yes, the Burton AIM-200 OR Surgical Light utilizes high-efficiency halogen bulbs optimized for longevity in surgical settings.

Key specifications for the lighting components:

  • Bulb Type: It uses three 50 W IRC, 12 V, bi-pin halogen bulbs.
  • Total Bulbs: The fixture requires 3 bulbs.
  • Rated Lifespan: Each bulb has a substantial operational life of 1,400 hours.
Does this surgical light offer bright illumination?

Yes, the Burton AIM-200 OR Surgical Light provides powerful illumination, delivering 90,000 lux (8,361 footcandles) at a distance of 39 inches. This ensures a bright and clear view for surgical procedures.

Does the surgical light offer a high Color Rendering Index (CRI)?

Yes, the Burton AIM-200 OR Surgical Light provides an impressive Color Rendering Index (CRI) of 96. This high CRI ensures exceptional color accuracy, which is vital for precise visualization and diagnosis during surgical procedures.

How flexible is the light's positioning?

The Burton AIM-200 is engineered for exceptional adjustability and precise, drift-free positioning over the operating field.

Key specifications demonstrating its flexibility include:

  • Extensive Reach: The articulated, drift-free arm offers an extension of approximately 55 inches.
  • Comprehensive Rotation: The system allows for unlimited 360
    yearotatation     at both the ceiling mount and the lamp head, ensuring full coverage.
  • Vertical Movement: The lamp head has a vertical adjustment range of 41 inches (104 cm).
  • Aseptic Control: Positioning is controlled via the center handle, which is removable and sterilizable/autoclavable for maintaining operating room hygiene.
Is the surgical light suitable for various ceiling heights?

Yes, the Burton AIM-200 OR Surgical Light is designed to be suitable for various ceiling heights, ensuring optimal positioning in different operating room settings. The recommended ceiling height for installation is between 8 feet (244 cm) and 12 feet (366 cm).

Are different voltage configurations available?

Yes, the Burton AIM-200 OR Surgical Light is designed for global use and is available in several voltage configurations to suit various clinical settings.The system is offered in the following options: * 120 V * 230 / 240 V * 100 V * 230 V (An option is also available with a Spanish language manual.)

What is the surgical light's color temperature?

The Burton AIM-200 OR Surgical Light provides a color temperature of 3,700 Kelvin. This ensures a high-fidelity light that, combined with an exceptionally high Color Rendering Index (CRI) of 96, promotes highly accurate tissue color recognition and superior visualization during surgical procedures.

What is the warranty for the Burton AIM-200 OR Surgical Light?

The Burton AIM-200 OR Surgical Light comes with a 5-year warranty covering both parts and labor. This warranty provides assurance of the product’s quality and reliability.
