Burton AIM-200 OR Surgical Light - Floorstand

Yes, the Burton AIM-200 OR Surgical Light is designed for easy sterilization protocols. It features a quick-release, replaceable center handle specifically designed for swift sterilization procedures, which is essential for maintaining a sterile environment in the operating room.

Yes, the Burton AIM-200 OR Surgical Light holds extensive medical device certifications, confirming its compliance with stringent national and international safety standards for use in clinical environments. This assures its reliability and safety in operating and procedure rooms.

The light is certified under the following key standards:

• US: UL60601-1
• Canada: CAN/CSA C22.2 601-1 M90
• Europe: CE marked
• International/General: IEC 60601-1, IEC 60601-1-2, and IEC 60601-2-41

Yes, the Burton AIM-200 OR Surgical Light is designed for global use and is available in several voltage configurations to suit different operational environments.

When ordering, you must specify the required voltage, as each configuration corresponds to a unique product SKU. The available options include:

• 120 V (Standard)
• 100 V
• 230 V / 240 V
• 230 V (Also available with a Spanish language manual option)

Yes, the Burton AIM-200 OR Surgical Light is specifically designed to provide shadow-free illumination during procedures.

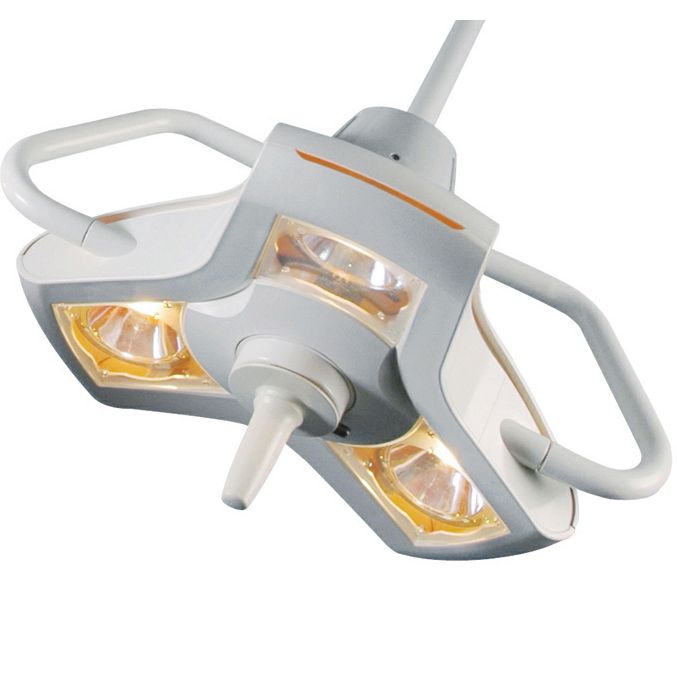

This is achieved primarily through the ergonomic Y-shaped lamp head, which is engineered to maximize headroom for practitioners. By doing so, it effectively reduces the potential for obstruction and ensures the light remains clear and focused on the surgical field.

The Burton AIM-200 OR Surgical Light is designed to provide high-intensity, shadow-free illumination crucial for surgical procedures, offering superior clarity and performance:

• Exceptional Brightness: Delivers 90,000 lux (8,361 footcandles) of illuminance, measured at a working distance of 39 inches.
• Accurate Visualization: Features a high Color Rendering Index (CRI of 96) and a color temperature of 3,700 Kelvin, which ensures accurate tissue color representation.
• Illumination Depth: Provides an impressive depth of illumination spanning 47 inches (119 cm).

The unit achieves this using three 50 W Halogen bulbs within an ergonomic Y-shaped lamp head, which is designed to maximize practitioner headroom and minimize shadows.

Yes, the Burton AIM-200 OR Surgical Light uses three high-performance Halogen bulbs (50 W IRC, 12 V, bi-pin) to deliver precise and intense light ideal for surgical settings. The total power consumption is 105 watts.This Halogen system is highly valued for its performance specifications:

• Illuminance: Provides a powerful 90,000 lux (8,361 footcandles) when measured at 39 inches.
• Color Accuracy (CRI): Features an exceptional Color Rendering Index (CRI) of 96, which is essential for accurate tissue visualization.
• Color Temperature: Produces light at 3,700 Kelvin, offering a comfortable and clear light color.
• Longevity: The bulbs are rated for an impressive operating life of approximately 1,400 hours of initial use.

The Halogen bulbs used in the Burton AIM-200 are designed for reliable performance and longevity, helping to minimize the frequency of replacements in clinical settings. They are a critical component for maintaining high-quality light output for surgical procedures.

• Rated Lifespan: The bulbs are rated for approximately 1,400 hours of operational use.
• Bulb Type: The unit utilizes three 50 W IRC, 12 V, bi-pin Halogen bulbs.
• Light Quality: The bulbs deliver exceptional clarity, providing up to 90,000 lux (at 39 inches) with a high Color Rendering Index (CRI 96) and a color temperature of 3,700 Kelvin for accurate tissue visualization.

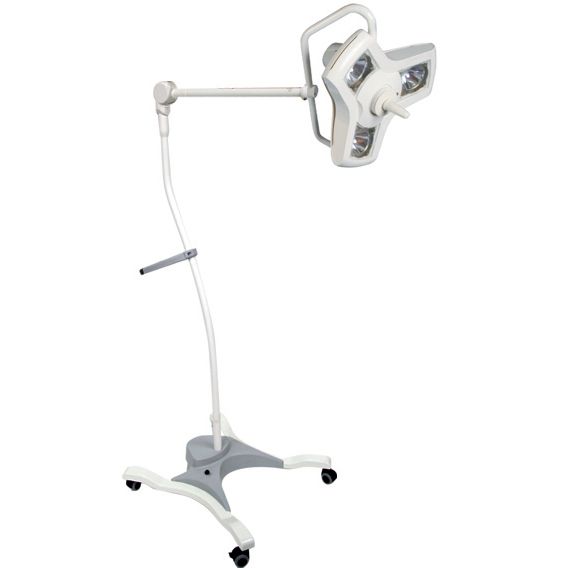

Yes, the Burton AIM-200 Floorstand is specifically engineered for exceptional mobility and highly versatile positioning, making it ideal for dynamic surgical environments.

Its design ensures practitioners have maximum control and extensive reach:

• Mobility: It is mounted on a secure, durable floorstand base that allows for easy transport and relocation between different operating and procedure rooms.
• Extensive Reach: The unit stands 69 inches tall and features a substantial 41-inch mounting arm to provide wide operational coverage.
• Precise Adjustability: The Y-shaped lamp head allows for unlimited rotation and features tiltable reflectors, enabling users to customize the beam pattern and size (10 to 12 inches) with an impressive 47-inch depth of illumination.
• Ergonomics: The distinctive Y-shaped lamp head maximizes headroom and minimizes shadowing for the practitioner.
• Sterile Handling: The center handle used for lamp positioning is quick-release and easily replaceable to facilitate efficient sterilization procedures.

Yes, the Burton AIM-200 provides exceptional color accuracy, which is vital for precise tissue visualization during surgical procedures.

Key specifications confirming its high light quality include:

• Color Rendering Index (CRI): The light features a high CRI of 96, ensuring colors appear natural and accurate.
• Light Color Temperature: It maintains a high-fidelity color temperature of 3,700 Kelvin.
• Illuminance: The system delivers powerful illumination of 90,000 lux (8,361 footcandles) measured at 39 inches.

Yes, the Burton AIM-200 OR Surgical Light offers a significant depth of illumination, which is critical for maintaining consistent, clear visibility throughout various surgical procedures.

• Depth of Illumination: 47 inches (119 cm)
• Benefit: This extensive depth ensures the focal spot remains bright and shadow-free even when the light source needs to be positioned flexibly around medical equipment or personnel.
