List Price:   $11,149
Price:   $9,197.93

Special Offers
  • $195.46/month with special financing (more details)


Quantity:

Estimated Delivery:
Estimated Delivery:
Estimated Delivery:
Estimated Delivery:

Shop with confidence at MFI

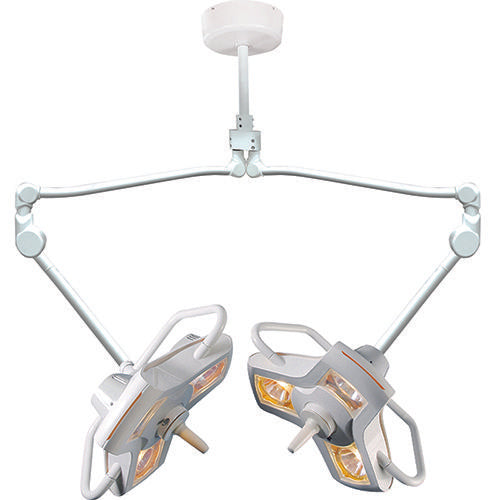

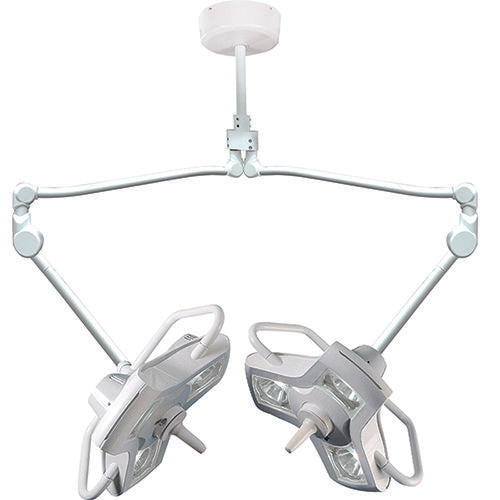

The Burton AIM-200 OR Surgical Light - Double Ceiling Mount has double the power of the AIM-200 lamp, lit with (6) 50 watt halogen bulbs and over 50 inches of reach. This lamp is ideal for ambulatory surgical centers, veterinarian clinics, and hospitals.

Warranty: 5 Years Parts and Labor.

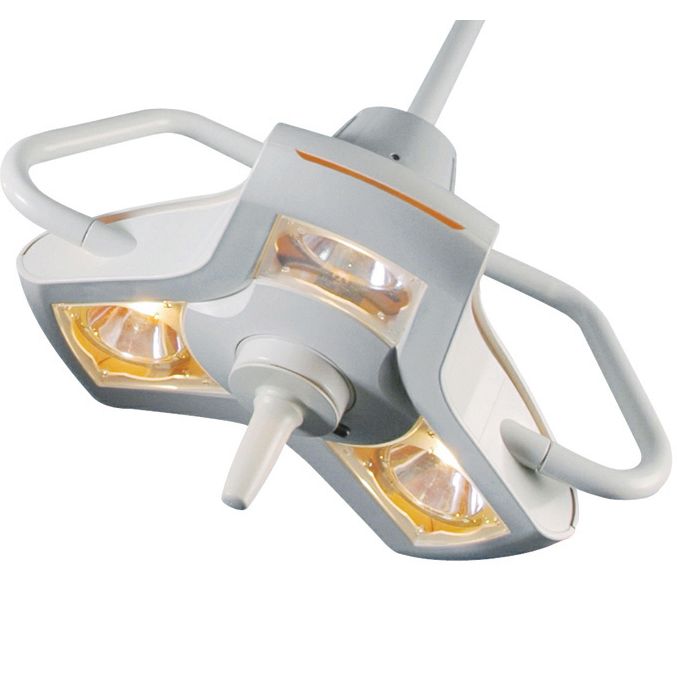

The Burton AIM-200 OR Surgical Light - Double Ceiling Mount contains two Y-shaped lamp heads on drift-free arms that can span nearly 6 feet in length. This surgical light was specially designed to adjust to the practitioner's needs, including a wide reach, adjustable light patterns and deep light field. The reflectors in the lamp can change the size and shape of the light spots, and the the depth of field measures 47 inches (119 cm). Each head can be easily positioned using the center handle, which can also be removed with a quick and release and sterilized.

With twice the power of lamp heads that have 90,000 lux of brightness each, this lamp is powerful for surgical centers in need of reliable light. It also comes ready with 1,400 hours of light.

The Burton AIM-200 OR Surgical Light - Double Ceiling Mount ships in 5 packages:

  • Head: 16 lb / 25" x 25" x 8".
  • Head: 16 lb / 25" x 25" x 8".
  • Mount: 38 lb / 34" x 14" x 8".
  • Extension Arm: 14 lb / 37" x 21" x 6".
  • Extension Arm: 14 lb / 37" x 21" x 6".

Burton AIM-200 OR Surgical Light - Double Ceiling Mount Features

  • Center handle can be released with one hand, and is sterilizable and autoclavable.
  • Maximum reach of 63".
  • Reflectors allow for adjustable light patterns to fit work area.
  • 1,400 hours of light, right out of the box.
  • 6 halogen bulbs, 50 watt power.

Burton AIM-200 OR Surgical Light - Double Ceiling Mount Specifications

  • Weight: 98 lb (45 kg).
  • Light Source: Halogen bulb - 50 W IRC, 12 V, bi-pin.
  • Illuminance: 90,000 lux (8,361 footcandles) at 39".
  • Light Color Temperature: 3,700 Kelvin.
  • Number of Bulbs: 6.
  • Bulb Life: 1,400 hours.
  • Power: 105 watts.
  • Color Rendering Index: 96.
  • Lamp Head Diameter: 20" (51 cm) each.
  • Lamp Head Swivel Radius: 60" (152 cm).
  • Vertical Height Movement: 41" (104 cm).
  • Beam Diameter: 10" - 12" (25 - 30 cm).
  • Depth of Illumination: 47" (119 cm).
  • Minimum Recommended Ceiling Height: 8 ft (244 cm).
  • Maximum Recommended Ceiling Height: 12 ft (366 cm).
  • Certifications / Approvals: UL60601-1 / IEC 60601-1 / IEC 60601-1-2 / IEC 60601-2-41; CAN/CSA C22.2 601-1 M90; CE marked.

Burton AIM-200 OR Surgical Light - Double Ceiling Mount Configurations

  • #A200DC: 120 V - For use in the U.S.
  • #A203DC: 230 / 240 V - For use in Europe.
  • #A201DC: 100 V - For use in Japan.
  • #A202DC25: 230 V - SP Model. Refers to Spanish Language Manuals.

Burton AIM-200 OR Surgical Light - Double Ceiling Mount Accessories

The Burton AIM-200 OR Surgical Light - Double Ceiling Mount is commonly purchased with:

  • AIM-200 OR replacement bulbs, (3 per box).
  • Sterilizable / Autoclavable Handle.
  • Sterile Handle Covers (25 per box).
  • 42" Drop Tube.
