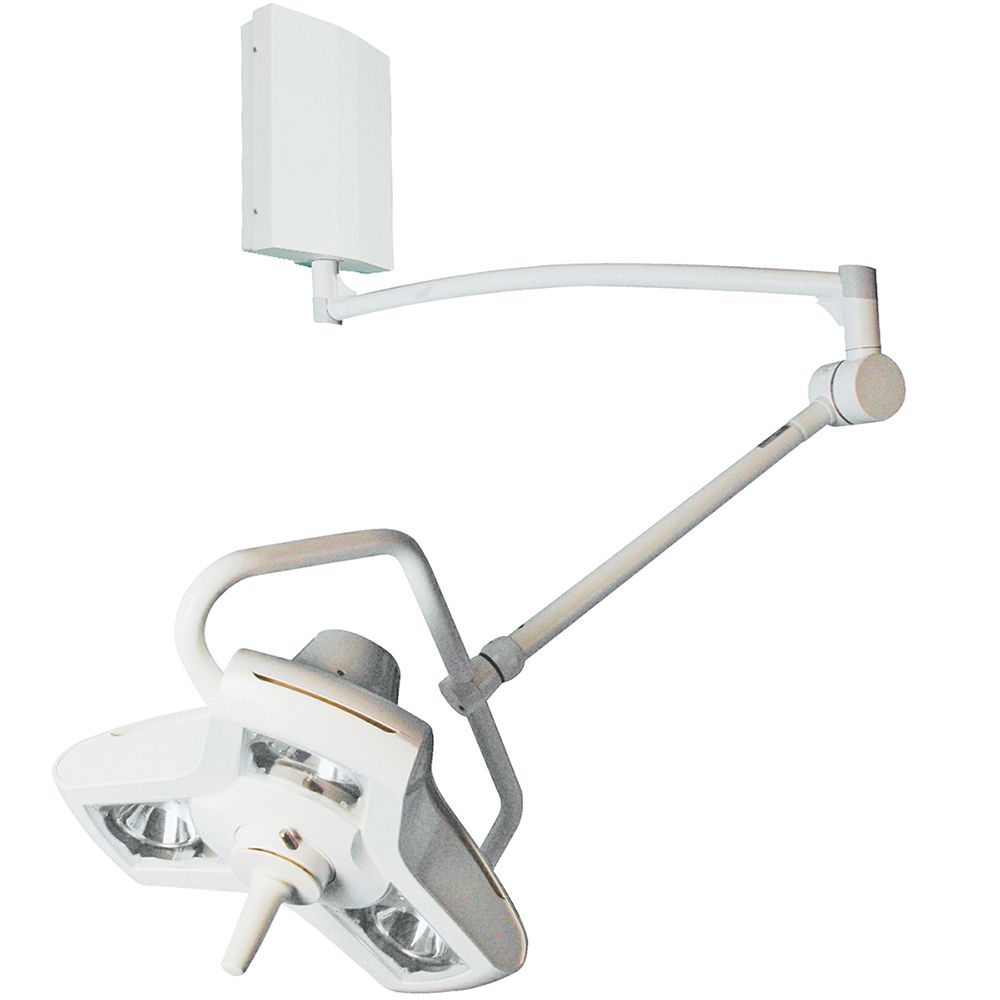

Burton AIM-100 Surgical Light - Wall Mount

Burton AIM-100 Surgical Light - Wall Mount

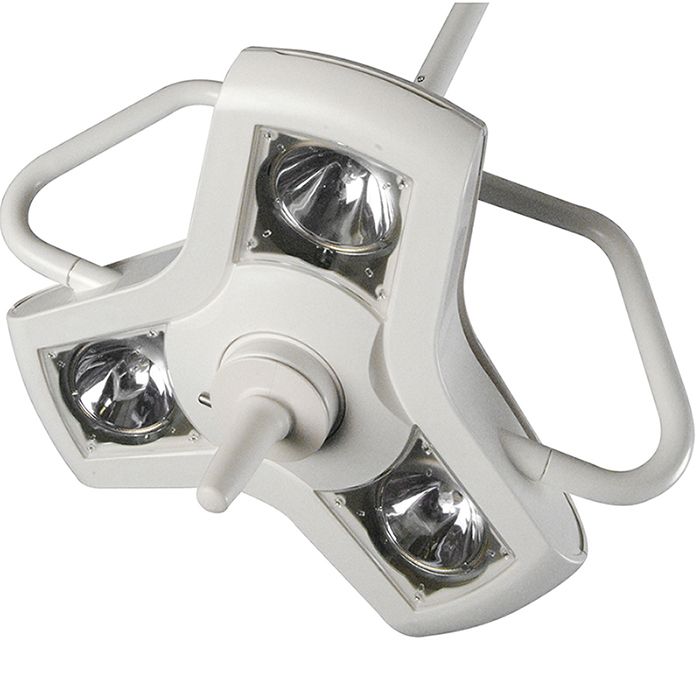

Burton AIM-100 Surgical Light -Head
Burton AIM-100 Surgical Light - Wall Mount
Burton AIM-100 Surgical Light -Head
Key Features
  • SKU: PHL-A100W
  • Weight: 16.17 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Burton
    Ships from Manufacturer
  • MPN: A100W
  • Phone: (800) 444-9909
$5,858.00 $4,579.86

+ Free Shipping

Item Discontinued

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Burton AIM-100 Surgical Light - Wall Mount fixes a brilliant 3-bulb Halogen lamp to a wall base, with two adjustable arms for maximum movement.

Warranty: 5 Years Parts and Labor.

The Burton AIM-100 Surgical Light - Wall Mount is powered by a lamphead housing 3 quartz Halogen bulbs and 63,000 Lux of light intensity. The lamp is mounted on two arms, measuring in 31 and 32 inches in length. Together, these arms allow for a wide range of horizontal and vertical movement. This light configuration offers the compactness of a wall mount while still providing reach and height for nearly any treatment or procedure.

The Burton AIM-100 Surgical Light - Wall Mount ships in 3 packages:

  • Head: 17 lb / 25" x 25" x 8".
  • Floorstand: 23 lb / 27" x 25" x 8".
  • Upright: 14 lb / 61" x 13" x 4".

Features

Burton AIM-100 Surgical Light - Wall Mount Features

  • Two arms, measuring 32 inches and 31 inches in length.
  • Adjustable with one hand on center sterilization handle.
  • Stays cool to the touch, even after hours of use.
  • Limitless rotation for the ceiling mounts only.
  • 63,000 Lux per lamphead.

Specifications

Burton AIM-100 Surgical Light - Wall Mount Specifications

  • Weight: 49 lb (22.23 kg).
  • Light Source: Quartz Halogen Bulb - 35 W / 12 V / bi-pin.
  • Illuminance: 63,000 Lux (5,852 footcandles).
  • Light Color Temperature: 3,500 Kelvin.
  • Number of Bulbs: 3.
  • Bulb Life: 2,000 hours.
  • Power: 133 Watts.
  • Color Rendering Index: 97.
  • Lamphead Diameter: 20" (51 cm).
  • Light Field Diameter: 9.6" - 12" (25 cm - 31 cm).
  • Depth of Illumination: 47" (119 cm).
  • Minimum Ceiling Height: 8 ft (244 cm).
  • Maximum Ceiling Height: 12 ft (366 cm).
  • Certifications / Approvals: IEC/UL 60601-1 / IEC 60601-2-41 / IEC/EN 60601-1-2; CAN/CSA C22.2 601-1 M90 certified; CE marked.

Configurations

Burton AIM-100 Surgical Light - Wall Mount Configurations

  • #A100W: 120 V - For use in the U.S.
  • #A103W: 230 / 240 V - For us in Europe.
  • #A101W: 100 V - For use in Japan.
  • #A102W25: 230 V - SP Model. Refers to Spanish Language Manuals.

Accessories

Burton AIM-100 Surgical Light - Wall Mount Accessories

The Burton AIM-100 Surgical Light - Wall Mount is commonly purchased with:

  • Set of 3 AIM-100 replacement bulbs.
  • Sterilizable / Autoclavable handle.
  • Sterile Handle Covers (25 per box).

Frequently asked questions

What is the maximum light intensity (Lux)?

The Burton AIM-100 delivers a powerful light intensity of 63,000 Lux (5,852 footcandles), ensuring excellent visibility for surgical and minor procedures.This high performance is supported by several quality illumination features:

  • Exceptional Color Accuracy: Features a high Color Rendering Index (CRI) of 97 and a light color temperature of 3,500 Kelvin, which aids in accurate tissue differentiation.
  • Depth of Field: Provides an impressive depth of illumination, reaching up to 47 inches (119 cm).
  • Cool Performance: The system is engineered to remain cool to the touch even after extended periods of operation.
Is high-quality Quartz Halogen lighting used?

Yes, the Burton AIM-100 utilizes a high-efficiency system featuring three Quartz Halogen bulbs (35 W / 12 V bi-pin) designed for reliable, high-quality illumination.

This advanced lighting system offers several benefits for surgical and examination procedures:

  • High Intensity: Delivers 63,000 Lux (5,852 footcandles) of intense light, ensuring deep and clear visibility.
  • Color Accuracy: Provides light at 3,500 Kelvin with an exceptional Color Rendering Index (CRI) of 97, which is crucial for accurate tissue color differentiation.
  • Long Lifespan: Each bulb has an operational life of up to 2,000 hours, minimizing the frequency of replacements.
  • Cool Operation: The lamphead remains cool to the touch even after extended use, enhancing comfort and safety.
How many high-quality bulbs are used?

The Burton AIM-100 features a three-bulb system utilizing high-output Quartz Halogen bulbs (35 W / 12 V / bi-pin) to provide exceptional procedural lighting.

This powerful configuration ensures high intensity and superior color accuracy:

  • Illuminance: Delivers powerful illumination of 63,000 Lux (5,852 footcandles).
  • Color Quality: Features an excellent Color Rendering Index (CRI) of 97 at 3,500 Kelvin, which is critical for accurate tissue differentiation.
  • Durability: Each bulb is rated for a long lifespan of 2,000 hours, minimizing maintenance and replacement frequency.
What is the illumination's color temperature?

The Burton AIM-100 Surgical Light provides high-quality illumination at a color temperature of 3,500 Kelvin. This specific temperature is combined with an exceptionally high Color Rendering Index (CRI) of 97. This ensures accurate visualization and excellent tissue differentiation necessary for medical procedures.

What are the lengths of the light's adjustable arms?

The Burton AIM-100 Wall Mount surgical light is equipped with two articulated arms, which allow for a wide range of horizontal and vertical positioning during procedures. The specific lengths are:

  • Arm 1: 32 inches
  • Arm 2: 31 inches

This configuration ensures superior adjustability for precise illumination.

What is the expected bulb lifespan?

The Burton AIM-100 uses three specialized Quartz Halogen bulbs (35 W / 12 V / bi-pin) designed for high performance and longevity.

  • Expected Bulb Lifespan: 2,000 hours

This substantial lifespan helps minimize maintenance requirements while ensuring the light consistently delivers 63,000 Lux of high-intensity illumination needed for detailed medical procedures.

What voltage options are available for this surgical light?

The Burton AIM-100 Surgical Light is available in several specific voltage configurations to support global use:

  • 120 V: Standard configuration for use in the U.S.
  • 230 V / 240 V: Configuration typically used for Europe.
  • 100 V: Configuration specifically for use in Japan.
  • 230 V (SP Model): This option includes Spanish Language Manuals.
Is the AIM-100 Surgical Light fully certified?

Yes, the Burton AIM-100 Surgical Light meets rigorous international standards, confirming its safety and performance in medical environments. It holds the following key certifications and approvals:

  • IEC/UL 60601-1
  • IEC 60601-2-41
  • IEC/EN 60601-1-2
  • CAN/CSA C22.2 601-1 M90 certified
  • CE marked
What are the ceiling height requirements?

The Burton AIM-100 Surgical Light (Wall Mount) requires specific ceiling dimensions for installation:

  • Minimum Ceiling Height: 8 ft (244 cm)
  • Maximum Ceiling Height: 12 ft (366 cm)
Does the light stay cool during extended use?

Yes, the Burton AIM-100 Surgical Light is specifically engineered for cool operation.

Its design ensures the lamphead remains cool to the touch even after hours of continuous use, enhancing comfort and safety for medical professionals during extended procedures.
