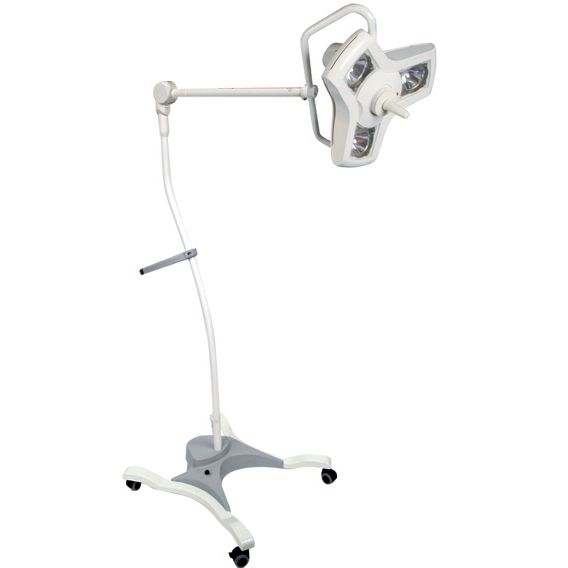

Burton AIM-100 Surgical Light - Floorstand

Burton AIM-100 Surgical Light - Floorstand

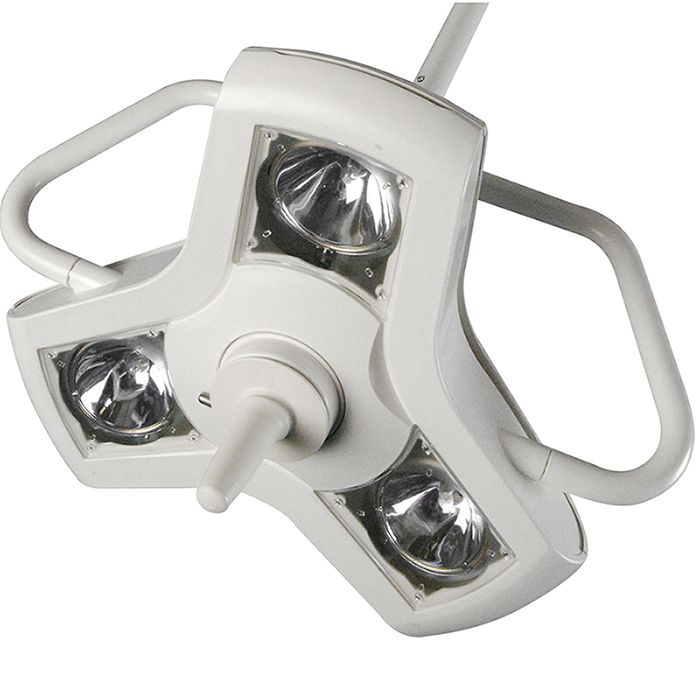

Burton AIM-100 Surgical Light -Head
Burton AIM-100 Surgical Light - Floorstand
Burton AIM-100 Surgical Light -Head
Key Features
  • SKU: PHL-A100FL
  • Condition:
    Condition: Factory New
  • Warranty:
    Warranty: 5 Years
  • Weight: 46.0 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Burton
    Ships from Manufacturer
  • MPN: A100FL
  • Phone: (800) 444-9909
$6,022.00 $4,463.62

+ Free Shipping

Est. Delivery:
<p>Earn%20[points_amount]%20when%20completing%20this%20purchase.</p>

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Burton AIM-100 Surgical Light - Floorstand is a high-intensity, cool operating light that can be transported easily on a four-wheeled mobile base.

Warranty: 5 Years Parts and Labor.

The Burton AIM-100 Surgical Light - Floorstand offers the brightness of sunlight with the maneuverability of a wheeled base. Caregivers can direct the light at nearly any angle, with a height of over 6 feet, with the arms fully extended. The lamp comes ready out of the box with 3 Halogen bulbs, and approximately 2,000 hours of light per bulb.

This mobile lamp is ideally suited for emergency rooms, trauma centers, outpatient surgery, ophthalmology and more. Delivering clear, bright light is essential for procedures, and the AIM-100 Surgical Light - Floorstand is an excellent fit.

The Burton AIM-100 Surgical Light - Floorstand ships in 3 packages:

  • Head: 17 lb / 25" x 25" x 8".
  • Floorstand: 23 lb / 27" x 25" x 8".
  • Upright: 14 lb / 61" x 13" x 4".

Features

Burton AIM-100 Surgical Light - Floorstand Features

  • Available as 120 V, 100 V, 230 V, or 230 / 240 V options.
  • AIM-100 lamp head is also available as a wall, single ceiling, or double ceiling mount.
  • Color rendering index of 97.
  • Smooth focus with a center sterilizable handle.

Specifications

Burton AIM-100 Surgical Light - Floorstand Specifications

  • Weight: 54 lb (24.5 kg).
  • Height: 69" (floorstand) + 41" (lamp head mount).
  • Light Source: Quartz Halogen Bulb - 35 W / 12 V / bi-pin.
  • Illuminance: 63,000 Lux (5,852 footcandles).
  • Light Color Temperature: 3,500 Kelvin.
  • Number of Bulbs: 3.
  • Bulb Life: 2,000 hours.
  • Power: 133 Watts.
  • Lamphead Diameter: 20” (51 cm).
  • Light Field Diameter: 9.6" - 12" (25 cm - 31 cm).
  • Depth of Illumination: 47" (119 cm).
  • Certifications / Approvals: IEC/UL 60601-1 / IEC 60601-2-41 / IEC/EN 60601-1-2; CAN/CSA C22.2 601-1 M90 certified; CE marked.

Configurations

Burton AIM-100 Surgical Light - Floorstand Configurations

  • #A100FL: 120 V - For use in the U.S.
  • #A103FL: 230 / 240 V - For use in Europe.
  • #A101FL: 100 V - For use in Japan.
  • #A102FL25: 230 V - SP Model. Refers to Spanish Language Manuals.

Accessories

Burton AIM-100 Surgical Light - Floorstand Accessories

The Burton AIM-100 Surgical Light - Floorstand is commonly purchased with:

  • Set of 3 AIM-100 replacement bulbs.
  • Sterilizable / Autoclavable handle.
  • Sterile handle covers (25 per box).

Frequently asked questions

Is the surgical light fully safety certified?

Yes, the Burton AIM-100 Surgical Light is certified to meet several rigorous international safety and performance standards, confirming its quality and reliability for use in clinical settings.

The key certifications and approvals include:

  • IEC/UL 60601-1
  • IEC 60601-2-41
  • IEC/EN 60601-1-2
  • CAN/CSA C22.2 601-1 M90 certified
  • CE marked

These comprehensive certifications ensure the light adheres to high standards for medical device safety and performance.

What is included with the surgical light system?

The Burton AIM-100 Surgical Light comes as a complete, Factory New unit on a mobile floorstand, ready for clinical use. The system includes:

  • Main Light Unit and Articulating Arm: The 20-inch lamp head assembly, which provides exceptional illumination (63,000 Lux and CRI 97).
  • Mobile Floorstand Base: A four-wheeled base ensuring excellent maneuverability and stability. The articulating arm allows the light head to reach heights exceeding six feet.
  • Light Sources: Three pre-installed Quartz Halogen bulbs (35 W / 12 V bi-pin) are included. These bulbs offer a long operational life of approximately 2,000 hours.
  • Sterilizable Focus Handle: A central handle used for smooth focusing of the light field, designed to be sterilized to support aseptic protocols.
Does it provide intense illumination?

Yes, the Burton AIM-100 Surgical Light delivers 63,000 Lux (5,852 footcandles) of high-intensity illumination, ensuring bright and clear lighting essential for detailed medical procedures.

Does the Burton AIM-100 use durable bulbs?

Yes, the Burton AIM-100 Surgical Light uses Quartz Halogen bulbs (35 W / 12 V / bi-pin), designed for longevity. Each of the three bulbs provides an impressive lifespan of 2,000 hours.

What is the surgical light's maximum reach?

The Burton AIM-100 Surgical Light is mounted on a highly maneuverable, four-wheeled floorstand base that provides exceptional positioning capability. Key specifications for its reach and control include:<ul><li>Maximum Height: The articulating arm system allows the lamp head to be extended, reaching heights exceeding 6 feet when fully raised.</li><li>Depth of Illumination: The light provides powerful and consistent illumination with a depth of 47 inches (119 cm).</li><li>Control: Positioning and smooth focusing are easily managed using a center sterilizable handle for precise adjustments during procedures.</li></ul>

Does this light provide accurate color representation?

Yes, the Burton AIM-100 Surgical Light ensures accurate color representation with a Color Rendering Index (CRI) of 97. This high CRI is crucial for detailed medical procedures, allowing for precise tissue differentiation and diagnosis.

Does it offer smooth focusing?

Yes, the Burton AIM-100 Surgical Light features smooth focusing with a center sterilizable handle, allowing for precise adjustment of the light field. This design ensures that the light can be easily directed and focused exactly where needed during procedures.

What is the warranty period for the Burton AIM-100 Surgical Light?

The Burton AIM-100 Surgical Light comes with a 5-year warranty on parts and labor.

What are the available voltage configurations?

The Burton AIM-100 Surgical Light was produced with several voltage options, including 100 V, 120 V, 230 V, and 230 V/240 V, to support various global power standards.

However, it is important to note that many configurations, such as the 100 V and 230 V variants, are currently marked as discontinued. The primary configuration generally available for purchase is the 120 V model.

Is the surgical light highly maneuverable?

Yes, the Burton AIM-100 Floorstand Surgical Light offers high maneuverability and precise positioning, making it adaptable for various clinical settings. This is achieved through several design features:

  • Mobile Base: The unit is mounted on a robust four-wheeled floorstand for smooth and easy transport across facilities. The approximate total weight is 54 lb.
  • Extended Reach: The fully articulating arm allows the light head to reach an adjustable height exceeding 6 feet when fully extended, ensuring optimal light placement at nearly any angle.
  • Aseptic Control: Precise light direction and smooth focus are controlled via a center sterilizable handle, allowing staff to adjust the illumination without compromising sterile fields.
