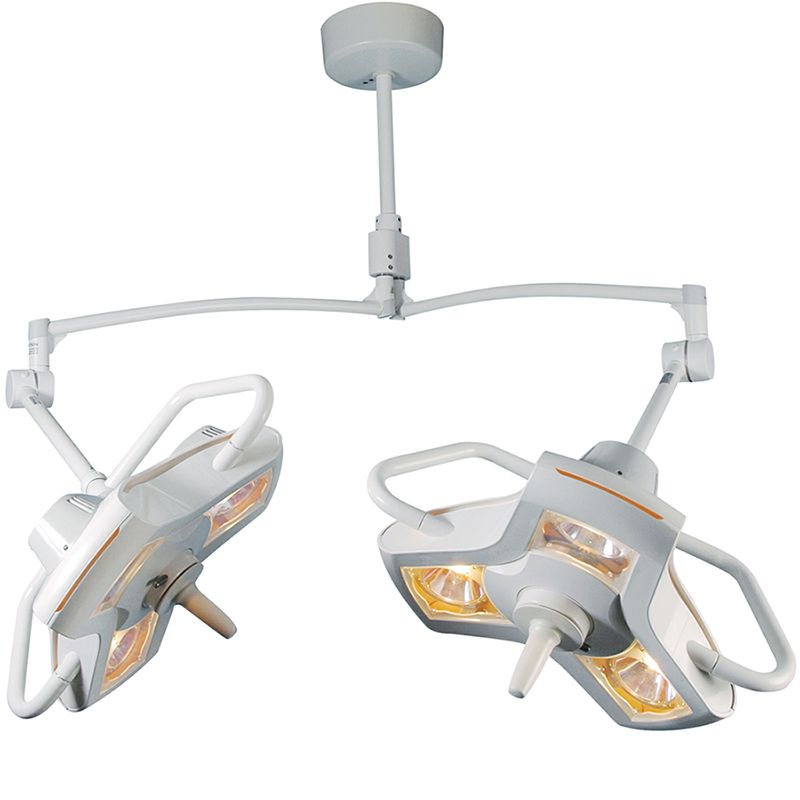

Burton AIM-100 Surgical Light - Double Ceiling Mount

The Burton AIM-100 Surgical Light system uses Quartz Halogen bulbs known for their high output and excellent color rendering.

Key specifications for the lighting system are:

• Bulb Type: Quartz Halogen (35 W / 12 V / bi-pin)
• Quantity: Each of the two lampheads is equipped with 3 bulbs, resulting in a total of 6 bulbs for the double mount system.
• Lifespan: The bulbs provide a long life expectancy of 2,000 hours, ensuring reliability and minimizing maintenance.

This light source contributes to the superior color accuracy of the system, achieving a Color Rendering Index (CRI) of 97.

Yes, the Burton AIM-100 Double Ceiling Mount is designed for exceptional maneuverability and precise, wide-ranging positioning, making it ideal for demanding surgical suites.This flexibility is supported by several key features:

• Extensive Reach: The long extension arm system stretches out to a maximum width of 64 inches.
• Adjustable Descent: The ceiling mount provides a vertical descent of 20 inches, supporting installation in ceiling heights ranging from 8 feet to 12 feet.
• Ergonomic Control: You can adjust the position of the dual lampheads quickly and accurately using the center sterilizable handle for convenient, one-handed operation.

The Burton AIM-100 Double Ceiling Mount surgical light system requires a total electrical power consumption of 133 Watts.

This power usage is distributed across the dual lamphead system, which utilizes:

• Total Consumption: 133 Watts
• Light Source: Six high-output Quartz Halogen bulbs (three in each lamphead).

This efficient design contributes to the unit remaining cool to the touch during extended periods of use.

Yes, the Burton AIM-100 Surgical Light features advanced thermal management, making it highly effective for extended procedures.

Key features ensuring low heat include:

• Cool-to-the-Touch Operation: The lampheads remain cool to the touch, even after prolonged operation.
• Staff Comfort: This is ideal for surgical environments, ensuring a more comfortable and safer working environment for medical personnel during long procedures.

Yes, the Burton AIM-100 is specifically designed for surgical environments where accurate tissue differentiation is vital. It provides superior illumination with the following specifications:

• Exceptional Color Rendering Index (CRI): The light boasts a high CRI of 97, which ensures true and accurate color representation, essential for precise diagnostic and procedural work.
• Natural Color Temperature: The consistent color temperature of 3,500 Kelvin provides natural coloring across the illuminated field.
• High Output: Each lamphead delivers a powerful 63,000 Lux at 1 meter, ensuring the surgical area is brightly and clearly lit.

Yes, the light field diameter and focus are easily adjustable, enabling surgical teams to customize the illumination area for precision.

The system is designed for user convenience and control:

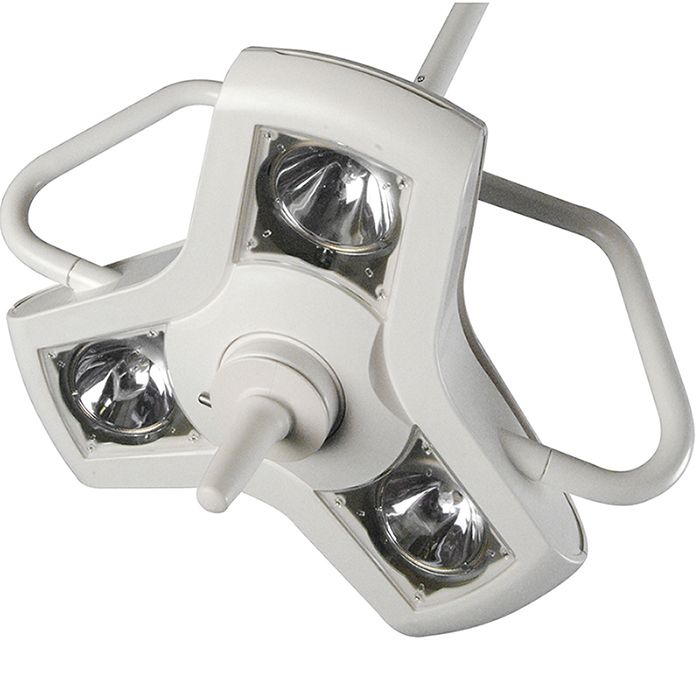

• One-Handed Adjustment: Focus and light field adjustments are controlled via the center sterilizable handle, allowing for convenient, one-handed positioning of the light head.
• Adjustable Range: The light field diameter can be precisely set between 9.6 inches (25 cm) and 12 inches (31 cm).

Yes, the Burton AIM-100 Double Ceiling Mount system is engineered for superior maneuverability and extensive reach, crucial for precise surgical applications. The system ensures excellent positioning capabilities through:

• Extensive Arm Reach: The articulating extension arms can stretch up to 64 inches wide for broad coverage.
• Optimal Drop Distance: The ceiling mount system descends 20 inches from the base to achieve the ideal height over the patient field.
• One-Handed Precision: Each lamphead includes a center sterilizable handle that allows the operator to adjust the light focus conveniently with one hand during a procedure.

Yes, the center handle is sterilizable, allowing for convenient, one-handed adjustments during procedures while maintaining sterility.

Yes, the Burton AIM-100 Double Ceiling Mount is engineered to deliver powerful, high-intensity illumination critical for surgical and trauma environments. This dual-lamp system provides exceptional clarity and coverage:

• Illuminance: Each lamphead delivers a high output of 63,000 Lux (5,852 footcandles) at a 1-meter distance, ensuring a bright focus where needed.
• Color Accuracy: Features an outstanding Color Rendering Index (CRI) of 97 and a natural color temperature of 3,500 Kelvin for superior tissue differentiation.
• Depth of Field: Offers a significant depth of illumination, reaching 47 inches (119 cm).
• Light Source: The system uses six high-powered Quartz Halogen bulbs (three per lamphead), boasting a 2,000-hour life expectancy.
• Thermal Management: Despite the high output, the unit is designed to remain cool to the touch, enhancing comfort during long procedures.

Yes, the Burton AIM-100 utilizes robust Quartz Halogen bulbs designed for extended operational life in demanding clinical environments. Each bulb provides an impressive expected life of 2,000 hours, ensuring reliable, long-lasting illumination.
