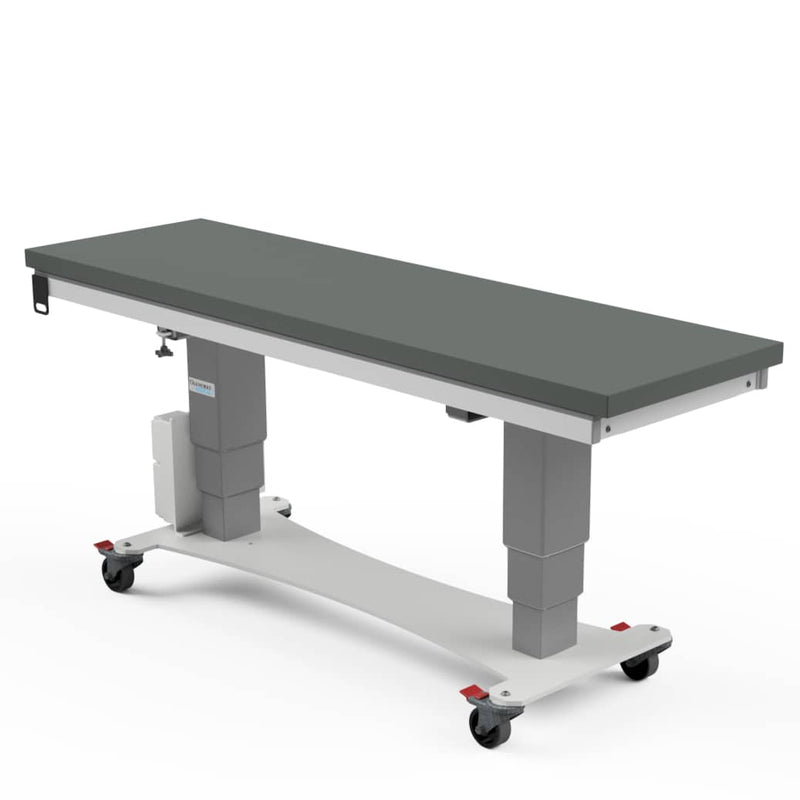

OakWorks DTPM300 Imaging Table

Yes, the OakWorks DTPM300 Imaging Table is specifically engineered for precise diagnostic positioning, optimizing access for imaging the cervical, lumbar, and thoracic regions. Its robust design and versatile motion capabilities ensure accurate patient placement and optimal C-arm access.

This optimization is achieved through three distinct motions:

• Electric Height Adjustment: Range from 24 inches to 40 inches (61-102 cm).
• Electric Trendelenburg Tilt: Adjusts between +14° and -14°.
• Manual Longitudinal Travel: Provides 23 inches (58 cm) of travel, crucial for comprehensive scanning coverage.

Additionally, the table features a 2-inch thick Radiolucent Comfort Foam pad for clear image acquisition and utilizes a robust dual-tower lift system supporting a patient capacity of 450 lb (204 kg).

The OakWorks DTPM300 Imaging Table is engineered for both stability and high patient support through its robust construction and premium features:

• Robust Weight Capacity: It safely supports a substantial patient weight of 450 lb (204 kg).
• Exceptional Stability: The table utilizes a durable two-tower lift design (with 40 inches of space between towers) to ensure a stable and secure platform across its full range of motion.
• Radiolucent Comfort: Patient comfort is ensured by the standard 2-inch (5 cm) Radiolucent Comfort Foam top pad, which maintains high image quality.
• Certified Upholstery: The surface is upholstered in premium, PVC-free TerraTouch™ Medical Grade Fabric, which is ISO 10993 Certified for safe patient contact.
• Safety Assurance: The table includes two patient safety straps and uses 4-inch (10 cm) locking casters for reliable, secure positioning.

The OakWorks DTPM300 Imaging Table features premium, PVC-free TerraTouch™ medical-grade fabric. This fabric is notable for being ISO 10993 Certified, ensuring both patient comfort and safety during procedures.

The electric height adjustment range of the OakWorks DTPM300 Imaging Table is 24 inches to 40 inches (61 cm to 102 cm).

This precise range is specified without the included 2-inch thick Radiolucent Comfort Foam table top pad.

Height adjustments can be controlled using two different devices:

• A dedicated Foot control for convenient height adjustment only.
• A Hand control which manages both height and the electric Trendelenburg tilt.

Yes, the OakWorks DTPM300 Imaging Table is engineered for patient safety and regulatory compliance, featuring robust construction and medical-grade materials. Its certifications and safety features include:

Regulatory Listings:

• FDA Listed: Compliant with U.S. medical device standards.
• cETLus Approved and CB Certificate: Confirms adherence to essential electrical and operational safety standards.

Material and Design Safety:

• Medical Grade Surface: The table is upholstered in premium, PVC-free TerraTouch™ Medical Grade Fabric, which is certified under the ISO 10993 standard for patient contact.
• Safety Straps: Two patient safety straps are included as a standard inclusion.
• Durable Construction: The robust two-tower lift design supports a patient weight capacity of up to 450 lb (204 kg).

The OakWorks DTPM300 utilizes a versatile dual-control system for its electric movements, providing ease of operation for medical staff:

• Hand Control: Manages both the electric height adjustment (ranging from 24 to 40 inches) and the electric Trendelenburg Tilt (+14° to -14°).
• Foot Control: This control is dedicated exclusively to the electric height adjustment.

Keep in mind that the table also features 23 inches of longitudinal travel, which is adjusted manually, not via the electric controls.

The OakWorks DTPM300 Imaging Table offers 23 inches (58 cm) of manual longitudinal travel. This key feature is part of the table’s three-axis motion capability, helping clinicians achieve optimal positioning for comprehensive imaging across the cervical, lumbar, and thoracic spinal regions.

The OakWorks DTPM300 Imaging Table provides an electric Trendelenburg tilt range of +14° to -14°, allowing for precise and effortless patient positioning during imaging procedures.

Yes, the OakWorks DTPM300 includes both a hand control and a foot control to manage its electric adjustments, offering operational flexibility and convenience for medical staff. The controls govern the table’s three main motions:

• Hand Control: Manages both the electric height adjustment (from 24 inches to 40 inches) and the electric Trendelenburg tilt (+14° to -14°).
• Foot Control: Dedicated solely to electric height adjustment, allowing operators to keep their hands free during patient positioning.
• Manual Adjustment: The third motion, manual longitudinal travel (23 inches / 58 cm), allows for precise patient placement across the imaging area (cervical, thoracic, lumbar regions).

Yes, the OakWorks DTPM300 is specifically engineered with a robust dual-tower lift design to ensure exceptional stability, which is essential for accurate imaging.

Key benefits of this stable, durable construction include:

• Superior Stability: The two-tower structure provides high structural integrity and reliability, ensuring secure patient positioning.
• Maximized Imaging Access: This design creates a generous 40 inches (102 cm) of open space between the towers, allowing maximum clearance for imaging equipment access.
• High Capacity: The table is built to safely support a substantial patient weight capacity of 450 lb (204 kg).
