Condition:
Factory New
-
Country of Origin: USA
-
Warranty:
- Weight: 590.0 lb
- 53" metal-free imaging area
- Patient transfer extension
- Large adjustable height range
- 500 lb patient weight capacity
-
Learn more:
-
MFR:
OakWorks
Ships from Manufacturer
-
MPN: 83867
- Phone: (717) 759-3146
+Shipping
Shop with Confidence
Sales Tax Exemption
+Dedicated Account Managers
Frequently asked questions
How does the radiolucent design enhance imaging?
The OakWorks CFUR401 is engineered with superior radiolucent materials and design to ensure minimal obstruction and optimal image quality for urological procedures.
Key features that enhance imaging include:
- Maximum Metal-Free Area: The table offers an impressive 53 inches (135 cm) of metal-free imaging space, maximizing the C-arm coverage and reducing image artifacts.
- Radiolucent Extensions: Three included radiolucent extensions (two lateral and one patient transfer) expand the surface area while maintaining imaging transparency across the entire operative field.
- Comfort Pad: The top pad is a 2-inch (5 cm) Radiolucent Comfort Foam, providing necessary padding without hindering X-ray penetration.
- Rigid Structure: The robust construction, featuring a rigid lifting column, ensures the stability required for fast imaging acquisition and precise positioning.
What is the maximum patient weight capacity?
The OakWorks CFUR401 Urology Table is built with a rigid lifting column to ensure rock-solid support and stability, accommodating substantial patient weights.
- Maximum Patient Weight Capacity: The main table supports up to 500 lb (227 kg).
- Extension Capacity: Each of the three specialized table extensions can support an additional 200 lb (91 kg).
What is the adjustable height range?
The CFUR401 Urology Table offers a substantial electric height range crucial for achieving ergonomic working positions and facilitating safe patient transfers. The standard height range is:
- Minimum Height: 26.5 inches (67 cm)
- Maximum Height: 44.5 inches (113 cm)
Important Note: These measurements reflect the height without the included 2-inch (5 cm) radiolucent Comfort Foam table top pad.
Which key accessories are included?
The OakWorks CFUR401 Urology Table comes standard with a comprehensive set of essential accessories for clinical use:
- Table Pad: 2-inch (5 cm) thick, Radiolucent Comfort Foam table top pad.
- Extensions: Three total specialized table extensions, including two lateral extensions and one large patient transfer extension.
- Support & Safety: Two patient restraint straps and full-length, industry-standard T-rails on both sides.
- Functionality: A digital angle gauge for accurate positioning and a urology bag hoop.
- Mobility & Control: Standard 4-inch (10 cm) locking casters, along with a multi-function hand control and foot control for operating the four electric motions.
Does the table feature precise electric motion controls?
Yes, the OakWorks CFUR401 features four distinct axes of powered movement, enabling precise patient positioning for urological procedures and imaging. Control is typically managed via a multi-function hand control and a foot control (depending on the configuration).
These four electric motions are supported by a highly rigid lifting column for superior stability:
- Height Adjustment: Offers a broad range from 26.5 inches to 44.5 inches (without the pad).
- Trendelenburg Tilt: Capable of adjusting from +15° to -11°.
- Longitudinal Travel: Provides 10 inches (25 cm) of movement along the length of the table.
- Lateral Travel: Allows for precise side-to-side shifting of ±4 inches (±10 cm).
Does the OakWorks CFUR401 Urology Table use high-quality fabric?
Yes, the OakWorks CFUR401 Urology Table uses a high-quality, patient-focused material:
- Premium, PVC-free TerraTouch™ Medical Grade Fabric is utilized for the upholstery.
- This fabric is ISO 10993 Certified, ensuring it meets rigorous standards for patient safety and biocompatibility.
Are both hand and foot controls included?
Yes, the standard configuration of the OakWorks CFUR401 Urology Table includes both a multi-function hand control and a foot control.
This dual control system ensures flexibility and hands-free access when operating the table’s extensive motion capabilities, which include:
- Electric height adjustment (26.5” to 44.5”)
- Electric Trendelenburg tilt (+15°/-11°)
- Electric longitudinal travel (10 inches)
- Electric lateral travel (±4 inches)
Is the urology table safety certified?
Yes, the OakWorks CFUR401 Urology Table is designed with patient safety and regulatory compliance as top priorities. It holds several key international and national safety listings:
- CE marked
- cETLus approved
- CB Certificate
- FDA listed
Furthermore, the materials used are certified safe for patient contact. The table pad uses Premium, PVC free TerraTouch™ Medical Grade Fabric, which is ISO 10993 Certified.
Does the table include high-quality locking casters?
Yes, the OakWorks CFUR401 Urology Table comes standard with 4-inch (10 cm) locking casters.
These casters are essential for safely moving the robust 590 lb table and providing reliable locking capability to ensure the table remains securely stationary during procedures.
Does the table feature an extensive metal-free imaging area?
Yes, the OakWorks CFUR401 is specifically engineered for exceptional C-arm access and provides a large, unobstructed imaging field:
- Exceptional Metal-Free Imaging: The table provides an extensive 53-inch (135 cm) metal-free imaging area on the tabletop, which is crucial for clear, comprehensive fluoroscopic views.
- Enhanced C-Arm Access: This primary area is significantly enhanced by three included radiolucent extensions for maximum versatility:
- Two 5-inch x 24-inch Radiolucent Lateral Extensions.
- One 23-inch x 28-inch Radiolucent Patient Transfer Extension.

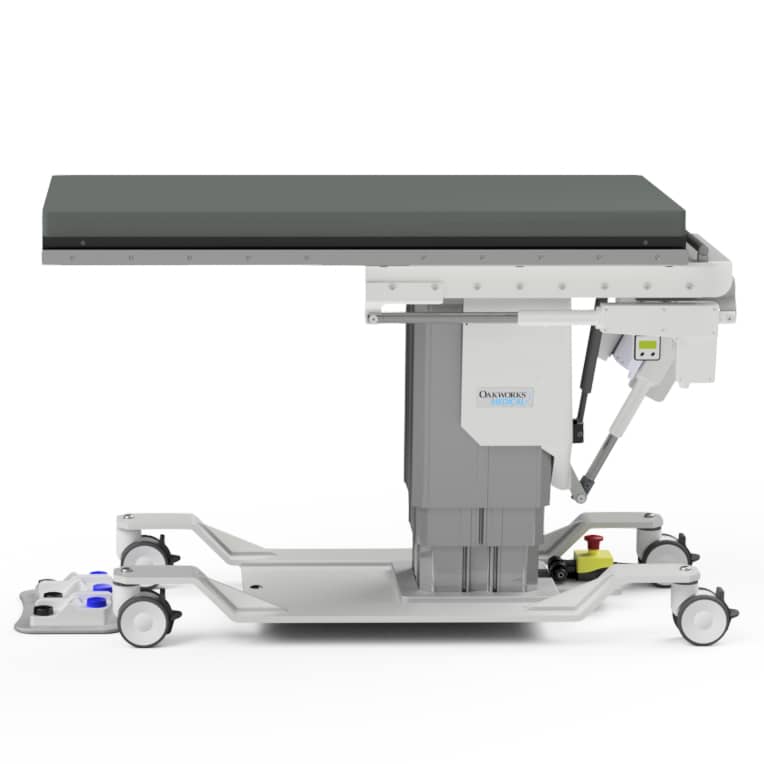

OakWorks CFUR401 Urology Table
