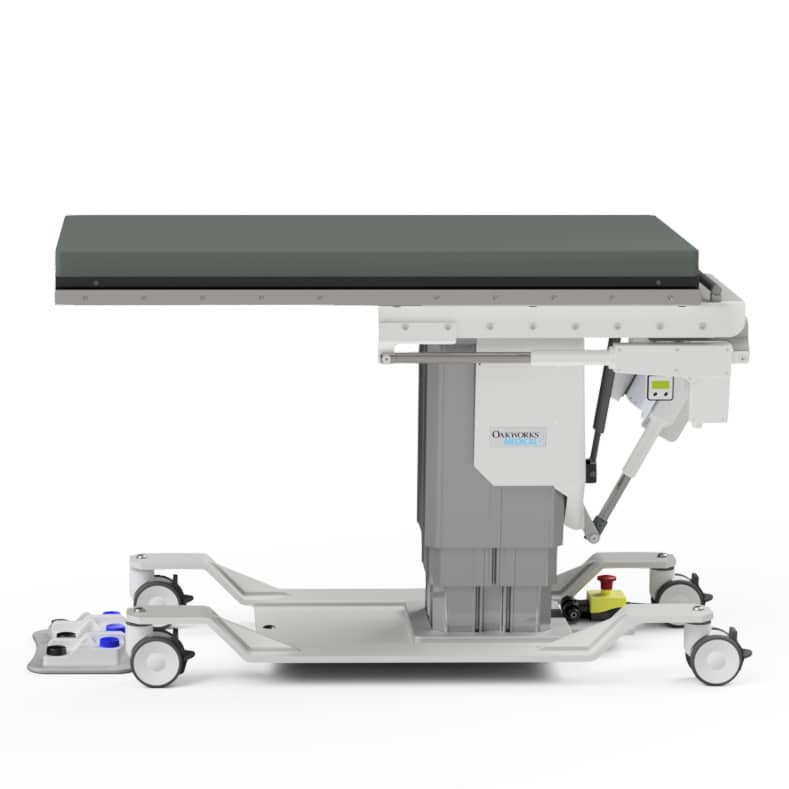

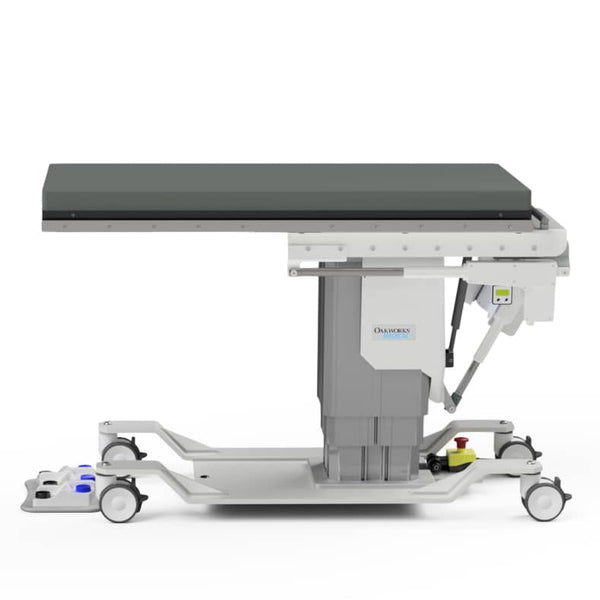

OakWorks CFUR301 Urology Table

The OakWorks CFUR301 is built with an exceptionally rigid lifting column to ensure rock-solid stability and safety, even during rapid adjustments or high-weight applications.The table’s maximum weight capacities are:

• Main Table Patient Capacity: Supports up to 500 lb (227 kg).
• Extension Weight Capacity: Each individual radiolucent extension is rated to support up to 200 lb (91 kg).

Yes, the OakWorks CFUR301 is engineered with three distinct electric motion controls for precise, stable patient positioning. These movements are managed via the multi-function hand control and foot control system, while the rigid lifting column ensures rock-solid stability during adjustments.

The dynamic electric movements available are:

• Height Adjustment: Offers a wide range from 26 inches to 44 inches (66–111 cm) without the pad.
• Trendelenburg Tilt: Provides a range from +15° (Trendelenburg) to -11° (Reverse Trendelenburg).
• Longitudinal Travel: Features 10 inches (25 cm) of electric movement along the length of the table.

Yes, the OakWorks CFUR301 Urology Table features premium, PVC-free TerraTouch™ Medical Grade Fabric. This fabric is ISO 10993 Certified, ensuring it meets high standards for medical environments.

The OakWorks CFUR301 utilizes multiple controls to achieve highly precise patient positioning and access, governing three distinct electric motions. These controls are:

• Multi-function hand control
• Foot control (customization available)
• Digital angle gauge (included for verifying precise tilt positioning)

These controls allow clinicians to adjust the table with speed and accuracy:

1. Height Adjustment: Electric control spanning from 26 inches up to 44 inches (without the pad).
2. Tilt (Trendelenburg): Electric adjustment ranging from +15° to -11°.
3. Longitudinal Travel: Electric movement providing 10 inches (25 cm) of motorized travel along the table’s length.

Yes, the OakWorks CFUR301 Urology Table is designed and certified to meet stringent international and domestic safety standards, ensuring high performance and reliability in clinical environments. The table holds several key safety listings and approvals:

• FDA Listed: Complies with U.S. regulatory requirements for medical devices.
• CE Marked: Meets the European Union’s health, safety, and environmental protection standards.
• cETLus Approved: Certified for electrical and product safety standards in the U.S. and Canada.
• CB Certificate: Confirms compliance with the international standard for the safety of electrical equipment.

Furthermore, the premium, PVC-free TerraTouch™ Medical Grade Fabric used for the upholstery is ISO 10993 Certified for biocompatibility and enhanced patient safety.

The OakWorks CFUR301 Urology Table is engineered for optimal imaging clarity during procedures, utilizing a carbon fiber construction to maximize the unobstructed area. Its primary benefit is the extensive imaging capability.

The table provides a substantial 53-inch (135 cm) metal-free imaging area.

This maximized length includes the use of the dedicated Radiolucent Patient Transfer Extension, which allows for comprehensive fluoroscopic access. The table also features a 2-inch thick Radiolucent Comfort Foam pad, ensuring optimal patient support without compromising imaging quality.

Yes, the OakWorks CFUR301 comes standard with three highly radiolucent extensions designed to maximize the metal-free imaging area and provide stable support.

The included extensions are:

• Two Radiolucent Lateral Extensions: Measuring 5 inches x 24 inches (12 cm x 61 cm) each.
• One Radiolucent Patient Transfer Extension: Measuring 23 inches wide x 28 inches long (58 cm x 71 cm).

It is important to note that each individual extension is structurally designed to support up to 200 lb (91 kg).

Yes, the OakWorks CFUR301 is specifically engineered for procedures requiring superior imaging, focusing on maximal fluoroscopy access and stability.

Key features that ensure exceptional imaging capabilities include:

• Extensive Metal-Free Area: The table provides an expansive 53-inch metal-free imaging space (when utilizing the Patient Transfer Extension), minimizing interference for clear fluoroscopic visualization.
• Rock-Solid Stability: It features a highly rigid lifting column designed to minimize vibration and ensure rock-solid support, which is critical for fast and clear image acquisition.
• Radiolucent Padding: The table includes a 2-inch (3 cm) thick Radiolucent Comfort Foam top pad to maintain patient comfort without impeding image quality.
• Precision Positioning: Electric movement controls for Height, Trendelenburg tilt, and 10 inches of Longitudinal travel allow for the precise positioning necessary during complex imaging procedures.

Yes, the OakWorks CFUR301 Urology Table includes a dedicated Radiolucent Patient Transfer Extension as a standard component.

This extension is crucial for maximizing the 53-inch metal-free imaging area and ensuring safe, ergonomic patient transfer.

The table comes standard with a total of three radiolucent extensions (one transfer extension and two lateral extensions). Key specifications for the Patient Transfer Extension are:

• Dimensions: 23 inches wide x 28 inches long (58 cm x 71 cm)
• Weight Capacity: Supports up to 200 lb (91 kg)

The OakWorks CFUR301 Urology Table is manufactured in the USA, ensuring high-quality production and adherence to rigorous standards.
