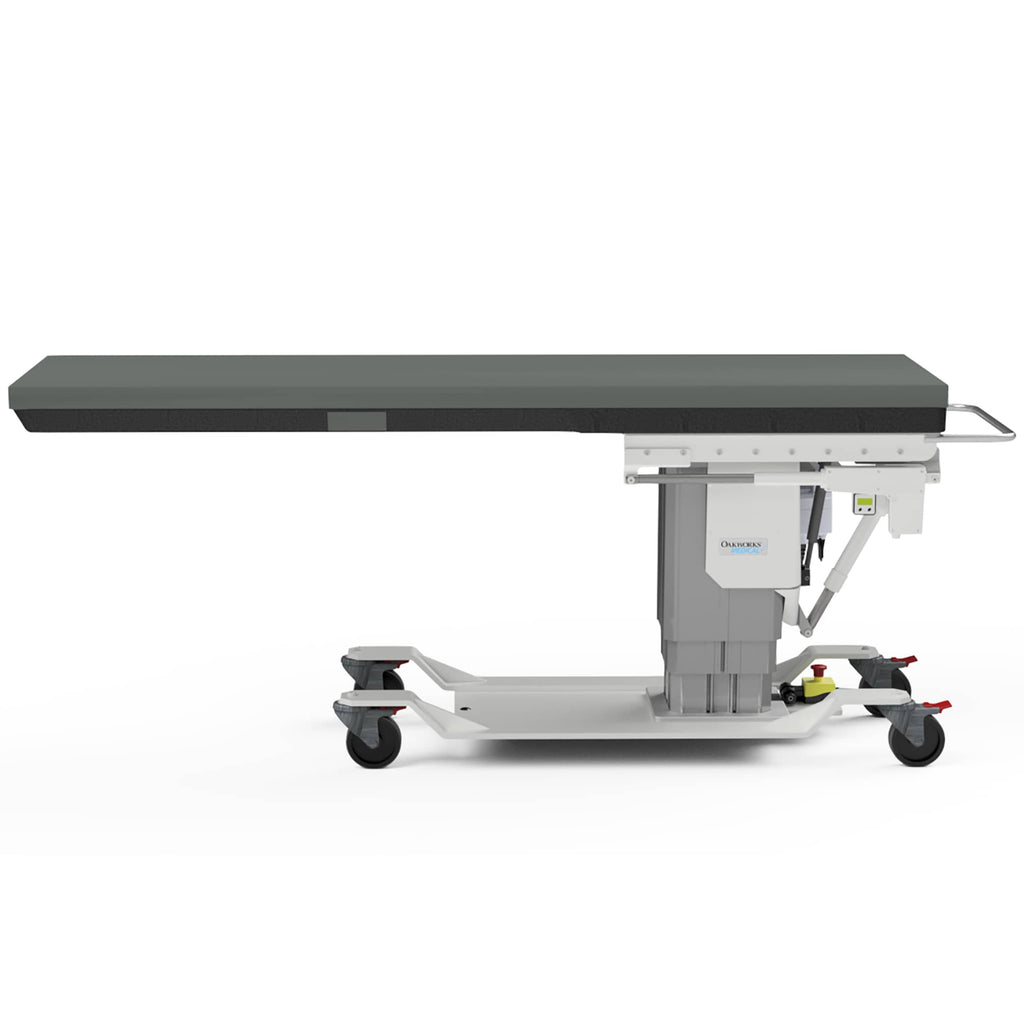

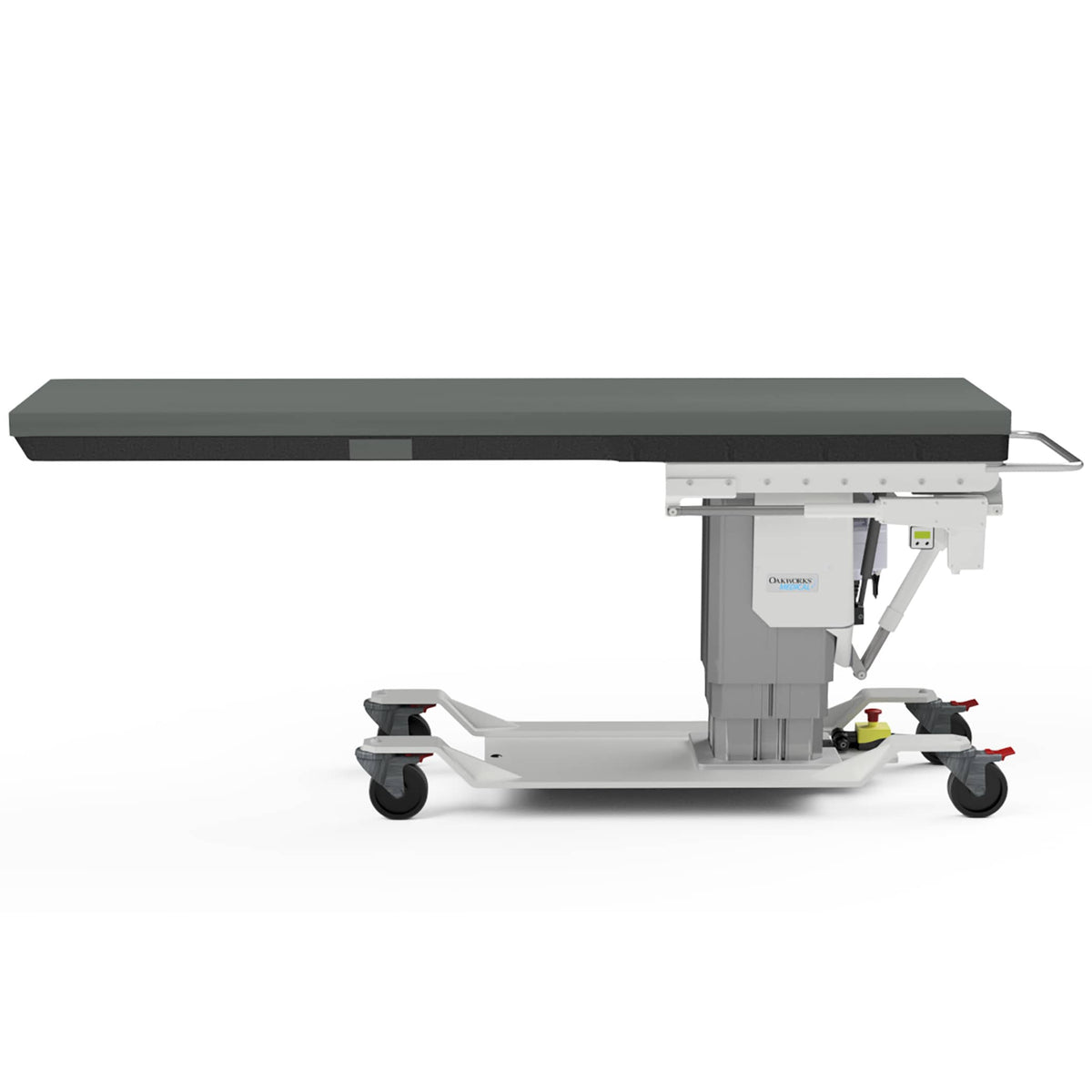

OakWorks CFPMB301 Imaging Table

The OakWorks CFPMB301 is engineered with a high-performance carbon fiber top to ensure superior C-arm access and artifact-free imaging.

It offers an extensive, uninterrupted metal-free imaging area measuring 52.5 inches (133 cm).

This radiolucent area is part of the overall large table dimensions (24 inches wide by 80 inches long) and includes a standard 2-inch (5 cm) thick Radiolucent Comfort Foam pad.

Yes, the OakWorks CFPMB301 is bariatric rated and designed for exceptionally high patient capacity and superior stability.

• Capacity: The table can safely support a maximum patient weight of 750 lb (340 kg).
• Stability: This high capacity is maintained by a large, rigid lifting column, ensuring rock-solid stability and precise positioning even during dynamic or fast imaging procedures.
• Comfort & Safety: The patient surface includes a 2-inch Radiolucent Comfort Foam pad, covered in premium, PVC-free TerraTouch™ Medical Grade Fabric, which is ISO 10993 certified for medical environments.

The OakWorks CFPMB301 Imaging Table features three independently controlled electric motions that provide exceptional flexibility and precision for patient positioning during imaging procedures.These ranges are controlled by the standard multi-function hand control (with an optional foot control available):

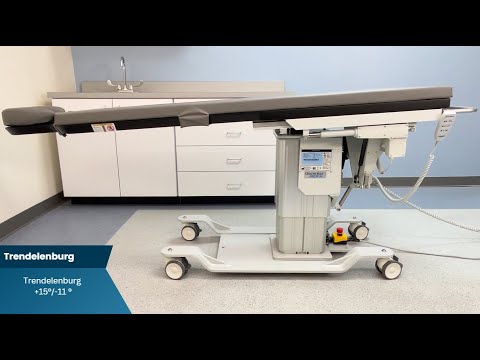

The OakWorks CFPMB301 Imaging Table features electric Trendelenburg tilt for precise patient positioning during procedures. This functionality offers a total range of:

• Positive Tilt (Trendelenburg): Up to +15°
• Negative Tilt (Reverse Trendelenburg): Down to -11°

This robust adjustment capability ensures versatility and accurate positioning for various imaging needs.

Yes, the OakWorks CFPMB301 Imaging Table is equipped with electric longitudinal travel, which is one of its three standard electric motions, allowing for highly precise patient repositioning during imaging procedures. This feature is crucial for optimizing the imaging field of view without unnecessary adjustments to the C-arm or patient.

Key specifications for the longitudinal movement:

• Total Travel Distance: 10 inches (25 cm)
• Control Mechanism: Operated via the standard multi-function hand control.

Yes, the multi-function hand control is included as a standard accessory with the OakWorks CFPMB301 Imaging Table. This control allows clinicians to precisely manage the table’s three electric motions for optimal patient positioning and safety:

• Height Adjustment: Allows movement from 26 inches up to 44 inches (measured without the pad).
• Trendelenburg Tilt: Offers a range from +15° to -11°.
• Longitudinal Travel: Provides 10 inches (25 cm) of movement along the length of the table.

For users requiring hands-free operation, an optional multi-function foot control is also available.

Yes, the OakWorks CFPMB301 Imaging Table is rigorously certified, ensuring high standards of safety, electrical compliance, and regulatory approval required for demanding clinical environments.

Key Safety and Regulatory Listings:

• FDA Listed (U.S. regulatory compliance)
• CE marked (European conformity)
• cETLus approved and CB Certificate (International and North American electrical safety standards)

Patient comfort and safety are also prioritized through material certification:

• The upholstery is made from Premium, PVC-free TerraTouch™ Medical Grade Fabric.
• This fabric is ISO 10993 Certified, guaranteeing its biocompatibility for direct patient contact.

The OakWorks CFPMB301 utilizes a large, rigid carbon fiber top to maximize radiolucency and provide exceptional access for superior imaging procedures. It features:

• An extensive 52.5 inches (133 cm) of continuous, metal-free imaging space.
• The entire carbon fiber top measures 24 inches wide by 80 inches long.

This design significantly minimizes attenuation, ensuring high-quality results for C-arm, fluoroscopy, and other advanced imaging applications.

Yes, the OakWorks CFPMB301 Imaging Table is equipped with a premium, clinically optimized surface pad.

The standard 2-inch (5 cm) patient pad features Radiolucent Comfort Foam and is covered in TerraTouch™ Medical Grade Fabric.

This high-quality fabric ensures patient safety and comfort by offering key benefits:

• It is PVC-free, meeting stringent modern clinical material standards.
• It is ISO 10993 Certified, guaranteeing that the material is biocompatible and safe for direct patient contact.

Yes, the OakWorks CFPMB301 Imaging Table includes a premium, high-quality patient pad designed specifically for demanding imaging procedures. Its construction ensures both patient comfort and optimal image quality.

Key features of the included pad:

• Material and Comfort: It features a generous 2-inch (5 cm) thick Radiolucent Comfort Foam core for superior patient comfort during long procedures.
• Optimal Imaging: The pad material is fully radiolucent, supporting the table’s extensive 52.5 inches of metal-free imaging space for clear, artifact-free diagnostic image acquisition.
• Premium Upholstery: The pad is covered in durable, PVC-free TerraTouch™ Medical Grade Fabric, which is easy to clean and holds an ISO 10993 Certification for biosafety and suitability in clinical environments.
