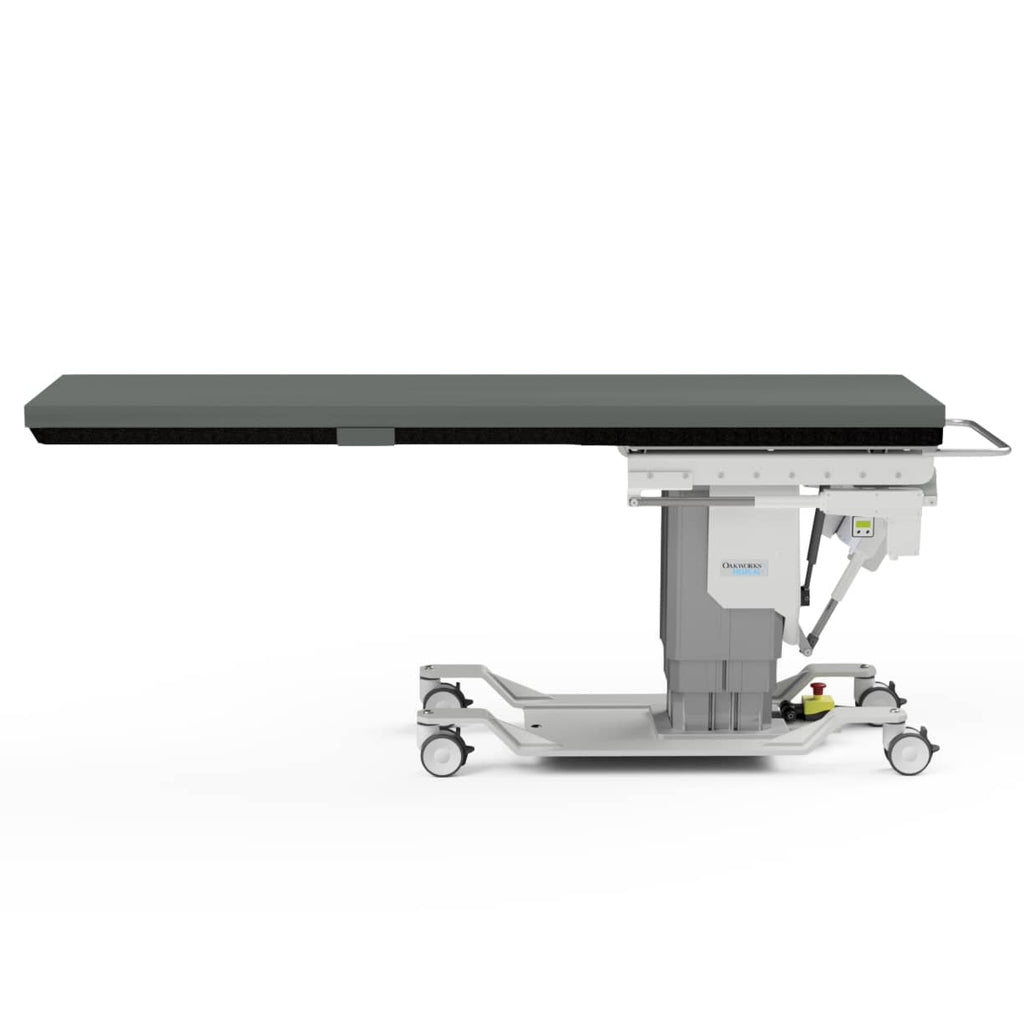

OakWorks CFPM401-Rectangular-Top Imaging-Pain Management Table

The OakWorks CFPM401 offers a generous 52 inches of metal-free imaging access. This extensive, unobstructed area is crucial for optimizing image clarity during diagnostic and interventional procedures. The use of a carbon fiber table top facilitates this wide coverage while maintaining overall structural stability.

The OakWorks CFPM401 features four electric movements for precise, optimal patient positioning during imaging and pain management procedures. The movement ranges are:

• Height Adjustment: The height range is 26 inches to 44 inches (66 cm to 112 cm) without the pad, covering an 18-inch electric travel distance to ensure ergonomic use and safe patient transfers.

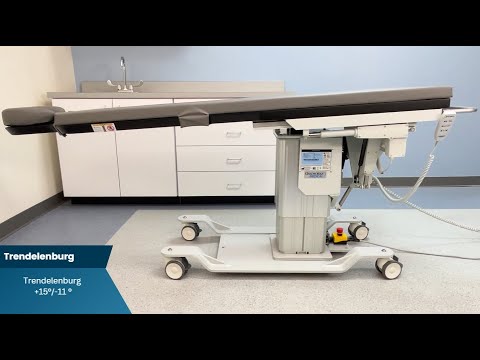

• Trendelenburg Tilt: Provides extensive positional flexibility with an electric tilt from +15° (head up) to -11° (head down).
• Longitudinal Travel: Offers 10 inches (25 cm) of electric travel along the table’s length, crucial for maximizing the imaging field.
• Lateral Travel: Features 8 inches (20 cm) of electric side-to-side movement (±4 inches / ±10 cm), allowing for fine-tuned lateral alignment.

The standard configuration of the OakWorks CFPM401 includes the robust base unit and everything necessary for immediate clinical use, featuring the highly rigid lifting column and four electric movements (Height, Trendelenburg Tilt, Longitudinal, and Lateral travel).

Key components and accessories included are:

• The Carbon Fiber rectangular top, providing an extensive 52 inches of continuous metal-free imaging space.
• A 2 inch (5 cm) Radiolucent Comfort Foam table top pad, upholstered in premium TerraTouch™ Medical Grade Fabric.
• A Multi-function Hand Control for operating all four electric movements.
• Four 4-inch (10 cm) locking casters for positioning and stability.
• Two patient safety straps.

The OakWorks CFPM401 is engineered for precision and exceptional stability in clinical settings that require advanced imaging compatibility. It is ideally suited for:

• Pain Management Procedures: The table’s highly rigid lifting column and four powered movements (Height, Trendelenburg Tilt, Longitudinal, and Lateral travel) provide the rock-solid support necessary for precise interventional procedures and injections.
• Diagnostic Imaging and Fluoroscopy: Featuring a carbon fiber rectangular top (24 inches wide x 80 inches long), the table offers 52 inches of metal-free imaging space, ensuring rapid and clear diagnostic views for C-arm or fluoroscopy access.

Its robust design supports a patient weight capacity of 500 lb (227 kg), making it highly versatile for complex, demanding procedures.

Yes, the premium TerraTouch™ Medical Grade Fabric is PVC free and ISO 10993 Certified, ensuring patient comfort and safety.

The OakWorks CFPM401 table is engineered to provide reliable support during critical procedures and safely accommodates a high patient load.

• Maximum Patient Capacity: 500 lb (227 kg).
• Stability: This high capacity is achieved through a very rigid large lifting column, ensuring rock-solid stability essential for accurate imaging and pain management procedures.
• Dimensions: The radiolucent, rectangular carbon fiber top measures 24 inches (61 cm) wide x 80 inches (203 cm) long.

Yes, the OakWorks CFPM401 is specifically engineered for precise, stable, and ergonomic patient positioning necessary for complex imaging and pain management procedures. It utilizes a robust design for optimal performance:

• Rigid Lifting Column: This provides rock-solid support, which is critical for precise fluoroscopy and high-resolution imaging, maintaining stability even under its maximum 500 lb (227 kg) patient capacity.
• Four Powered Movements: Positioning is controlled comprehensively using four electric movements (via the standard multi-function hand control):
  • Height: Adjustable across an 18-inch range, from 26 inches to 44 inches (without the pad).
  • Trendelenburg Tilt: Precision tilting from +15° to -11°.
  • Longitudinal Travel: Offers 10 inches (25 cm) of movement along the table’s length.
  • Lateral Travel: Provides 8 inches (20 cm) of side-to-side movement.

Yes, the OakWorks CFPM401 Imaging-Pain Management Table is rigorously tested and holds several key safety and regulatory certifications, ensuring compliance with necessary medical standards:

• CE marked
• cETLus approved
• CB Certificate
• FDA listed

The OakWorks CFPM401 features four electric movements for superior patient positioning and precise imaging control, operated via the multi-function hand control:

• Electric Height Adjustment: A wide range from 26 inches to 44 inches (66–112 cm) without the pad, ensuring safe patient transfer and comfortable working heights.
• Electric Trendelenburg Tilt: Allows for precise tilting from +15° to -11°.
• Electric Longitudinal Travel: Provides 10 inches (25 cm) of movement along the table’s length, helping utilize the full 52 inches of metal-free imaging space.
• Electric Lateral Travel: Offers 8 inches (20 cm) of side-to-side movement (±4 inches / 10 cm) for fine targeting during procedures.

Yes, the standard configuration of the OakWorks CFPM401 table includes several essential components for immediate use and patient safety.

The following items are included standard with the table:

• Two Patient Straps: Included for securely positioning the patient during procedures.
• Radiolucent Table Pad: A 2-inch (5 cm) Radiolucent Comfort Foam table top pad.
• Casters: 4-inch (10 cm) locking casters for stable placement and easy mobility.
• Controls: A multi-function hand control to manage the table’s four electric movements.
