Condition:
-
Country of Origin: USA
-
Warranty:
- Weight: 498.0 lb
- Large adjustable height range of 26 to 43" (66 to 109 cm)
- 52" of metal free imaging space
- Cost effective four-movement table
- Weight Capacity: 500 lb (227 kg)
-
Learn more:
-
MFR:
OakWorks
Ships from Manufacturer
-
MPN: 81808
- Phone: (717) 759-3146
Frequently asked questions
What is included with the standard table?

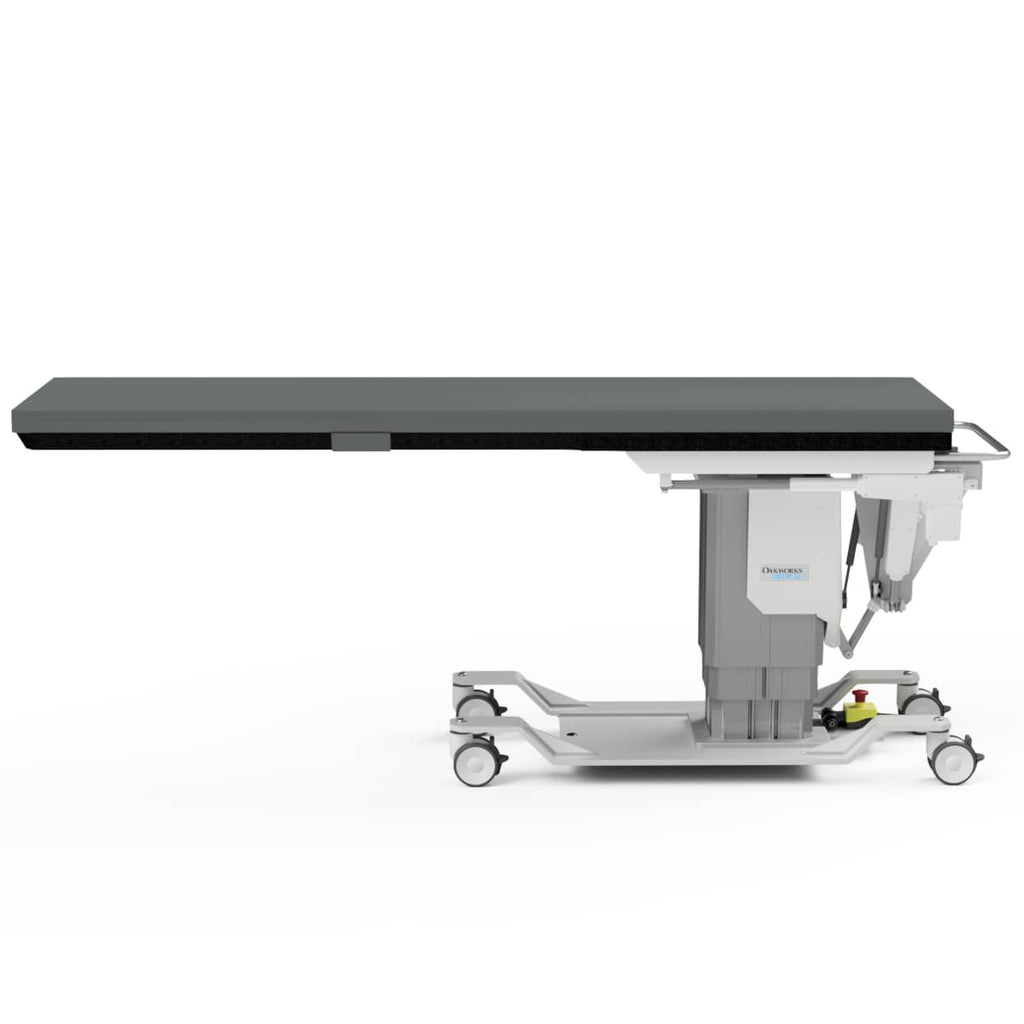

The standard OakWorks CFPM400 configuration includes all necessary components for immediate operation and patient support, built upon its rigid Carbon Fiber Rectangular Top.
Standard included items are:
- 2-inch Radiolucent Comfort Foam Pad: This pad provides comfort and optimal imaging clarity, covered in premium, PVC-free TerraTouch™ Medical Grade Fabric.
- Multi-function Hand Control: Used for precise control over the table’s four electric movements (Height, Tilt, and Travel).
- 4-inch Locking Casters: Allows for smooth mobility and ensures secure, stable positioning when locked.
- Two Patient Straps: Included to safely secure the patient throughout the procedure.
Does the table feature a wide electric height range?
Yes, the OakWorks CFPM400 is designed with a wide electric height range to ensure maximum flexibility for clinical procedures. This range facilitates safe patient transfers at lower settings and provides optimal ergonomic positioning for physicians during procedures at higher settings.
This movement is supported by a large, rigid lifting column which maintains rock-solid stability throughout the entire adjustment process.
- Electric Height Range (without pad): 26 inches to 43 inches (66 cm to 109 cm)
What is the maximum patient capacity?
The OakWorks CFPM400 table is built with a rigid lifting column to ensure superior stability and safety during procedures. It is designed to support a substantial patient load, offering a maximum weight capacity of 500 lb (227 kg).
How much metal-free imaging space is provided?
The OakWorks CFPM400 provides a substantial 52 inches of metal-free imaging space.
This table is optimized for imaging and pain management procedures due to its rectangular carbon fiber top and rock-solid stability, ensuring unimpeded access and rigidity during fluoroscopy and other imaging modalities.
Is premium, medical-grade fabric used?
Yes, the table uses premium, PVC-free TerraTouch™ Medical Grade Fabric for its upholstery. This high-quality material is ISO 10993 certified, ensuring durability and safety for demanding clinical environments.
What electronic movements does the table feature?
The OakWorks CFPM400 is a four-motion table that provides precise, stable, and comprehensive electronic positioning for patients during procedures. The movements, which are controlled by a standard multi-function hand control, include:
- Electric Height Adjustment: The table height ranges from 26 to 43 inches (without the pad), facilitating ergonomic physician positioning and safe patient transfers.

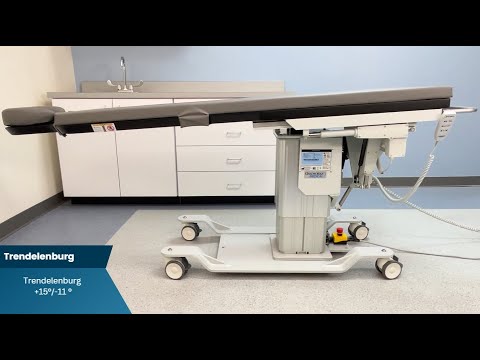

- Electric Trendelenburg/Reverse Tilt: Offers crucial head-up and head-down angling from +15° to -11°.
- Electric Lateral Tilt: Provides side-to-side angling up to ±15°, optimizing access for fluoroscopic views.
- Electric Longitudinal Travel: Features 10 inches (25 cm) of motorized travel along the table’s length, helping utilize the full 52 inches of metal-free imaging space.
What is the warranty offered on the OakWorks CFPM400 table?
The OakWorks CFPM400 table comes with a warranty of 4 years for parts and 3 years for labor, offering peace of mind.
Does the table have important safety certifications?
Yes, the OakWorks CFPM400 table possesses comprehensive safety listings and certifications necessary for professional medical environments.
Key Safety and Compliance Features:
- Regulatory Approvals: The table holds major international and domestic safety approvals, including FDA listing, CE marking, cETLus approval (for US and Canadian standards), and a CB Certificate.
- Material Safety: The table utilizes premium, PVC-free TerraTouch™ Medical Grade Fabric for the pad, which is ISO 10993 Certified for biocompatibility and safe patient contact.
- High Capacity & Stability: Constructed with a rigid lifting column and carbon fiber top, the table ensures rock-solid stability and supports a substantial patient weight capacity of 500 lb (227 kg).
Is a multi-function hand control included?
Yes, the OakWorks CFPM400 table is equipped standard with a multi-function hand control.
This control provides precise, easy management of all four electric movements:
- Height adjustment (26 inches to 43 inches)
- Trendelenburg/Reverse Trendelenburg tilt (+15°/-11°)
- Lateral tilt (±15°)
- Longitudinal travel (10 inches)
A multi-function foot control is also available as an optional alternative.
Does the table offer rock-solid support?
Yes, the OakWorks CFPM400 is specifically engineered to provide exceptional stability and rigidity, crucial for precise clinical imaging and pain management procedures. It features a design optimized for fast procedures.
Key features ensuring rock-solid support include:
- Rigid Lifting Column: The table utilizes a large, rigid lifting column that delivers rock-solid support, essential for maintaining stability.
- Robust Construction: The durable carbon fiber top and overall construction support a patient weight capacity of 500 lb (227 kg).
This robust engineering maintains precision and helps ensure clear imaging throughout use.
