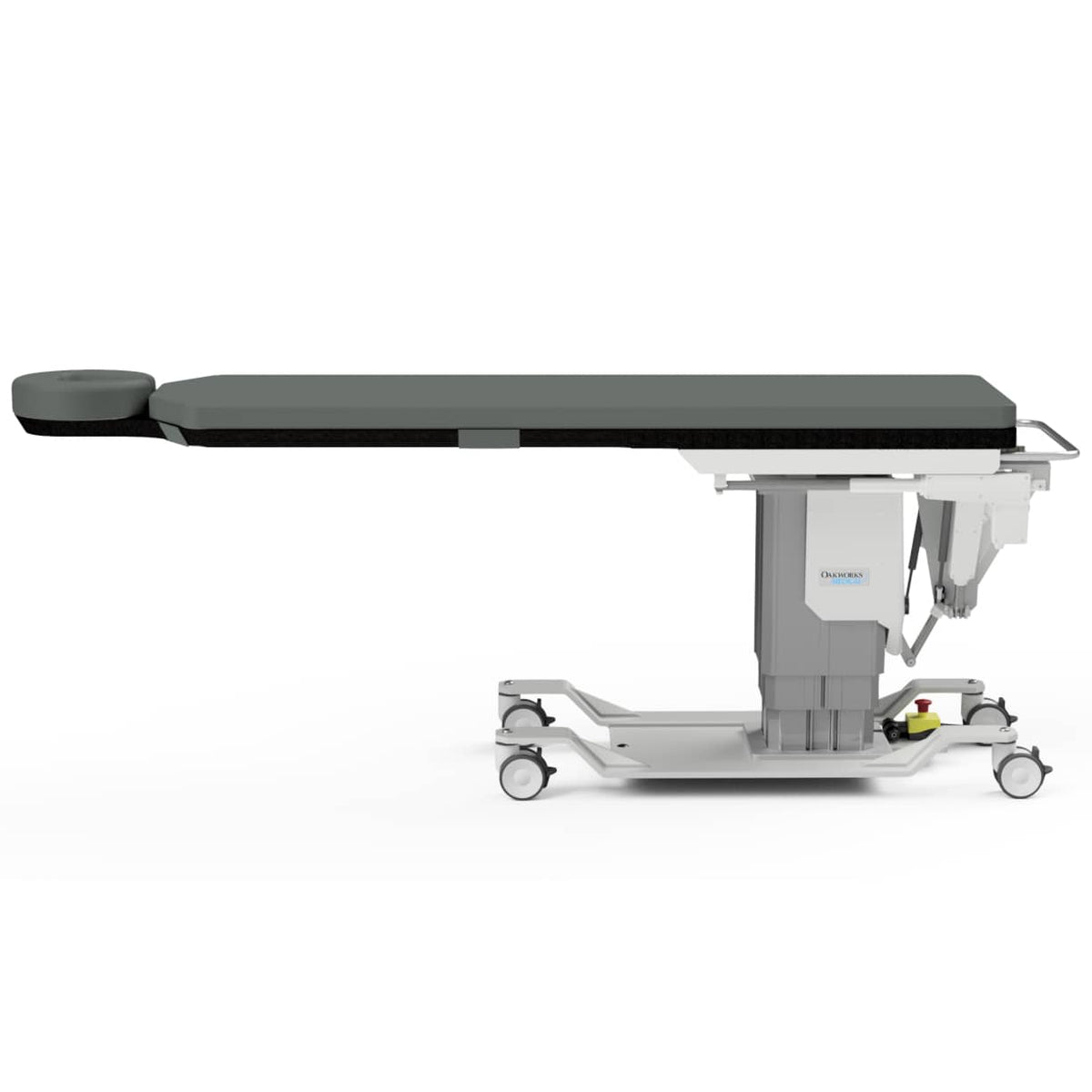

OakWorks CFPM400 Integrated Headrest Imaging-Pain Management Table

Yes, the OakWorks CFPM400 is built with a highly rigid lifting column to ensure exceptional stability and support a substantial patient weight capacity.

• Maximum Capacity: 500 lb (227 kg).

This robust design ensures rock-solid support is maintained during fast imaging and complex procedures.

The OakWorks CFPM400 provides a generous 17-inch electric height adjustment range. This versatility is crucial for facilitating safe patient transfers at lower settings and ensuring optimal ergonomic positioning for clinicians during procedures at higher settings.The specific limits of the electric height range (measured without the 2-inch table pad) are:

• Minimum Height: 26 inches (66 cm)
• Maximum Height: 43 inches (109 cm)

This precise movement is efficiently managed using the standard multi-function hand control.

Yes, the OakWorks CFPM400 utilizes a premium Carbon Fiber Top specifically engineered for diagnostic imaging and pain management applications. This construction offers superior functionality:

• Unobstructed Imaging: The carbon fiber material provides an extensive 56 inches of metal-free imaging space, which is crucial for achieving clear, unobstructed views during fluoroscopy.
• Robust Dimensions: The rigid, radiolucent table surface measures 22 inches wide by 84 inches long.
• Comfort & Compliance: The top is fitted with a standard 2-inch (5 cm) thick Radiolucent Comfort Foam pad, upholstered in PVC-free TerraTouch™ Medical Grade Fabric (ISO 10993 Certified).

Yes, the OakWorks CFPM400 is specifically designed for superior imaging capability by maximizing the radiolucent area.

• Imaging Space: It provides an impressive 56 inches of continuous, metal-free imaging space.
• Material: The entire table top is constructed using high-quality, radiolucent Carbon Fiber.
• Benefit: This extensive, unobstructed space is crucial for performing high-precision fluoroscopy, pain management procedures, and ensuring clear views during rapid imaging sequences.

Yes, the OakWorks CFPM400 features specialized padding systems engineered for patient comfort and superior imaging quality.

The standard padding specifications include:

• Pad Material: A 2-inch (5 cm) Radiolucent Comfort Foam pad, which provides patient support while maintaining excellent clarity during fluoroscopy and other imaging procedures.
• Upholstery: The pad is covered in premium, medical-grade, PVC-free TerraTouch™ Fabric.
• Safety Standards: The TerraTouch™ fabric is certified to ISO 10993 standards, confirming its quality and suitability for clinical environments.
• Included Components: A Crescent face rest pad is also included as part of the integrated headrest system.

Yes, the OakWorks CFPM400 is engineered with four electric movements for superior positioning flexibility. This includes two distinct and precise tilt adjustments:

• Electric Trendelenburg Tilt: Ranges from +15° (Trendelenburg) to -11° (Reverse Trendelenburg).
• Electric Lateral Tilt: Provides stable side-to-side tilting capability of ±15°.

These adjustments, along with electric height control and 10 inches of longitudinal travel, ensure precise, rock-solid support for optimal patient positioning during imaging and pain management procedures.

The OakWorks CFPM400 table provides 10 inches (25 cm) of electric longitudinal travel.

This movement is crucial for advanced imaging and pain management applications, as it allows practitioners to precisely reposition the patient along the length of the table. This capability ensures optimal utilization of the table’s extensive 56 inches of metal-free imaging space.

The travel is one of the four electric motions and is easily managed via the standard multi-function hand control.

Yes, the OakWorks CFPM400 uses premium, medical-grade upholstery designed for patient comfort and safety in clinical environments.

Key features of the fabric and padding include:

• Fabric: The table is upholstered in Premium, PVC-free TerraTouch™ Medical Grade Fabric.
• Safety & Certification: This material is ISO 10993 Certified, meeting rigorous international standards for biocompatibility and safe patient contact.
• Padding: The standard tabletop pad is 2 inches (5 cm) thick, made from Radiolucent Comfort Foam to provide support without interfering with imaging clarity.

Yes, the OakWorks CFPM400 includes locking casters as a standard feature to ensure stability and secure positioning during procedures. The base is already highly rigid, and the casters lock securely to maintain rock-solid support.

• Standard Inclusion: The table comes equipped with 4-inch (10 cm) locking casters.
• Mobility Upgrade: You have the option to upgrade to 5-inch Fallshaw Casters for potentially enhanced maneuverability.

Yes, the OakWorks CFPM400 is equipped with highly versatile and precise electric controls, designed to ensure optimal patient positioning during imaging and pain management procedures. The standard configuration features a multi-function hand control that manages four distinct electric motions:

• Height Adjustment: Ranges from 26 inches to 43 inches (without the pad), facilitating safe patient transfers and ergonomic access for the clinician.
• Trendelenburg Tilt: Allows for precise tilting from +15° to -11°.
• Longitudinal Travel: Provides 10 inches (25 cm) of motorized travel along the length of the table for superior C-arm positioning and coverage.
• Lateral Tilt: Offers flexibility with a range of ±15°.

For enhanced workflow and hands-free operation, a Multi-Function Foot Control is also available as an optional configuration upgrade.
