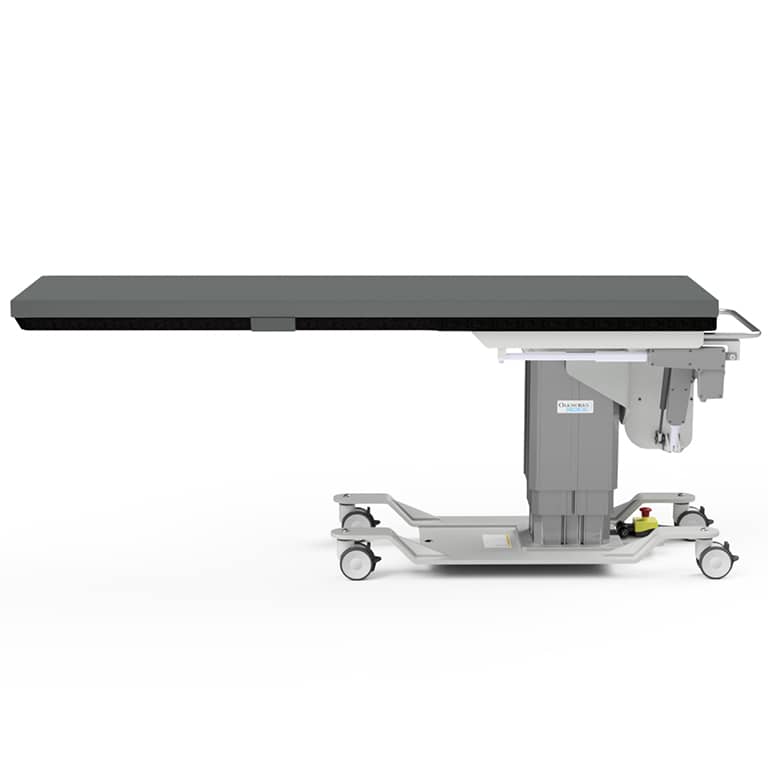

OakWorks CFPM302-Rectangular Top Imaging-Pain Management Table

The OakWorks CFPM302 is engineered with a rigid lifting column to provide robust, rock-solid support and ensure patient safety during procedures. It accommodates a maximum patient weight capacity of 500 lb (227 kg). This high limit helps ensure stability and allows the table to safely support a wide range of patients during sensitive imaging and pain management procedures.

The OakWorks CFPM302 features a robust carbon fiber rectangular top designed for high stability and optimal imaging access, supporting patients up to 500 lb (227 kg).

Key dimensions and related specifications are:

• Overall Top Dimensions: 24 inches wide by 80 inches long (61 cm x 203 cm).
• Radiolucent Imaging Space: Provides an impressive 56 inches (133 cm) of uninterrupted, metal-free surface area for superior X-ray visibility.
• Standard Padding: Includes a 2-inch (5 cm) thick Radiolucent Comfort Foam pad. The upholstery uses premium, PVC-free TerraTouch™ Medical Grade Fabric.

The OakWorks CFPM302 features a versatile electric height adjustment range (Motion 1) crucial for safe patient transfers and ensuring comfortable, ergonomic positioning for clinicians. The table’s movement is managed via the standard Hand Control unit.

• Electric Height Range (without pad): 26 inches to 44 inches (66 cm to 111 cm).

Keep in mind that the standard 2-inch (5 cm) Radiolucent Comfort Foam top pad will increase the final working height by 2 inches.

Yes, the OakWorks CFPM302 table features premium TerraTouch™ medical grade fabric, which is PVC free and ISO 10993 Certified, ensuring patient safety and comfort.

Yes, the OakWorks CFPM302 is engineered with a focus on superior imaging capabilities, providing extensive radiolucency for unimpeded procedures.

• Metal-Free Space: The rectangular carbon fiber table top offers 56 inches (133 cm) of continuous, metal-free imaging surface area.
• Benefit: This design is crucial for minimizing artifact interference, optimizing C-arm access, and ensuring clear, accurate imaging during pain management and diagnostic procedures.

The standard configuration of the OakWorks CFPM302 table includes several essential items designed for functionality, safety, and patient comfort:

• 2-inch (5 cm) Radiolucent Comfort Foam Table Top Pad: This standard pad is upholstered in premium, PVC-free TerraTouch™ Medical Grade Fabric (ISO 10993 Certified), providing comfort while maintaining optimal imaging visibility.
• Hand Control: All three electric motions of the table (height, longitudinal travel, and lateral tilt) are managed electronically via this standard control.
• Two Patient Straps: Included to securely stabilize the patient during procedures.
• 4-inch (10 cm) Locking Casters: These allow for easy mobility and then lock securely to guarantee rock-solid stability during imaging and pain management procedures.

Yes, the Hand Control is included as a standard component with the OakWorks CFPM302 table. It provides comprehensive control over the table’s three essential electric motions, ensuring precise and ergonomic positioning:

• Electric Height Adjustment: Range from 26” to 44” (without the pad), facilitating safe patient transfers and comfortable practitioner heights.
• Electric Longitudinal Travel: Offers 10” (25 cm) of movement along the table’s length for optimized imaging coverage.
• Electric Lateral Tilt: Provides a range of ±15° for angular adjustments.

The hand control manages all three motions. If hands-free operation is preferred, a Multi-Function Foot Control is available as an optional alternative configuration.

Yes, the OakWorks CFPM302 table is fully compliant with stringent international and domestic medical safety standards, ensuring its suitability for professional clinical use. It holds several critical regulatory approvals:

Key Safety and Regulatory Certifications:

• FDA Listed: Meets U.S. standards for medical devices.
• CE Marked: Complies with European health, safety, and environmental protection standards.
• cETLus Approved: Certified to meet applicable safety standards for the U.S. and Canada.
• CB Certificate: Recognized under the IECEE CB Scheme for product safety certification.

Additionally, the materials used prioritize patient safety. The table is upholstered in premium, PVC-free TerraTouch™ Medical Grade Fabric, which is ISO 10993 Certified for safety and biocompatibility.

The OakWorks CFPM302 table provides 10 inches (25 cm) of precise electric longitudinal travel.

This movement is a vital part of the table’s 3-motion system, allowing practitioners to fine-tune patient positioning accurately during sensitive procedures. All electric motions are controlled via the standard hand control.

Yes, the OakWorks CFPM302 is engineered with a 3-motion electric system to ensure precise and rock-solid patient positioning required for accurate pain management and imaging procedures.

All functions are controlled via the standard Hand Control, offering extensive adjustability:

• Electric Height Adjustment: The height ranges widely from 26 inches to 44 inches (66 cm - 111 cm) (without the pad), enabling comfortable working positions for practitioners and safe transfers for patients.
• Electric Longitudinal Travel: Allows for 10 inches (25 cm) of smooth, powered movement along the length of the table.
• Electric Lateral Tilt: Provides essential rotational control with a capability of ±15° of tilt.
