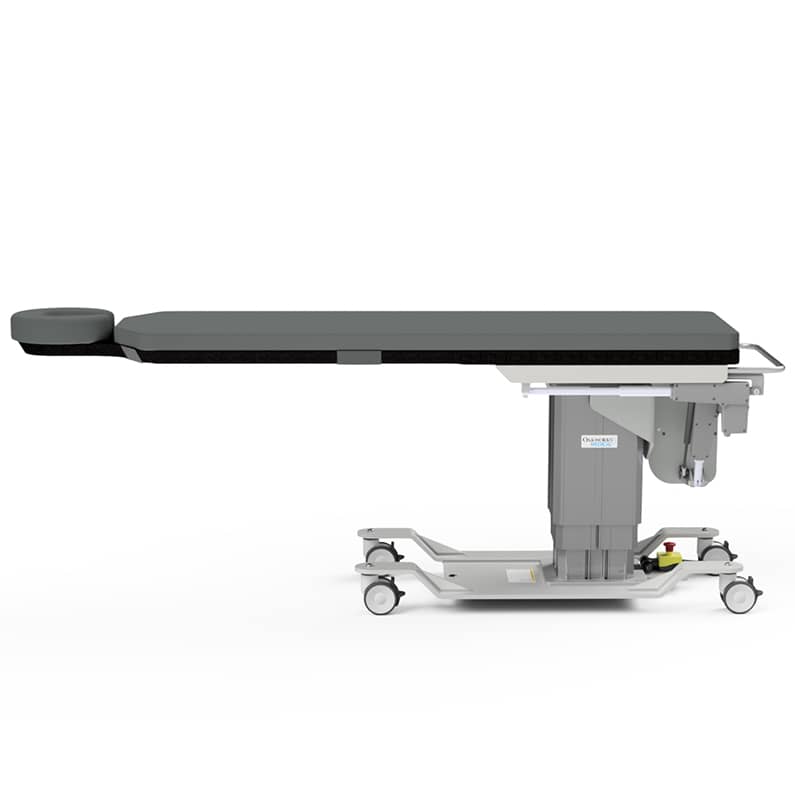

OakWorks CFPM302-Integrated Headrest Imaging-Pain Management Table

The OakWorks CFPM302 table offers an extensive electric height adjustment range, which is vital for safe patient transfers and comfortable ergonomic positioning for physicians. This movement is supported by a rigid lifting column, ensuring high stability during dynamic procedures.

Key specifications for the height range are:

• Range (without pad): 26 inches (66 cm) up to 44 inches (112 cm)
• Control Mechanism: All functions are typically managed using the standard hand control.

Note: The table also provides electric longitudinal travel (10 inches) and lateral tilt (±15°).

Yes, the OakWorks CFPM302 table provides an extensive 56 inches (133 cm) of metal-free imaging space. This generous area ensures clear and unobstructed imaging for accurate results during various procedures.

The OakWorks CFPM302 table has a robust 500 lb (227 kg) weight capacity, allowing it to safely accommodate a wide range of patients for various imaging and pain management procedures.

The standard configuration of the OakWorks CFPM302 Imaging-Pain Management Table comes ready for clinical use, including several key components designed for comfort and safety:

• 2-inch (5 cm) Radiolucent Comfort Foam Pad: Provides necessary patient cushioning while ensuring maximum clarity during imaging.
• Integrated Headrest Assembly: Features the dedicated integrated headrest top and an accompanying Crescent face rest pad for secure, comfortable head support.
• All Functions Hand Control: Allows the practitioner precise, electric control over all three table motions (height, longitudinal travel, and lateral tilt).
• Safety Accessories: Includes two patient straps for safely securing the patient during procedures.
• Mobility: Equipped with 4-inch (10 cm) locking casters for necessary movement and rock-solid stability when locked during use.

The OakWorks CFPM302 table is specifically engineered for high-precision procedures requiring maximum imaging access and rock-solid stability. It is ideally suited for:

• Pain Management & Interventional Procedures: The large, rigid lifting column ensures stability, which is crucial for precise injections and delicate interventions.
• Advanced Fluoroscopy Suites: The carbon fiber top provides an outstanding 56 inches (133 cm) of metal-free imaging space, optimizing image clarity and minimizing artifacts during diagnostic and therapeutic work.

This table supports precise positioning thanks to its three electric motions and robust capacity:

• Patient Weight Capacity: 500 lb (227 kg)
• Precise Movements: Includes 10 inches (25 cm) of electric longitudinal travel and ±15° electric lateral tilt.

Yes, the OakWorks CFPM302 is engineered using specialized, certified materials to ensure high performance, stability, and patient safety during imaging procedures. Key material features include:

• Carbon Fiber Table Top: The large 22” x 84” table top is constructed from high-performance carbon fiber, providing an industry-leading 56 inches (133 cm) of metal-free imaging space for optimal radiolucency during fluoroscopy.
• Premium Upholstery: The table is upholstered with PVC-free TerraTouch™ Medical Grade Fabric, a highly durable material that is certified to ISO 10993 standards for biocompatibility.
• Radiolucent Pad: Patient comfort is ensured by the standard 2-inch (5 cm) Radiolucent Comfort Foam pad, which minimizes interference with imaging modalities while offering cushioning.
• High Stability: The core structure relies on a large, rigid lifting column, guaranteeing rock-solid support across the table’s extensive electric height and motion range.

The OakWorks CFPM302 table is equipped with three precise electric motions to facilitate optimal patient positioning and superior imaging access. All functions are controlled via the standard hand control.

These motions allow for safe patient transfer and ergonomic practitioner workflow:

• Electric Height Adjustment: The height is adjustable from 26 inches up to 44 inches (measured without the 2-inch comfort pad), ensuring a broad operating range.
• Electric Longitudinal Travel: Provides 10 inches (25 cm) of powered movement along the table’s length, crucial for maximizing the 56 inches of metal-free imaging space.
• Electric Lateral Tilt: Offers motorized alignment with a precise tilt range of ±15°.

Yes, the OakWorks CFPM302 table includes 4-inch (10 cm) locking casters. These allow for easy repositioning of the table when needed, and then securely lock it in place to ensure stability during procedures.

Yes, the OakWorks CFPM302 table is compliant with stringent national and international safety and regulatory standards, ensuring high safety and reliability in clinical settings.

Key safety listings and certifications include:

• FDA Listed: Approved for use in US medical environments.
• CE Marked: Confirms compliance with European safety, health, and environmental requirements.
• cETLus Approved: Meets essential electrical and safety standards for the US and Canada.
• CB Certificate: Provides verification of compliance with global safety standards for electrical equipment.

Additionally, the upholstery is made with premium, PVC-free TerraTouch™ Medical Grade Fabric, which is certified to ISO 10993 standards for biocompatibility and patient safety.

Yes, the OakWorks CFPM302 offers flexible control options for its three electric movements (height, longitudinal travel, and lateral tilt):

• Standard Control: The table includes an All Functions Hand Control. This device provides precise and convenient adjustments for all electric movements.
• Optional Upgrade: A Multi-Function Foot Control is available as an upgrade. Utilizing the foot control allows practitioners to manage all electric functions hands-free, which can help maintain sterility and enhance workflow efficiency during procedures.
