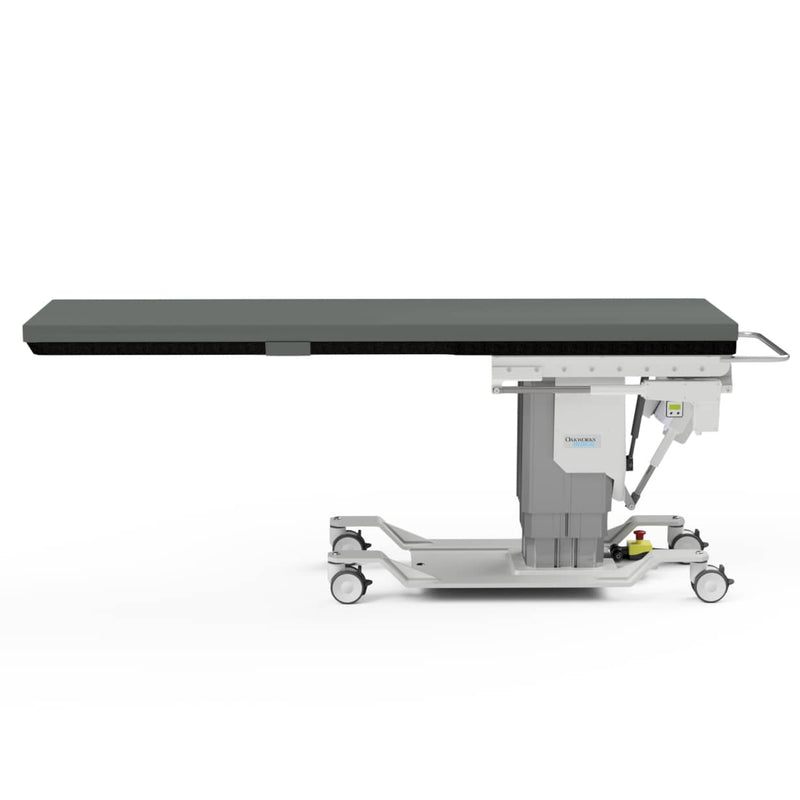

OakWorks CFPM301-Rectangular-Top Imaging-Pain Management Table

Yes, the OakWorks CFPM301 is specifically engineered for superior imaging and pain management procedures, offering a generous, radiolucent area.

• Metal-Free Imaging Space: The table provides 52 inches of uninterrupted, metal-free imaging space, which is essential for maximizing radiolucency and clarity during fluoroscopy.
• Table Top Material: The rectangular table top is constructed from high-strength carbon fiber to maintain a rigid, stable platform.
• Overall Dimensions: The top measures 24 inches wide by 80 inches long (61 cm x 203 cm).

Yes, the OakWorks CFPM301 is designed with three electrically controlled movements to ensure safe and precise patient positioning during procedures:

• Electric Height Adjustment: Offers a wide range from 26 inches (66 cm) to 43 inches (109 cm) (without the pad).
• Electric Trendelenburg Tilt: Allows tilting from +15° to -11°.
• Electric Longitudinal Travel: Provides 10 inches (25 cm) of motorized horizontal movement.

These functions are managed via the standard multi-function hand control. The movements are supported by a rigid lifting column that ensures rock-solid stability and supports patients up to 500 lb (227 kg).

Yes, the OakWorks CFPM301 table is designed with a highly rigid lifting column to provide exceptional stability and safety. It accommodates a substantial patient weight capacity of 500 lb (227 kg).

Yes, the OakWorks CFPM301 is specifically engineered for excellent imaging capability, featuring 52 inches of uninterrupted, metal-free imaging space.

This generous area is critical for comprehensive C-arm coverage and achieving fast, clear radiographic and fluoroscopic images without obstruction.

Key components supporting imaging clarity include:

• Table Top: Constructed with a highly radiolucent, rectangular carbon fiber top (24 inches wide x 80 inches long).
• Comfort Pad: Includes a standard 2-inch (5 cm) thick Radiolucent Comfort Foam pad upholstered in medical-grade TerraTouch™ fabric, ensuring comfort while preserving image quality.

Yes, the table utilizes premium, PVC-free TerraTouch™ Medical Grade Fabric for its patient contact surface. This high-quality material is designed for safety and durability, and it carries the ISO 10993 Certification for patient contact.

Yes, the OakWorks CFPM301 is engineered with several key features to ensure patient comfort and safety during imaging and pain management procedures:

• Comfort and Support: The standard configuration includes a 2-inch (5 cm) Radiolucent Comfort Foam table top pad. This padding provides necessary cushioning without interfering with imaging clarity.

• Premium Upholstery: The pad is covered in PVC-free TerraTouch™ Medical Grade Fabric, which is certified to the high standards of ISO 10993 for safe patient contact and durability.

• Patient Security: For stability and immobilization during procedures, the table comes standard with two patient straps.

• High Capacity: The table features a robust 500 lb (227 kg) patient weight capacity and a highly rigid lifting column to ensure rock-solid stability during use.

Yes, the OakWorks CFPM301 table holds several stringent national and international safety certifications necessary for clinical use.

Key regulatory approvals and safety listings include:

• FDA Listed
• CE Marked (European conformity)
• cETLus Approved (North American safety standard)
• CB Certificate

Additionally, the premium, PVC-free TerraTouch™ Medical Grade Fabric used for the table upholstery is ISO 10993 Certified, confirming its safety and biocompatibility for patient contact.

Yes, the OakWorks CFPM301 table can be configured with upgraded controls and casters to better suit your clinical workflow and mobility requirements.

Control Options

• Standard: Multi-function hand control.
• Upgrade Option: Multi-function Foot Control, enabling hands-free operation for enhanced sterility during procedures.

Caster Options

• Standard: 4 inch (10 cm) locking casters.
• Upgrade Option: 5 inch Fallshaw Casters, which provide enhanced stability and smoother movement when maneuvering the table.

Yes, the OakWorks CFPM301 is engineered to provide an exceptional imaging environment designed for C-arm accessibility and clear diagnostic views:

• Exceptional Accessibility: The table offers a generous 52 inches of continuous, metal-free space, maximizing the area available for imaging procedures.
• Optimal Material: The rectangular top (24 inches W x 80 inches L) is constructed from lightweight Carbon Fiber for superior radiolucency.
• Precision Positioning: Further aiding imaging, the table features 10 inches (25 cm) of electric longitudinal travel for precise patient adjustments, and includes a standard 2-inch (5 cm) thick Radiolucent Comfort Foam top pad.

Yes, the OakWorks CFPM301 is configured with three primary motorized movements, ensuring exceptional positional versatility and ergonomic efficiency:

• Electric Height: Offers a large adjustment range from 26 inches up to 43 inches (66 cm to 109 cm), measured without the 2-inch pad. This extensive range aids in safe patient transfers and comfortable physician positioning.
• Electric Tilt (Trendelenburg): Features precise angle control, ranging from +15° to -11°.
• Electric Longitudinal Travel: Provides 10 inches (25 cm) of motorized movement, crucial for accurate patient alignment during imaging procedures.
