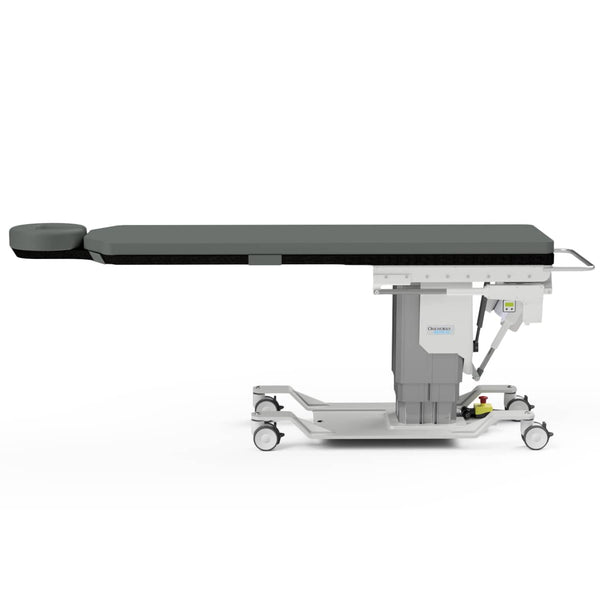

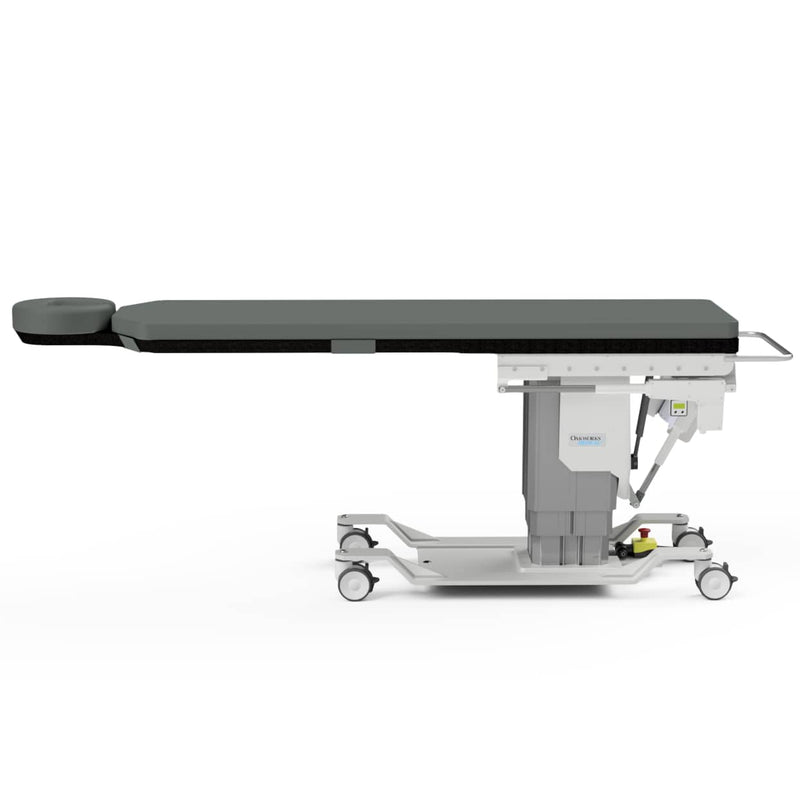

OakWorks CFPM301-Integrated Headrest Imaging-Pain Management Table

Yes, the OakWorks CFPM301 is engineered to provide rock-solid stability, which is critical for high-precision imaging and pain management procedures. This exceptional stability is ensured by several key design elements:

• Rigid Lifting Column: The table utilizes a large, rigid lifting column that delivers rock-solid support, eliminating movement or sway during fast imaging and procedures.
• High Patient Capacity: The durable construction supports a patient weight capacity of up to 500 lbs (227 kg).
• Secure Mobility: Standard configurations include 4-inch locking casters, ensuring the table remains firmly secured and immobile when positioned for a procedure.

Yes, the OakWorks CFPM301 is designed to maximize radiolucency, featuring an extensive, metal-free imaging area that is crucial for clear diagnostic and interventional procedures.

• Metal-Free Space: The table offers a remarkable 56 inches of continuous, metal-free imaging space.
• Material: The table top is constructed from high-quality Carbon Fiber, which ensures maximum radiolucency and minimizes artifacts during X-ray and fluoroscopy procedures.
• Padding: The patient surface includes a standard 2-inch (5 cm) Radiolucent Comfort Foam pad, providing support while maintaining imaging clarity.

The OakWorks CFPM301 table features powerful electric Trendelenburg tilt capabilities, essential for precise patient positioning during imaging and pain management procedures. The full tilt range spans from **+15
to -11
**:

• Trendelenburg (Head Down): Up to +15°
• Reverse Trendelenburg (Head Up): Up to -11°

The OakWorks CFPM301 is built with a large, highly rigid lifting column, ensuring rock-solid stability during procedures. This robust construction provides a substantial maximum patient weight capacity of 500 lb (227 kg).

Yes, the OakWorks CFPM301 is equipped with a wide electric height adjustment range, which is critical for ensuring safe patient transfers and optimizing ergonomic positioning for the practitioner.

The electric height range is:

• Minimum Height: 25 inches (64 cm)
• Maximum Height: 43 inches (109 cm)

Note: This measurement is taken without the standard 2-inch (5 cm) Radiolucent Comfort Foam pad.

Yes, the multi-function hand control is included as the standard system for operating the OakWorks CFPM301 table.

This control provides precise management over the table’s three electric movements, which facilitate optimal patient positioning for imaging and procedures:

• Electric Height Adjustment: Offers a broad range from 25 inches to 43 inches (64 cm to 109 cm) (measured without the pad), supporting safe patient transfers.
• Electric Trendelenburg Tilt: Allows tilting from +15° to -11°.
• Electric Longitudinal Travel: Provides 10 inches (25 cm) of precise movement.

Note that a multi-function foot control is available as an optional upgrade for hands-free operation.

Yes, the OakWorks CFPM301 is constructed using high-quality, medical-grade materials specifically chosen for safety, stability, and optimal imaging performance.

Key components and materials include:

• Imaging Surface: The table features a durable Carbon Fiber top, which allows for an extensive 56 inches of metal-free imaging space, critical for radiolucency during fluoroscopy and other procedures.
• Upholstery: It is covered in premium, PVC-free TerraTouch™ Medical Grade Fabric. This material is certified compliant with ISO 10993 standards for clinical use.
• Padding: The table includes a standard 2-inch thick Radiolucent Comfort Foam pad for patient comfort, along with a Crescent face rest pad.
• Structure: Rock-solid stability during operation is ensured by a large, rigid lifting column, which contributes to the table’s robust 500 lb (227 kg) patient weight capacity.

Yes, the OakWorks CFPM301 is engineered with superior imaging in mind. It utilizes a robust carbon fiber tabletop that provides a generous 56 inches (142 cm) of uninterrupted, metal-free imaging space.

This extensive metal-free area is crucial for ensuring clear visualization during complex X-ray and fluoroscopic procedures. The table also includes a 2-inch Radiolucent Comfort Foam top pad to maximize patient comfort without compromising imaging clarity.

Yes, this table uses premium, medical-grade materials designed for safety and long-term clinical use.

• Upholstery Material: The table is upholstered with Premium, PVC-free TerraTouch™ Medical Grade Fabric. This material ensures high performance and durability in demanding healthcare environments.
• Safety Certification: The TerraTouch™ material is ISO 10993 Certified, meeting international standards for biocompatibility and safe patient contact.
• Comfort Pad: The fabric covers the standard 2-inch (5 cm) thick Radiolucent Comfort Foam pad, which provides crucial radiolucency necessary for imaging procedures while maximizing patient comfort.

Yes, the OakWorks CFPM301 includes a comprehensive integrated headrest system designed for patient stability and comfort during imaging and procedures. This is a standard feature.

Key comfort elements included are:

• Integrated Headrest Assembly: Built into the carbon fiber tabletop for stability.
• Crescent Face Rest Pad: A dedicated Crescent face rest pad is included to provide ergonomic support.
• Radiolucent Comfort Foam: The table utilizes a standard 2-inch (5 cm) thick Radiolucent Comfort Foam pad, ensuring cushioning without interfering with imaging clarity.
