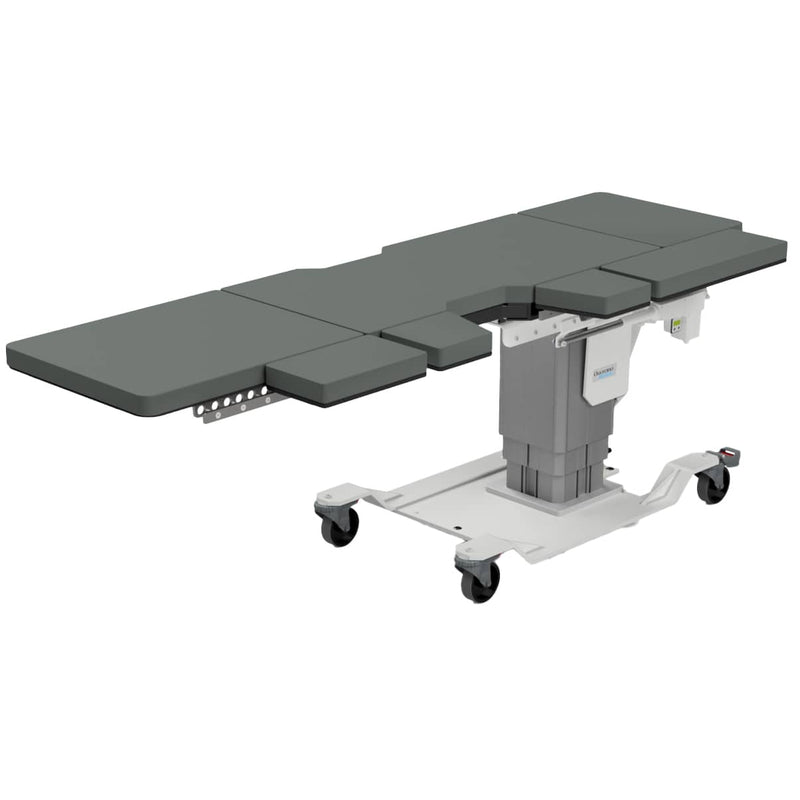

OakWorks CFLU401 Lithotripsy/Urology Table

Yes, the OakWorks CFLU401 table is engineered for maximum versatility in both Lithotripsy and Urology procedures through its unique modular design and features:

• Flexible Access: The tabletop utilizes moveable panels secured to T-rails, which can be repositioned to provide specific, flexible access for left or right-side lithotripsy procedures.
• Easy Conversion: The table is designed to seamlessly convert between a lithotripsy setup and a standard urology configuration.
• Customizable Support: It includes six radiolucent table extensions, allowing you to quickly customize the patient support surface based on specific procedural requirements.
• Optimal Imaging: The carbon fiber construction ensures a generous 53-inch metal-free imaging space, providing unimpeded compatibility with C-Arms and portable lithotripters.

Yes, the OakWorks CFLU401 features four modes of electric movement, including lateral travel, providing superior positioning control for Lithotripsy and Urology procedures. These movements are managed via multi-function hand and foot controls.

The four electric movements are:

• Lateral Travel: ±4 inches (10 cm) of side-to-side movement.
• Longitudinal Travel: 10 inches (25 cm) of head-to-foot travel.
• Electric Height Range: Adjustable from 27 inches (69 cm) to 45 inches (114 cm).
• Trendelenburg Tilt: Ranges from +15° (up) to -11° (down).

Additionally, the table is equipped with a digital angle gauge to help ensure accurate and verifiable positioning during procedures.

The OakWorks CFLU401 is engineered for robust performance and high patient loads. The specific weight capacities are:

• Main Patient Weight Capacity: 500 lb (227 kg)
• Extension Weight Capacity: 200 lb (91 kg) per extension

This durable construction ensures stability and safety during various urology and lithotripsy procedures.

The OakWorks CFLU401 is designed with a premium Carbon Fiber Top to maximize radiolucency and ensure superior imaging quality for lithotripsy and urology procedures. This specialized design ensures seamless function with most portable lithotripters and C-Arms.

Key specifications for imaging access include:

• Metal-Free Imaging Space: The table offers an extensive 53 inches (135 cm) of unobstructed, metal-free imaging space, which includes the Patient Transfer Extension.
• Table Top Pad: The imaging surface is covered with a 2-inch (5 cm) thick, radiolucent Comfort Foam pad.

The OakWorks CFLU401 table includes four radiolucent lateral extensions designed for flexible patient positioning and seamless integration with C-Arms. These components are essential for maintaining imaging quality, and each has a capacity of 200 lb (91 kg).

They are provided in the following specific dimensions:

• (1) Extension measuring 8 inches x 24 inches (20 cm x 60 cm)
• (1) Extension measuring 8 inches x 14 inches (20 cm x 36 cm)
• (2) Extensions, each measuring 8 inches x 11 inches (20 cm x 28 cm)

Yes, the OakWorks CFLU401 table is supplied with a total of six table extensions, including two dedicated patient transfer extensions. All extensions are radiolucent.

These extensions are crucial for maximizing the 53 inches (135 cm) of metal-free carbon fiber imaging space and facilitating flexible patient positioning.

The two included Patient Transfer Extensions have the following dimensions:

• End Extension: 23 in x 28 in (58 cm x 71 cm)
• Short End Extension: 23 in x 16 in (58 cm x 40 cm)

Yes, the OakWorks CFLU401 includes a comprehensive set of features and accessories necessary for immediate use in lithotripsy and urology procedures. The carbon fiber top ensures compatibility with most portable lithotripters and C-Arms, and the following components are standard inclusions:

• Imaging & Comfort: A 2-inch (5 cm) Radiolucent Comfort Foam table top pad, upholstered in premium, PVC-free TerraTouch™ Medical Grade Fabric.
• Flexibility & Access: Six (6) table extensions (including radiolucent lateral and patient transfer extensions) to configure the top for optimal procedural access.
• Controls: Both a multi-function hand control and a foot control to operate the table’s four electric motions (Height, Tilt, Longitudinal, and Lateral travel).
• Mounting & Safety: A set of industry standard, full-length T-rails for accessory attachment, and two patient restraint straps.
• Precision & Mobility: A digital angle gauge for accurate positioning, and four 5-inch (13 cm) locking casters for mobility.
• Urology Ready: A urology bag hoop is included (note: the collection bag must be purchased separately).

Yes, the OakWorks CFLU401 is specifically engineered to ensure seamless integration with most portable lithotripters and C-Arms. It is designed to maximize imaging clarity and access during specialized procedures. This is achieved through several key features:

• Carbon Fiber Imaging Surface: The table utilizes a metal-free carbon fiber top, which is essential for clear fluoroscopy and imaging without obstruction.
• Extensive Imaging Space: The surface provides an extensive 53 inches (135 cm) of unobstructed imaging length.
• Flexible Access: The unique segmented top features moveable panels, allowing clinicians to configure the surface for flexible left or right side access during lithotripsy, or for smooth conversion to a general urology configuration.
• Precise Electric Positioning: Accurate patient targeting is guaranteed by electric control over four motions (Height, Trendelenburg tilt, Longitudinal travel, and Lateral travel), offering the necessary slow speed and precision adjustments.

The CFLU401 table is equipped with a high-quality, 2-inch (5 cm) thick, radiolucent Comfort Foam pad to ensure patient comfort during procedures. It is upholstered in:

• Premium, PVC-free TerraTouch™ Medical Grade Fabric.

This material is a key feature as it is ISO 10993 Certified, confirming its suitability and safety for direct patient contact in medical environments.

Yes, the OakWorks CFLU401 Lithotripsy/Urology Table is designed and manufactured to meet rigorous international and US safety standards, ensuring its suitability for professional clinical use. Its confirmed listings and certifications include:

• FDA listed
• CE marked (European Conformity)
• cETLus approved (for US and Canada electrical safety)
• CB Certificate (IECEE CB Scheme)

These comprehensive approvals verify that the table adheres to strict regulatory requirements for medical devices.
