- Condition: Factory New
- Country of Origin: USA
- Warranty: 3 Years
- Weight: 452.0 lb
- Dual towers and electric fowler makes 70° reverse Trendelenburg possible
- Allows you to safely position clients for venous reflux studies
- Specially designed by leading ergonomic specialists to exceed the "industry standards for sonography"
- Sleek base design promotes unobstructed compatibility with ultrasound equipment making for better ergonomic conditions for the sonographer
-
Learn more:
-
MFR:
OakWorks
Ships from Manufacturer
-
MPN: 83917-T01
- Phone: (717) 759-3146
Frequently asked questions
Does the split footboard improve exam access?
Yes, the OakWorks EA Vascular Table features an integrated, split, drop-away foot board specifically engineered to optimize sonographer access and facilitate specialized exams.
This versatile design provides critical functional and ergonomic benefits:
- Non-Weight Bearing Procedures: The foot board can be quickly dropped away, making patient positioning effortless for exams requiring the feet to be non-weight bearing.
- Unobstructed Access: The design allows the foot board to fold completely out of the way, providing the operator with clear, unobstructed access to the patient’s lower extremities. This is particularly useful for procedures like carotid artery exams.
- Enhanced Versatility: It supports a broader range of vascular, abdominal, superficial, and musculoskeletal exams by maximizing procedural flexibility.
Does the table include locking casters for easy mobility?

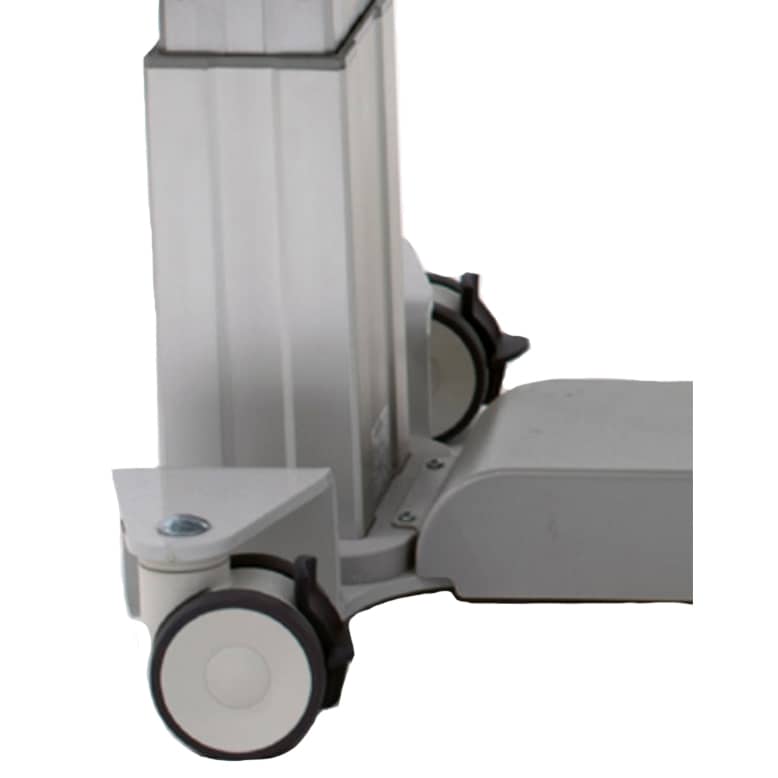

Yes, the table is designed for mobility within the clinical setting. It is equipped with 4” (10 cm) locking casters which allow the table to be easily positioned and then securely locked in place for procedures.
Does the table meet high safety standards?
Yes, the OakWorks EA Vascular Table meets rigorous safety and quality standards, evidenced by its comprehensive certifications and built-in safety features.
It holds the following key certifications:
- FDA listed
- CE marked
- cETLus listed
- CB Certificate
For patient safety during procedures, the table also comes equipped with a patient safety strap and two side rails (25” L x 6” H) as standard components.
Is the ergonomic design suitable for sonographers?
Yes, this table is designed to exceed industry standards for sonography, promoting better working conditions and improved ergonomics for sonographers. Its sleek base design also avoids interference with ultrasound equipment, further enhancing the ergonomic experience.
What safety features secure the patient?
The OakWorks EA Vascular Table includes several essential components to maximize patient safety and stability, particularly when utilizing high degrees of articulation:
- Patient Safety Strap: A dedicated strap is included to secure the patient, especially during specialized procedures requiring significant tilt, such as Reverse Trendelenburg.
- Side Rails: Two integrated side rails, measuring 25 inches long by 6 inches high from the surface, offer support and protection.
- Stability: Four 4-inch (10 cm) locking casters are provided to ensure the table remains firmly in place throughout the examination.
- Weight Capacity: The premium construction supports a substantial patient weight capacity of 550 lb (250 kg).
Does the table feature exceptional positioning capabilities?

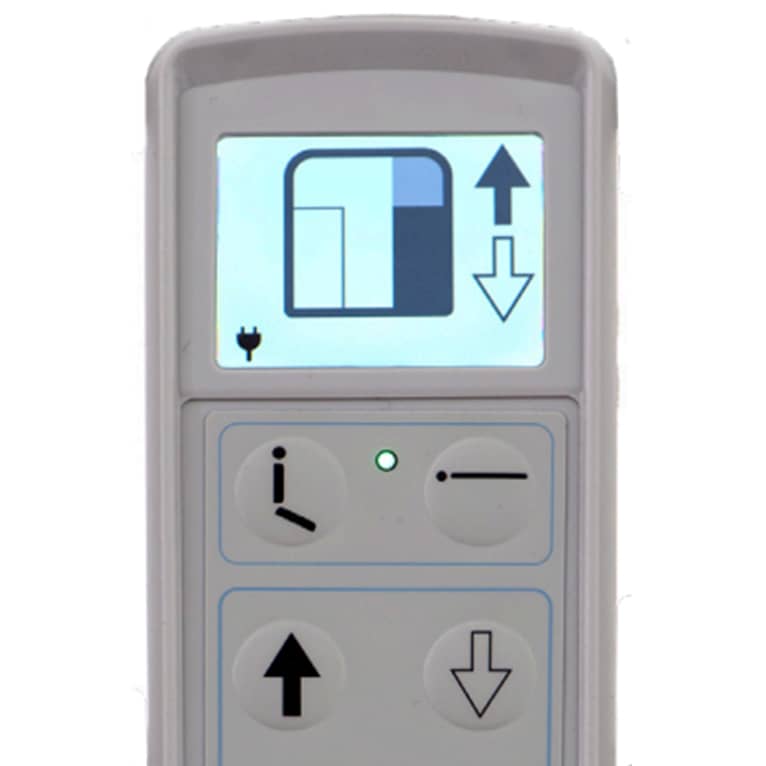

Yes, the OakWorks EA Vascular Table features highly sophisticated electric articulation designed specifically for comprehensive vascular examinations and enhanced sonographer ergonomics. All powered motions are controlled via an easy-to-use hand control.

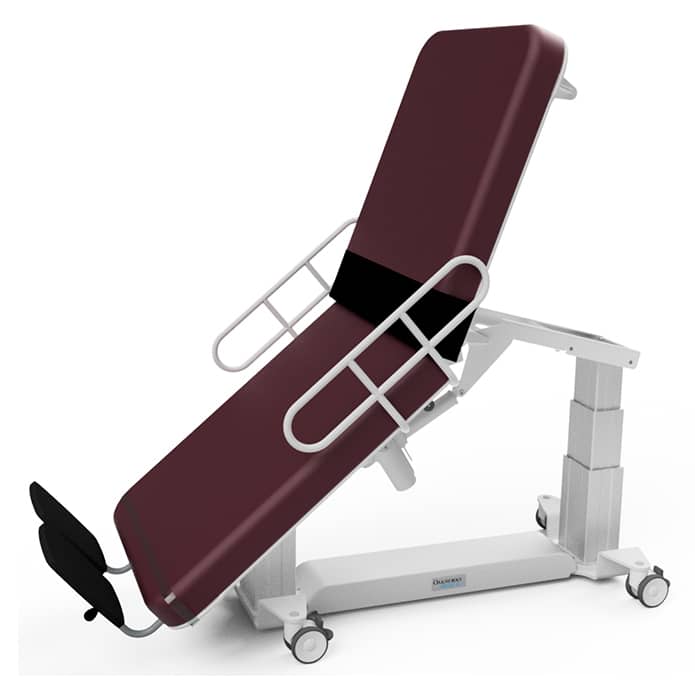

The system utilizes dual electric towers and an electric fowler mechanism to provide exceptional positioning, crucial for complex procedures like venous reflux studies. Key capabilities include:
- Exceptional Reverse Trendelenburg: Reaches up to a functional 70° reverse tilt.
- Electric Height Range: Adjusts from a low of 19” (48 cm) to a high of 33” (83 cm).
- Backrest Adjustment: The electric backrest adjusts from 0° to 75°.
- Standard Tilt Range: Provides electric Trendelenburg and reverse tilt up to ± 18°.
This precise control ensures optimal patient positioning for accurate image acquisition.
What is the electric height adjustment range?
The OakWorks EA Vascular Table features an electric height adjustment range designed as part of its Ergonomic Advantage (EA) line. This range is optimized for both easy patient access and superior sonographer positioning, improving operator conditions.
The precise adjustment range is:
- Low Point: 19 inches (48 cm)
- High Point: 33 inches (83 cm)
All powered table motions, including the height, are smoothly controlled using the included hand control unit.
Is the weight capacity robust?
Yes, the OakWorks EA Vascular Table features a robust, precision-engineered design intended to safely accommodate a wide range of patients. It has a maximum operational weight capacity of 550 lb (250 kg).
What are the table dimensions and premium comfort features?
The OakWorks EA Vascular Table features a two-section top designed for superior patient support and sonographer ergonomics.
Table Top Specifications:
- Total Length: 72 inches (183 cm)
- Width: 30 inches (76 cm)
- Section Breakdown: The top includes a 34-inch (86 cm) backrest and a 38-inch (97 cm) seat section.
Premium Comfort Features:

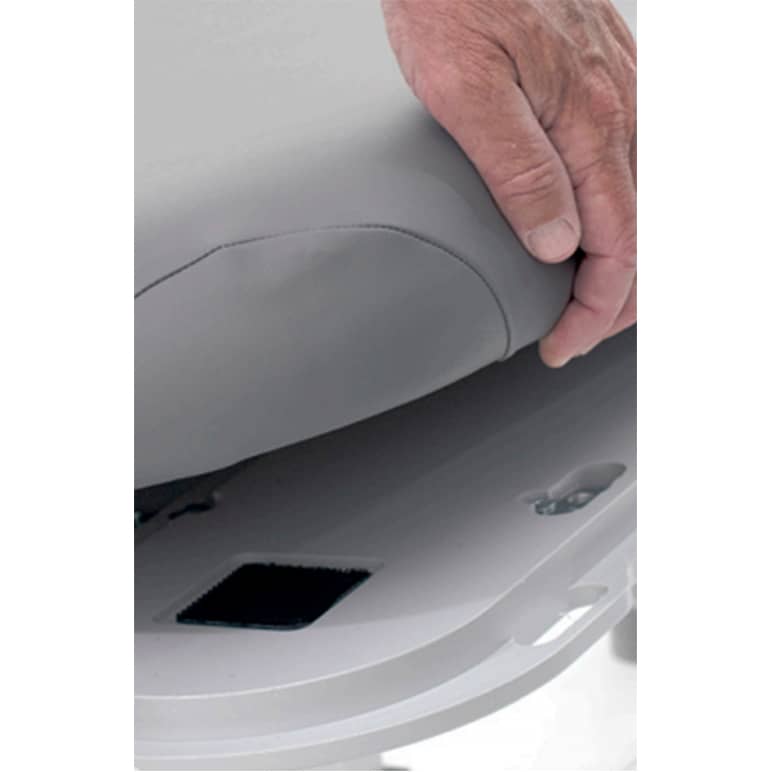

- Padding: 3 inches (8 cm) of dense Comfort Foam ensures patient comfort during procedures.

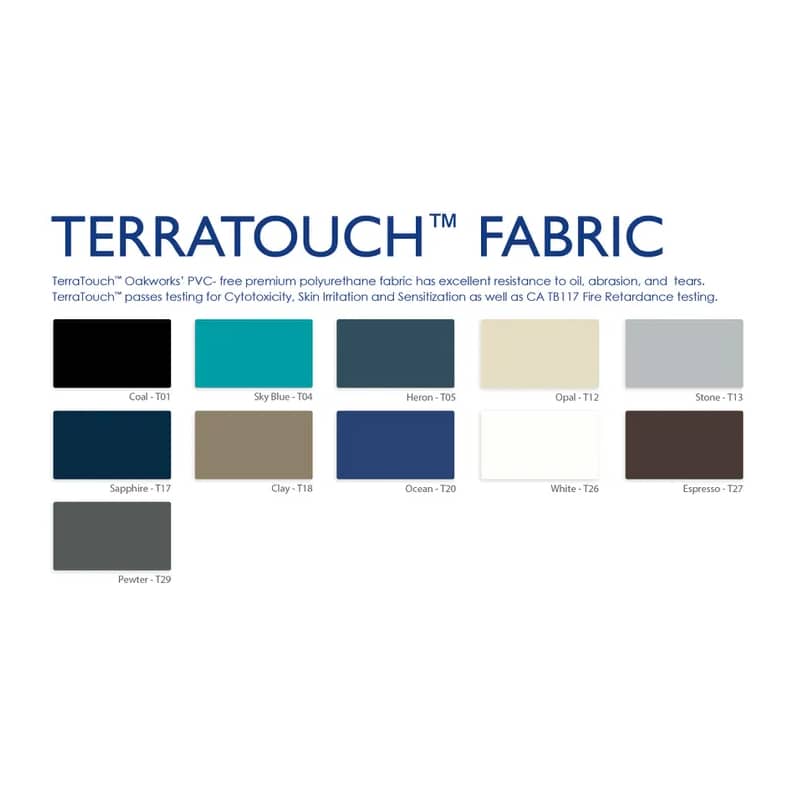

- Upholstery: The table is covered in premium, durable, and PVC-free TerraTouch fabric.
Does the table use premium, comfortable padding and fabric?
Yes, the table is designed with high-quality materials to maximize patient comfort and durability. It features 3” (8 cm) Comfort Foam padding and is upholstered with premium, PVC-free TerraTouch fabric.
