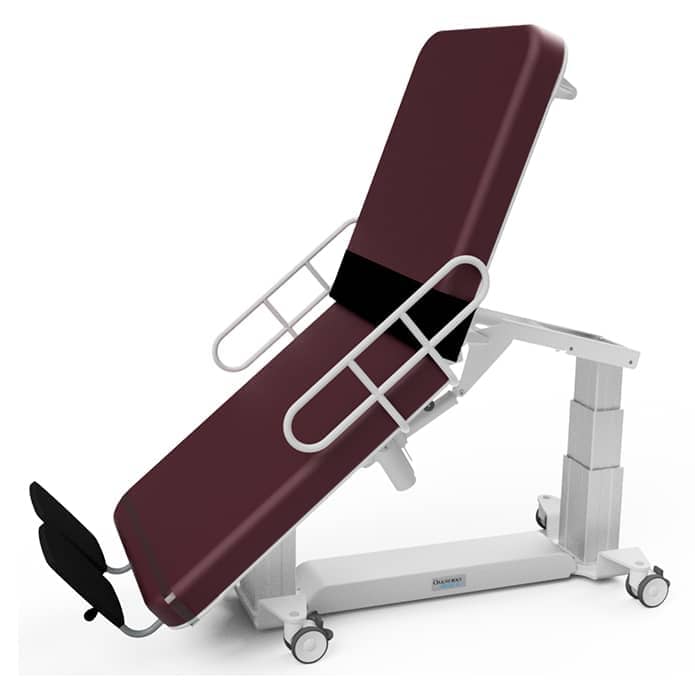

OakWorks 26 Inch EA Vascular Table with Fowler

Yes, the OakWorks EA Vascular Table includes several essential components and safety accessories as standard to ensure patient security and optimize procedural efficiency.

Standard inclusions are:

• Patient Safety & Security:
  • A patient safety strap for secure positioning during procedures.
  • Two robust side rails (25 inches long x 6 inches high from the surface).
• Mobility & Stability:

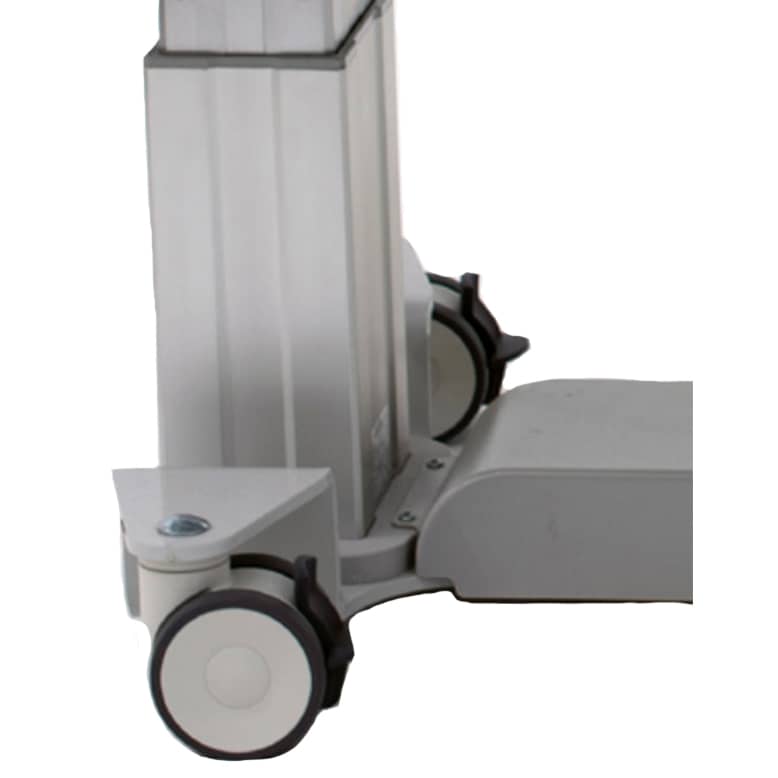

  • Four 4-inch (10 cm) locking casters for stable placement and easy repositioning.
• Procedural Utility & Convenience:
  • An integrated, split, and drop-away foot board, which is vital for non-weight bearing exams and providing unobstructed access (like carotid exams).
  • A standard paper roll holder.

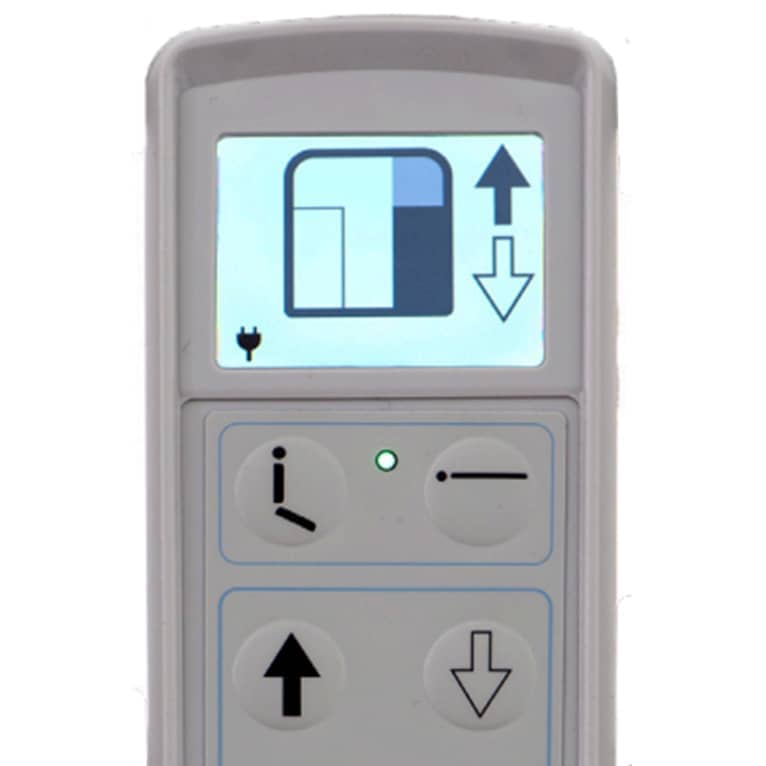

All table motions are conveniently managed by the included Hand Control unit.

No, the OakWorks EA Vascular Table is not recommended for tilt testing.

It is specifically designed and engineered for a range of diagnostic procedures, including:

• Vascular ultrasound
• Venous reflux studies
• Abdominal and superficial structures exams
• Musculoskeletal exams and biopsies

This table is engineered for high durability and patient safety.

The maximum weight capacity is substantial, supporting up to 550 lb (250 kg). This robust capacity ensures stability and reliability across various vascular examinations.

Yes, the OakWorks EA Vascular Table is engineered for versatility, supporting optimal patient positioning for a wide array of specialized procedures beyond its primary vascular application. While ideal for vascular studies, it is also recommended for:

• Vascular Procedures: Including vascular ultrasound, venous reflux studies, and other comprehensive vascular exams. The table’s ability to achieve up to 70° functional reverse Trendelenburg is particularly valuable for venous reflux.
• Diagnostic Imaging: Exams focusing on abdominal and superficial structures.
• General Procedures: Musculoskeletal exams and biopsies.

Note: This specific model is explicitly not recommended for tilt testing procedures.

Yes, the OakWorks EA Vascular Table is engineered with four powerful electric motions controlled via a single hand unit, ensuring precise patient positioning for vascular and specialized exams.

This system’s primary advantage is its extreme positioning capability, reaching up to 70° functional reverse Trendelenburg—a feature essential for procedures like venous reflux studies.

Key powered motions and their ranges include:

• Height Adjustment: Electrically adjustable from 19 inches to 33 inches (48 cm to 83 cm).
• Trendelenburg/Reverse Tilt: Provides up to ±18° of electric tilt motion.
• Backrest (Fowler): Electrically articulates from 0° up to 75°.
• Additional Reverse Tilt: Offers an electric range of 0-25° for specialized positioning, contributing to the maximum 70° functional angle.

Yes, the table is upholstered in premium, PVC-free TerraTouch fabric. This durable material covers 3 inches (8 cm) of Comfort Foam padding, ensuring both patient comfort and easy cleaning.

The manufacturer provides the following warranty coverage for the OakWorks EA Vascular Table:

• Parts: 3 years
• Labor: 2 years

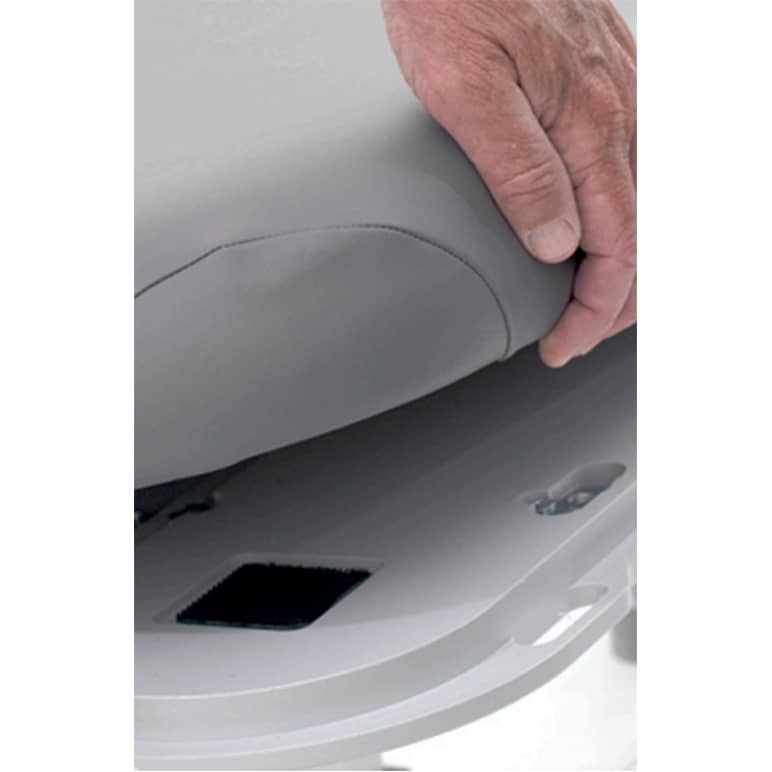

The tabletop is designed for optimal patient comfort and longevity, utilizing high-quality materials for both the padding and upholstery:

• Padding: The table features a generous 3 inches (8 cm) of Comfort Foam padding, offering substantial support during extended vascular procedures.
• Upholstery: The top is covered in premium, PVC-free TerraTouch fabric. This durable material is easy to clean and maintains compliance with major safety certifications, including FDA, CE, and cETLus listings.

Yes, the OakWorks EA Vascular Table features an integrated, split, drop-away foot board designed to enhance versatility and accessibility during specialized examinations:

• Non-Weight Bearing Exams: When utilized, it allows the table to fully accommodate non-weight bearing procedures.
• Unobstructed Access: It can be easily folded away to provide clear access, which is necessary for specific procedures like carotid artery exams.

Yes, the OakWorks EA Vascular Table is highly specialized and specifically engineered to streamline advanced vascular ultrasound and diagnostic imaging. It is part of the Ergonomic Advantage (EA) line, designed by leading specialists to enhance sonographer ergonomics and optimize clinical workflow.

Key features that maximize efficiency for vascular studies include:

• Exceptional Positioning: Featuring a robust dual-tower design and electric fowler, the table achieves an impressive functional 70° maximum reverse Trendelenburg tilt. This capability is essential for conducting accurate venous reflux studies.
• Superior Ergonomics: The sleek, unobstructed base design provides exceptional compatibility and clearance for all ultrasound equipment, ensuring the sonographer can work comfortably and efficiently.
• Versatile Footboard: The integrated footboard is split and features a drop-away mechanism. This allows for quick transition to non-weight bearing exams or folds completely down, offering full, unobstructed access for procedures like carotid artery analysis.

This specialized table is ideal for venous reflux studies, abdominal/superficial structure exams, musculoskeletal exams, and biopsies.
