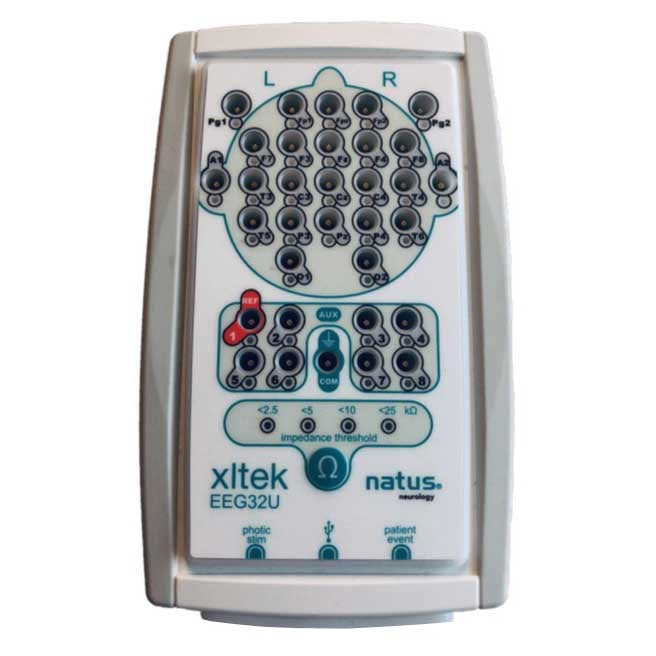

The Xltek EEG32U EEG Amplifier includes amplifier and communication cable.

Note: Cart and computer sold separate.

Warranty: 90 Days - Parts and Labor.

The Xltek EEG32U EEG Amplifier combines ease of use with advanced performance and a choice of 32 or 50 channel amplifiers. Xltek's renowned networking software allows a whole departmental system to be configured exactly to your needs.

It comes as a standard 32 channel or 50 channel EEG/Sleep amplifier with built-in pulse oximeter. Both amplifiers are small and lightweight enough to be worn by the patient.

The Xltek family of EEG/PSG solutions provides the leading-edge features you want in critical care applications with the intuitive, user-friendly interface you need for productive day-to-day workflow. Xltek is one of the most trusted names in Neurology equipment, with doctors choosing it 2 to 1 to any other brand.

Xltek's EEG32U amplifier can be used for clinical EEG studies in an outpatient or in-patient setting, long-term EEG monitoring, and ECOG or other operating room procedures. Pre-amplifiers, amplifiers, signal conditioners, analog-to-digital conversion and an impedance check are all packed solidly into this small, lightweight, but tough and dependable package. Designed with rugged, fully enclosed touch-proof connections to consistently provide the maximum level of reliability.

Two dedicated ground and reference channels provide premium signal quality. Featuring 32 AC referential channels, the EEG32U can simultaneously sample and store data at rates up to 1000 Hz with 16 bit analog conversion.

Xltek EEG32U EEG Amplifier Features

  • 32-channel amplifier.
  • Sample rate of up to 1024 Hz.
  • Bandwidth is 0.1 to 400 Hz.
  • USB powered amplifier.
  • Lightweight.
  • 10 to 20 head stamp with impedance LEDs.
  • Suitable for a wide variety of environments including EMU, ICU, EEG, and sleep labs.
  • Patient-event-switch interface and a photic-stimulator interface are standard to allow for complete EEG functionality.
  • Ultra low noise amplifier with superb signal quality.
  • Color-coded, touch proof electrode for quick error-free connectivity.
  • Ethernet connectivity for utilizing existing hospital network.
  • Remote impedance check.
  • Inputs for ECG, EMG, SpO2, and more.

Xltek EEG32U EEG Amplifier Specifications

  • Weight:
    • Main Unit: 1.8 lb.
    • Breakout Box: 1.3 lb.
  • VAC: 110/220.
  • Dimensions:
    • Main Unit: 30.5" x 33" x 4.3" (12 cm x 13 cm x 1.7 cm).
    • Breakout Box: 15.5" x 9.5" x 2.5" (6.1 cm x 3.8 cm x 1 cm).
  • Interface Protocol Output: TCP/IP, USB 2.0.
  • Preamplifier Input Impedance: ≥ 50.
  • Electrode Impedance Check: Automatic/manual.

Natus Xltek EEG32U EEG Amplifier Accessories

The following accessories are compatible and commonly purchased with the Natus Xltek EEG32U EEG Amplifier:

  • #GOLD-CUP: 2x MFI Medical Reusable Gold Cup EEG Electrodes.
  • Weaver Nuprep Skin Prep.
  • Weaver Ten20 Conductive Paste.
  • 3M Transpore Surgical Tape.
  • Dynarex Stretch Gauze Bandage.

Xltek EEG32U EEG Amplifier Literature

Dymedix Product Compatibility Sheet - Xltek

Xltek EEG32U EEG Amplifier Refurbishing

The Xltek EEG/PSG System is refurbished to proper operating specifications by MFI Medical and subject to its rigorous certification process:

  • Initial Inspection: Done by a biomedical engineer to test for functionality and determine any parts that need to be replaced. MFI engineers use an oscilloscope to determine which (if any) components need to be replaced and a signal generator to confirm the system provides accurate values.
  • Disassembly and Cleaning: Equipment is fully disassembled for board-level intensive cleaning to remove all dust and debris and return to like-new condition.
  • Repair and Replacement of Parts: Damaged or missing parts are repaired or replaced with original equipment manufacturer (OEM) replacement parts.
  • Painting: Painted parts are repainted to restore equipment to like-new condition.
  • Relabeling: OEM labels are replaced with new OEM labels.
  • Reassembly: Equipment is reassembled while each part is inspected for accuracy and condition.
  • Final Certification: Equipment is calibrated by our biomedical technicians and refurbished to proper operating specifications. Cosmetic condition is also inspected by our quality control team.
