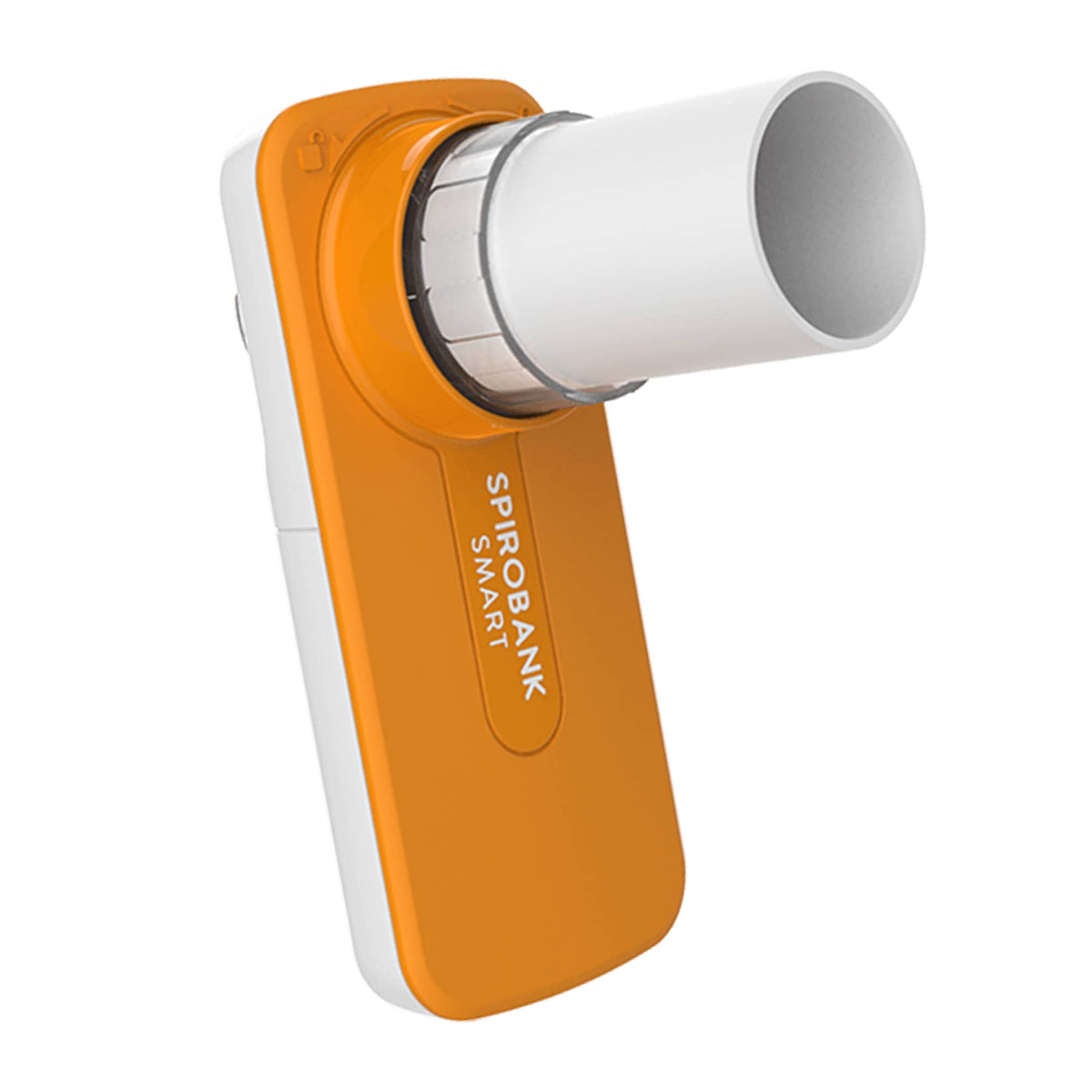

MIR Spirobank Smart

The MIR Spirobank Smart is an app-based spirometer that includes two AAA Alkaline 1.5 V batteries and an app license for an unlimited number of iOS and Android devices.

Warranty: 1 Year.

Note: The Spirobank Smart only ships to medical facilities. It is a single-patient use device and can NOT be used by multiple patients by simply changing out the mouthpiece.

Specially designed for remote patient monitoring, homecare, clinical trials, and 3rd party software integration, the Spirobank Smart provides cost-effective spirometry and allows you to personally assess your own state of health with particular attention to respiratory function. It is simple, intuitive, and easy to use and features real time tests that are available on your smartphone via Bluetooth Smart 4.0. The MIR Spirobank and iSpirometry apps are available for iOS and Android with unlimited free online updates.

MIR Spirobank Smart Features

• Simple and easy to use.
• Provides cost-effective spirometry.
• Real time tests are available on your smartphone via Bluetooth Smart 4.0.
• Designed for remote patient monitoring, homecare, clinical trials, and 3rd party software integration.
• Software development kit for iOs and Android is available for developers.
• MIR Spirobank and iSpirometry apps are available for iOS and Android with unlimited free online updates.
• Automatic pairing via Bluetooth BLE allows you to display and save test results directly on your smartphone.
• No internal memory, no display. Data is not stored in the device memory.
• Compliant with GLI predicted sets.

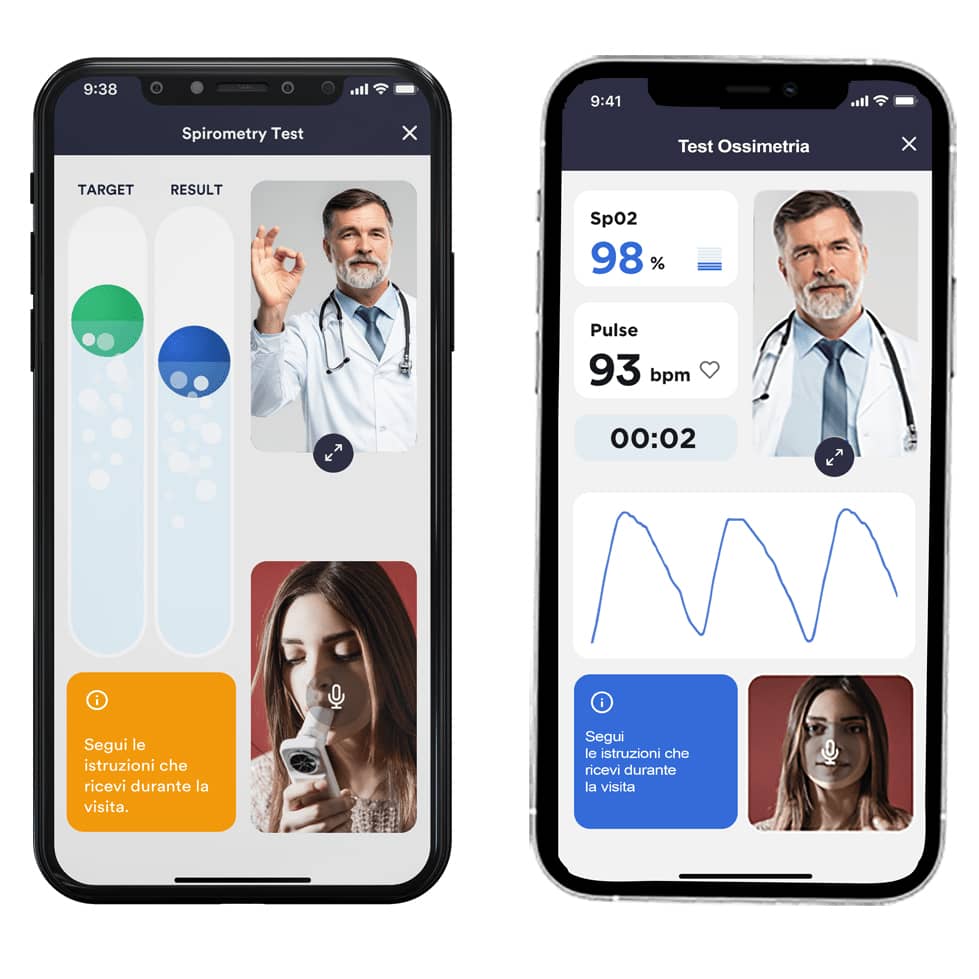

• Tests results and spirometry guidelines are easy to understand via the app.

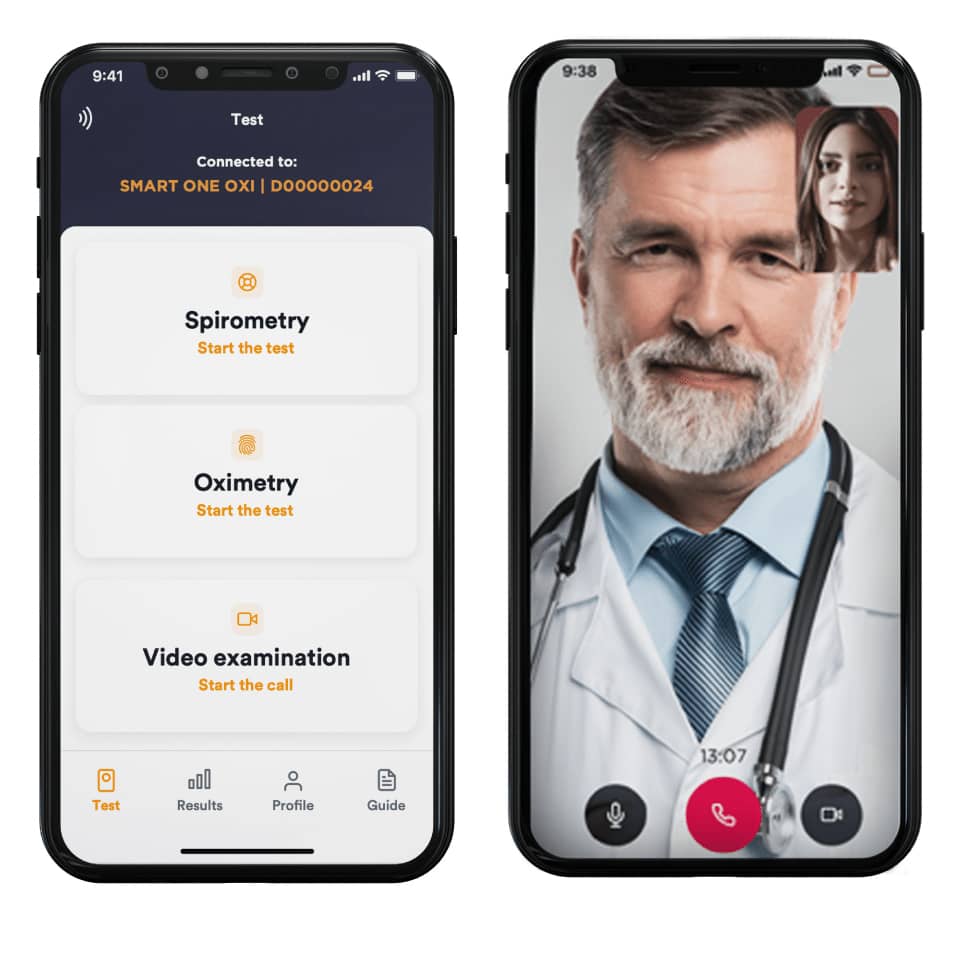

• Simple and intuitive app for iOS and Android.
• SDK available for iOS and Android. Ready-to-connect with 3rd party apps for professional and personal care.

MIR Spirobank Smart Specifications

Technical Specifications:

• Width: 49 mm.
• Length: 109 mm.
• Thickness: 21 mm.
• Weight: 60.7 g (batteries included).
• Turbine:
• Reusable turbine with plastic mouthpiece (code 910013).
• Disposable turbine (code 910004).
• Power Supply: 2 AAA batteries 1.5 V.
• Consumption:
• Max 12 mA.
• Stand by 8 μA medium
• Backup Battery Voltage: None.
• Batteries Charger: None.
• Autonomy: 5-10 years (stand by).
• Connectivity: Bluetooth 4.0.
• Mouthpieces: Ø 30 mm (1.18 inch).
• Type of Electrical Protection: Internally Powered.
• Safety Level for Shock Hazard: Type BF Apparatus.
• IP Protection Level: IP22.
• Conditions of Use: Apparatus for continuous use.
• Storage Conditions:
• Temperature:
• Min: -25° C.
• Max: +70° C,
• Humidity:
• Min: 10% RH.
• Max: 93% RH.
• Operating Conditions:
• Temperature:
• Min: +5° C.
• Max: +40° C.
• Humidity:
• Min: 10% RH.
• Max: 93% RH.
• Shipping Conditions:
• Temperature:
• Min: -25° C.
• Max: +70° C.
• Humidity:
• Min: 10% RH.
• Max: 93% RH.

Spirometry:

• Flow Sensor: bi-directional digital turbine.
• Flow Range: ±16 L/s.
• Volume Accuracy: ±2.5% or 0.05 L.
• Flow Accuracy: ±5.0% or 0.20 L/s.
• Dynamic Resistance: <0.5 cm H2O/L/s/
• Temperature Sensor: None.
• Test Available: FVC.
• Measured Parameters: FEV1, PEF, FVC, FEV1/FVC ratio, FEV6, FEF2575.
• Additional Parameters Available with F/V Version: FIVC, FIV1, PIF FEF25, FEF50, FEF75, EVol, FEV05, FEV075, FEV2, FEV3, FET, PEF Time.
• Memory Capacity: The application on the smart phone memorizes data.

Certificates & Registrations:

• CE 0476: MED 9826 by Kiwa-Cermet.
• FDA 510(k): K072979.
• CND Code: Z12150102.
• GMDN Code: 46906.

MIR Spirobank Smart Package Quantities

• #MIR-911105: Single Unit.
• #MIR-911105-CS: Case of 24.

MIR Spirobank Smart Literature

MIR ISO 13485:2016

MIR ISO 13485:2016 MDSAP

MIR ISO 9001:2015

MIR iSpirometry App Quick Guide

MIR MDD CE Certificate

MIR Spirobank Smart Brochure

MIR Spirobank Smart Datasheet

MIR Spirobank Smart Declaration of Conformity
