- Condition: Factory New
- Country of Origin: Taiwan
- Warranty: 1 Year
- Weight: 3.15 lb

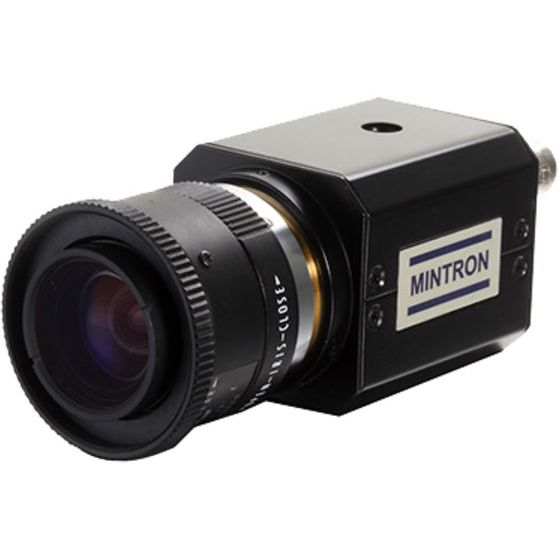

- 1.3 Megapixel HD CCD Camera
- Full HD 720p HD-SDI
- HD Video Converter: Supports HD-SDI in and converts to HDMI output
- Can be used as an accessory for colposcopes, dental microscopes, ENT microscopes, and more
-
Learn more:
- MFR: Mintron Ships from MFI Medical
- Phone: (800) 633-1558
Frequently asked questions
What video outputs are supported?
The Mintron HD CCD Camera Package provides highly versatile video output options:
- Simultaneous Dual Output (Direct from Camera): The camera unit provides both High-Definition and Standard-Definition outputs simultaneously:
- HDV (High Definition Video): Full HD 720p resolution via HD-SDI (High-Definition Serial Digital Interface).
- SDV (Standard Definition Video): Simultaneously provided as a standard CVBS output.
- HDMI Output (Via Converter): The included HD Video Converter takes the HD-SDI input and provides a clean HDMI output, supporting formats such as 720p, 1080p (25/30 Hz), and 1080i (50/60 Hz).
Additionally, the system features Coax-Link capability, which allows HD-SDI video, power, audio, and bi-directional control signals to be transmitted efficiently over a single coaxial cable.
Does the Mintron HD CCD Camera Package include everything needed for setup?
Yes, the package includes the HD CCD Camera, HD Video Converter, interconnecting cables, and a power supply.
What video output does the HD Video Converter provide?
The HD Video Converter supports HD-SDI input and converts it to HDMI output, ensuring compatibility with modern displays.
Which types of microscopes is the Mintron HD CCD Camera Package compatible with?
The Mintron HD CCD Camera Package is compatible with a wide range of microscopes, including colposcopes, dental microscopes, and ENT microscopes.
What type of image sensor does the camera use?
The camera’s image sensor is a 1/3” MP CMOS WDR Sensor (Rolling shutter).
What is the minimum illumination required for the camera to operate effectively?
The minimum illumination required for the camera is 0.05 Lux @ AGC on/Sens-up off/F1.2.
What are the specific model numbers of the camera and video converter included in the package?
The package includes the HD CCD Camera (#MHD-33MN2S-P) and the HD Video Converter (#MHD-61S2SH-P).
Does this camera deliver Full HD video?
Yes, the Mintron camera package is designed for professional high-definition imaging:
- Full HD Capability: The camera provides high-quality video output at Full HD 720p resolution via HD-SDI. The included HD Video Converter further supports multiple HD formats, including 1080i/60 Hz, for monitor compatibility.
- High Performance Sensor: It utilizes a 1.3 Megapixel 1/3” MP CMOS WDR Sensor with 1280 (H) x 960 (V) effective pixels, achieving a horizontal resolution of over 800 TV-Line.
- Image Optimization: The camera includes built-in advanced image controls like 3D Digital Noise Reduction (3DNR) and Wide Dynamic Range (WDR/XDR) to maintain optimal image clarity under varying light conditions.
Does Coax-Link simplify setup?
Yes, the Mintron HD CCD Camera Package utilizes its advanced Coax-Link Capability to significantly simplify system setup and integration.
This feature allows the transmission of all necessary signals over a single coaxial cable, reducing cable clutter and making installation straightforward. The single cable carries:
- HD-SDI Video (Full HD 720p)
- 2-channel Audio
- DC Power supply for the camera
- Bi-directional Control signals (Ctrl)
What is the operating temperature range?
The Mintron HD CCD Camera system is designed for robust performance and operates within a wide temperature range of -20 to 50 °C. This allows for reliable integration into various professional medical and inspection environments.
