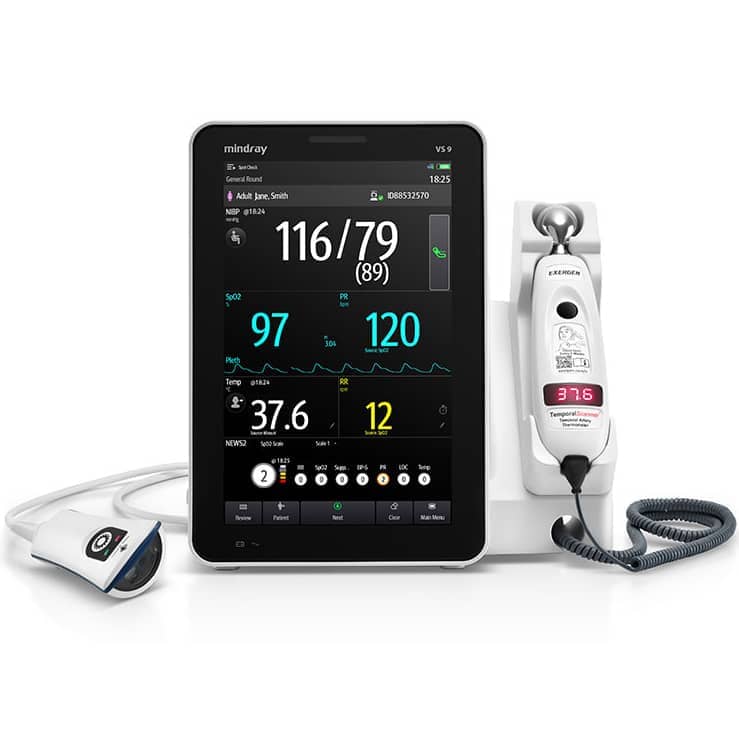

Mindray VS 9 Wireless Vital Signs Monitor (2.4/5 GHz)

Mindray VS 9 Wireless Vital Signs Monitor (2.4/5 GHz)
Mindray VS 9 Wireless Vital Signs Monitor Angled Right
Mindray VS 9 Wireless Vital Signs Monitor Angled Left
Mindray VS 9 Wireless Vital Signs Monitor with Cart
Mindray VS 9 Wireless Vital Signs Monitor Touchscreen
Mindray VS 9 Wireless Vital Signs Monitor Barcode Scanner
Mindray VS 9 Wireless Vital Signs Monitor Cart Rolling
Mindray VS 9 Wireless Vital Signs Monitor (2.4/5 GHz)
Mindray VS 9 Wireless Vital Signs Monitor Angled Right
Mindray VS 9 Wireless Vital Signs Monitor Angled Left
Mindray VS 9 Wireless Vital Signs Monitor with Cart
Mindray VS 9 Wireless Vital Signs Monitor Touchscreen
Mindray VS 9 Wireless Vital Signs Monitor Barcode Scanner
Mindray VS 9 Wireless Vital Signs Monitor Cart Rolling
Key Features
  • SKU: MDY-121-002192-00
  • Condition:
    Condition: Factory New
  • Country of Origin: China
  • Warranty:
    Warranty: 3 Years
  • Weight: 7.5 lb
  • 10.1″ multi-gesture, capacitive touchscreen display with an intuitive user interface
  • TrueBP quickly measures blood pressure on inflation in about 15 seconds
  • Stores up to 5,000 measurements, accessible by patient ID for easy review
  • Wireless capabilities allow for mobility between patients and real-time data sent from the POC directly to the EMR

  • Learn more:

Contact The Manufacturer
  • MFR: Mindray
    Ships from Manufacturer
  • MPN: 121-002192-00
  • Phone: (888) 464-5571
$1,504.85

+ Free Shipping

Est. Delivery:

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Mindray VS 9 Wireless Vital Signs Monitor is available in several configurations to meet your needs including NIBP, pulse rate, SpO2, and temperature options.

Warranty: 3 Years.

Note: Pictured barcode scanner is sold separately. The exergen thermometer and other optional accessories are ONLY included WHEN selected as an option on the configurations drop down menu.

Note II: The Mindray VS9 Vital Signs Monitor Lithium Ion Battery (#115-034132-00) is sold separately. It is NOT included with the purchase of a VS9 monitor.

Boasting a variety of functionality and parameters that provide tools to support clinical decisions, the VS 9 Wireless Vital Signs Monitor is ideally suited for spot check and continuous vital signs monitoring which helps clinicians get a complete picture of patient health. By elevating a department's workflow to new heights, it also addresses the needs of low acuity areas. Thanks to capacitive touchscreen technology, like you see with your smartphone, the VS 9 Wireless is extremely easy and efficient to use. It can be connected so clinicians can send vital signs at the point of care (POC) reducing the possibility of errors. With Mindray’s innovative BeneVision Distributed Monitoring System (DMS) caregivers can centrally view patient information sent from the POC and wireless capabilities allow for mobility between patients and real-time data sent from the POC directly to the EMR.

Features

Mindray VS 9 Wireless Vital Signs Monitor Features

  • 10.1″ multi-gesture, capacitive touchscreen display with an intuitive user interface.
  • Configurable workflows defined by department.
  • TrueBP quickly measures blood pressure on inflation in about 15 seconds.
  • Manual, automatic, and customizable NIBP measurement modes offer flexibility for various clinical applications.
  • Orthostatic BP helps to assess a patient’s fall risk.
  • BP Average functionality provides an average BP over a specified time and a number of measurements.
  • Available SpO2 technology includes Masimo SET (standard) or Nellcor Oximax.
  • Temperature options include: Exergen Temporal Scanner, and Welch Allyn stand-alone SureTemp Plus.
  • Low flow sidestream CO2 provides measurements of FiCO2, etCO2, and awRR with a CO2 waveform.
  • Standard Modified Early Warning Score (MEWS) offers support for clinical decisions.
  • Customize up to 30 manual inputs, such as respiration rate, glucose, and height.
  • Infographic pain scale to document pain level.
  • Stores up to 5,000 measurements, accessible by patient ID for easy review.

Specifications

Mindray VS 9 Wireless Vital Signs Monitor Specifications

Physical Specifications:

  • Dimensions: 10.8" H x 7.3" W x 5.3" D (27.5 cm H x 18.5 cm W x 13.5 cm D).
  • Screen: 10.1-inch, 1280 x 800 pixels standard capacitive touchscreen supports multi-touch operation.
  • Weight: 7.5 lb (3.4 kg).

Bluetooth:

  • Protocol: Bluetooth 5.
  • Modulation Mode: GFSK.
  • Operating Frequency: 2402 MHz to 2480 MHz.
  • Wireless Data Rate: 2 Mbps, 1 Mbps, 125 kbps.
  • Output Power: ≤ 8 dBm ± 4 dB
  • Data Security: AES128.

Interfacing:

  • Main Unit: AC power connector (1), Network connector (1), RJ45 USB 2.0 connector (2), Multi-Functions connect (1), Equipotential grounding terminal (1), External battery connector (1).
  • Barcode Scanner: Support 1D and 2D barcode.
  • Thermal Recorder: 3 traces (paper 50 mm width, 20 m length).
  • Data Output: HL7, eGateway, VitalsLink (Cerner).
  • Auth. Management: MLDAP, Imprivata.

Power:

  • Line Voltage: 100 to 240 VAC (±10 %).
  • Current: 0.9 to 0.5A.
  • Frequency: 50/60 Hz (±3 Hz).
  • Battery: 5600mAh rechargeable smart Li-ion battery.
  • Recharge Time (Power Off): 4 hours to 100%.

Environmental Requirements:

  • Temperature:
    • Operating: 0 to 40 °C (without CO2). 5 to 40 °C (with CO2).
    • Storage: -20 to 60 °C.
  • Humidity:
    • Operating: 15 to 95 % (non condensing).
    • Storage: 10 to 95 % (non condensing).
  • Barometric:
    • Operating: 120 to 805.5 mmHg (57 to 107.4 kPa) (without CO2). 430 to 790 mmHg (57.3 to 105.3 kPa) (with CO2).
    • Storage: 120 to 805.5 mmHg (16 to 107.4 kPa) (without CO2). 430 to 790 mmHg (57.3 to 105.3 kPa) (with CO2).

Configurations

Mindray VS 9 Wireless Vital Signs Monitor Configurations

  • #121-002192-00: Standard NIBP and Pulse Rate.
  • #121-002198-00: NIBP and Pulse Rate with Exergen Temporal Temp.
  • #121-002195-00: NIBP and Pulse Rate with Nellcor OxiMax SpO2.
  • #121-002194-00: NIBP and Pulse Rate with Masimo SpO2.
  • #121-002200-00: NIBP and Pulse Rate with Nellcor OxiMax SpO2 and Exergen Temporal Temp.
  • #121-002199-00: NIBP and Pulse Rate with Masimo SpO2 and Exergen Temporal Temp.
  • #121-002204-00: NIBP and Pulse Rate with Nellcor OxiMax SpO2 and Mindray Integrated CO2.
  • #121-002203-00: NIBP and Pulse Rate with Masimo SpO2 and Mindray Low Flow Sidestream CO2.
  • #121-002427-00: NIBP and Pulse Rate with Masimo SpO2, TrueTemp, and Mindray Low Flow Sidestream CO2.
  • #121-002222-00: NIBP and Pulse Rate with Nellcor OxiMax SpO2, Exergen Temporal Temp, and Mindray Low Flow Sidestream CO2.
  • #121-002208-00: NIBP and Pulse Rate with Masimo SpO2, Exergen Temporal Temp, and Mindray Low Flow Sidestream CO2.
  • #121-002420-00: NIBP and Pulse Rate with Masimo SpO2, and TrueTemp.
  • #121-002422-00: NIBP and Pulse Rate with TrueTemp.
  • #121-002423-00: NIBP and Pulse Rate with Nellcor OxiMax SpO2 and TrueTemp.
  • #121-002419-00: NIBP and Pulse Rate with Nellcor OxiMax SpO2, TrueTemp, and Mindray Integrated CO2.

Frequently asked questions

Does the VS 9 monitor use TrueBP technology?

Yes, the Mindray VS 9 utilizes TrueBP technology for Non-Invasive Blood Pressure (NIBP) measurement, enhancing speed and efficiency during vital signs checks.The NIBP system offers several key advantages for rapid patient assessment:* Rapid Measurement: TrueBP captures readings upon inflation, completing measurements in approximately 15 seconds.* Flexible Measurement Modes: The monitor supports manual, automatic, and customizable NIBP modes tailored to clinical workflows.* Advanced Assessment Tools: It includes features like Orthostatic BP assessment (useful for evaluating fall risk) and BP Average functionality for tracking trends over time.

Does this monitor support seamless EMR integration?

Yes, the Mindray VS 9 is engineered for real-time, wireless integration with Electronic Medical Records (EMRs), which greatly streamlines clinical workflows and minimizes the risk of transcription errors.

Key integration features include:

  • Real-time Data Transmission: Vital signs are sent directly from the point of care to the EMR via Mindray’s BeneVision Distributed Monitoring System (DMS).
  • Protocol Support: The device supports industry-standard data outputs such as HL7, eGateway, and VitalsLink (Cerner).
  • Secure Authentication: Access and data security are managed using protocols like MLDAP and Imprivata.
  • Connectivity: It utilizes robust wireless capabilities (2.4/5 GHz) for reliable network communication.
What SpO2 technology options are configurable?

The Mindray VS 9 offers flexibility in pulse oximetry measurement by allowing you to choose between two industry-leading SpO2 technologies during configuration:

  • Masimo SET: This highly accurate technology is generally provided as the standard configuration.
  • Nellcor Oximax: This is an alternative option that can be selected to ensure consistency with existing clinical protocols or preferred standards.

This choice ensures seamless integration with your established patient monitoring environment.

Is a high-capacity smart battery used?

Yes, the Mindray VS 9 supports patient mobility by utilizing a high-capacity rechargeable smart Li-ion battery.

Important Note: The required battery (5600mAh) is sold separately and is NOT included with the main monitor unit.

Key details regarding the optional battery:

  • Capacity: 5600mAh
  • Recharge Time: It recharges to 100% in approximately 4 hours when the monitor is powered off.
  • Primary Power: The monitor also operates using standard line voltage (100 to 240 VAC).
Does the VS 9 support CO2 monitoring?

Yes, the Mindray VS 9 Wireless Vital Signs Monitor supports CO2 monitoring as an optional parameter. When configured with the low flow sidestream CO2 option, it provides comprehensive respiratory assessment including:

  • FiCO2 (Fraction of inspired CO2)
  • etCO2 (End-tidal CO2)
  • awRR (Airway Respiration Rate)

This configuration also displays a real-time CO2 waveform to aid in clinical assessment.

Does the 10.1-inch screen use a multi-gesture interface?

Yes, the Mindray VS 9 is centered around a responsive 10.1-inch (1280 x 800 pixels) capacitive touchscreen.

This display is designed with an intuitive, multi-gesture interface, offering a user experience similar to a smartphone to significantly enhance clinical workflow and efficiency.

Key features enabled by this interface include:

  • Configurable Workflows: Allows clinical workflows to be defined and tailored specifically by department.
  • Decision Support: Includes the standard Modified Early Warning Score (MEWS) functionality for timely assessment.
  • Flexible Data Entry: Supports customization of up to 30 manual inputs (e.g., respiration rate, glucose, height) and utilizes an infographic pain scale.
  • Data Storage: The monitor can store up to 5,000 measurements, which are accessible by patient ID.
How many patient measurements does the VS 9 store?

The Mindray VS 9 is equipped with internal storage to support efficient data management. It can store up to 5,000 measurements. All stored records are easily accessible and managed by patient ID.

Does this monitor provide clinical decision support tools?

Yes, the Mindray VS 9 is equipped with several clinical decision support features to assist clinicians in patient assessment and early identification of deterioration:

  • Modified Early Warning Score (MEWS): This standard functionality helps identify patient deterioration swiftly.
  • Customizable Manual Inputs: You can input up to 30 manual data points (e.g., respiration rate, glucose, height) to create a comprehensive patient picture.
  • Infographic Pain Scale: This tool provides visual assistance for documenting and assessing patient pain.
Does this monitor help assess patient fall risks?

Yes, the device features an Orthostatic BP function specifically designed to help clinicians assess patient fall risks during routine vital signs monitoring.

How long does it take for blood pressure readings?

The monitor utilizes advanced TrueBP technology, which allows for rapid blood pressure measurements on inflation in approximately 15 seconds, significantly improving patient comfort and clinical efficiency.
