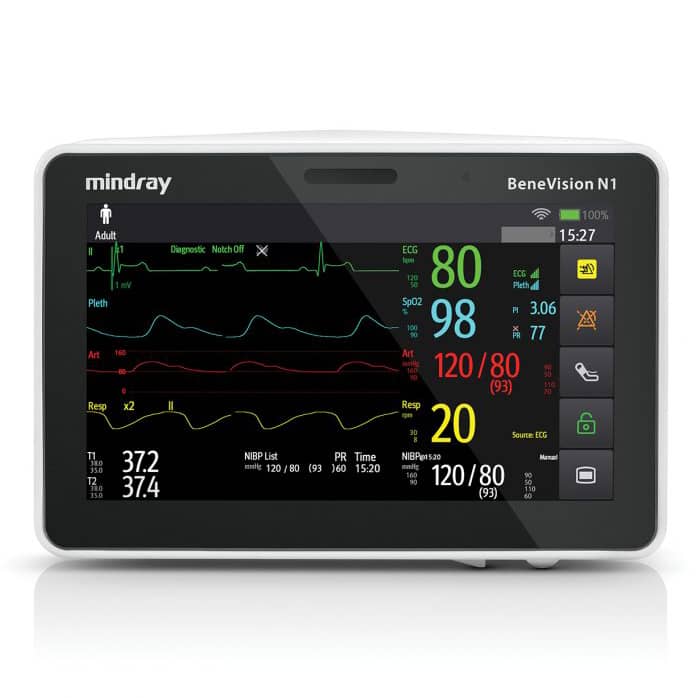

Mindray N1 Monitor with Masimo SET SpO2 Module

Mindray N1 Monitor with Masimo SET SpO2 Module

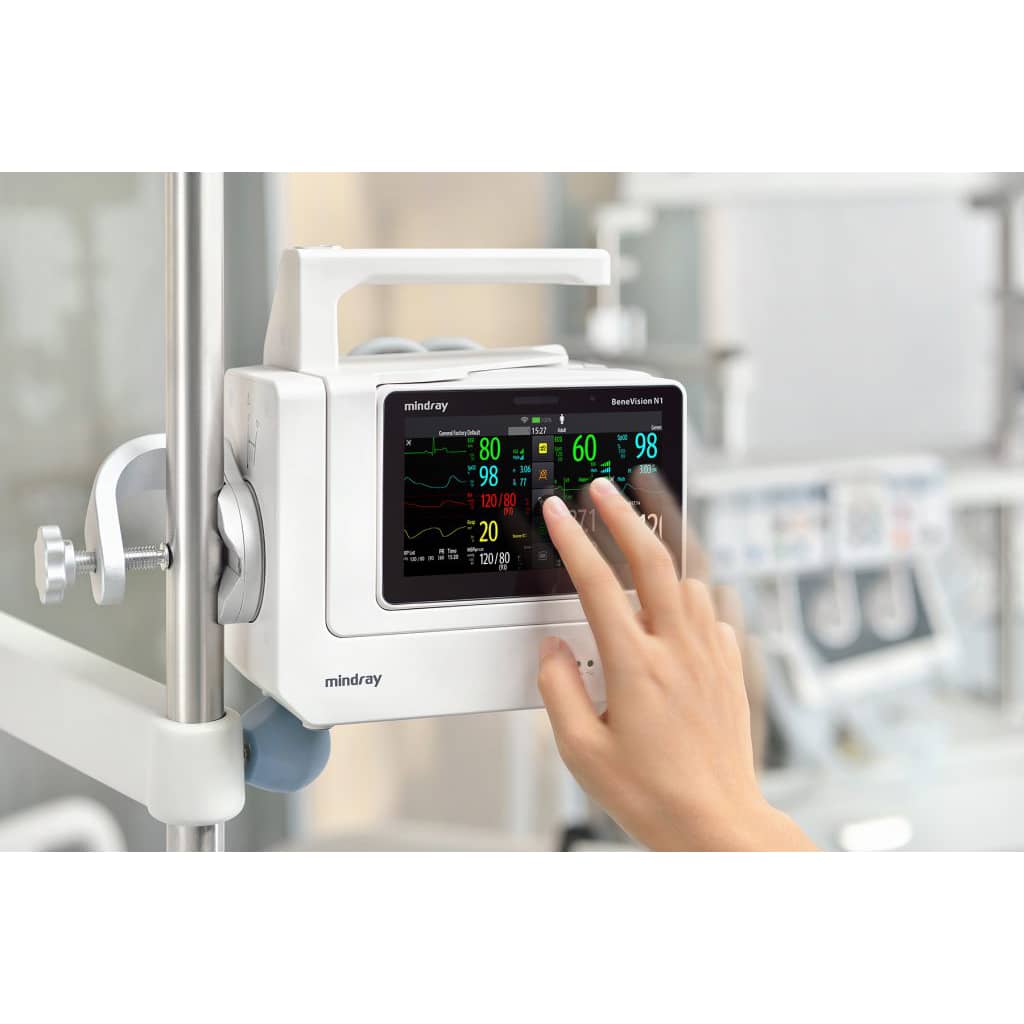

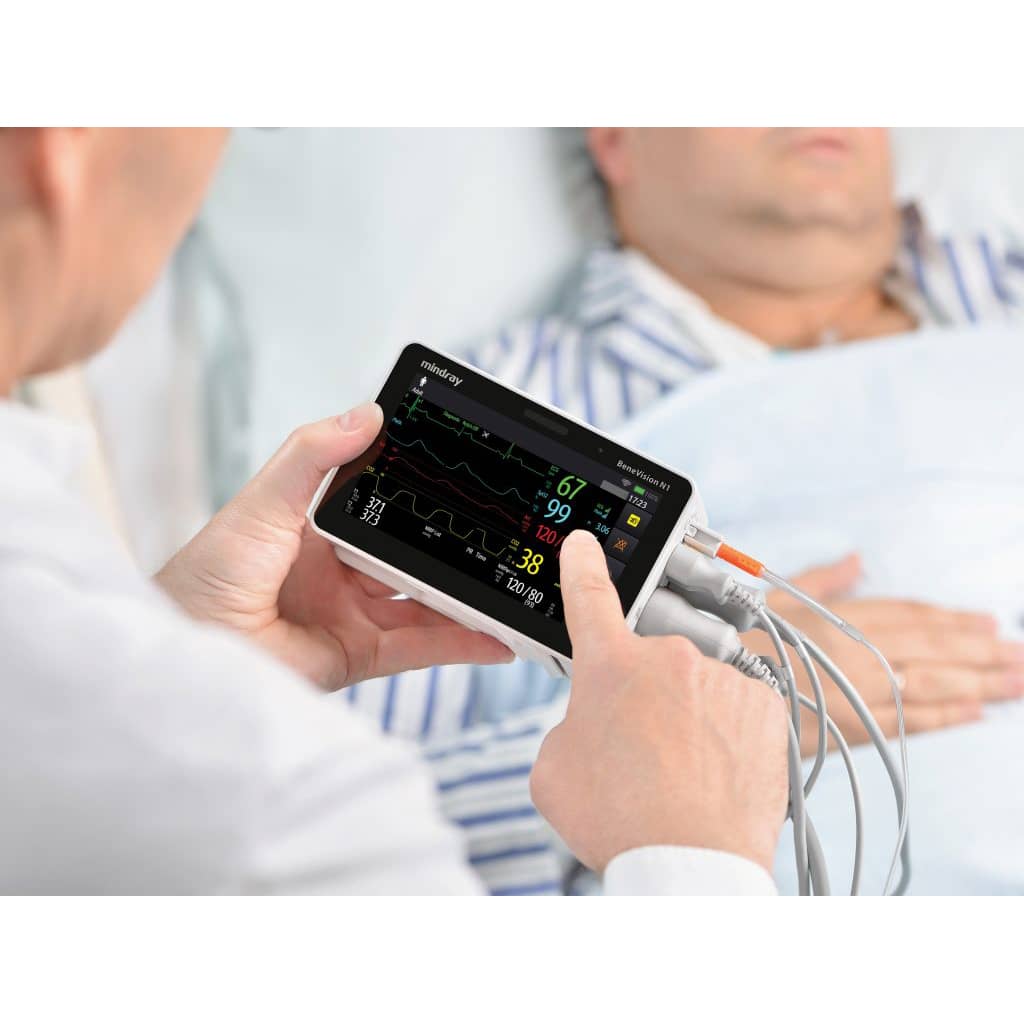

Doctor Checking Vitals on the Mindray N1 Monitor with Masimo SET SpO2 Module
Mindray N1 Monitor with Masimo SET SpO2 Module - In Use

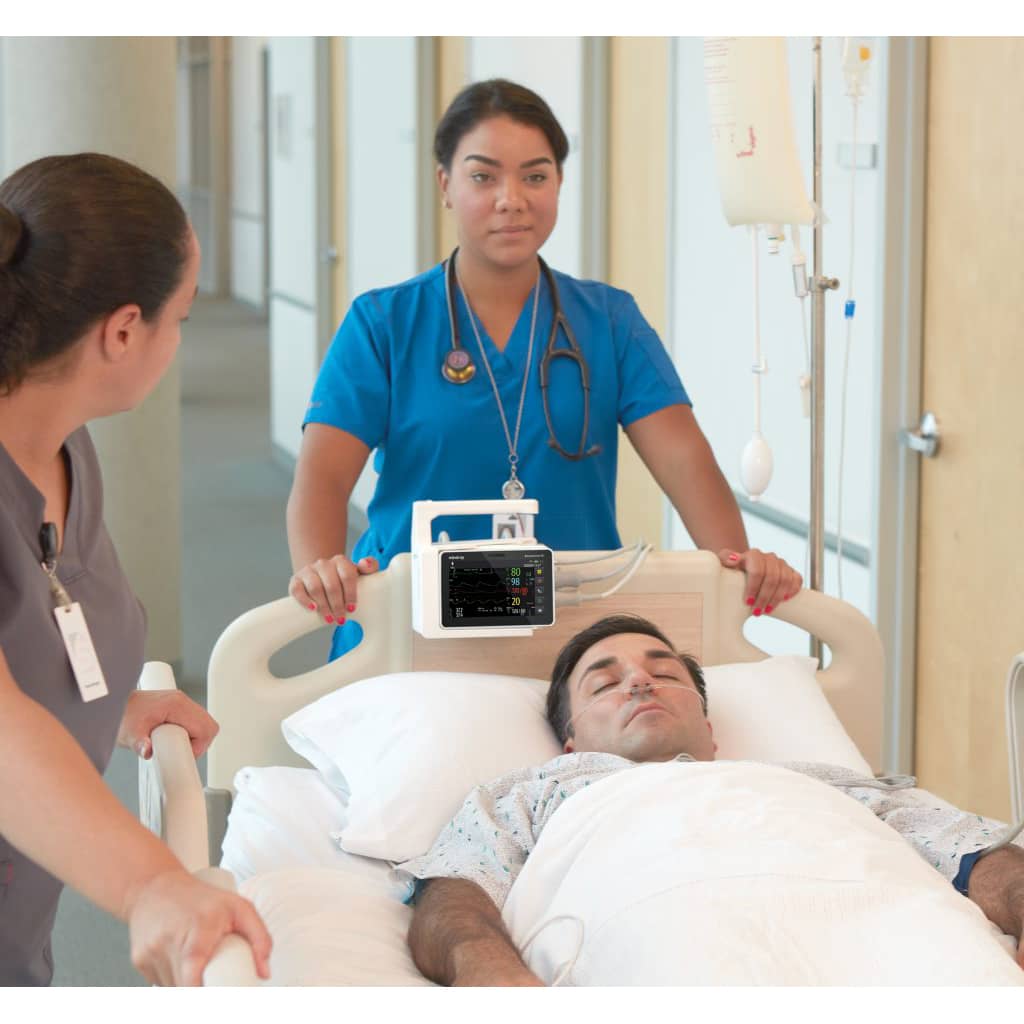

Mindray N1 Monitor with Masimo SET SpO2 Module - Nurses with Patient

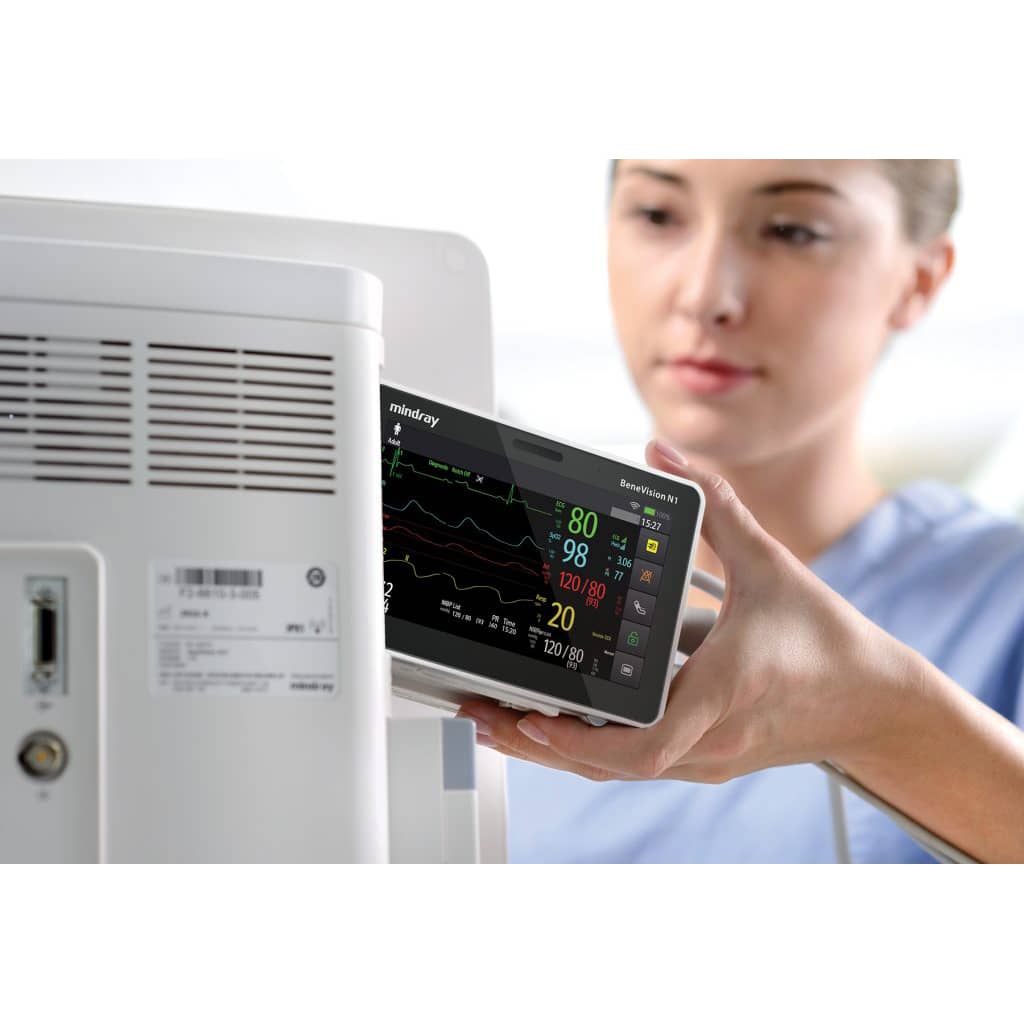

Plugging in the Mindray N1 Monitor with Masimo SET SpO2 Module
Mindray N1 Monitor with Masimo SET SpO2 Module
Doctor Checking Vitals on the Mindray N1 Monitor with Masimo SET SpO2 Module
Mindray N1 Monitor with Masimo SET SpO2 Module - In Use
Mindray N1 Monitor with Masimo SET SpO2 Module - Nurses with Patient
Plugging in the Mindray N1 Monitor with Masimo SET SpO2 Module
Mindray N1 Monitor with Masimo SET SpO2 Module
Key Features
  • SKU: MDY-121-001568-00
  • Condition: Factory New
  • Country of Origin: China
  • Warranty: 5 Years
  • Weight: 2.0 lb
  • 5.5″ capacitive touchscreen display with smartphone-like, multi-gesture control
  • Supports display of up to 6 waveforms
  • Comprehensive standard measurements include 3, 5, 6-lead ECG, Masimo RD SET SpO2, 2 IBP, NIBP, respiration, and 2 temperatures
  • Extensive data storage plus up to 48 hours of full disclosure

  • Learn more:

Contact The Manufacturer
  • MFR: Mindray
    Ships from Manufacturer
  • MPN: 121-001568-00
  • Phone: (888) 464-5571
$7,905.51

+Free Shipping*

Select a Configuration
Est. Delivery:
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Mindray N1 Monitor with Masimo SET SpO2 is a compact 3-in-1 monitoring solution that is designed with state-of-the-art technology to adapt to the various patient monitoring needs across a hospital or clinic. The N1 serves as a comprehensive multi-parameter module, a powerful transport monitor, and a versatile bedside monitor – all in one. Featuring an intuitive smartphone-style display and essential parameters, the N1 delivers the high-quality, patient-centric care medical professionals have come to expect from Mindray.

Warranty: 5 Years.

Note: 12-lead ECG accessories must be ordered separately.

Including all the standard parameters, the Mindray N1 Monitor with Masimo SET SpO2 allows you to obtain a complete patient record. When connecting to the Mindray 22″ touchscreen display, the N1 boasts full bedside monitoring capability plus features such as multiple screen layouts and configurable quick keys to help it stand-up to the rigors of various hospital departments.

Features

Mindray N1 Monitor with Masimo SET SpO2 Module Features

  • Compact, lightweight design - weighs only 2 lb.
  • 5.5″ capacitive touchscreen display with smartphone-like, multi-gesture control.
  • Sleek exterior eliminates difficult-to-clean seams and gaps.
  • Consistent intuitive user interface across N-Series platform.
  • Supports display of up to 6 waveforms.
  • Comprehensive standard measurements include 3, 5, 6-lead ECG, Masimo RD SET SpO2, 2 IBP, NIBP, respiration, and 2 temperatures.
  • Arrhythmia analysis and atrial fibrillation (Afib) detection.
  • Optional ST analysis and QT/QTc interval monitoring.
  • Extensive data storage plus up to 48 hours of full disclosure.
  • Serves as the core parameter module for N-Series monitors.
  • IP44 grade particle and water resistant.
  • 1.2 m drop test endurance.
  • Multiple mounting solutions including transport module rack with bedrail hooks.
  • Standard 2.4/5 GHz dual band wireless communication.
  • Defibrillator synchronization.

Specifications

Mindray N1 Monitor with Masimo SET SpO2 Module Specifications

N1 Physical

  • Dimensions: 4.0" H x 5.9" W x 3.2" D (10.3 cm x 15.0 cm x 8.1 cm).
  • Weight: 2.0 lb (0.95 kg) without integrated CO2.

Power Requirements

  • N1 Main Unit
    • Input: 12 VDC (±10%), 2 A, 1.0 A to 0.6 A.
  • AC Adapter
    • Input: 100 to 240 VAC (-15%, +10%), 50/60 Hz.
    • Output: 12 VDC (±10%), 2.5 A.
  • Docking Station
    • Input: 100 to 240 VAC (±10%), 50/60 Hz.
    • Input Current: 0.65 A to 0.35 A.

Battery

  • Type: Rechargeable lithium-ion.
  • Capacity: 2500 mAh, 7.56 VDC.
  • Number of Batteries: 2 without internal CO2.
  • Run Time: >8 hr without internal CO2.
  • Recharge Time: 6 hours to 90%. Without internal CO2 module.

Environmental Conditions

  • Operating Temperature: 0° C to 40° C.
  • Storage Temperature:
    • Main Unit, Transport Dock, AC Adapter: -30° C to 70° C.
    • Docking Station, Modular Rack, Microstream: -20° C to 60° C.
  • Operating Humidity:
    • Main Unit, Transport Dock, AC Adapter: 5 to 95% (non condensing).
    • Docking Station, Modular Rack, Microstream: 15 to 95% (non condensing).
  • Storage Humidity:
    • Main Unit, Transport Dock, AC Adapter: 5 to 95% (non condensing).
    • Docking Station, Modular Rack, Microstream: 10 to 95% (non condensing).

Configurations

Mindray N1 Monitor with Masimo SET SpO2 Module Configurations

  • #121-001568-00: with Arrhythmia analysis and 3/5/6-lead ECG.
  • #121-001569-00: with ST/Arrhythmia analysis and 3/5/6-lead ECG.
  • #121-001570-00: with ST/Arrhythmia analysis and 3/5/6/12-lead ECG.

Frequently asked questions

Does the monitor offer 3-in-1 versatility?

Yes, the Mindray N1 is designed as a 3-in-1 patient monitoring solution, providing exceptional adaptability across different clinical environments:

  • Multi-parameter Module: It serves as the core parameter module, seamlessly integrating with larger Mindray N-Series monitors.
  • Transport Monitor: Lightweight (only 2.0 lb / 0.95 kg) and rugged, it features IP44 particle and water resistance and 1.2m drop test endurance, making it ideal for patient transport.
  • Bedside Monitor: It functions as a complete, full-featured standalone unit at the bedside, utilizing its intuitive 5.5-inch capacitive touchscreen interface.
Is the capacitive touchscreen intuitive?

Yes, the Mindray N1 Monitor features an intuitive, modern interface designed for ease of use. It is equipped with a 5.5-inch capacitive touchscreen that supports multi-gesture control, delivering a consistent, smartphone-like user experience across the entire N-Series platform.

Which essential parameters are included?

The Mindray N1 Monitor comes equipped with a comprehensive set of standard measurements and analysis features designed for high-quality, flexible patient monitoring.The standard parameters include:* ECG: Supports 3, 5, and 6-lead configurations.* SpO₂: Utilizes the advanced, high-fidelity Masimo RD SET SpO₂ technology.* IBP: Two channels for Invasive Blood Pressure monitoring.* NIBP: Non-Invasive Blood Pressure.* Respiration.* Temperature: Two independent channels (T1 and T2).Furthermore, the standard software features robust advanced analysis, including Arrhythmia analysis and built-in Atrial Fibrillation (Afib) detection.

Does it feature ST and QTc interval monitoring?

Yes, the Mindray N1 monitor supports advanced cardiac analysis, though certain features are optional additions.

  • Optional Monitoring: Both ST analysis and QT/QTc interval monitoring are available as optional features, requiring selection of the corresponding configuration variant.
  • Standard Analysis: All models include robust Arrhythmia analysis and Atrial Fibrillation (Afib) detection.
Does the N1 offer extensive data storage capacity?

Yes, the Mindray N1 Monitor provides extensive data storage capacity, which is essential for comprehensive patient record keeping and continuity during transport. The monitor supports the storage of up to 48 hours of full patient waveform disclosure data, ensuring all critical patient events are captured.

Does the N1 monitor have advanced cardiac analysis?

Yes, the Mindray N1 Monitor features robust cardiac monitoring and analysis capabilities, essential for tracking patient heart activity during transport and at the bedside.

The following analysis features are included standard:

  • Arrhythmia analysis
  • Atrial Fibrillation (Afib) detection

For more comprehensive cardiac assessment, the monitor offers optional configurations that include:

  • ST analysis
  • QT/QTc interval monitoring
Does the N1 monitor have long battery life?

Yes, the Mindray N1 monitor is designed with an extended battery system to ensure continuous, reliable monitoring during patient transport or when AC power is unavailable. Its battery specifications are:

  • Run Time: The device operates for over 8 hours continuously (Note: This duration applies without the optional internal CO2 module).
  • Type: It is powered by two high-capacity, rechargeable lithium-ion batteries.
  • Recharge Speed: The batteries recharge to 90% capacity in approximately 6 hours.
Is the N1 monitor rugged for transport?

The Mindray N1 Monitor is engineered specifically for mobility and high-stress transport environments, functioning as a key component of its 3-in-1 solution.

Its durability and portability features include:

  • Rugged Protection: The unit is rated IP44 for resistance against particles and water ingress.
  • Drop Endurance: It has passed a 1.2 m drop test, ensuring resilience during patient movement and handling.
  • Lightweight Design: Weighing only 2.0 lb (0.95 kg), it is exceptionally easy to handle and mount during transport.
  • Clinical Hygiene: The sleek exterior design minimizes seams and gaps, promoting easy cleaning and superior hygiene in clinical settings.
Is standard dual-band wireless included?

Yes, the Mindray N1 Monitor supports standard 2.4/5 GHz dual-band wireless communication.

This robust feature ensures reliable connectivity for real-time data transmission and seamless integration, particularly when the monitor is used within the broader Mindray N-Series monitoring platform.

Does the monitor support defibrillator synchronization?

Yes, the Mindray N1 Monitor includes defibrillator synchronization capability, which is essential for certain critical care procedures.
