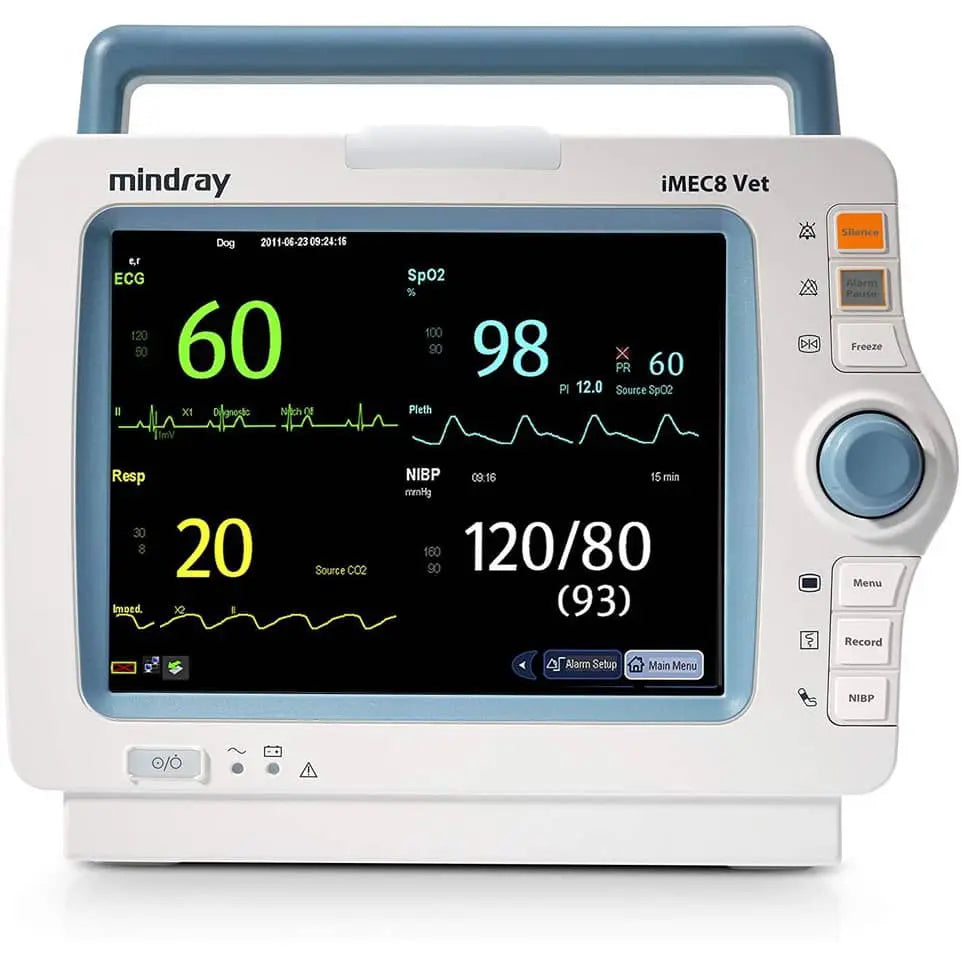

Mindray iMEC8 Veterinary Monitor

Mindray iMEC8 Veterinary Monitor

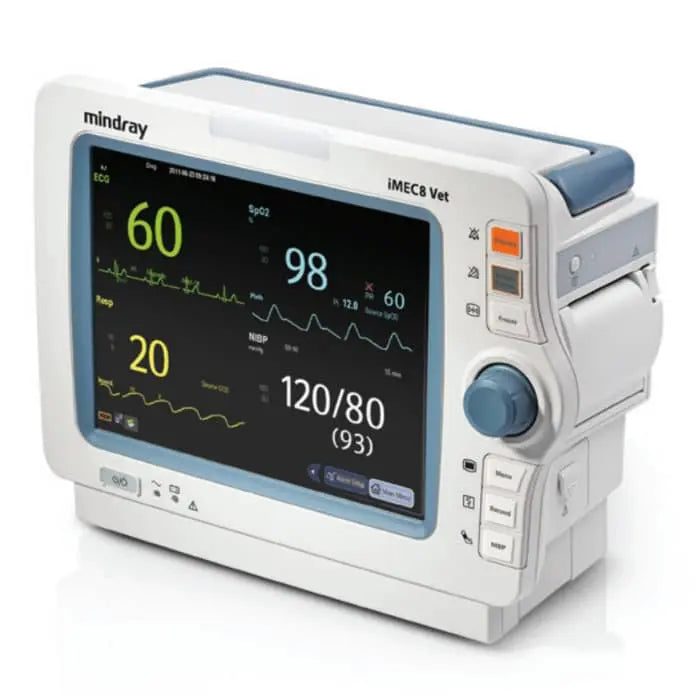

Mindray iMEC8 Veterinary Monitor Angled
Mindray iMEC8 Veterinary Monitor
Mindray iMEC8 Veterinary Monitor Angled
Key Features
  • SKU: MDY-6307F-PA00035
  • Country of Origin: China
  • Weight: 7.0 lb
  • 8.4" high-resolution LED display with up to 8 waveforms
  • Compact and portable design
  • Up to 4 hours continuous monitoring with large capacity Li-ion battery
  • 360-degree visible alarm indicator

  • Learn more:

  • Purchasing Restriction: Medical license or prescription required
Contact The Manufacturer
  • MFR: Mindray Ships from Manufacturer
  • MPN: 6307F-PA00035
  • Phone: (888) 464-5571
$1,748.38

+Free Shipping*

Item Discontinued

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match Guarantee

Sales Tax Exemption

+

Dedicated Account Managers

Description

The Mindray iMEC8 Veterinary Monitor includes:

  • Quick start guide.
  • Power cord.
  • Thermal paper (1/Roll).
  • ECG trunk cable, 3/5 lead, adult/pediatric, 12 Pin, defib-proof, AHA/IEC.
  • ECG leadwires, 3 lead, pinch/clip, adult/pediatric, TPU, AHA, 40″ (101.6cm).
  • ECG alligator clip (5/Box).
  • SpO2 Cable.
  • SpO2 sensor.
  • NIBP hose with connectors (3 m).
  • NIBP cuff, CM1500Ck single-patient use, 5.8 to 10.9 cm.
  • IBP cable adapter (12 pin to 6 pin).
  • MR403B reusable temperature probe, adult, skin, 2 pin.

Warranty: 1 Year.

Ideally suited for veterinary use, the iMEC8 Monitor features 3 or 5 lead ECG, IBP, SpO2, NIBP, respiration, temperature, and an integrated recorder. It boats a portable design and a built-in handle making it easy to use during transport for vets on the go. It is easy to read thanks to a clear 8.4" high-resolution LED display with up to 8 waveforms.

Features

Mindray iMEC8 Veterinary Monitor Features

  • 8.4" high-resolution LED display with up to 8 waveforms.
  • Compact portable design.
  • Up to 4 hours continuous monitoring with large capacity Li-ion battery.
  • 360-degree visible alarm indicator.
  • 120 hours of trend data and up to 48 hours of full disclosure.
  • Built-in handle for ease-of-use during transport.
  • Rotary knob and hard keys for convenient operation.
  • Integrated 3-trace thermal recorder provides waveform and data reports at point-of-care.

Specifications

Mindray iMEC8 Veterinary Monitor Specifications

  • Dimensions: 210 x 270 x 112 mm.
  • Weight: ≤3.2 kg.
  • Screen Size (Diagonal): 8.4".
  • Screen Type: Color LED backlight LCD.
  • Resolution: At least 800 x 600 pixels.
  • Line Voltage: 100 to 240 VAC (±10％).
  • Current: 1.1 to 0.5 A.
  • Frequency: 50/60 Hz (±3Hz).
  • Battery Type: Chargeable Lithium-Ion, 11.1 DVC, 2.6 Ah.

Frequently asked questions

What comprehensive vital signs does this monitor track?

The Mindray iMEC8 is specifically designed for comprehensive veterinary patient monitoring, consolidating essential vital signs onto a single, portable platform. Its capabilities include:

  • ECG: Supports both 3-lead and 5-lead configurations.
  • SpO2: Peripheral oxygen saturation.
  • NIBP: Non-Invasive Blood Pressure.
  • IBP: Invasive Blood Pressure.
  • Respiration
  • Temperature

All data is clearly presented on the 8.4-inch high-resolution LED display, which is capable of showing up to 8 concurrent waveforms for comprehensive, clear patient assessment.

Does the large 8.4-inch screen ensure high visibility?

Yes, the Mindray iMEC8 is specifically designed for optimal visibility, featuring an 8.4-inch high-resolution LED display.

This color LED backlight LCD ensures veterinary professionals have immediate, clear visibility of patient status, even when monitoring multiple parameters simultaneously. Key display specifications include:

  • Size: 8.4 inches (diagonal)
  • Resolution: At least 800 x 600 pixels
  • Waveforms: Capable of displaying up to 8 concurrent waveforms, allowing for comprehensive, simultaneous tracking of all vital signs.
Does the monitor have a built-in recorder?

Yes, the Mindray iMEC8 Veterinary Monitor has an integrated 3-trace thermal recorder for printing waveforms and data reports directly at the point of care.

How long can the monitor run on battery power?

The monitor’s rechargeable Lithium-Ion battery (11.1 VDC, 2.6 Ah) allows for up to 4 hours of continuous monitoring.

What is the data storage capacity of the Mindray iMEC8 Veterinary Monitor?

The monitor can store 120 hours of trend data and 48 hours of full disclosure data, allowing for comprehensive review and analysis.

Is a full set of monitoring accessories included?

Yes, the Mindray iMEC8 Veterinary Monitor comes with a complete set of accessories, enabling immediate multi-parameter monitoring right out of the box. The package includes components for all vital sign measurements:

  • ECG: 3/5 lead ECG trunk cable, 3 lead leadwires, and a box of ECG alligator clips.
  • SpO2: SpO2 cable and sensor.
  • NIBP: NIBP hose (3 m) and one single-patient use NIBP cuff (5.8 to 10.9 cm).
  • Temperature: MR403B reusable adult skin temperature probe.
  • IBP: IBP cable adapter (12 pin to 6 pin) for connecting external transducers.

Also included are essential operational items: the power cord, quick start guide, and thermal paper for the integrated 3-trace recorder.

Does the Mindray iMEC8 Veterinary Monitor have an alarm indicator?

Yes, the Mindray iMEC8 Veterinary Monitor features a 360-degree visible alarm indicator to alert veterinary professionals to changes in patient vitals.

Is the monitor lightweight and portable?

Yes, the Mindray iMEC8 is engineered for high portability, featuring a compact design and a built-in handle, which makes it ideal for mobile veterinary settings and easy transport.

The specific dimensions and weight are:

  • Dimensions: 210 x 270 x 112 mm
  • Weight: ≤3.2 kg
