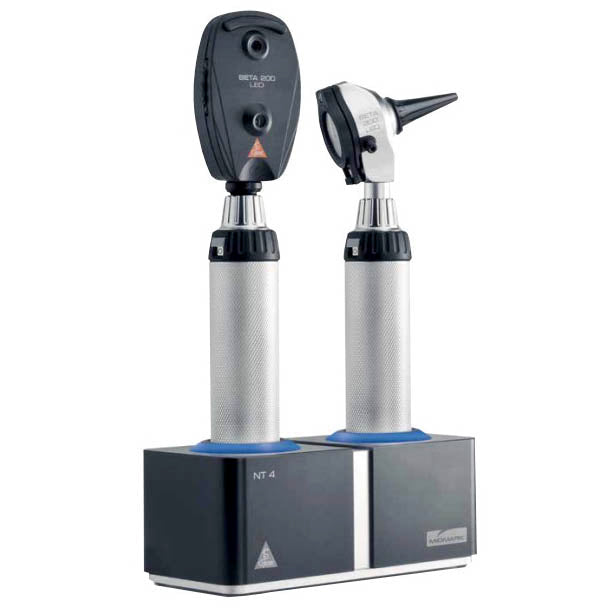

Midmark NT4 HEINE Diagnostic Desktop Kit with BETA Instruments

The Midmark NT4 HEINE Diagnostic Desktop Kit is a complete system that includes the following core components:

• NT4 Table Charger: This compact desktop unit recharges the handles and features an integrated anti-theft system to secure the instrument heads.
• Two BETA4 NT Lithium-ion Rechargeable Handles: These durable, metal handles provide extended operating time due to Li-ion technology. They offer the fastest charging capability in the market, reaching 70% capacity in just two hours, and include deep discharge protection.
• BETA Diagnostic Instrument Heads: The kit is paired with high-performance instrument heads, including one BETA Otoscope Head and one BETA Ophthalmoscope Head. These heads utilize precision, multi-coated optics for enhanced magnification, sharp spatial imaging, and high-resolution views. The specific BETA model (200 or 400) and illumination source (LED or XHL) will depend on the configuration selected.

Yes, the NT4 Table Charger (model EN200) features universal power input, allowing it to be used worldwide in various clinical settings. Its wide operating voltage range accommodates most international electrical standards.

Key power specifications for the NT4 Table Charger:

• Main Power Supply Input: 100 to 240 VAC / 50 to 60 Hz
• Current Consumption: 300 to 150 mA

Additionally, the unit includes auxiliary outputs:

• USB Output: Typically 5 V
• AV Output: Typically 1.6 V to 3.6 V

Yes, the BETA Ophthalmoscope is designed for precise and comprehensive fundus examination, featuring a versatile selection of illumination apertures and filters. These options allow clinicians to customize the light beam for specific diagnostic requirements, including:

• Red-free filter
• Slit
• Fixation star
• Cobalt blue filter
• Large spot
• Pinhole
• Hemispot

Supporting this versatility, the instrument provides a wide lens range of -35D to +40D for exact focusing, and features one-finger brightness control that adjusts output between 100% and 3%.

Yes, the BETA Ophthalmoscope is engineered for exceptional durability and longevity, making it highly reliable for busy clinical environments.

Key features ensuring its robust construction include:

• Shock-Resistant Components: The optical components are flush-mounted on a cast-aluminum frame, providing superior shock resistance.
• Long-Lasting Illumination: It features an LED light source rated for approximately 100,000 hours of bulb life, ensuring maintenance-free operation.
• Scratch-Resistant Viewing: The viewing window is made of multi-coated, scratch-resistant glass, which maintains a consistently clear field of view.
• Robust Handles: The system uses durable metal BETA4 NT handles, which also facilitate easy cleaning and disinfection.

Yes, the BETA instruments (BETA200 and BETA400 series) are designed with precision optics to provide enhanced magnification and superior visualization for detailed examination.

Key optical benefits include:

• Increased Magnification: Allows for the observation of finer anatomical details and aids in foreign body recognition.
• High Resolution Imaging: Features multi-coated precision optics, ensuring high-resolution, distortion-free images and sharp spatial perception.
• Exceptional Depth of Field: Provides excellent clarity across various viewing depths.
• Durable Optics: Both instruments feature multi-coated, scratch-resistant glass viewing windows for longevity. The Ophthalmoscope’s optical components are flush-mounted on a durable cast-aluminum frame for increased shock resistance.
• Hygiene: The Otoscope’s viewing window is designed to flip up, allowing for thorough cleaning and maintenance.

Yes, the Midmark NT4 HEINE Diagnostic Desktop Kit includes an integrated anti-theft system. This feature is designed to prevent the unauthorized removal of the instrument heads from the charging station.

Yes, the Midmark NT4 kit is available in multiple configurations, allowing you to select the diagnostic instruments and illumination technology that best meet your professional requirements. The key configuration choices include:

• Illumination Type: You can select between traditional Xenon Halogen (XHL) or high-performance LED illumination. The LED option provides exceptional brightness and boasts an operational life of approximately 100,000 hours, making it virtually maintenance-free.
• Instrument Optics: Configurations allow for the choice of specific instruments, determining the magnification level (e.g., BETA200 or the superior BETA400). Instruments with enhanced optics deliver increased magnification and exceptional depth of field for highly detailed anatomical structure examination.

Yes, the Midmark NT4 HEINE Diagnostic Kit is specifically designed for high durability and ease of hygiene in a clinical setting.

Key features that facilitate disinfection and reduce contamination risk include:

• Durable Metal Handles: The BETA4 NT Lithium-ion handles are made of metal, which not only ensures longevity but also allows for easy and thorough disinfection.
• Hygienic Charger Housing: The NT4 Table Charger features a flat, space-saving design that is engineered to improve hygiene and reduce the risk of cross-contamination.
• Cleanable Otoscope Optics: The Otoscope’s scratch-resistant glass viewing window is permanently attached but flips up, enabling complete cleaning and sterilization of the internal components.

Yes, the BETA LED Ophthalmoscope is designed for minimal maintenance. It utilizes LED technology with an approximate bulb life of 100,000 hours.

Yes, the BETA4 NT Lithium-ion handles are engineered with advanced battery management features to ensure maximum reliability and prolong battery life. This system is crucial for clinical performance.

Key features of the handles and charging system include:

• Deep Discharge Protection: This integrated function prevents the battery from draining completely, which is vital for maintaining the health and lifespan of the Lithium-ion cells.
• Rapid Charging: The system boasts the fastest charging time on the market, reaching 70% capacity in just two hours when docked in the NT4 Table Charger.
• Low Battery Warning: A warning light alerts the user when less than 30% operating time remains.
• Durable Construction: The metal handles ensure long-term durability and allow for easy disinfection, contributing to better hygiene.
