- Condition: Factory New
- Warranty: 1 Year
- Two handles can be used simultaneously
- Improves hygiene and reduces risk of cross-contamination with a flat, space-saving housing
- Integrated anti-theft system helps prevent unauthorized removal of instrument heads
- Proprietary glare mitigating coatings for crisp, clear images of the fundus
-
Learn more:
- MFR: Midmark Ships from Manufacturer
- MPN: A-095-12-210-166
- Phone: (844) 856-1233
Frequently asked questions
What are the dimensions of the Midmark EN200 HEINE Diagnostic Wall Kit?
The dimensions of the EN200 unit are 7.1” x 9.2” x 3.9” (18 cm x 23.4 cm x 9.9 cm).
What is included in this diagnostic wall kit?

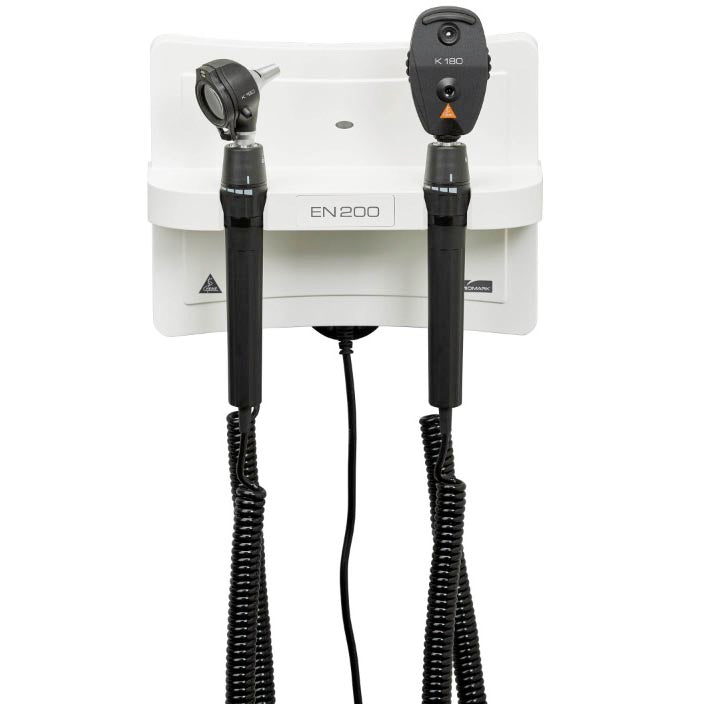

The Midmark EN200 HEINE Diagnostic Wall Kit is a complete, integrated diagnostic station that includes the following key components:
- EN200 Wall Transformer: This space-saving central unit provides power and charging for the instruments, and features an integrated anti-theft system for the instrument heads.
- K180 Otoscope: Equipped with a corded handle, it provides 3X magnification and bright, homogenous illumination via Fiber Optic Illumination.
- K180 Ophthalmoscope: Also equipped with a corded handle, this instrument features precision HEINE optics and 27 diopter settings (ranging from -35D to +40D).
Both instruments utilize corded handles connected via long 11.5-foot (3 m) coiled cords for optimal reach and clinical efficiency.
What advanced illumination features are used?
The K180 instruments are designed to provide superior light quality for diagnostic accuracy. They utilize Xenon-Halogen illumination for bright, white light with excellent color characteristics, combined with longevity enhancements.
Key illumination features include:
- High Color Fidelity: The system boasts a Color Rendering Index (CRI) greater than 97 and a Red Color Index (R9) greater than 93, ensuring true color representation for tissue visualization.
- Optimal Light Quality: The illumination maintains a consistent color temperature of 3,400 K.
- Exceptional Longevity: The instruments incorporate LEDHQ technology, resulting in a life expectancy of 100,000 hours for the light source, which significantly reduces maintenance and service costs.
What is the diopter range of the K180 Ophthalmoscope?
The K180 Ophthalmoscope has 27 diopter settings, with a lens range from -35D to +40D.
Is there an anti-theft system included in the diagnostic wall kit?
Yes, the Midmark EN200 HEINE Diagnostic Wall Kit includes an integrated anti-theft system to help prevent unauthorized removal of the instrument heads.
What is the magnification of the K180 Otoscope?
The K180 Otoscope provides 3X magnification for detailed examination.
What are the voltage and current specifications for the K180 instruments?
The K180 Otoscope and Ophthalmoscope instruments operate within the following electrical specifications when connected to the EN200 Wall Transformer:
- Instrument Voltage: 3.0 V to 3.7 V
- Instrument Current: Maximum 760 mA
Does the EN200 Wall Transformer have a USB output?
Yes, the EN200 Wall Transformer has a USB output with a typical output of 5V.
What regulatory standards does the EN200 comply with?
The EN200 Wall Transformer complies with the following regulatory standard:
- IEC 60601-1 Edition 3.1
Does the kit use durable, long-life illumination?
Yes, the diagnostic instruments are engineered for exceptional longevity and minimal maintenance.
- Long-Life Illumination: Both the K180 Otoscope and Ophthalmoscope use LEDHQ (LED in HEINE Quality) technology, providing an outstanding illumination life expectancy of 100,000 hours.
- High Quality Light: This technology ensures bright, white light with excellent color rendering (CRI >97).
- Robust Housing: The instrument heads and corded handles feature durable, shock-resistant polycarbonate housing, contributing to the overall system’s long clinical lifespan.
