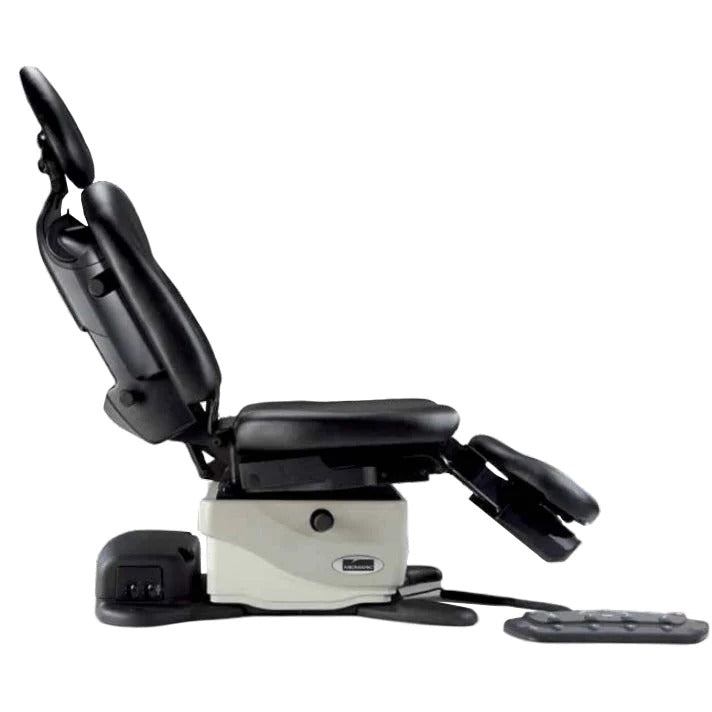

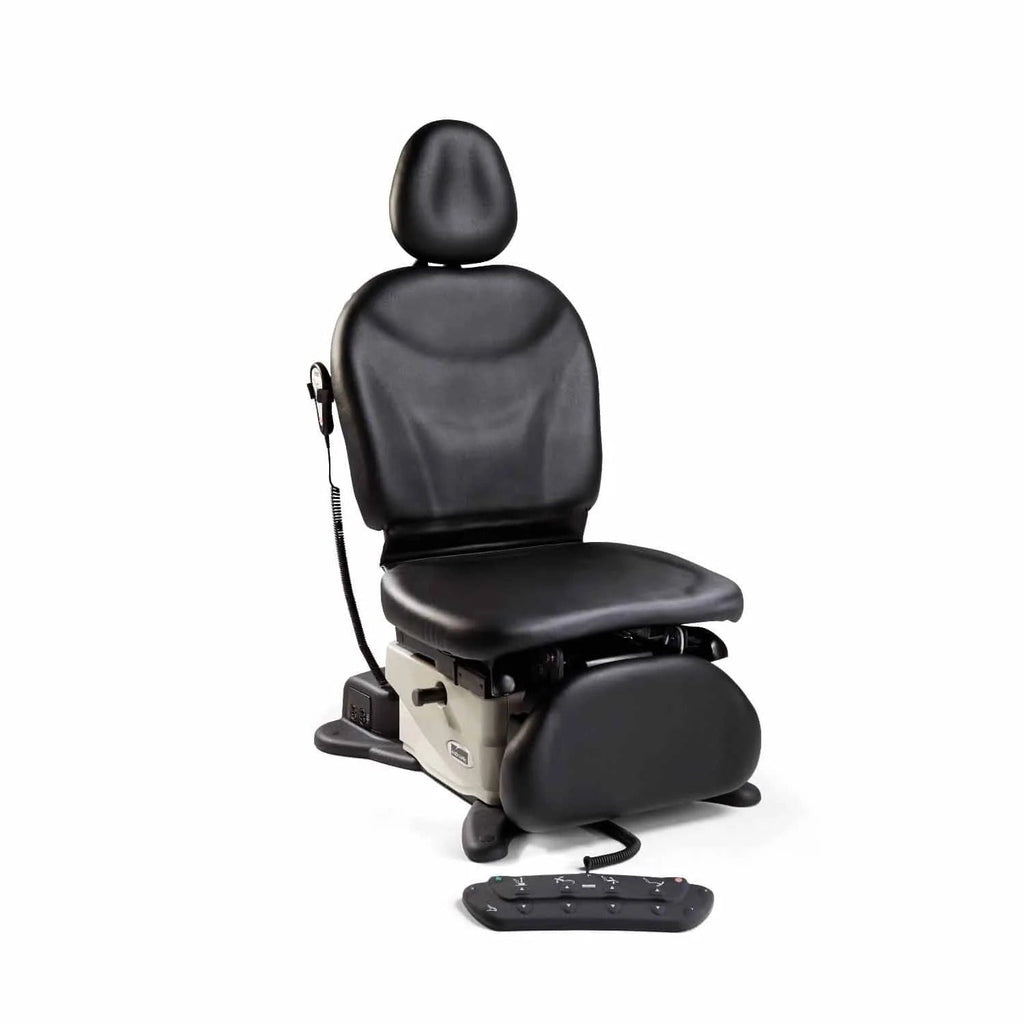

Midmark 630 HUMANFORM Procedure Chair

Midmark 630 HUMANFORM Procedure Chair Features

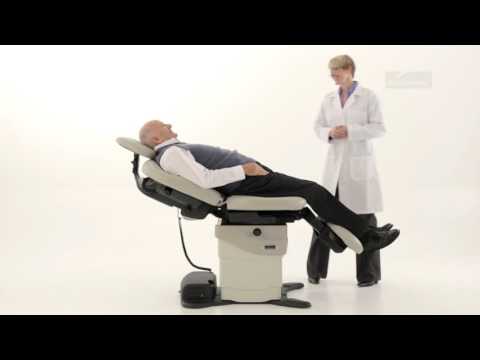

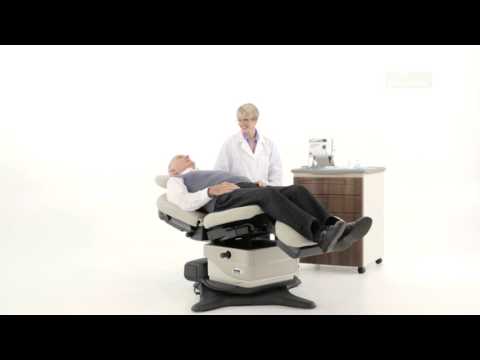

• Motion Profiling moves the chair with the patient during positioning to maintain head and back support, eliminating the need for patients to shift their position as the table back section raises or lowers.
• Active Sensing Technology (AST) enhances patient and provider protection by helping to avoid harmful impact during movement, such as objects being caught under the seat and footrest.

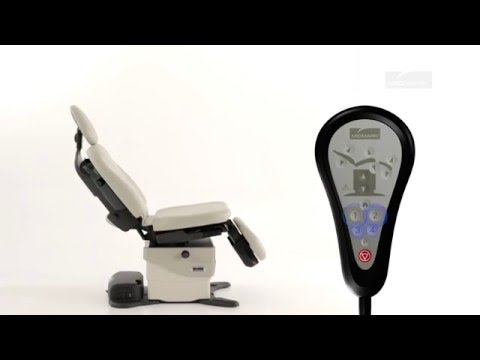

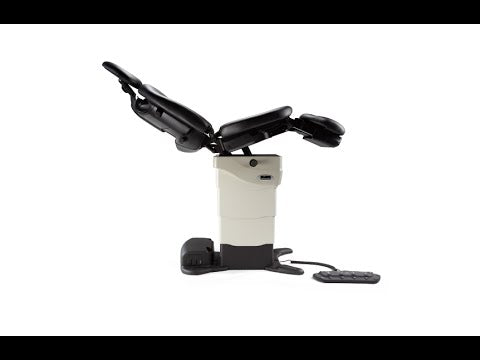

• Power height, back, foot, and tilt give healthcare providers the freedom to effortlessly move patients into the most effective positions.

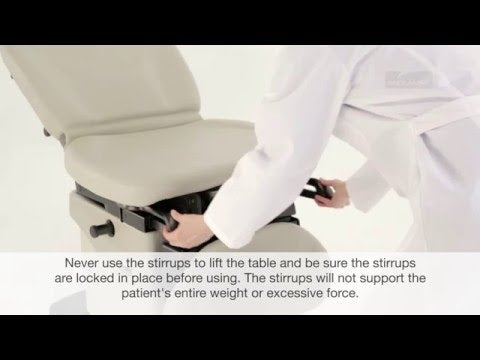

• Includes built-in stirrups.
• Rotation (optional): Allows the chair to rotate 350° and adds 3.5" to the minimum and maximum seat height specifications.

Midmark 630 HUMANFORM Procedure Chair Specifications

• Patient Weight Capacity: 650 lb (295 kg).
• Height:
  • Standard Base:
    • Minimum: 19" (48 cm).
    • Maximum: 40" (101.6 cm).
  • Rotational Base:
    • Minimum: 21.5" (54.6 cm).
    • Maximum: 43.5" (110.5 cm).
• Seat Tilt Angle Range: 0 to 30°.
• Back Support Angle Range: 0 to 80°.
• Foot Support Angle Range: 0 to 90°.
• Patient Support Surface Length: 72 to 76" (182.9 to 193 cm) in flat position.
• Paper Roll Holder: Holds 18" x 3.5" (45.7 cm x 8.9 cm) paper roll.
• Weight (with upholstery):
  • Standard Base: 475 lb (215 kg).
  • Rotational Base: 550 lb (249 kg).
• Shipping Weight:
  • Standard Base: 530 lb (240 kg).
  • Rotational Base: 605 lb (274 kg).
  • Upholstery: 45 lb (20 kg).
• Electrical Ratings:
  • Standard Models (with Receptacle): 115/230 VAC, 12/6 A, 50/60 Hz.
  • Rotation Models: 115/230 VAC, 9/4.5 A, 50/60 Hz.

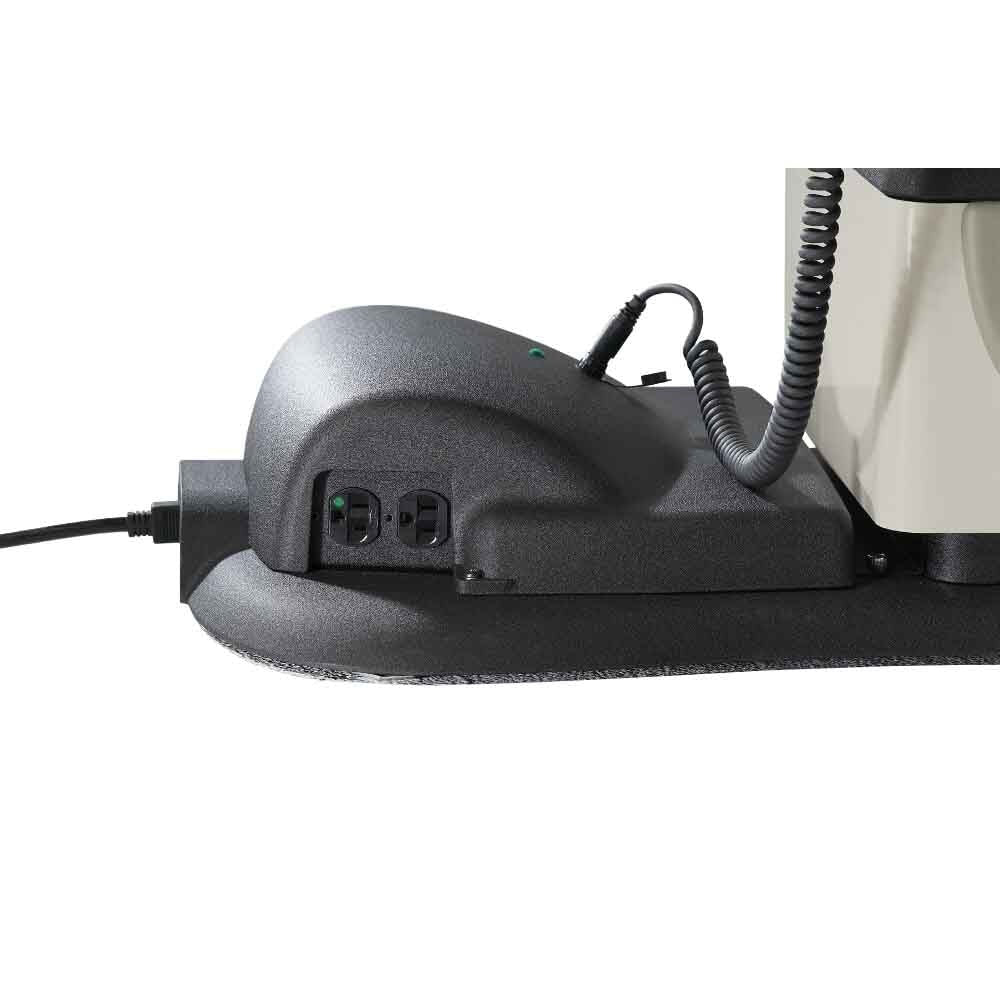

  • Electrical Outlet Rating: 115 VAC, 3 Amps.
• Power Cord: 8 feet (243.8 cm) long.
• Foot/Hand Control Voltage: 12 VDC, SELV (Safety Extra Low Voltage).
• Safety Standards:
  • ANSI/AAMI ES60601-1:2005+A2 (R2012)+A1.
  • CAN/CSA-C22.2 NO. 60601-1-6:11 IEC 60601-1-6:2010.

Midmark 630 HUMANFORM Procedure Chair Configurations

The Certified Refurbished configuration includes choice of hand control and upholstered top in the color of your choosing. Please contact MFI Medical to specify your desired color (Note: Actual colors may vary). Foot control sold separate and can be exchanged for hand control upon request.

All factory new configurations come with both hand and foot controls, paper roll holder, and stirrups. The upholstered top is sold separately.

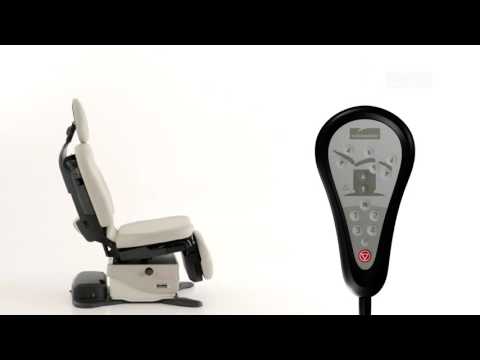

• #MFI-MMK-630-010-H-CUS: Certified Refurbished - Hand Controlled Chair Base with Upholstered Top.
• #MFI-MMK-630-020: Certified Refurbished - Programmable Chair Base with Upholstered Top.
• #630-010: Factory New - Chair Base.
• #630-011: Factory New - Chair Base with Wireless Controls.
• #630-012: Factory New - Chair Base with Rotation.
• #630-013: Factory New - Chair Base with Wireless Controls and Rotation.
• #630-020: Factory New - Programmable Chair Base.
• #630-021: Factory New - Programmable Chair Base with Wireless Controls.
• #630-022: Factory New - Programmable Chair Base with Rotation.
• #630-023: Factory New - Programmable Chair Base with Wireless Controls and Rotation.

Midmark 630 HUMANFORM Procedure Chair Literature

Midmark Upholstery Care and Maintenance Guide

Midmark 630 HUMANFORM Procedure Chair Brochure

Midmark 630 HUMANFORM Procedure Chair User Guide
