Description

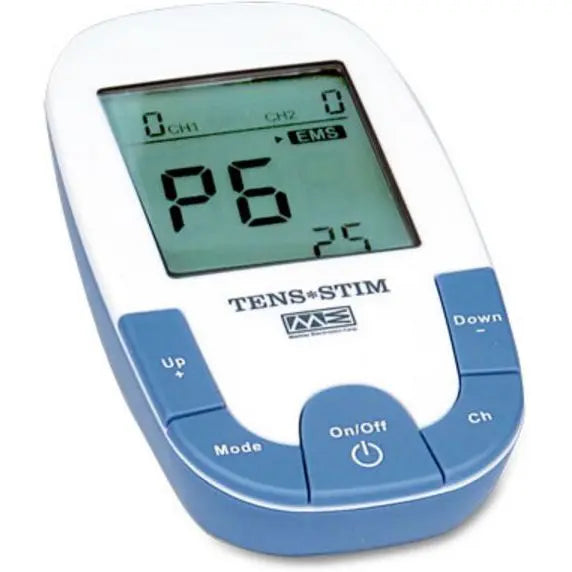

The Mettler TENS*STIM 211 TENS/EMS Device (#ME 211) comes standard with a carry pouch, pack of V Trode Self-Adhesive Electrodes - 2" Square (#2705), two TENS Lead Wires (#2110), three AAA batteries, protective cover, and an instruction manual.

Warranty: 1 Year.

The TENS*STIM 211 is an over-the-counter (OTC) two-channel digital TENS/EMS device powered by batteries for home use. It doesn't require a prescription for purchase. The TENS mode provides eight preset programs and the EMS mode provides six preset programs that are created for specific patient conditions. It is safe and effective for home use and a perfect fit for anyone suffering from acute or chronic pain. It also provides muscle stimulation to help improve or maintain muscle performance.

TENS is a method of treating pain that is non-invasive and non-narcotic. The TENS device sends comfortable impulses through the skin that stimulate the nerve (or nerves) in the treatment area. In many cases, this stimulation will greatly reduce or eliminate the pain sensation you feel by masking the original pain message sent to the brain. It is also believed that TENS stimulation helps release endorphins into the blood stream, thereby further reducing pain. TENS devices are clinically proven useful in pain management for many patients.

Features

Mettler TENS*STIM 211 TENS/EMS Device Features:

  • Channels: Two isolated, independently controlled.
  • LCD Display: Shows modes, pulse rate, pulse width, timer, CH1/CH2, and intensity level. It is easy to see from any angle.
  • Wave Form: Symmetrical Bi-Phasic square pulse.
  • Protective cover can attach to a belt or waistband for portable movement.

Specifications

Mettler TENS*STIM 211 TENS/EMS Device Specifications

  • Output Current: Adjustable 0 - 80 mA peak into 500 Ω lead each channel:
    • RMSV at 3.5 V (max).
    • RMSA at 1.3 mA (max).
  • Max Charge per Pulse: 20.8 micro-coulombs.
  • Timer: 5 ~ 60 minutes, selectable.
  • Power: 3 x AAA (1.5 V) batteries for a total of 4.5 V.
  • Weight: 2.6 oz (batteries included).
  • Dimensions: 0.8" (T) x 2.1" (W) x 3.5" (H).

TENS Preset Programs:

Program Maximum Phase Duration Rate Function Mode
P1 80 mA 260 µs 15 Hz Constant
P2 80 mA 260 µs 60 Hz Modulated
P3 80 mA 260 µs 60 Hz Constant
P4 80 mA 260 ~ 150 µs 2 ~ 60 Hz Modulated
P5 80 mA 260 ~ 150 µs 60 Hz Modulated
P6 80 mA 260 µs 7 ~ 60 Hz Modulated
P7 80 mA 260 ~ 156 µs 60 Hz Modulated
P8 80 mA 210 µs 2.45 ~ 245 Hz Cycle

EMS Preset Programs:

Program Pulse Width Ramp Up Hold On Ramp Down Off Time Pulse Rate
P1 300 µs - 2 seconds - 1 second 40 ~ 99 Hz
P2 200 µs - - - - 4 Hz
P3 300 µs - - - - 5 Hz
P4 200 µs - 2 seconds - 1 second 99 Hz
P5 200 µs 2 seconds 6 seconds 2 seconds 1 second 4 ~ 20 Hz
P6 300 µs 2 seconds 5 seconds 3 seconds 10 seconds 50 Hz

Literature

Mettler TENS*STIM 211 TENS/EMS Device Literature

Mettler TENS*STIM 211 Specifications

Frequently asked questions

Is a prescription required for this device?

No, the Mettler TENS*STIM 211 is an over-the-counter (OTC) device, meaning no prescription is required for purchase or home use. This makes it convenient and easily accessible for managing pain and stimulating muscles.

Can it be used on the go?

Yes, the device is designed for portability. It includes a protective cover that can be attached to a belt or waistband, making it convenient for on-the-go use.

Is the Mettler TENS/EMS device ready to use upon arrival?

Yes, the Mettler TENS*STIM 211 is designed as a comprehensive kit and is ready for immediate use right out of the box. You only need to insert the included batteries to begin treatment.The complete package ensures you have everything required to start your TENS or EMS therapy, including:<ul><li>The TENS*STIM 211 Device (offering dual TENS/EMS functionality)</li><li>Three AAA batteries for power</li><li>Two TENS Lead Wires</li><li>One pack of V Trode Self-Adhesive Electrodes (2” Square)</li><li>A protective cover (which can attach to a belt or waistband for mobile use) and a carry pouch</li><li>Instruction manual</li></ul>

Does the device use a Symmetrical Bi-Phasic waveform?

Yes, the Mettler TENS*STIM 211 utilizes a Symmetrical Bi-Phasic square pulse waveform.

This specific wave form is standard for electrotherapy devices, providing balanced electrical pulses across the two isolated channels. This ensures effective and comfortable stimulation for both major functions:

  • TENS (Transcutaneous Electrical Nerve Stimulation): For managing acute or chronic pain.
  • EMS (Electrical Muscle Stimulation): For improving or maintaining muscle performance.
Does this device offer adjustable intensity?

Yes, the Mettler TENS*STIM 211 provides adjustable intensity for customized pain relief and muscle stimulation.

Key details regarding intensity control:

  • Independent Adjustment: The device features two isolated channels (CH1 and CH2), allowing you to set different intensity levels for two separate areas simultaneously.
  • Maximum Output: The maximum output current is 80 mA peak into a 500 Ω load for each channel.
  • Digital Control: The current intensity level is clearly displayed on the LCD screen, enabling precise management of the stimulation level for your comfort and treatment needs.
Does it offer dual-channel functionality?

The Mettler TENS*STIM 211 device features two isolated, independently controlled channels, allowing for versatile and targeted pain management and muscle stimulation.

Does the device offer beneficial preset programs?

Yes, the Mettler TENS*STIM 211 provides a total of 14 comprehensive preset programs for safe and effective home use, covering both pain management and muscle stimulation.

This dual functionality includes:

  • 8 TENS Preset Programs (P1–P8): These programs use Transcutaneous Electrical Nerve Stimulation to manage acute or chronic pain relief.
  • 6 EMS Preset Programs (P1–P6): These programs utilize Electrical Muscle Stimulation, which is optimized for muscle performance maintenance and rehabilitation.
How long can the timer be set?

The timer can be set for a duration from 5 to 60 minutes, which is user-selectable.

What powers the device?

The Mettler TENS*STIM 211 is designed for portable, convenient use and is powered by three AAA (1.5 V) batteries, totaling 4.5 V. A set of three AAA batteries is included with your purchase, allowing for immediate use right out of the box.

Is it lightweight for portability?

Yes, the device is quite lightweight, weighing only 2.6 oz with batteries included.
