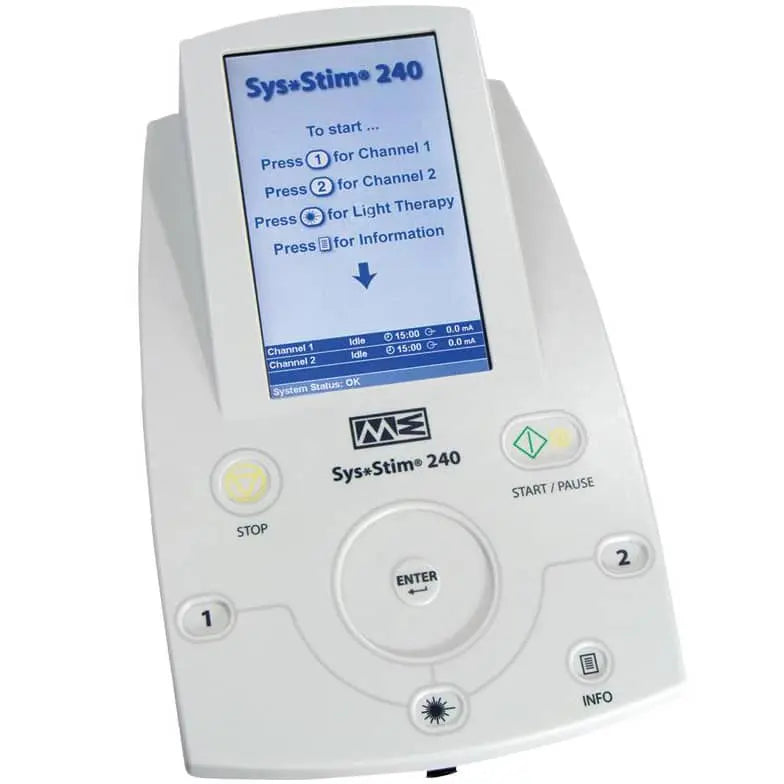

Mettler Sys*Stim 240 Neuromuscular Stimulator

The Mettler Sys*Stim 240 Neuromuscular Stimulator (#ME 240) comes complete with all the necessary components to perform neuromuscular electrical stimuation:

• #2027: (2x) Pin to Banana Adapters.
• #2260: (2x) Electrode Cable Sets for a Single Channel.
• #2403: Patient Safety Switch.
• #2702: V Trode Self-Adhesive Electrode (40/Box) - Round - 2".
• #2703: V Trode Self-Adhesive Electrode (40/Box) - Round - 2.75".
• #7293: Detachable Line Cord - Domestic.
• Instruction Manual on a CD ROM.

Before Purchasing: Before we can proceed with your order, please let us know whether you are a doctor, therapist, or have a prescription for the Sys*Stim 240 Neuromuscular Stimulator. If you have a prescription, please forward a copy to [email protected].

Warranty: 3 Years - Defects in Materials and Workmanship.

The Sys*Stim 240 features nine discrete waveforms designed to facilitate clinical versatility: Interferential (4 pole), Premodulated (2 pole), Medium Frequency (Russian), Biphasic, High Volt Pulsed Galvanic, Microcurrent, TENS-Asymmetrical Biphasic, TENS-Symmetrical Biphasic, and Galvanic (Continuous DC) waveforms. Waveforms may be combined with on-off programs for neuromuscular education as well as frequency and amplitude modulation programs for optimal pain management.

The new touch-sensitive, patented M Wheel technology has been used to make starting a treatment quick and easy. The high-resolution color display allows the clinician to monitor all treatment parameters continuously. In addition, the clinician can set on/off times, up and down ramps, pulse width and frequency, along with frequency modulation for some of the waveforms. The 240 offers both laser and infrared technology. Unlike most other units, the 240 has the light therapy software already built into the unit. All you need to do is purchase either the laser probe or the cluster probe for light therapy capabilities.

The Mettler Sys*Stim 240 also has numerous anatomical and waveform specific protocols complete with electrode placement guidance. Once a protocol is selected, the Sys*Stim 240 will go to the treatment page, electrodes can be placed on the patient and the intensity control can be adjusted to begin the treatment. Clinicians may also store their own treatment protocols for later use. The Sys*Stim 240 can be teamed up with the Sonicator 740 therapeutic ultrasound for combination therapy.

An optional battery pack may be purchased so that therapy can be taken on the road. To make this even easier, a carrying bag made especially for the Sys*Stim 240 and its accessories is also available.

Mettler Sys*Stim 240 Neuromuscular Stimulator Features

• Nine stimulation waveforms.
• Ability to use up to two different waveforms using separate timers.
• Has up to three independent timers so you can treat up to three patients at the same time; two with electrical stimulation and one with the optional laser or cluster applicator.
• New touch-sensitive technology has been used to make starting a treatment easy.
• High-resolution color display allows you to monitor all treatment parameters continuously.
• Patented M Wheel provides easy navigation through all of the menus.
• Treatment protocols complete with electrode placement guidance, allow you to quickly program treatment parameters for your patients.
• Space available to save your own special treatment protocols for each waveform and for light therapy.
• Comes with a pin to banana adapter that will allow you to run your stim through your 740 ultrasound unit for combination therapy.
• Translated into eight languages.
• ETL and C-ETL listed.

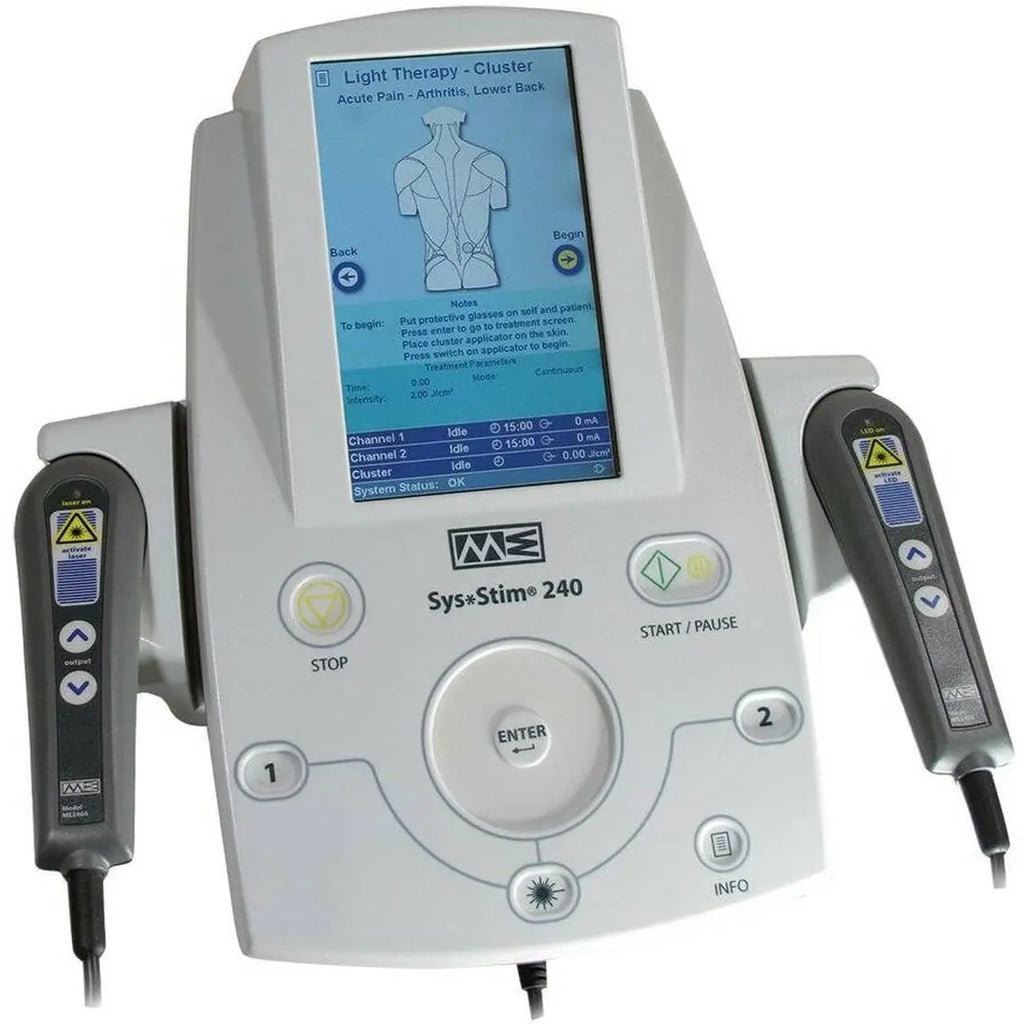

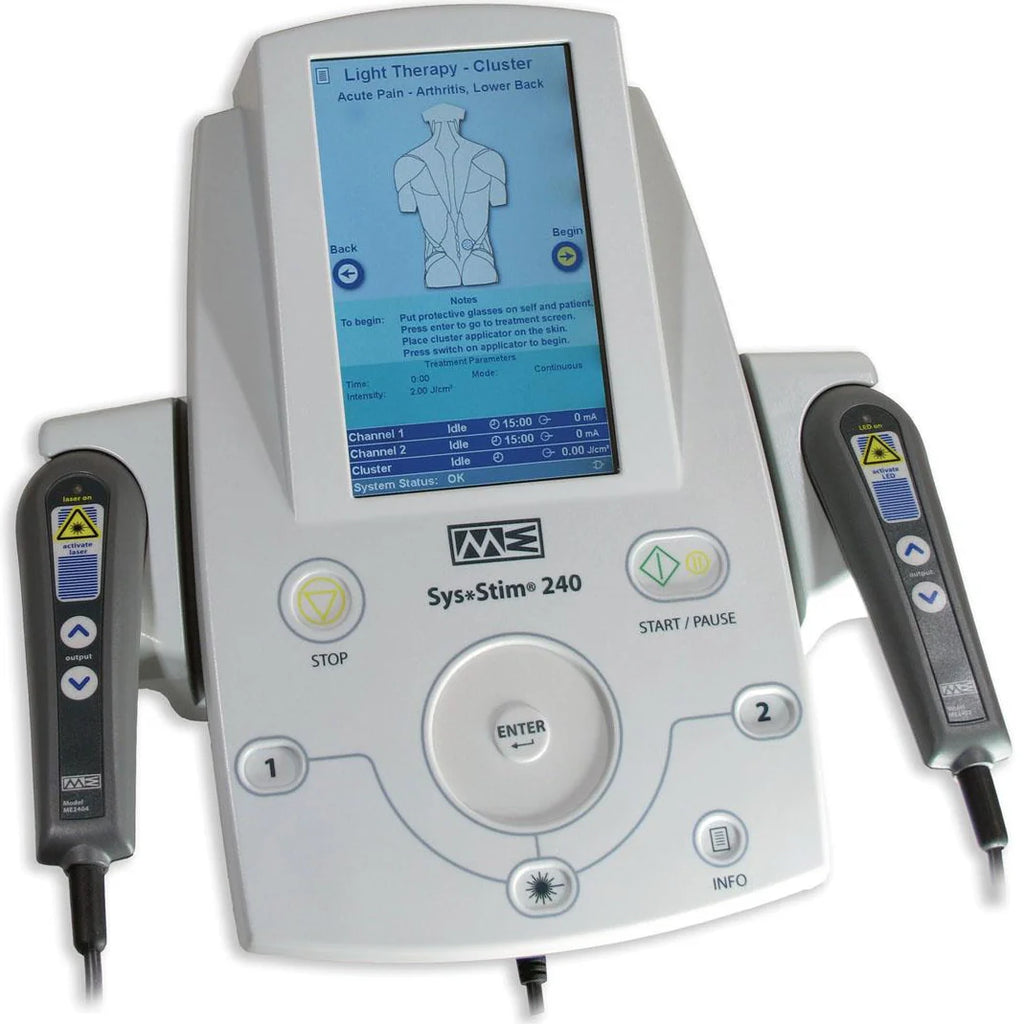

• Optional laser or cluster light therapy.

Mettler Sys*Stim 240 Neuromuscular Stimulator Specifications

• Input: 100 - 240 VAC, 50/60 Hz.
• Treatment Time: 1 - 60 minutes.
• Weight: 4.5 lb (2 kg), 5.5 lb (2.5 kg) with battery.
• Dimensions: 13" (L) x 8" (W) x 8" (H) (33 cm x 20 cm x 20 cm).
• Operating Temperature: 50 to 104 °F.
• Operating Humidity: 30 to 75% relative humidity at 104 °F.
• Storage Temperature: -40 to 167 °F.
• Storage Humidity: 5 to 95% relative humidity, non-condensing.

Mettler Sys*Stim 240 Neuromuscular Stimulator Accessories

The following accessories are compatible and commonly purchased with the Sys*Stim 240 Neuromuscular Stimulator:

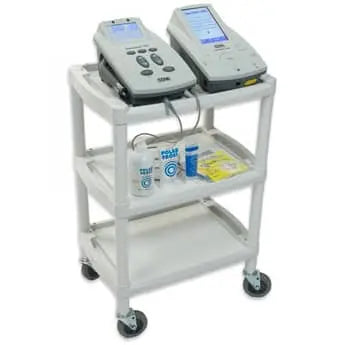

• #73: Three-shelf Mobile Cart.
• #110: Travel Bag.
• Sponge Electrode:
  • #2000: Pack of Four (2" x 2").
  • #2002: Pack of Four (4" x 4").
  • #2004: Single (3.5" x 7").
  • #2006: Single (8" x 10").
• Sponge Insert:
  • #2001: 24 Pack (2" x 2").
  • #2003: 24 Pack (4" x 4").
  • #2005: 12 Pack (3.5" x 7").
  • #2007: 12 Pack (8" x 10").
• #2009: Electrode Strap (4/Box).
• #2023: Pencil Electrode Set.
• #2027: Pin to Banana Adapter (4/Pack).
• EZ-Trode Self-Adhesive Electrode with Aloe Vera:
  • #2221: 2" Diameter Round (4 Electrodes per Package / 40 Total).
  • #2222: 2.75" Diameter Round (4 Electrodes per Package / 40 Total).
  • #2223: 2" x 5" Rectangular (2 Electrodes per Package / 20 Total).
  • #2224: 2" Square (4 Electrodes per Package / 40 Total).
• #2260: Electrode Cable Set for a Single Channel.
• #2403: Patient Safety Switch.
• V Trode Self-Adhesive Electrode (40/Box):
  • #2702: Round - 2".
  • #2703: Round - 2.75".
  • #2704: Oval - 2" x 4".
  • #2705: Square - 2".
• #5403: Protective Uvex Glasses.
• Detachable Line Cord:
  • #7293: Domestic.
  • #7296: IEC (220 V).
• #7401: Rechargeable Battery Pack.

Mettler Sys*Stim 240 Neuromuscular Stimulator Literature

Mettler Sys*Stim 240 Instruction Manual

Mettler Sys*Stim 240 Neuromuscular Stimulator Brochure
