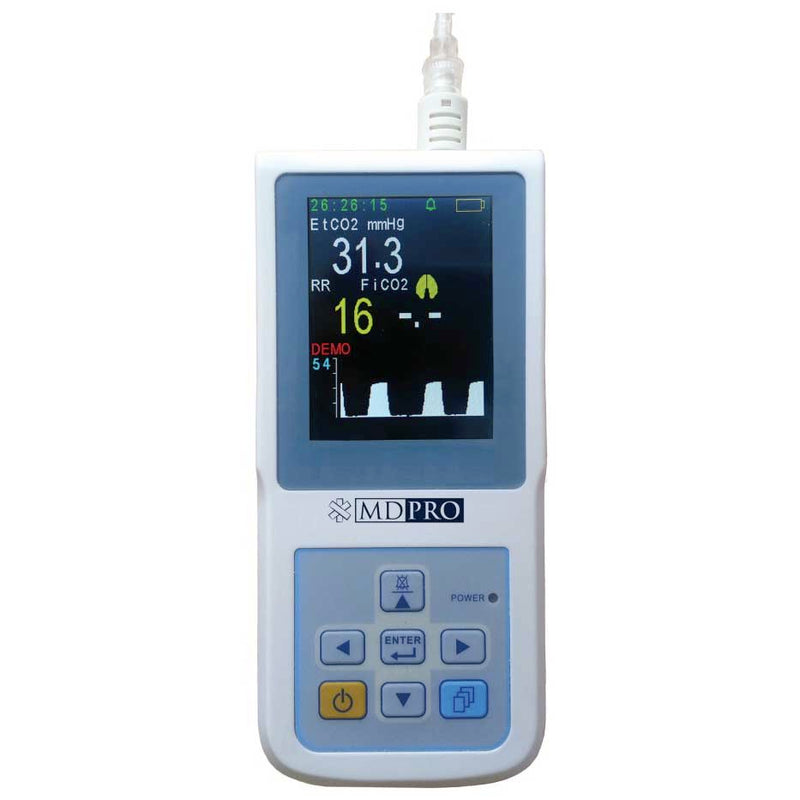

MDPro MP-7300 Capnograph and Oximeter

MDPro MicroCap 9 Handheld Capnograph and Oximeter Features

• Temperature, Pressure compensation system, and Zero readjustment system.
• Balance gas compensation minimizing influence against other gases.
• Lung pressure and temperature compensation (BTPS compensation) available.
• Applicable for intubated or non-intubated patients.
• Pump flux for adult and infant.
• Water filter specially designed for heavy humidity environment.
• Audio and Visual alarms for exceeding limits and Apnea.
• 24 hours graphic trend can be stored after power-off.
• Nellcor Sp0₂.
• USB connectivity to PC for data transfer.
• Equipped with MoveOxy advanced digital Sp0₂, the MicroCap 9 handheld Capnograph and Oximeter is capable of severe monitoring conditions, providing reliable Sp0₂ and pulse rate measurements.
  • Accurate monitoring even with weak pulse signals.
  • Reliable monitoring even in motion.
  • Provides graphical trends and pletysmographic waveform.

MDPro MicroCap 9 Handheld Capnograph and Oximeter Specifications

• EtC0₂ / C0₂:
  • EtC0₂ / C0₂ Range: 0 - 150 mmHg (0 - 20 kPa, or 0 - 20% (V/V)).
  • Accuracy:
    • +/- 2 mmHg when 0-40 mmHg.
    • +/- 5% (reading) when > 41 - 70 mmHg.
    • +/- 8% (reading) when > 71 - 100 mmHg.
    • +/- 10% (reading) when > 101 - 150 mmHg.
  • Update: Every breath, 10 sec, 10 sec, or 30 sec selectable.
  • Trend Length: 24 hours.
• Respiration Rate:
  • Range: 3 - 150 / min.
  • Accuracy: +/- 1% (reading) or +/- 1 time / min, whichever is greater.
  • Trend Length: 24 hours.
  • Flux: 50 - 250 cc / min selectable.
• Sp0₂:
  • Oximetry Saturation Range: 0 - 100%.
  • Accuracy:
    • +/- 2% when 70 - 100%.
    • +/- 3% when 50 - 69%.
• Pulse Rate:
  • Range: 30 - 250 bpm.
  • Accuracy: +/- 2 bpm or +/- 2% (reading) when 30 - 250 bpm.
  • Trend Length: 24 hours.
• Power:
  • AC Input: 100 V - 250 V, 50 Hz / 60 Hz.
  • AC Power Consumption: 5 W.
• Operation:
  • Working Temperature: 5 - 40 degrees C.
  • Humidity: 30 - 75% (non-condensing).
  • Atmospheric Pressure: 86 - 106 kPa.
• Battery:
  • Battery Type: Built-in rechargeable lithium battery.
  • Battery Capacity: 3.6 V, 3000 mAh.
  • Working Time: 10 hours.
• Dimensions: 70 mm x 160 mm x 40 mm.
• Weight: 600 grams.
• Languages: English, Spanish, Dutch.

MDPro MicroCap 9 Handheld Capnograph and Oximeter Literature

MDPro MicroCap 9 Handheld Capnograph and Oximeter Brochure
