Masimo Rad-57 Pulse Oximeter

by Masimo
Retail Price:
$ 595.00

Select Configuration

Condition: Factory New

Warranty: 1 Year

Lead Time: Usually Ships in 5-7 Business DaysLead Time refers to the time it will take to prepare items for shipment.

The Masimo Rad-57 Pulse Oximeter includes an Adult Reusable Direct Connect Sensor, Handheld Protective Boot, Operator's Manual, and four AA Alkaline batteries.

Warranty: 1 Year - Parts and Labor.

The Rad-57 is a versatile handheld oximeter featuring Masimo SET Measure-through Motion and Low Perfusion Pulse Oximetry. Due to its size, weight, and ruggedness, the Rad-57 is ideal for use in clinical, field, or hospital settings.

The Rad-57 is available in two configurations, upgradeable (#9216) and non-upgradable (#9216-U), to fit your facility's needs and budget.

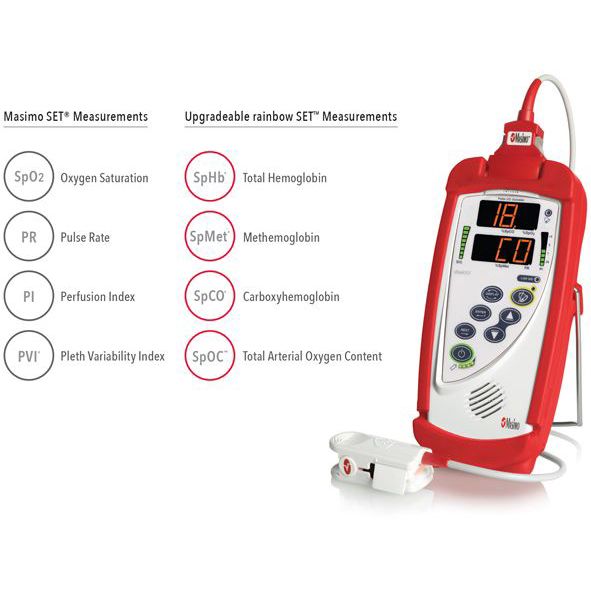

Masimo Rad-57 Pulse Oximeter Features

  • Masimo SET Measurements (included standard):
    • Oxygen Saturation (SpO2)
    • Pulse Rate (PR)
    • Perfusion Index (PI)
    • Pleth Variability Index (PVI): Helps assess fluid responsiveness in mechanically ventilated patients, aiding fluid management.
  • rainbow SET Measurements (upgradeable options): In addition to traditional blood gas measurements, these rainbow SET parameters can be added on after purchase to adapt to the needs of your facility and patients:
    • Total Hemoglobin SpHb (#2630) - Helps with quick, spot-check assessment.
    • Methemoglobin SpMet (#2297) - Helps identify methemoglobinemia, a dangerous and deadly reaction caused by many drugs routinely administered in clinical settings.
    • Carboxyhemoglobin SpCO (#2296) - Helps detects carbon monoxide (CO) poisoning.
    • Oxygen Content SpOC (#2630): By calculating hemoglobin and oxygen saturation, SpOC provides a more complete picture of your patients' oxygenation status.
  • Continuous monitoring.
  • Portable.
  • Quick and easy to use.
  • Low Signal I.Q. (SIQ) Indicator: Identifies conditions of low measurement confidence.
  • Up to 72 hours of trending memory.
  • Sensor and Cable Options:
    • rainbow sensors and cables (such as the rainbow RC Cable, rainbow DCI Adult Sensor, and rainbow DCI-P Pediatric Sensor).
      • rainbow sensors must be used when measuring rainbow SET measurements (SpHb, SpCO, SpMet and SpOC).
    • Red reusable sensors.
    • RD, LNCS, and M-LNCS adhesive sensors.

Masimo Rad-57 Pulse Oximeter Specifications

  • Accuracy:
    • Oxygen Saturation (%SpO2) Accuracy Range: 70 - 100%.
      • No Motion - Adults/Pediatrics/Infants: 2%.
      • Motion - Adults/Pediatrics/Infants/Neonates: 3%.
      • Low Perfusion - Adults/Pediatrics/Infants/Neonates: 2%.
    • Pulse Rate (PR) Accuracy Range: 25 - 240 bpm.
      • No Motion - Adults/Pediatrics/Infants/Neonates: 3 bpm.
      • Motion - Adults/Pediatrics/Infants/Neonates: 5 bpm.
      • Low Perfusion - Adults/Pediatrics/Infants/Neonates: 3 bpm.
    • Total Hemoglobin (SpHb) Accuracy Range: 8 - 17 g/dL.
      • Adults/Pediatrics: 1 g/dL.
    • Carboxyhemoglobin (%SpCO) Accuracy Range: 1 - 40%.
      • Adults/Pediatrics/Infants: 3%.
    • Methemoglobin (%SpMet) Accuracy Range: 1 - 15%.
      • Adults/Pediatrics/Infants/Neonates: 1%.
  • Display Type: LED.
  • Dimensions: 6.2" x 3" x 1.4" (15.8 cm x 7.6 cm x 3.6 cm).
  • Weight: 0.8 lbs (13 oz) with batteries.
  • Batteries:
    • Type: Four AA Alkaline.
    • Capacity: Up to 10 hours.
  • Environmental:
    • Operating Temperature: 0 to 129 °F (-18 to 54 °C).
    • Atmospheric Pressure: 500 - 1060 mbar.

Masimo Rad-57 Pulse Oximeter Configurations

  • #9216-U: Not Upgradeable - Standard Masimo SET Measurements Only.
  • #9216: Upgradeable to rainbow SET Measurements.

Masimo Rad-57 Pulse Oximeter Literature

Masimo Rad-57 Pulse CO-Oximeter Brochure
