Masimo Oridion Capnostream 20 with Printer

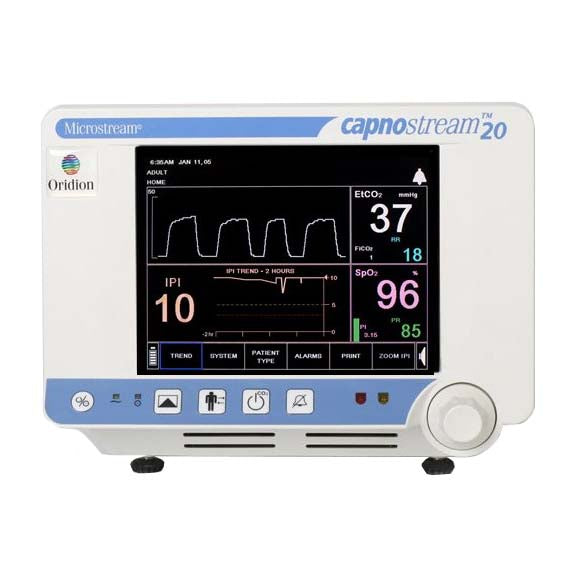

Masimo Oridion Capnostream20 with Printer

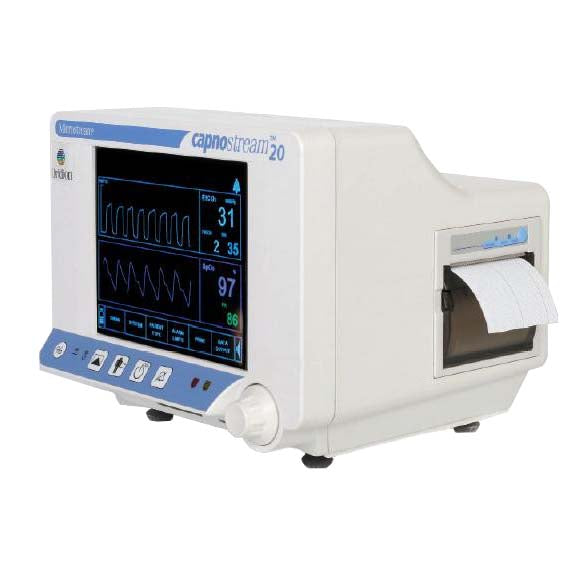

Masimo Oridion Capnostream20 with Printer - Side View
Masimo Oridion Capnostream20 with Printer
Masimo Oridion Capnostream20 with Printer - Side View
Key Features
  • SKU: MSO-16245
  • Weight: 7.72 lb

  • Learn more:

Contact The Manufacturer
  • MFR: Masimo Ships from MFI Medical
  • MPN: 16245
  • Phone: (800) 326-4890
$5,954.85

+ Free Shipping

Item Discontinued

%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E

Shop with Confidence

Free Shipping

+

Free Returns

Payment Options

+

Price Match

Description

The Masimo Oridion Capnostream 20 with Printer (#16245) is a bedside capnography monitor which provides accurate and reliable assessments for all patient types.

Warranty: 1 Year.

Capnography is a non-invasive method for monitoring the level of carbon dioxide in exhaled breath (EtCO2) to assess a patient's ventilatory status. The Capnostream can be used with both intubated and non-intubated patients to achieve accurate and reliable results in the presence of various gases and for a wide range of temperature environments.

The Capnostream features an easy to use rotary dial selector for simple navigation of the device. Easily access patient history to view graphical representations of trend data right on the color display.

Features

Masimo Oridion Capnostream 20 with Printer Features

  • No need for manual calibration and zeroing, water traps, or flushing monitor between patients.
  • Shown in a clinical study to reduce clinically insignificant alarms by 53% with the Oridion Smart Capnography SARA algorithm.
  • Connectivity to nurse call, paging, and central monitoring systems.
  • Large, bright color display with an easy-to-use, knob-navigated, flat-menu structure.
  • Dual parameter monitor that supports the current standard of care providing CO2 and SpO2 measurements.
  • 72-hour trends to review patient history.
  • Event marking to compare events and medication administration to changes in patient status.
  • Case recording to help organize patient files.
  • USB output to transfer patient data to USB flash memory devices.
  • Analog output for use in sleep labs and other laboratory environments.
  • RS-232 port for data transfer.
  • If power is lost when the monitor is operating from AC power, it automatically switched to the internal battery pack for power.

Specifications

Masimo Oridion Capnostream 20 with Printer Specifications

  • Power:
    • Input Voltage: 100 - 240 VAC, 50/60 Hz.
    • Fuses: Two F3.15A 250 Volt.
    • Input Power: 90 VA.
  • Battery:
    • Battery Type: 14.8 V, 4Ah Lithium-Ion.
    • Battery Operation: 2.5 hours (without thermal recorder).
    • Battery Charging Time: 100% in 12 hours.
  • Screen: 6.4" (162 mm) color TFT display.
  • Screen Resolution: 640 x 480 pixels.
  • Trace Speed: 3.0, 6.3, 12.5, and 25 mm / second.
  • Waveform Sampling Rate: 75.7 samples / second for SpO2; 20 samples / second for Capnography.
  • Trend Storage: 8640 point storage.
  • CO2, EtCO2, FiCO2 Range: 0 - 99 mmHg.
  • CO2 Waveform Resolution: 0.1 mmHg.
  • EtCO2, FiCO2 Resolution: 1 mmHg.
  • CO2 Accuracy:
    • 0 - 38 mmHg: ± 2 mmHg.
    • 39 - 99 mmHg: ± 5% of reading + 0.08% for every 1 mmHg above 38 mmHg.
  • Respiration Rate Range: 0 - 150 bpm.
  • Respiration Rate Accuracy:
    • 0 - 70 bpm: ± 1 bpm.
    • 71 - 120 bpm: ± 2 bpm.
    • 121 - 150 bpm: ± 3 bpm.
  • Flow Rate: 50 ml/minute, flow measured by volume.
  • Waveform Sampling: 20 samples / second.
  • Response Time: 2.95 seconds (typical).
  • Initialization Time: 40 seconds (typical).
  • Calibration Interval: Initially calibrate after 1,200 operating hours, then once a year or after 4,000 operating hours, whichever comes first.
  • SpO2 Measurement Range: 1 - 100%.
  • SpO2 Range:
    • Adult Mode 0 - 69%: Unspecified.
    • Adult Mode 70 - 100%: ± 2 digits.
    • Neonate Mode 0 - 69%: Unspecified.
    • Neonate Mode 70 - 100%: ± 3 digits.
  • Pulse Rate Range: 25 - 240 bpm.
  • Pulse Rate Accuracy:
    • No Motion Conditions: ± 3 digits.
    • Motion Conditions: ± 5 digits.
  • Perfusion Index Range: 0.02 - 20%.

Literature

Masimo Oridion Capnostream 20 with Printer Literature

Masimo Capnostream 20 Operator's Manual

Frequently asked questions

What parameters does the Capnostream 20 monitor?

The Masimo Oridion Capnostream 20 with Printer provides comprehensive monitoring by measuring several key parameters:

  • CO2 Levels (EtCO2, FiCO2): It accurately assesses exhaled carbon dioxide levels, with a range of 0-99 mmHg.
  • Respiration Rate: The device measures respiration rates from 0-150 bpm.
  • SpO2 (Oxygen Saturation): It monitors blood oxygen saturation levels, ranging from 1-100%.
  • Pulse Rate: The monitor also tracks pulse rates from 25-240 bpm.
  • Perfusion Index: It includes a perfusion index range of 0.02-20%.
What is the benefit of the Smart Capnography SARA algorithm?

The Oridion Smart Capnography SARA algorithm helps reduce clinically insignificant alarms by 53%. This feature enhances efficiency by minimizing alarm fatigue, allowing medical staff to focus more on critical patient care.

Does the Capnostream 20 feature a large color display?

Yes, the Capnostream 20 is designed with a large, bright color display to ensure excellent visibility of patient data and waveforms at the bedside. Its intuitive interface is navigated using a rotary dial selector and a flat-menu structure, simplifying operation and data review.The display specifications are as follows:* Type: Color TFT display* Size: 6.4 inches (162 mm)* Resolution: 640 x 480 pixelsThis interface allows clinicians to easily access and review comprehensive data, including 72 hours (8640 points) of stored trend history.

Does the device have battery backup in case of power loss?

Yes, the device automatically switches to its internal battery pack if AC power is lost, ensuring continuous monitoring.

How much trend data can be stored?

The Masimo Oridion Capnostream 20 can store 8640 points of trend data, allowing for comprehensive review of patient status over time. This includes 72-hour trends, event marking, and case recording for efficient patient data organization.

How long does the internal battery last?

The Masimo Capnostream 20 uses a 14.8 V, 4Ah Lithium-Ion battery to provide essential power redundancy and support portable use. The battery specifications are: * Operating Time: Up to 2.5 hours (when the integrated thermal recorder is not in use). * Charging Time: It requires 12 hours to reach a full 100% charge. The monitor automatically switches to the internal battery if the AC power supply is lost.

What are the robust connectivity options?

The Masimo Oridion Capnostream 20 offers comprehensive connectivity options to support data management and integration into clinical settings, including:

  • Integration: Connects to nurse call, paging, and central monitoring systems.
  • Data Ports: Features an RS-232 port and an Analog output.
  • Data Transfer: Includes a USB output specifically for transferring patient data to flash memory devices.
Does the device require manual calibration or zeroing?

No, the Masimo Oridion Capnostream 20 does not require manual calibration or zeroing, simplifying its use and maintenance.

Can the Masimo Oridion Capnostream 20 be used for both intubated and non-intubated patients?

The Masimo Oridion Capnostream 20 is designed for use with both intubated and non-intubated patients, providing accurate and reliable capnography assessments.

Does this model come with a printer for immediate data recording?

Yes, the Masimo Oridion Capnostream 20 includes a printer. This feature allows for immediate recording and documentation of patient data, aiding in the organization of patient files and supporting comprehensive data management in various clinical settings.
